Description

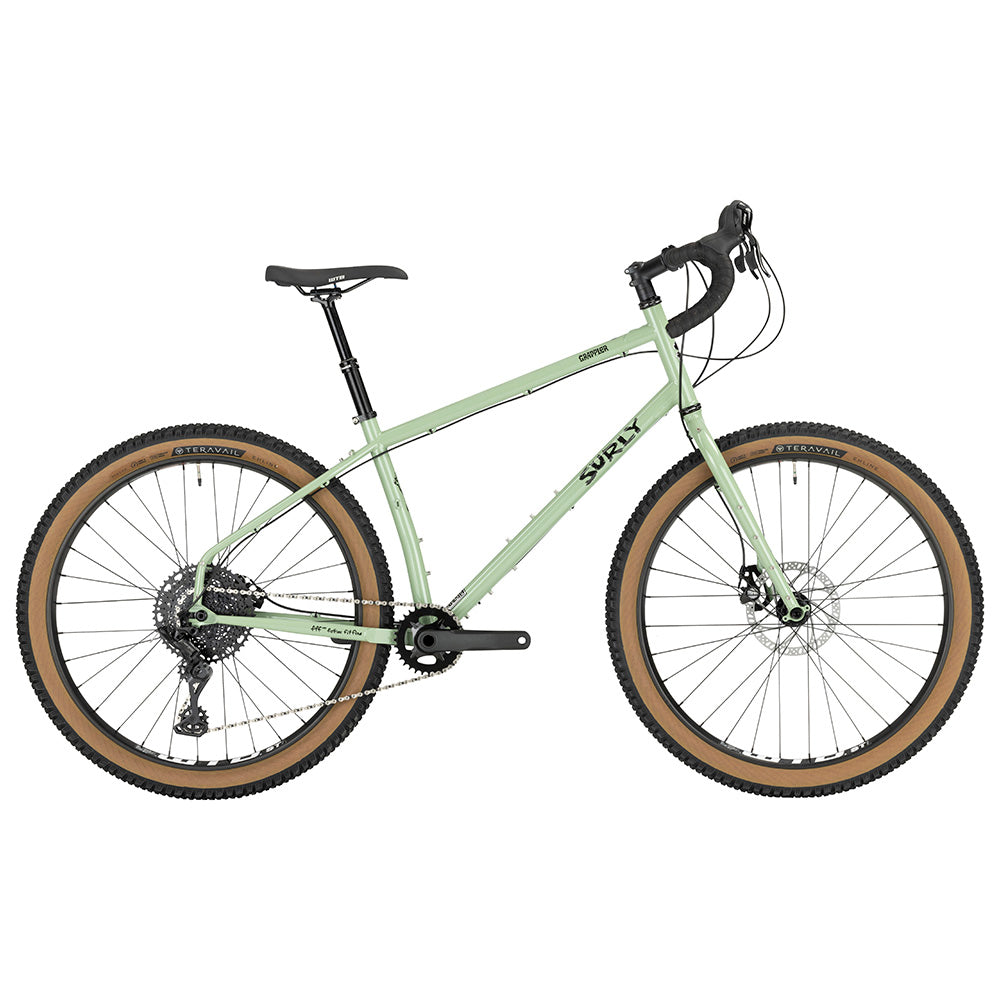

The Surly Grappler is a drop-bar trail bike built for single-track sessions, all day dirt rides, and backpacking excursions.
Off-road cyclists have long adapted drop bars for trail bikes to enhance their riding experience, and the Surly Grappler is designed specifically to address this need with greater precision. Its geometry is crafted to offer a stable and comfortable drop-bar position while delivering an engaging ride across mixed terrains.
The Grappler is built to accommodate wide tires, allowing for better traction and comfort on rugged surfaces. It also features a variety of mounting points for racks, fenders, and other accessories, making it ideal for carrying both daily essentials and overnight gear.
Whether you're tackling overgrown fire roads or exploring less-traveled paths, the Grappler is equipped to handle diverse conditions, providing a reliable and enjoyable ride. Its thoughtful design ensures that you can confidently take on challenging trails with all your gear in tow.
Features:
- Featuring Surly's versatile Gnot-Boost spacing allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
- Custom dropouts ready to run single-speed or internally geared hub setups
- Seatstay-mounted bottle bosses plus three-pack mounts at the top and bottom of the down tube
- Clearance for 27.5 x 2.8" or 29 x 2.1" tyres (with or without mudguards)
Specification:
- Frame: 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork: 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Headset: Cane Creek 40
- Handlebar: Salsa Cowchipper 31.8mm
- Stem: Promax DA-296, 31.8mm
- Grips: Velo Black cork
- Seatpost: TransX YSP15 Dropper, 360mm, 100mm travel
- Saddle: WTB Volt 142
- Front Derailleur: N/A
- Rear Derailleur: microSHIFT M6205
- STI Levers: microSHIFT AdventX Dual Control Levers
- Crankset: Samox BSA 2PCS Boost 32t
- Cassette: microSHIFT 11-48t
-
Bottom Bracket: Samox BSA
- Brakes: Tektro Mira MD-C400
- Rotors: Tektro 180/160
- Tyres: Teravail Ehline, 27.5 x 2.5", 60tpi
- Rims: WTB ST i40 TCS
- Front Hubs: Novatec 15x110mm, 32h
- Rear Hubs: Novatec 12x148mm, 32h
Complete bike spec subject to change.
You can find the Surly bike sizing here for reference.
Surly Grappler
The Surly Grappler is a drop-bar trail bike built for single-track sessions, all day dirt rides, and backpacking excursions.
Off-road cyclists have long adapted drop bars for trail bikes...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Surly Grappler is a drop-bar trail bike built for single-track sessions, all day dirt rides, and backpacking excursions.
Off-road cyclists have long adapted drop bars for trail bikes to enhance their riding experience, and the Surly Grappler is designed specifically to address this need with greater precision. Its geometry is crafted to offer a stable and comfortable drop-bar position while delivering an engaging ride across mixed terrains.
The Grappler is built to accommodate wide tires, allowing for better traction and comfort on rugged surfaces. It also features a variety of mounting points for racks, fenders, and other accessories, making it ideal for carrying both daily essentials and overnight gear.
Whether you're tackling overgrown fire roads or exploring less-traveled paths, the Grappler is equipped to handle diverse conditions, providing a reliable and enjoyable ride. Its thoughtful design ensures that you can confidently take on challenging trails with all your gear in tow.
Features:
- Featuring Surly's versatile Gnot-Boost spacing allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
- Custom dropouts ready to run single-speed or internally geared hub setups
- Seatstay-mounted bottle bosses plus three-pack mounts at the top and bottom of the down tube
- Clearance for 27.5 x 2.8" or 29 x 2.1" tyres (with or without mudguards)
Specification:
- Frame: 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork: 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Headset: Cane Creek 40
- Handlebar: Salsa Cowchipper 31.8mm
- Stem: Promax DA-296, 31.8mm
- Grips: Velo Black cork
- Seatpost: TransX YSP15 Dropper, 360mm, 100mm travel
- Saddle: WTB Volt 142
- Front Derailleur: N/A
- Rear Derailleur: microSHIFT M6205
- STI Levers: microSHIFT AdventX Dual Control Levers
- Crankset: Samox BSA 2PCS Boost 32t
- Cassette: microSHIFT 11-48t
-
Bottom Bracket: Samox BSA
- Brakes: Tektro Mira MD-C400
- Rotors: Tektro 180/160
- Tyres: Teravail Ehline, 27.5 x 2.5", 60tpi
- Rims: WTB ST i40 TCS
- Front Hubs: Novatec 15x110mm, 32h
- Rear Hubs: Novatec 12x148mm, 32h
Complete bike spec subject to change.
You can find the Surly bike sizing here for reference.
