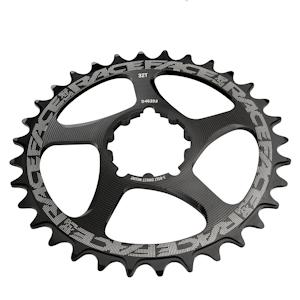

Race Face's new Direct Mount Single ring. Designed and machined in our Vancouver, BC facility, tested on the North Shore and in the Whistler Bike Park.

Race Face Direct Mount rings deliver substantial weight saving compared to a standard SRAM chainring and spider combo. And with added benefit of Narrow/Wide tooth configuration.

FEATURES

• Narrow Wide tooth profiling ensures ultimate chain retention.
• Fits SRAM GXP cranks with the removable spider.
• Replaces your existing chainring and spider which is attached via 3 bolts on the back of the spider.
• Remove spider and simply use these same 3 bolts to re-attach the Race Face DM ring
• 7075-T6 aluminum, aerospace grade strength.
• Stiff 4mm plate thickness to transfer loads without flexing.
• Compatible for 9, 10 and 11 speed.

FEATURES

• Compatible with Sram cranksets with a removable spider
• Narrow Wide tooth profiling ensures ultimate chain retention.
• 7075-T6 aluminum, aerospace grade strength
• Stiff 4mm plate thickness to transfer loads without flexing
• Compatible for 9, 10, 11 and 12 speed*
• SRAM, GXP, and Truvativ are trademarks of SRAM and are used for informational purposes only.

SPECIFICATION

• Sizes: 26, 28, 30, 32, 34, 36.
• Built for: XC/Trail/AM
• Compatable with:
• SRAM X9, X0, XX1.
• Truvativ AKA cranks.
• SRAM S1400.
• S2200.
• S2210.
• GXP.
• Newer S1400 (or X7) cranksets will also work with RF DM rings.
• Weight: 38g (26T) - 76g (36T).
• Colour: Black.

SRAM Direct Mount rings fit SRAM GXP cranks with the removable spider. Replaces your existing chainring and spider which is attached via 3 bolts on the back of the spider. Remove spider and simply use these same 3 bolts to re-attach the Race Face DM ring.

Race Face Direct Mount rings deliver substantial weight saving compared to a standard SRAM chainring and spider combo. And with added benefit of Narrow/Wide tooth configuration.

Compatible with SRAM X9, X0, XX1 and Truvativ AKA cranks. Also compatible with some OE cranks, including the SRAM S1400, S2200 and S2210. GXP models only. Newer S1400 (or X7) cranksets will also work with RF DM rings.

*Please note: Not compatible with with Shimano 12 speed chains.

Lifetime Warranty Cover
The Race Face brand was born out of making durable products that riders could count on, more than any other brand. With the introduction of their new Lifetime Warranty, Race Face is returning to our roots of putting riders first and having their backs. If one with a Lifetime Warranty Cover fails or is rendered non-functional after a crash, we will replace it ASAP.
