Description
Pivot's big hitting electric mountain bike, all of the Pivot factory teams expertise poured in to a big travel, Trail/Enduro/Bikepark ready e-mtb. The Shuttle is an absolute beast over rugged, challenging terrain and big drops.
At the core of the Shuttle LT’s performance is the Bosch Performance CX Race Limited Edition drive unit, delivering an impressive 600 watts of max power. With a 750Wh battery that’s expandable to 1000Wh using the PowerMore range extender, this eMTB gives you the freedom to explore new loops and push further than ever before. The Shuttle LT’s power, paired with its efficient pedalling platform, ensures you conquer climbs effortlessly while maintaining the energy to enjoy the descent.

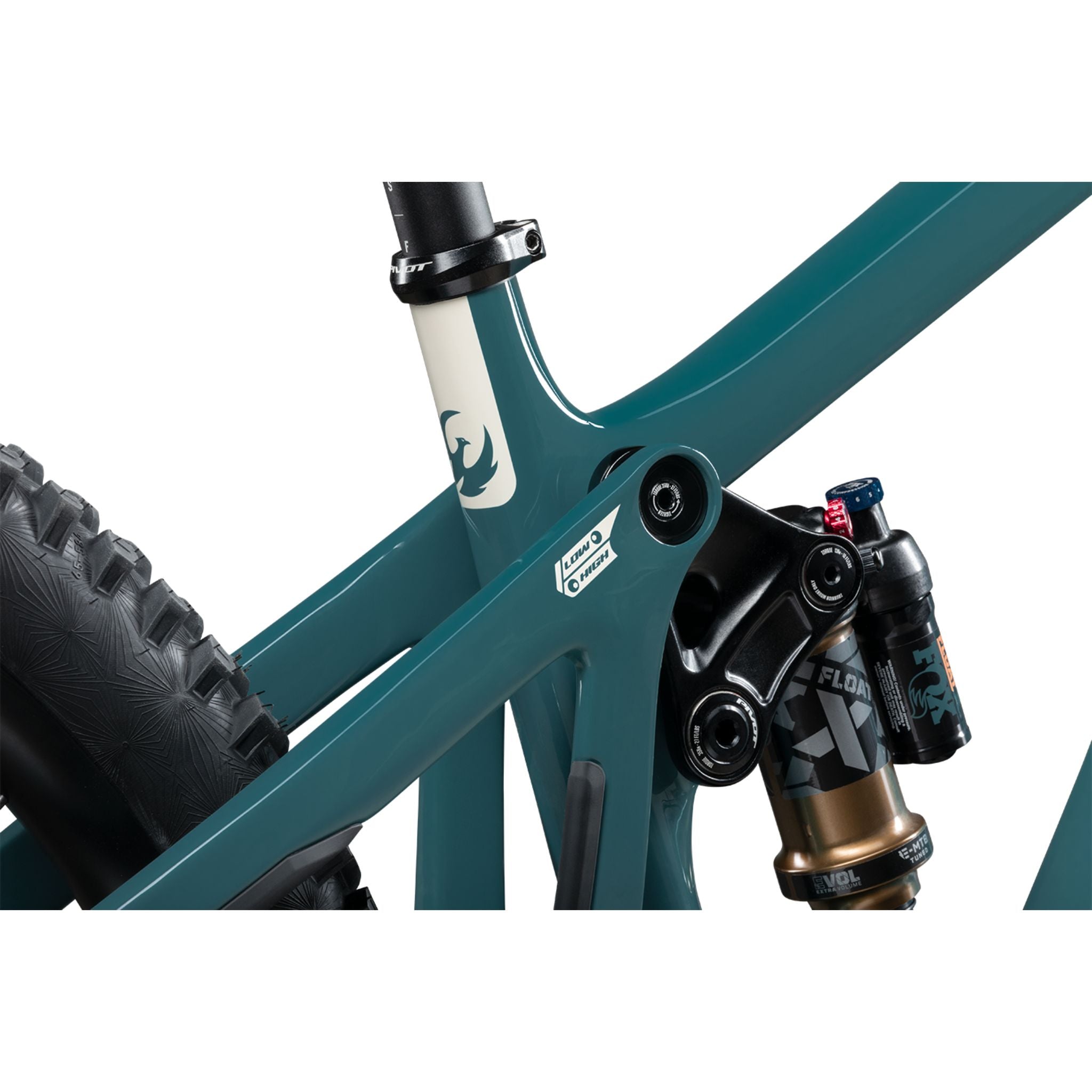

Built around 160mm of dw-Link rear suspension travel and a 170mm Fox 38 fork up front, the Shuttle LT provides the perfect combination of control and confidence. Whether you’re smashing through rock gardens or floating over drops, the bike’s suspension system ensures maximum traction and stability. Combined with the aggressive mixed-wheel setup and Continental Kryptotal Soft Compound Enduro tires, the Shuttle LT inspires you to push your limits and ride with precision through any challenge.
The Shuttle LT is available in in three different complete build levels from Shimano and SRAM and carbon wheel options priced from £9000 to £13,400. Fox Live Valve Neo coil shock upgrade available for £1500 and Bosch PowerMore 250 add-on available for £450.
KEY FEATURES -
- Full Carbon Frame Constructed with Pivot's Proprietary Molding Technology
- Bosch Performance CX Race Limited Edition drive unit on every build level
- Power packed 750Wh Battery
- Bosch PowerMore 250 Range Extender Compatible
- Adjustable Geometry via Pivot Flip-Chip
- 170mm Fox 38 Fork
- 160mm Rear Wheel Travel
- 223mm Front and 203mm Rear Rotors
- Mixed-wheel setup
- Clean Internal Routing with Pivot Cable Port System
Specifications
-
Discipline Enduro/All-Mountain
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Rear Shock - Fox Performance Float X
Fork - Fox Performance 38 29”, 44mm offset, GRIP - 170mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Shimano XT M8100 SGS 12-Speed
Shifter - Shimano XT M8100 SGS 12-Speed
Cassette - Shimano SLX M7100 ISPEC EV 12-Speed
Chain - Shimano Deore M6100 10-51t
Crank Set - Shimano CN-M6100 12 Speed
Brakes - Shimano SLX M7120 4-piston
Rotors - F - Galfer Wave 6 Bolt - 223mm | R - Galfer Wave 6 Bolt - 203mm
Drive unit - Bosch Performance CX Race Edition
Battery - BOSCH Powertube 750wh
Handlebar - Phoenix Race Low Rise Aluminium - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - SDG Tellis 130-150mm (SM), 150mm - 170mm (MD-XL)
Saddle - Phoenix WTB Volt Race (Medium Width)
Wheels - DT Swiss Hybrid H1900, 30mm - Mixed | F - 15x110 / R - 12x157
Tyres - F - Continental Kyrptotal-F 29” x 2.4” Soft Compound Enduro Casing | R - Continental Kyrptotal-R 27.5” x 2.6” Soft Compound Enduro Casing
-
Discipline Enduro/All-Mountain
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Rear Shock - Fox Factory Float X
Fork - Fox Factory 38 29”, 44mm offset, GRIP X2 - 170mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram X0 Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram GX 1275 Eagle Transmission 10-52t
Chain - Sram GX Eagle Transmission Flattop 12-Speed
Crank Set - Praxis Alloy eCranks E-MTB 34t - 160mm
Brakes - Shimano XT M8120 4-piston
Rotors - F - Galfer Wave 6 Bolt - 223mm | R - Galfer Wave 6 Bolt - 203mm
Drive unit - Bosch Performance CX Race Edition
Battery - BOSCH Powertube 750wh
Handlebar - Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Saddle - Phoenix WTB Volt Race (Medium Width)
Wheels - DT Swiss Hybrid HX1501, 30mm - Mixed | F - 15x110 / R - 12x157
Tyres - F - Continental Kyrptotal-F 29” x 2.4” Soft Compound Enduro Casing | R - Continental Kyrptotal-R 27.5” x 2.6” Soft Compound Enduro Casing
-
Discipline Enduro/All-Mountain
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Rear Shock - Fox Factory Float X2
Fork - Fox Factory 38 29”, 44mm offset, GRIP X2 - 170mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram XX Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram XX 1297 Eagle Transmission 10-52t
Chain - Sram XX Eagle Transmission Flattop 12-Speed
Crank Set - Praxis Carbon eCranks E-MTB 34t - 160mm
Brakes - Shimano XTR M9120 4-piston
Rotors - F - Galfer Wave 6 Bolt - 223mm | R - Galfer Wave 6 Bolt - 203mm
Drive unit - Bosch Performance CX Race Edition
Battery - BOSCH Powertube 750wh
Handlebar - Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Saddle - Phoenix WTB Volt Team (Medium Width)
Wheels - DT Swiss Hybrid HXC1501 Carbon, 30mm - Mixed | F - 15x110 / R - 12x157
Tyres - F - Continental Kyrptotal-F 29” x 2.4” Soft Compound Enduro Casing | R - Continental Kyrptotal-R 27.5” x 2.6” Soft Compound Enduro Casing

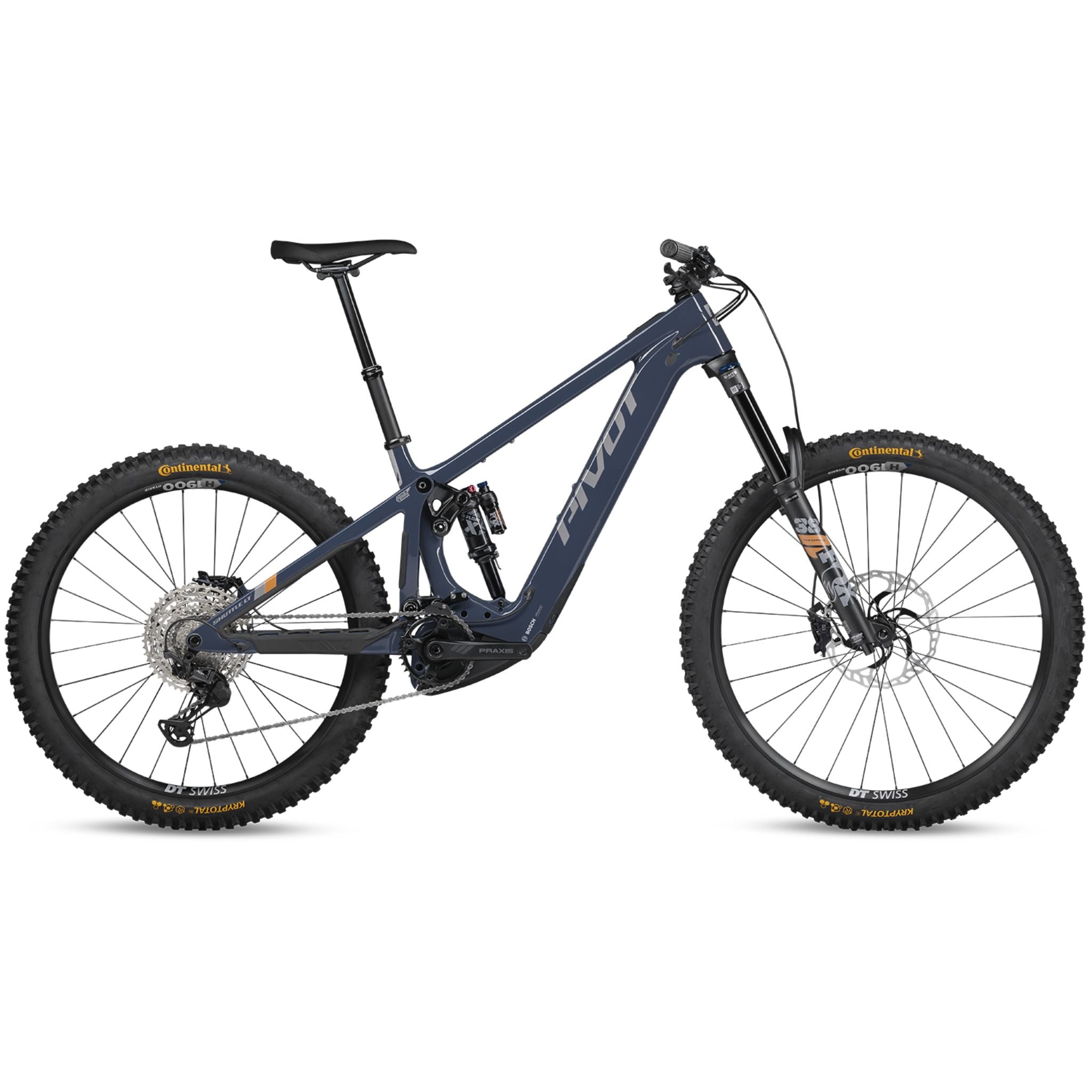

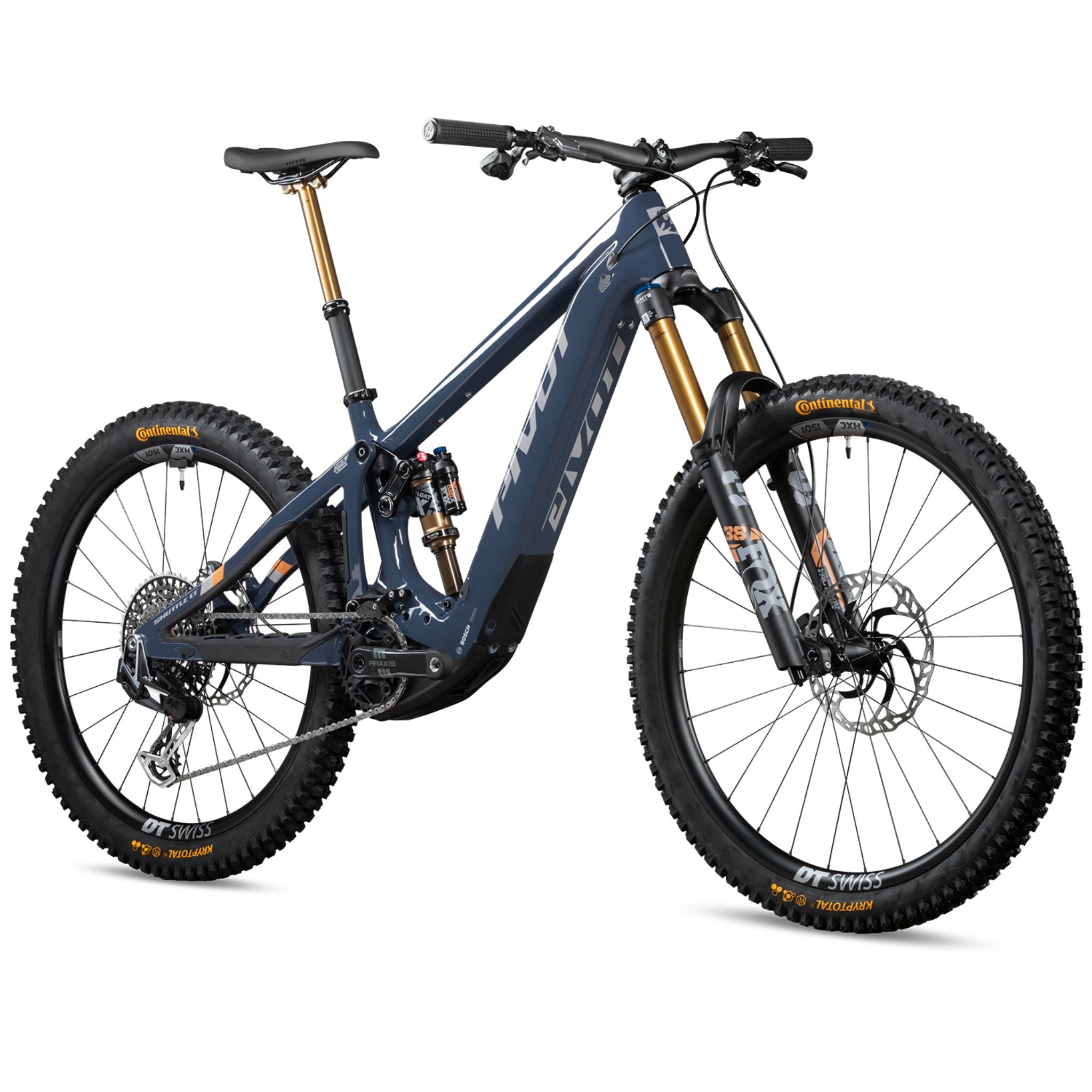

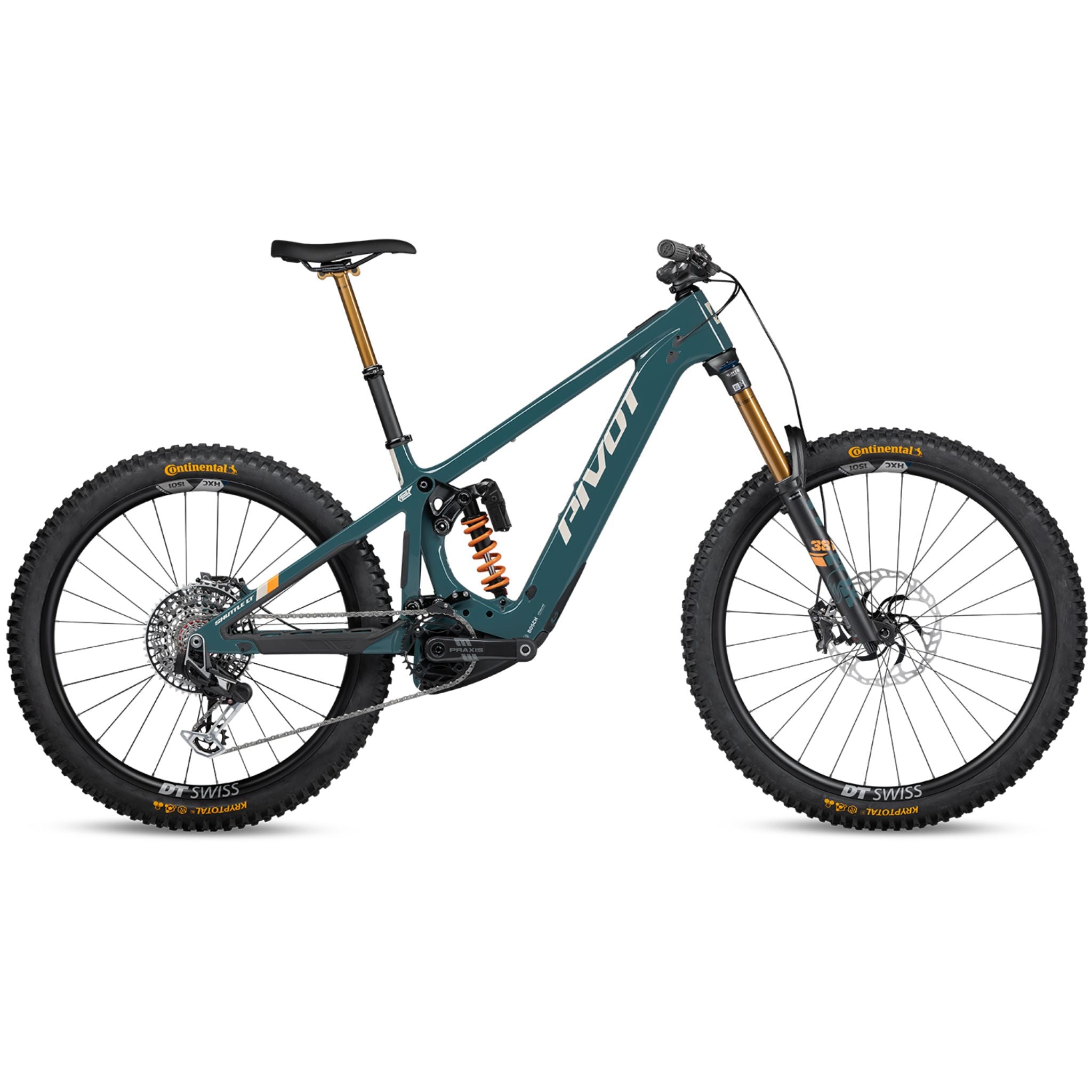

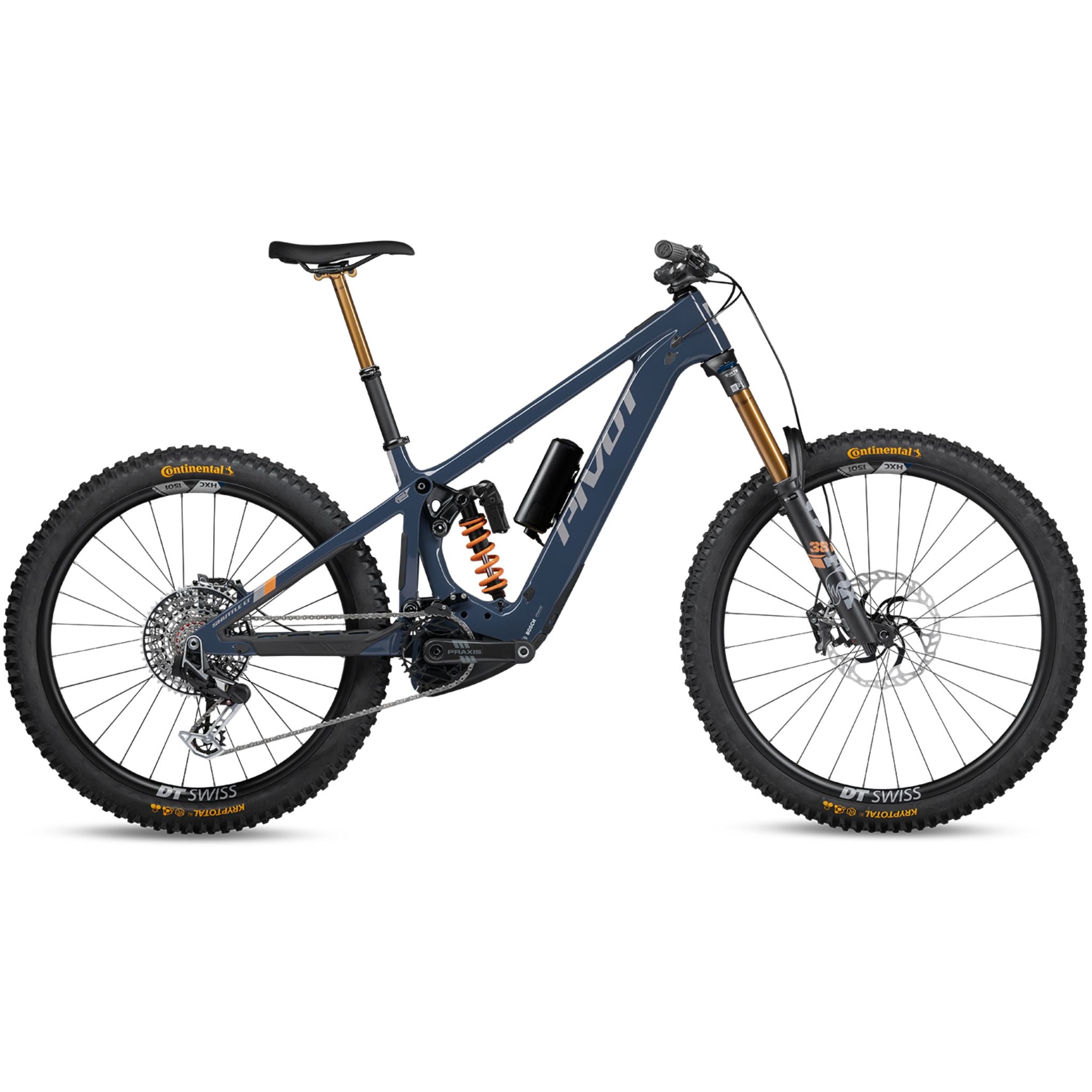

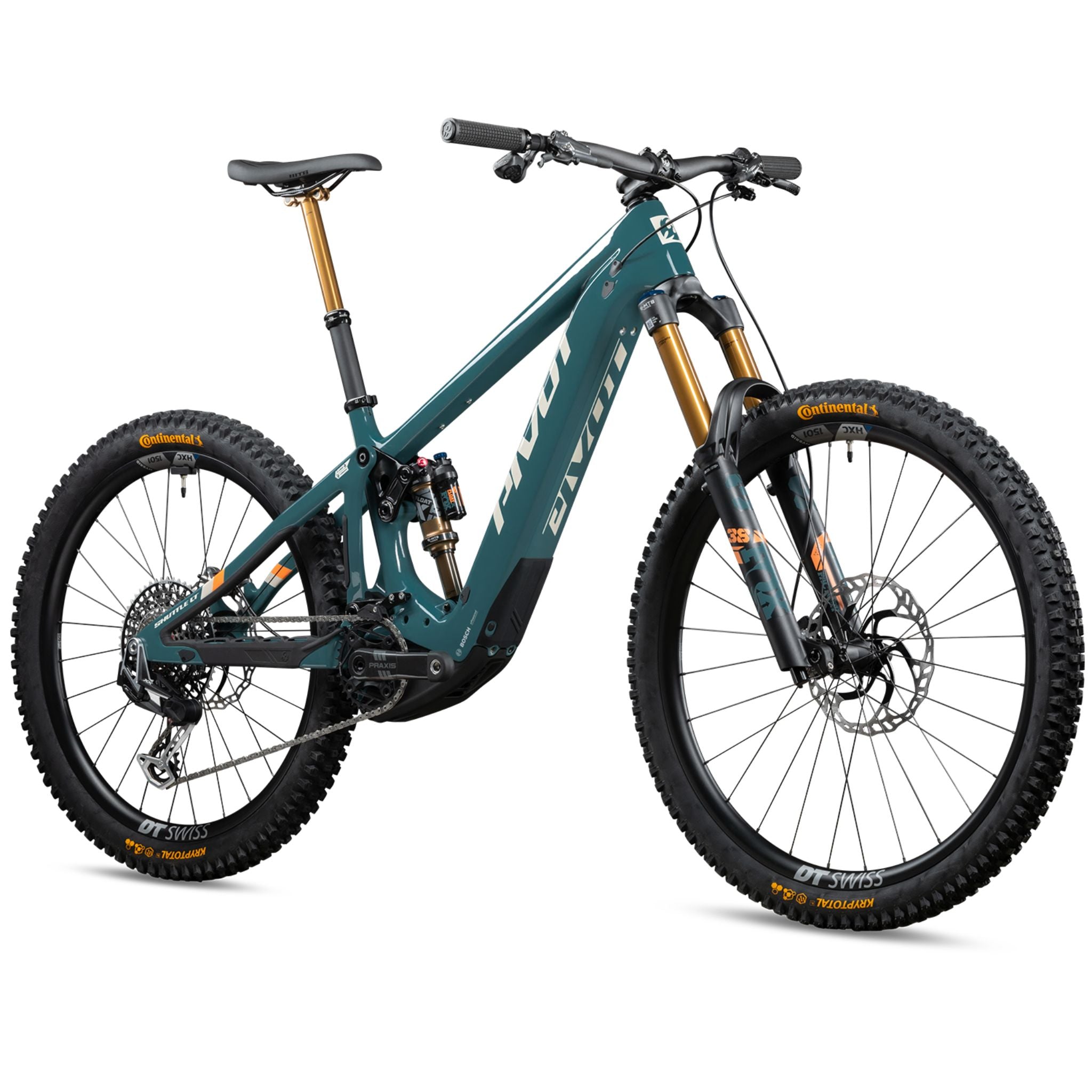

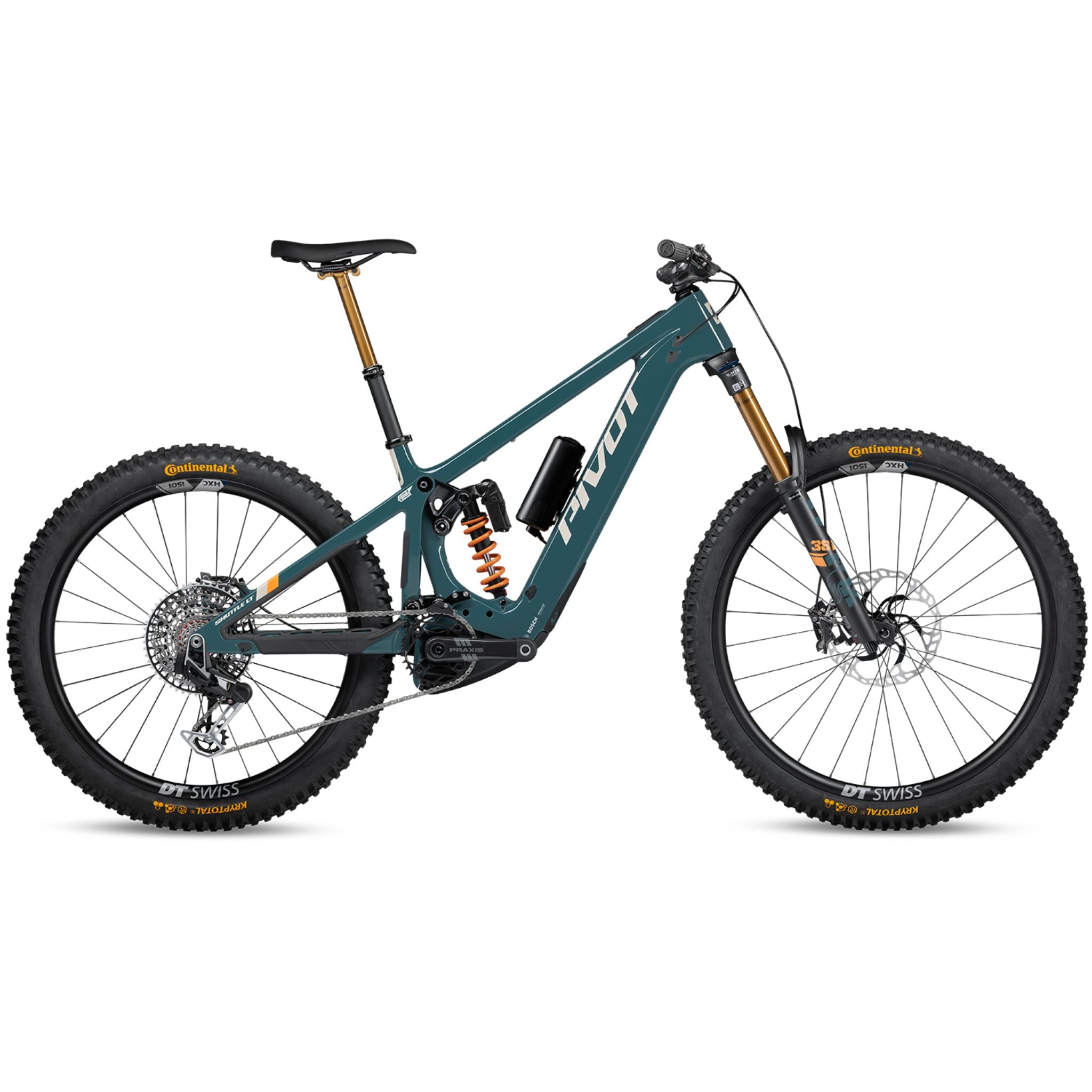

Pivot Cycles Shuttle LT 2025
