Description
The Pivot Shuttle AM is an advanced all-mountain electric mountain bike that seamlessly blends the latest technologies with Pivot's race honed design. Crafted for riders seeking versatility across diverse terrains, this e-MTB stands out in the crowded market with its exceptional features and Pivot Cycles attention to detail.
At the heart of the Shuttle AM lies the Bosch Performance Line CX motor, renowned for its robust 85Nm torque, delivering a dynamic and responsive riding experience. For those desiring even more power, the limited-edition Team builds are equipped with the Bosch Performance Line CX Race motor, offering an impressive 400% pedal assistance. This motor's extended, tapered overrun is particularly advantageous in technical sections, providing riders with the extra push needed to conquer challenging climbs and navigate complex trails. Energy is supplied by a fully integrated 750Wh battery in the Pro and Team models, ensuring extended range for long-distance adventures. The Ride build features a 625Wh battery, balancing performance with weight considerations.
The Shuttle AM boasts a full carbon frame utilizing Pivot's renowned DW-Link suspension system, providing 148mm of rear travel paired with a 160mm Fox Factory 36 fork. This combination ensures a plush ride that adeptly absorbs both minor bumps and significant impacts, maintaining traction and control across varied terrains. The bike's geometry, featuring a 64.1° head angle and a 76.4° seat tube angle, strikes a balance between stability on descents and efficiency during climbs.

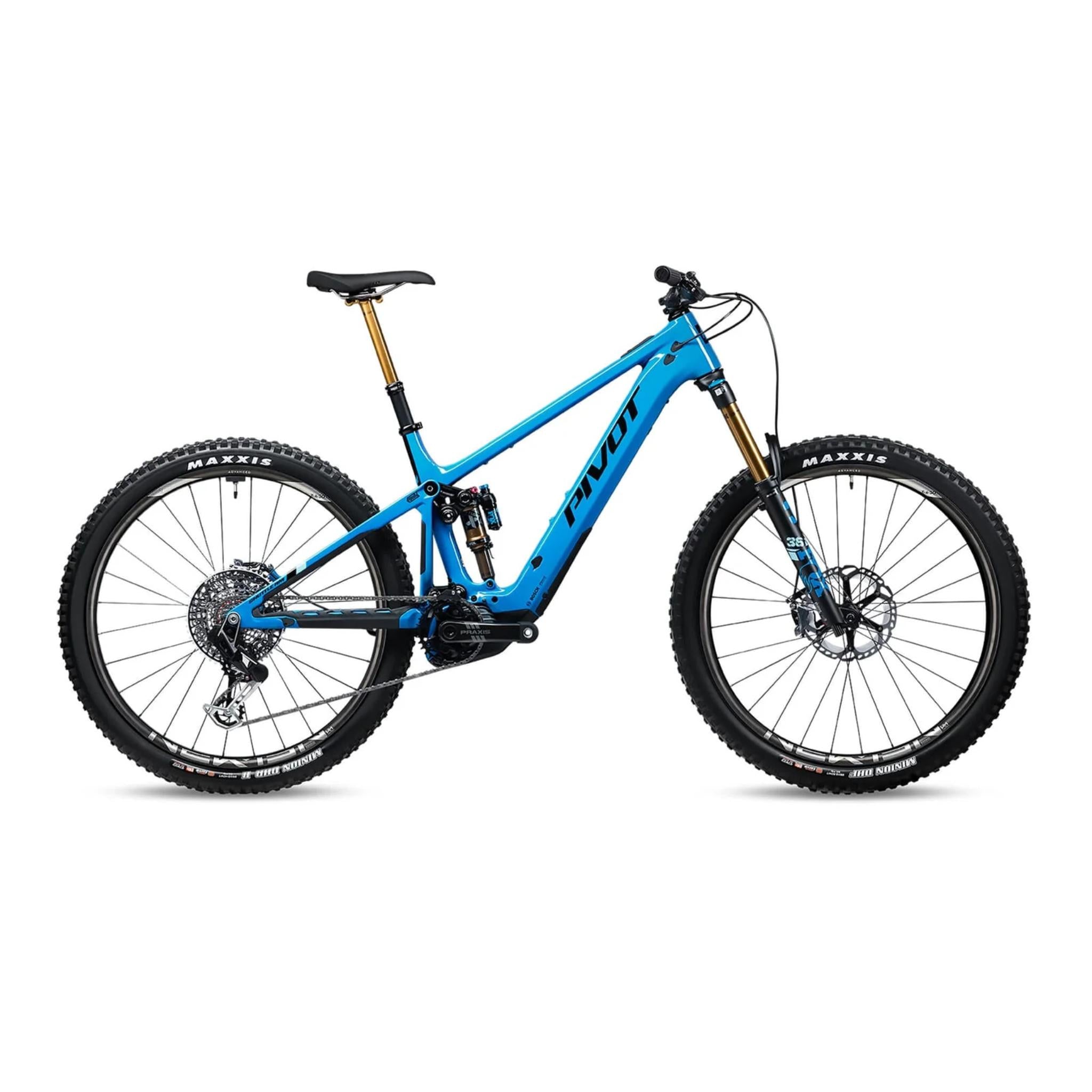

PLEASE NOTE - Image will show the TEAM XX build option. Please check specs for build kits
Key Features -
- Ultralight Hollow Core Carbon Frame
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
- Bosch 250wh PowerMore Range Extender Compatible
- Integrated Power and Mode Display
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fox 36 Forks
- Flip-Chip Upper Link Mount
- 29" as standard (Mixed Wheel Compatible)
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- Fox Shock with 148mm of Progressive Suspension Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
SIZING -
- S: 5'2 - 5'7
- M: 5'7 - 5'11
- L: 5'10 - 6'2
- XL: 6'1+
Specifications
-
Discipline All-Mountain/Enduro
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 148mm
-
Wheel Size 29
-
Warranty Lifetime (frame)
Rear Shock - Fox Performance Float X
Fork - Fox Performance 36 29”, 44mm offset, GRIP - 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Shimano XT M8100 SGS 12-Speed
Shifter - Shimano SLX M7100 ISPEC EV 12-Speed
Cassette - Shimano Deore M6100 10-51t
Chain - Shimano Deore M6100
Crank Set - Praxis Alloy eCranks E-MTB 34t - 160mm
Brakes - Shimano SLX M7120 4-piston
Rotors - Shimano Deore CenterLock - 203mm
Drive unit - Bosch Performance CX 750wh
Battery - BOSCH Powertube 625wh
Handlebar - Phoenix Race Low Rise Aluminium - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - SDG Tellis 130-150mm (SM), 150mm - 170mm (MD-XL)
Saddle - Phoenix WTB
Wheels - Newmen Performance, 30mm - 29" 15x110 F/12x157 R
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
-
Discipline All-Mountain/Enduro
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 148mm
-
Wheel Size 29
-
Warranty Lifetime (frame)
Rear Shock - Fox Factory Float X
Fork - Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram X0 Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram X0 1295 Eagle Transmission 10-52t
Chain - Sram X0 Eagle Flattop 12-Speed
Crank Set - Praxis Alloy eCranks E-MTB 34t - 160mm
Brakes - Sram Maven Silver 4-piston
Rotors - Sram Centerline Centerlock - 200mm
Drive unit - Bosch Performance CX 750wh
Battery - BOSCH Powertube 750wh
Handlebar - Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL)
Saddle - Phoenix WTB
Wheels - DT Swiss Hybrid HX1501, 30mm - 29", 15x110 F/12x157 R
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
-
Discipline All-Mountain/Enduro
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 148mm
-
Wheel Size 29
-
Warranty Lifetime (frame)
Rear Shock - Fox Factory Float X
Fork - Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram XX Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram XX 1297 Eagle Transmission 10-52t
Chain - Sram XX Eagle Flattop 12-Speed
Crank Set - Praxis Carbon eCranks E-MTB 34t - 160mm
Brakes - Sram Maven Ultimate 4-piston
Rotors - Sram Centerline Centerlock - 200mm
Drive unit - Bosch Performance CX Race 750wh
Battery - BOSCH Powertube 750wh
Handlebar - Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL)
Saddle - Phoenix WTB
Wheels - DT Swiss Hybrid HXC1501 Carbon, 30mm - 29", 15x110 F/12x157 R
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
