Description

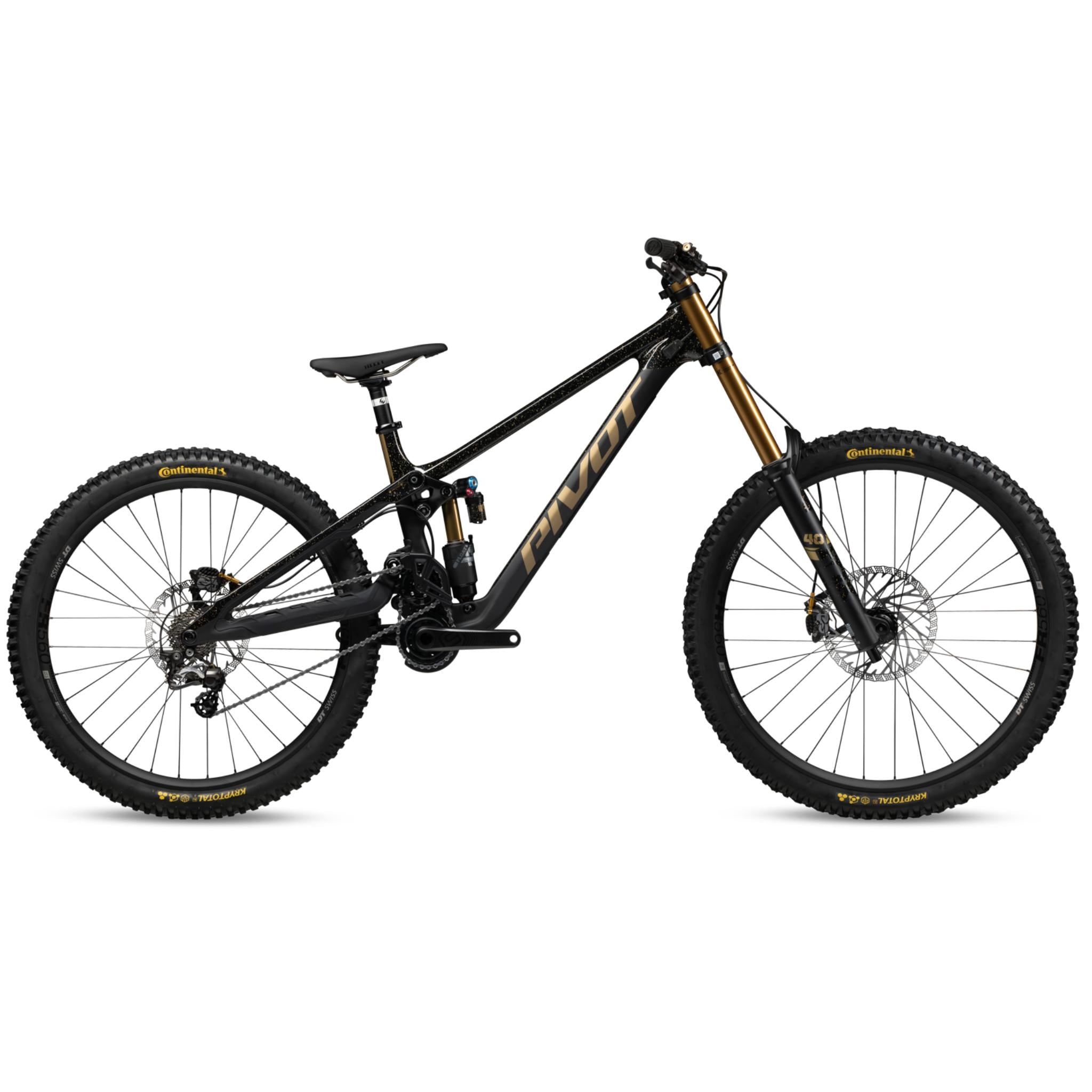

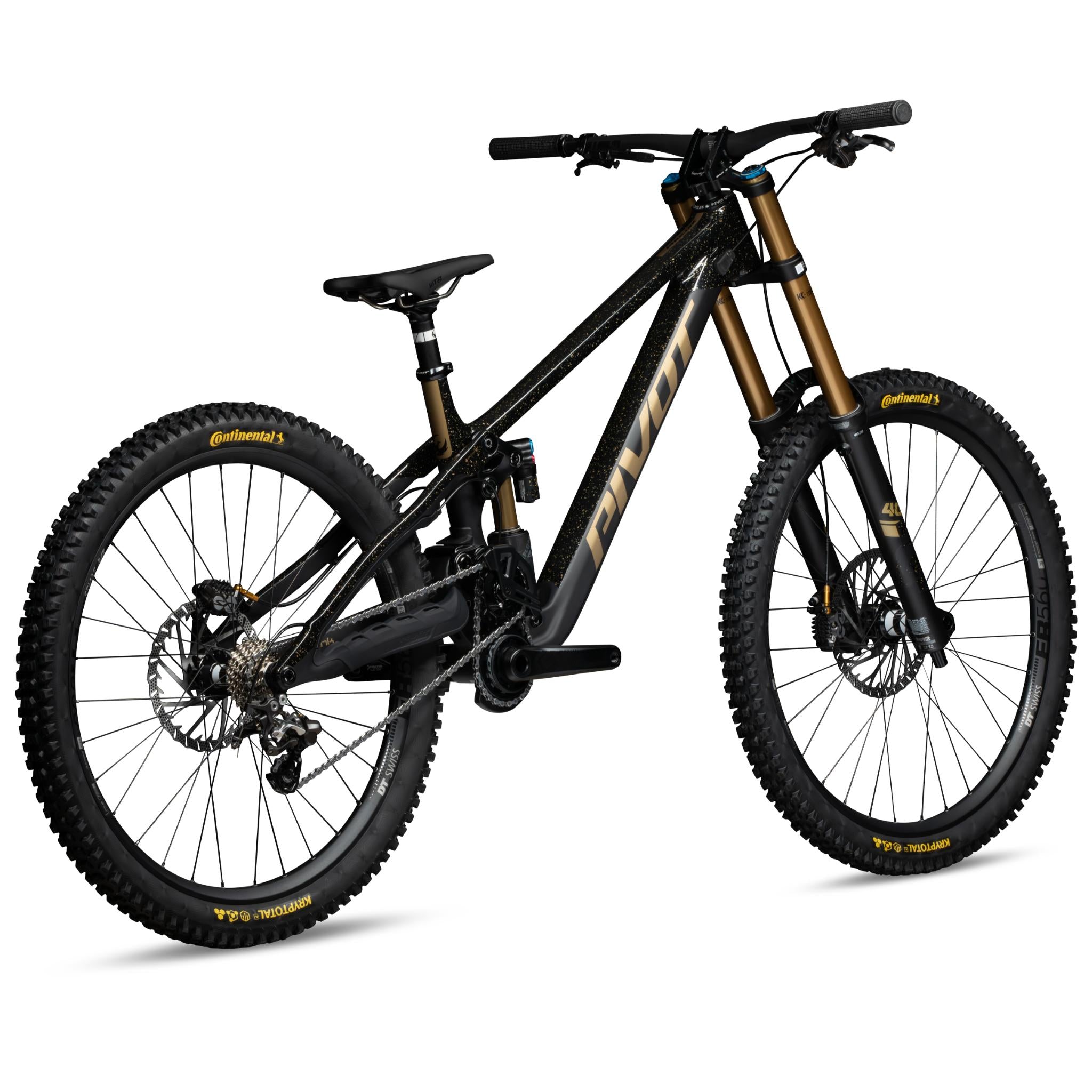

The Pivot team took their time with the all-new Phoenix Downhill mountain bike. Undergoing extensive testing, tweaking and re-testing only to then be put through it's paces by Bernard Kerr to squeeze every last tenth of a second from the trails. Manufactured to Pivot's exemplary standards this glorious carbon framed Phoenix is your buddy for many furious trail runs, and lets be honest, have you ever seen a better looking bike?

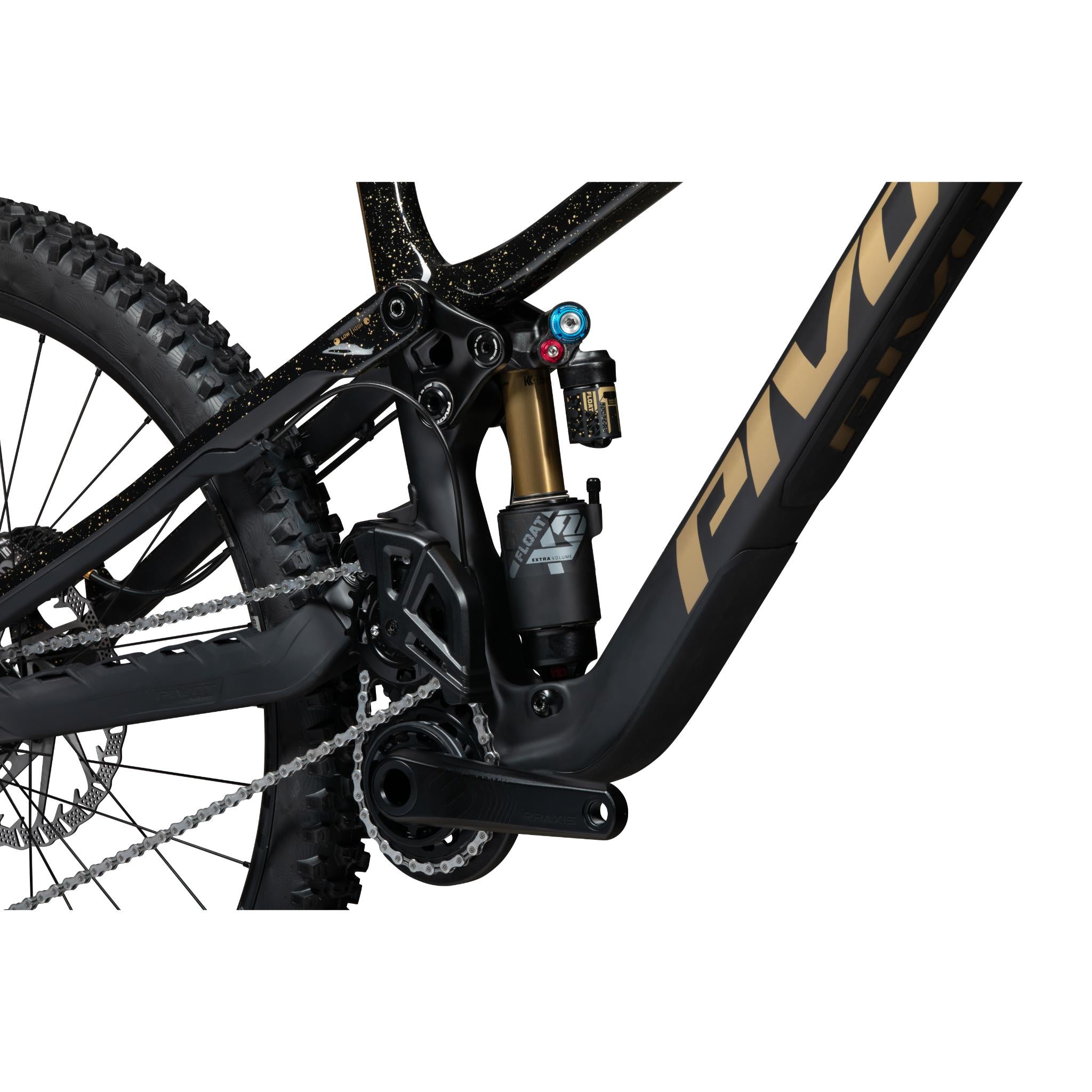

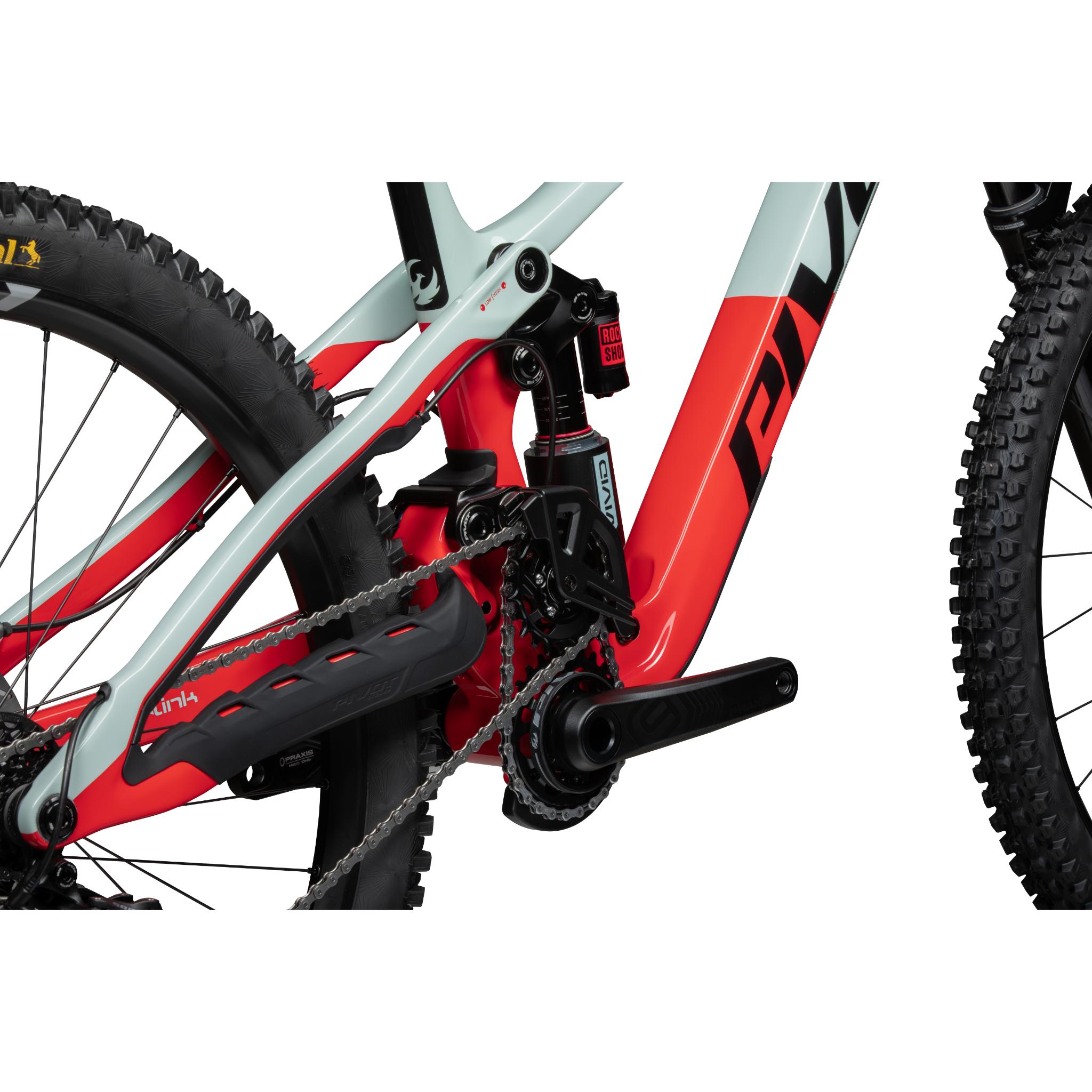

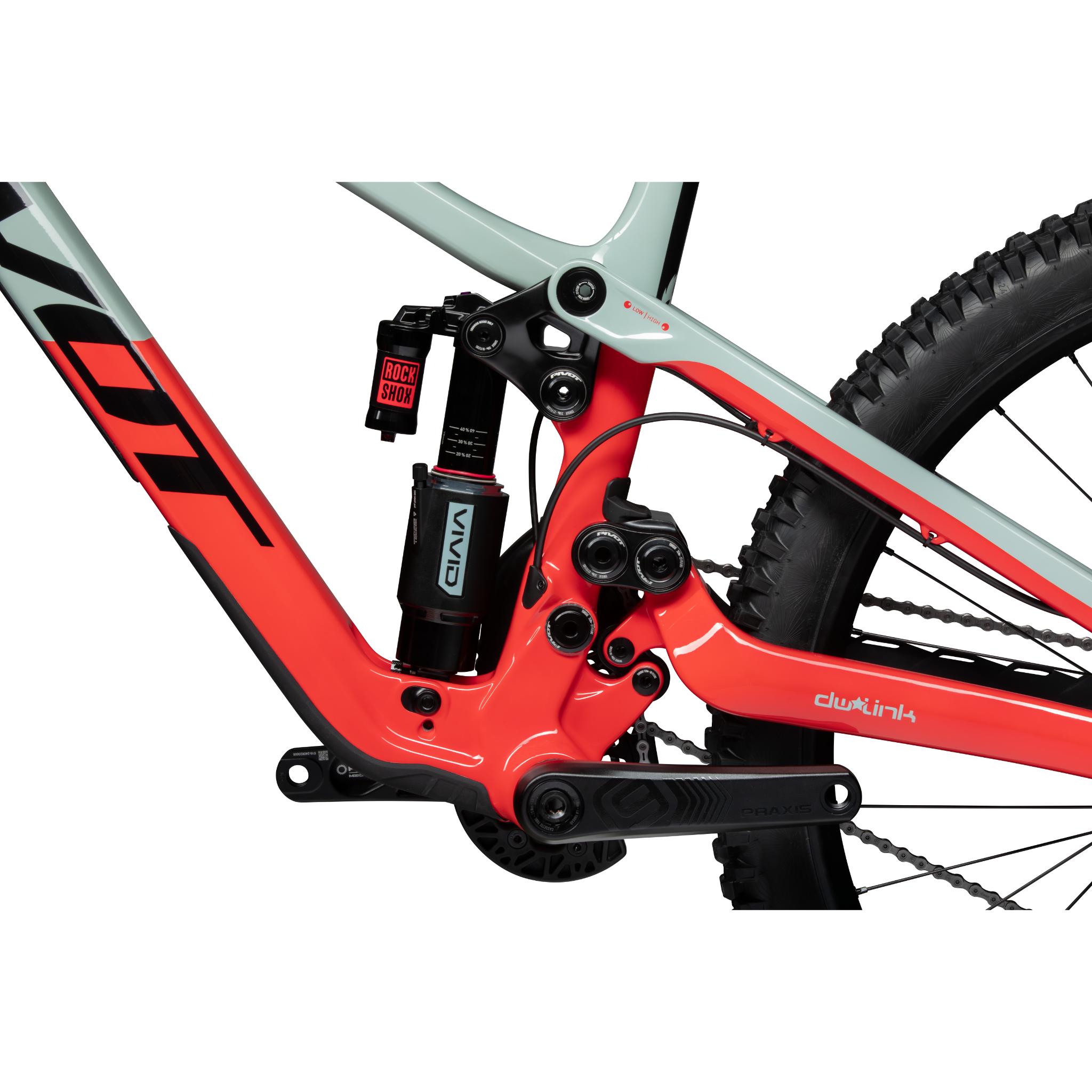

Immediately catching the eye will be the mid-high pivot, six bar DW-Link suspension and the dual-chain, dual idler.

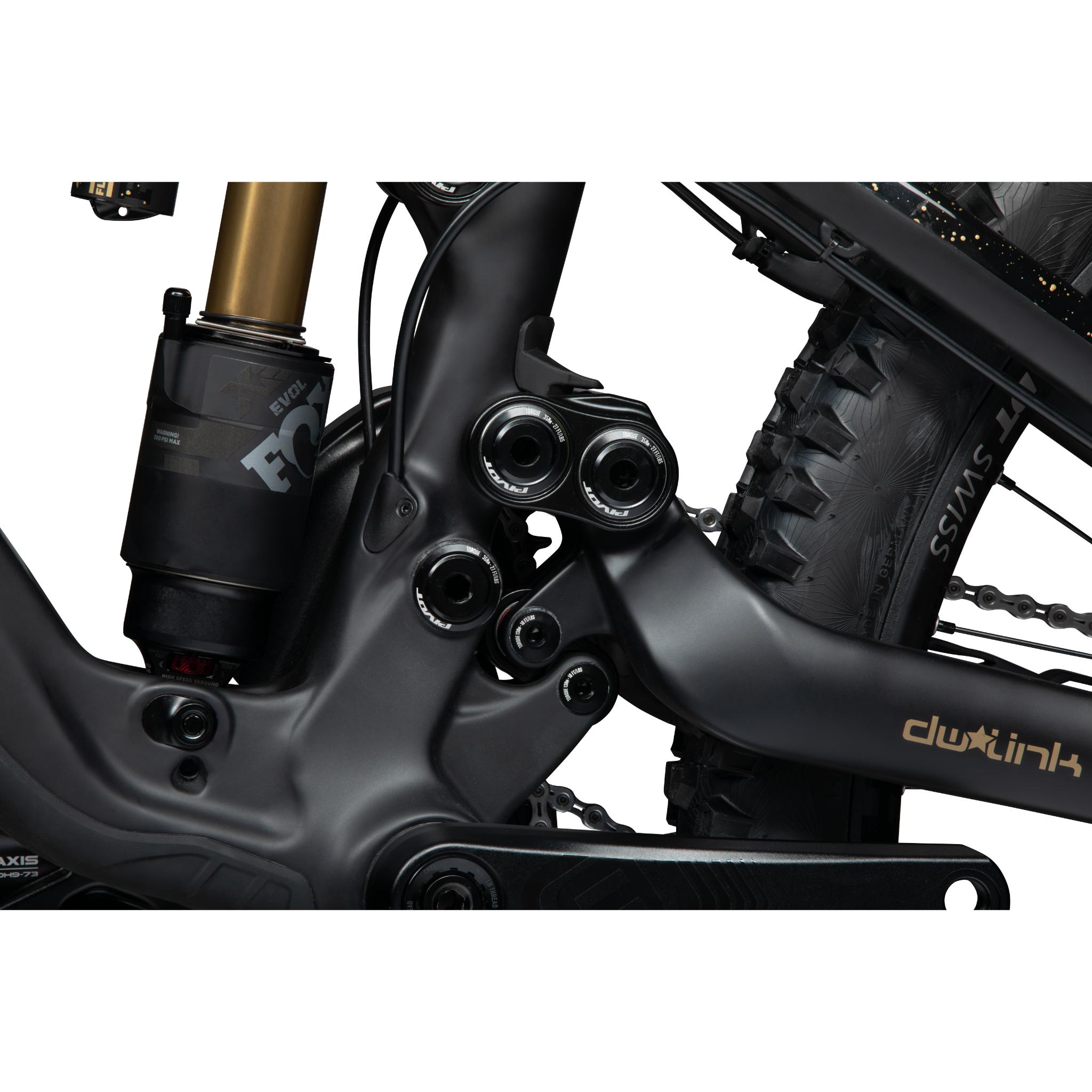

The DW-Link delivers outstanding performance from the Phoenix's available 210mm travel. Sublime levels of grip, control and stability with anti-squat engineered to maintain efficient power transfer and keep the suspensions performance predictable and reactive over challenging terrain.

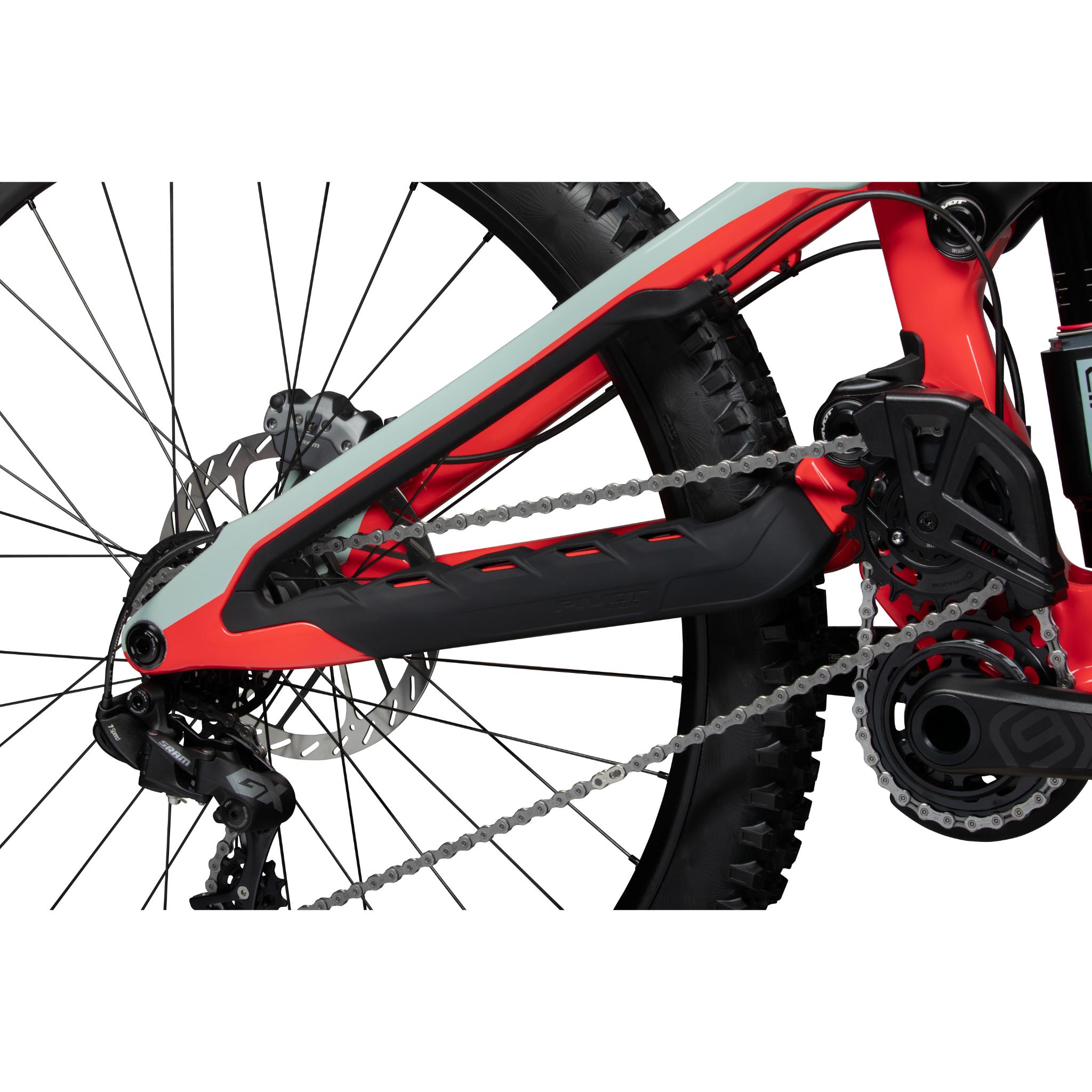

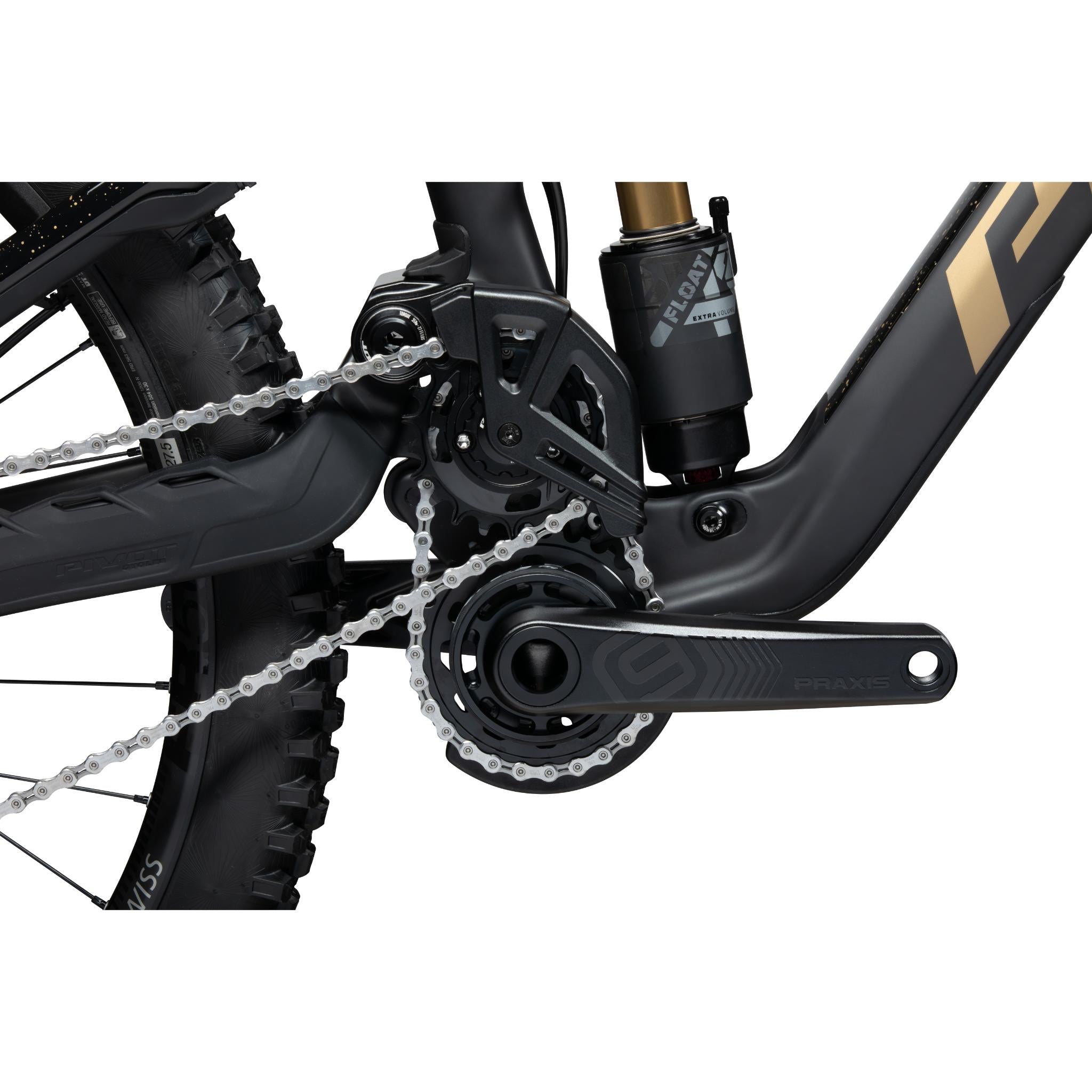

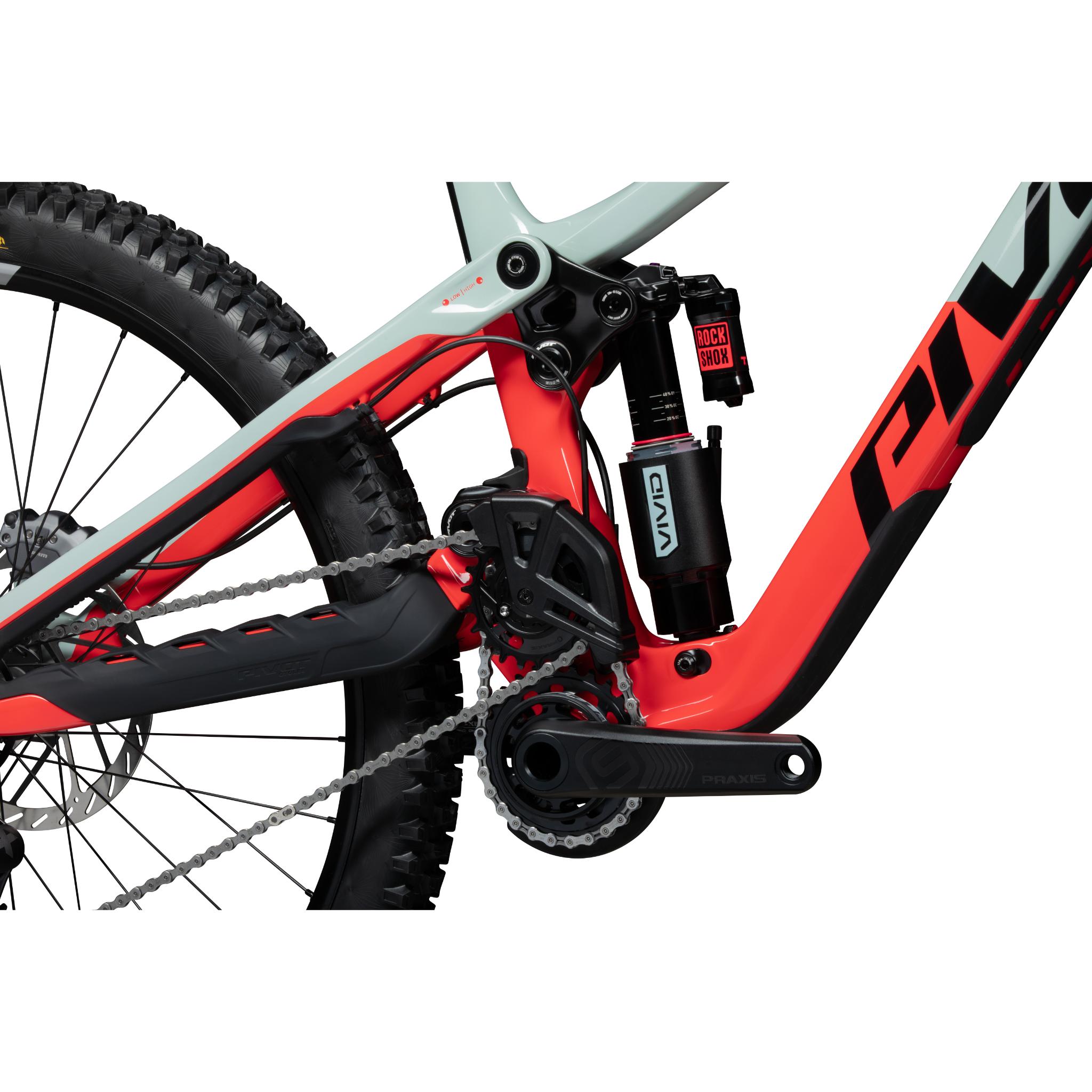

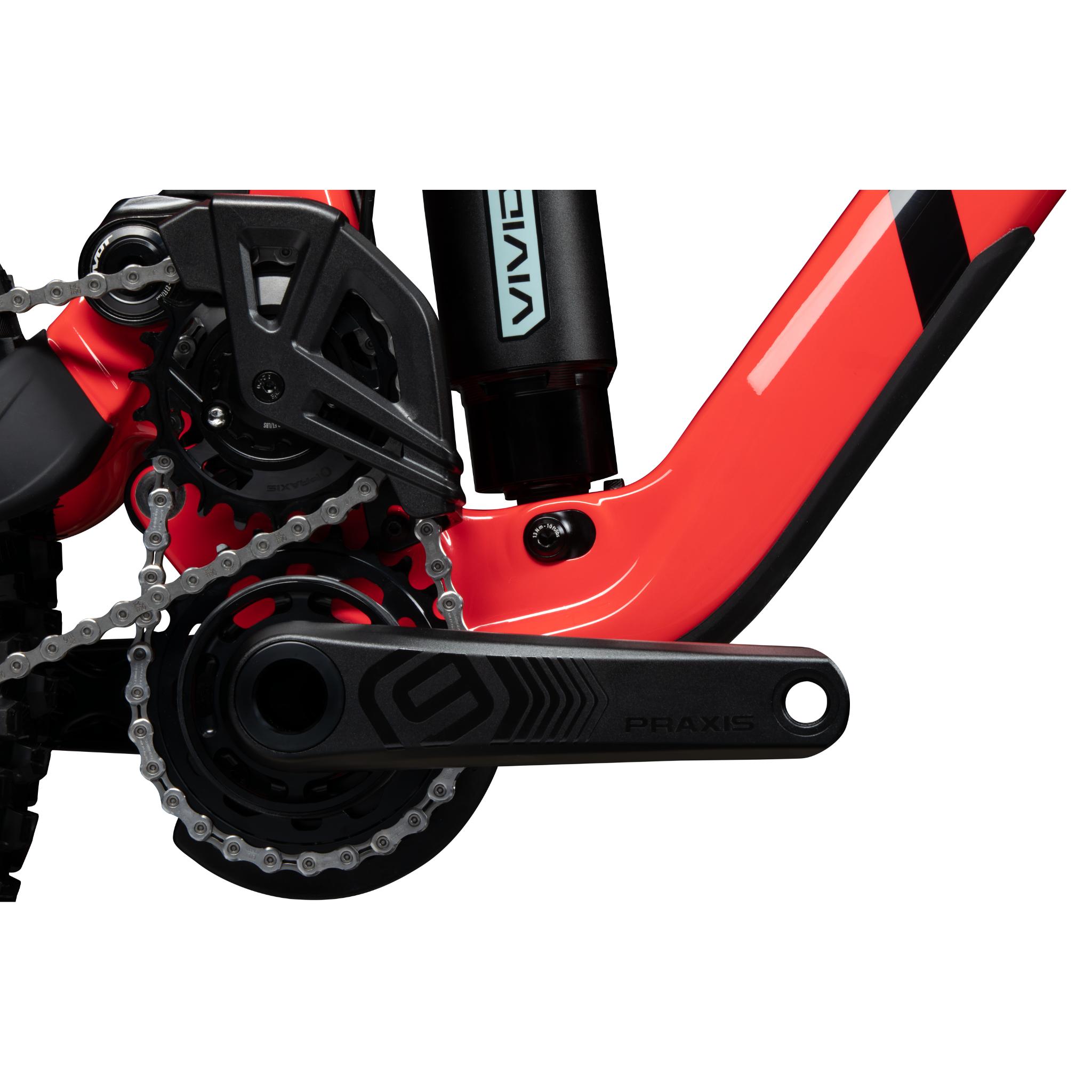

The dual-chain drive keeps things running super-smooth, quiet and with virtually zero pedal kickback, this set-up is the equivalent to a 37t front chainring. This system is also very easy to maintain.

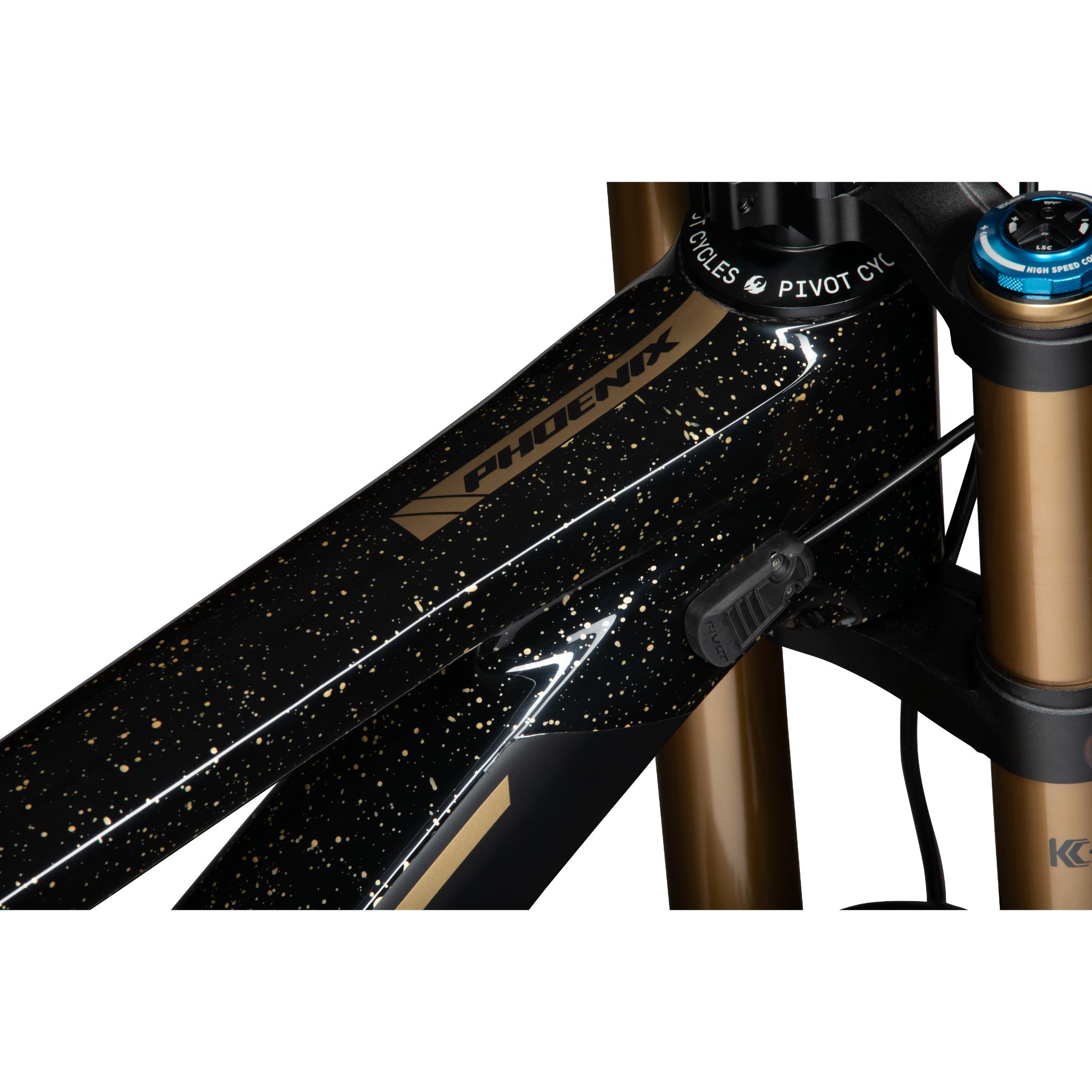

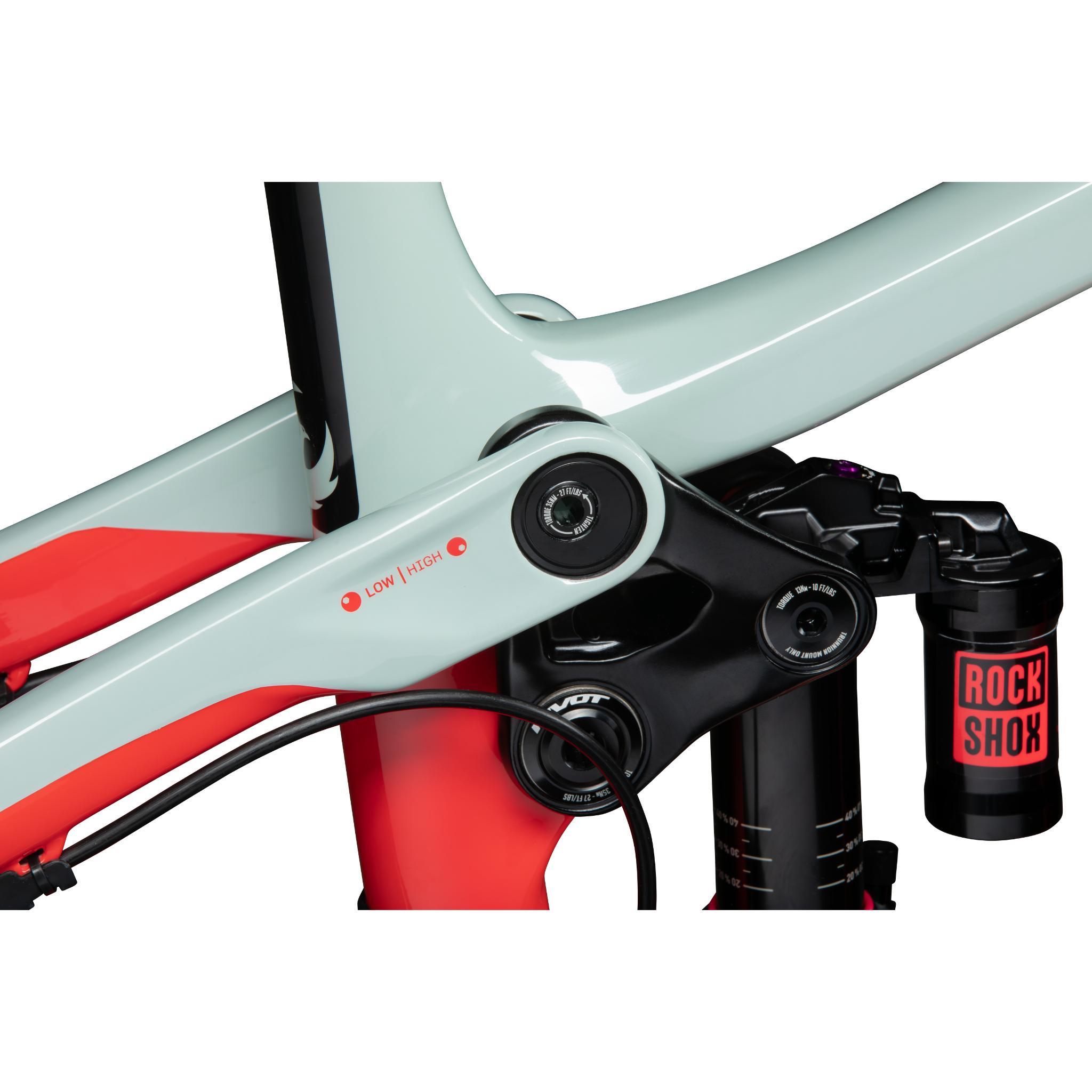

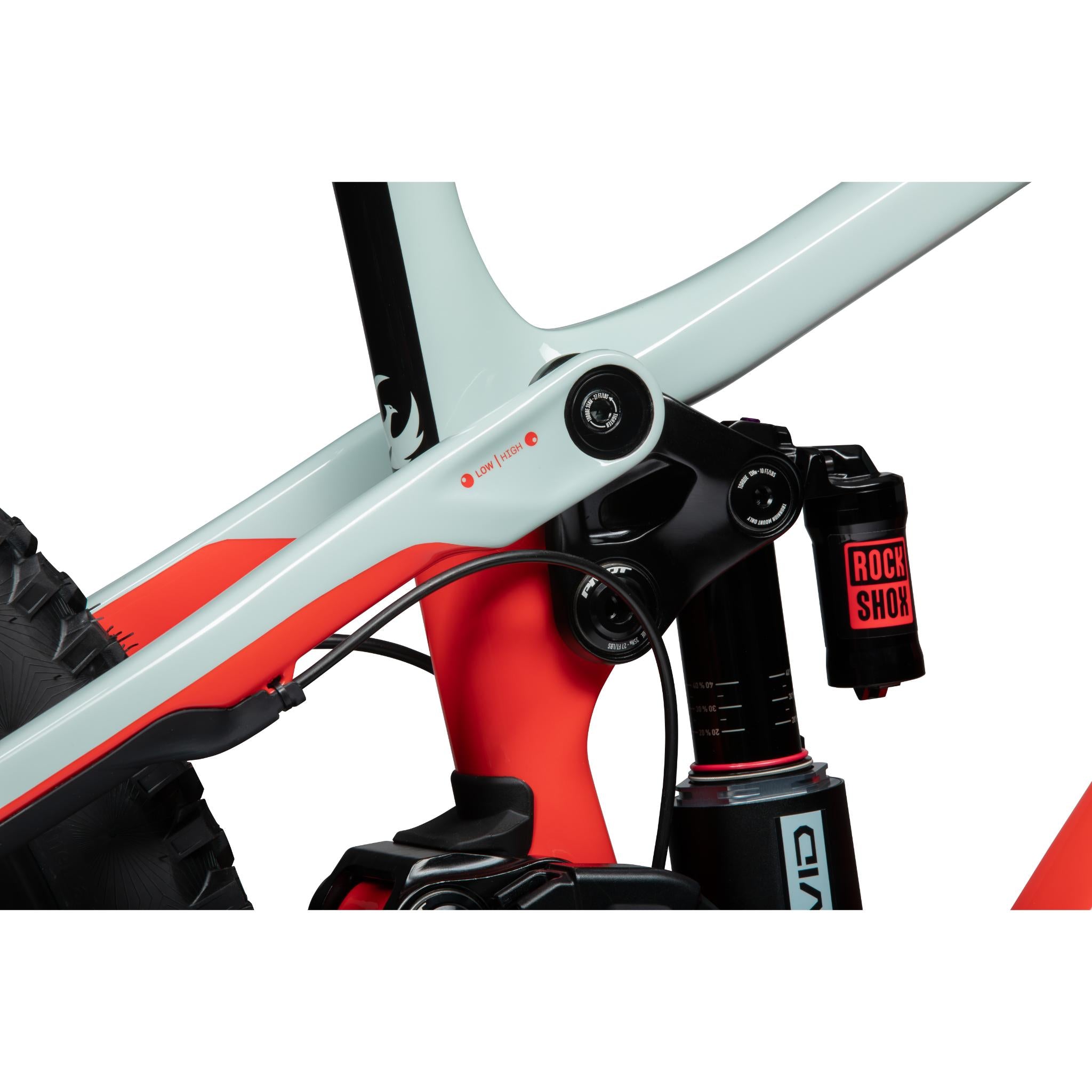

The Phoenix is adjustable to trail demands via a flip-chip and reach adjust headset. The flip-chip's 2 settings are 'high', based on Bernard Kerr's preferred set-up and is suited to rocky, technical courses, or 'low' for maximum speed and ultimate control. The +5mm/-5mm headset further allows for fine tuning the bike to your needs.
The Phoenix is available in 2 beastly build kits, both spec'd with MX wheel sizing, 29" front and 27.5" rear
Key Features -
- Pivot Carbon frame, 210mm rear travel
- Front travel - 203mm (Pro), 200mm (Ride)
- Adjustable progression via flip-chip high and low settings
- MX mixed wheel sizing - 29" front/27.5" rear
- DW-Link mid-high 6-bar suspension

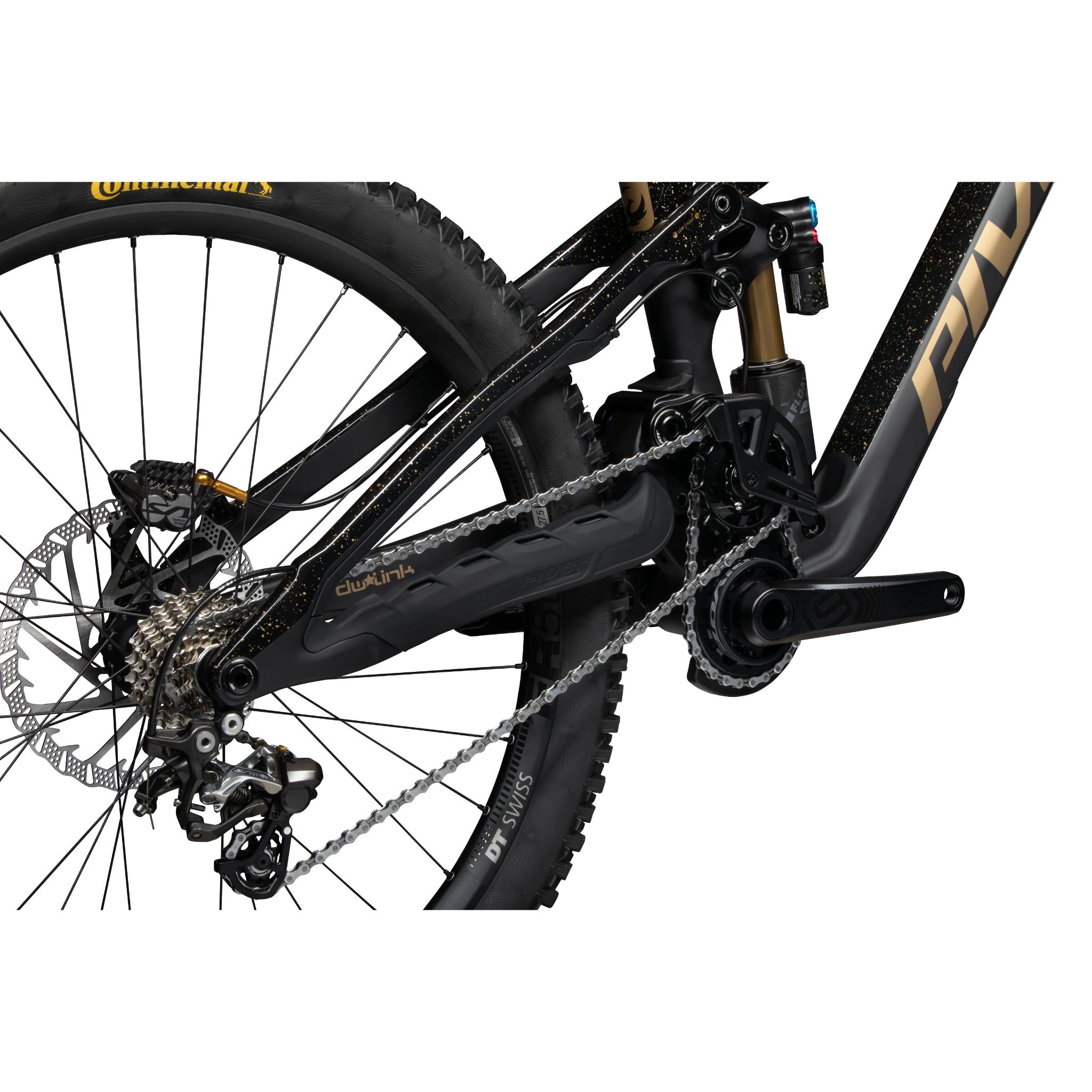

- Dual-Idler, Dual-Chain drive

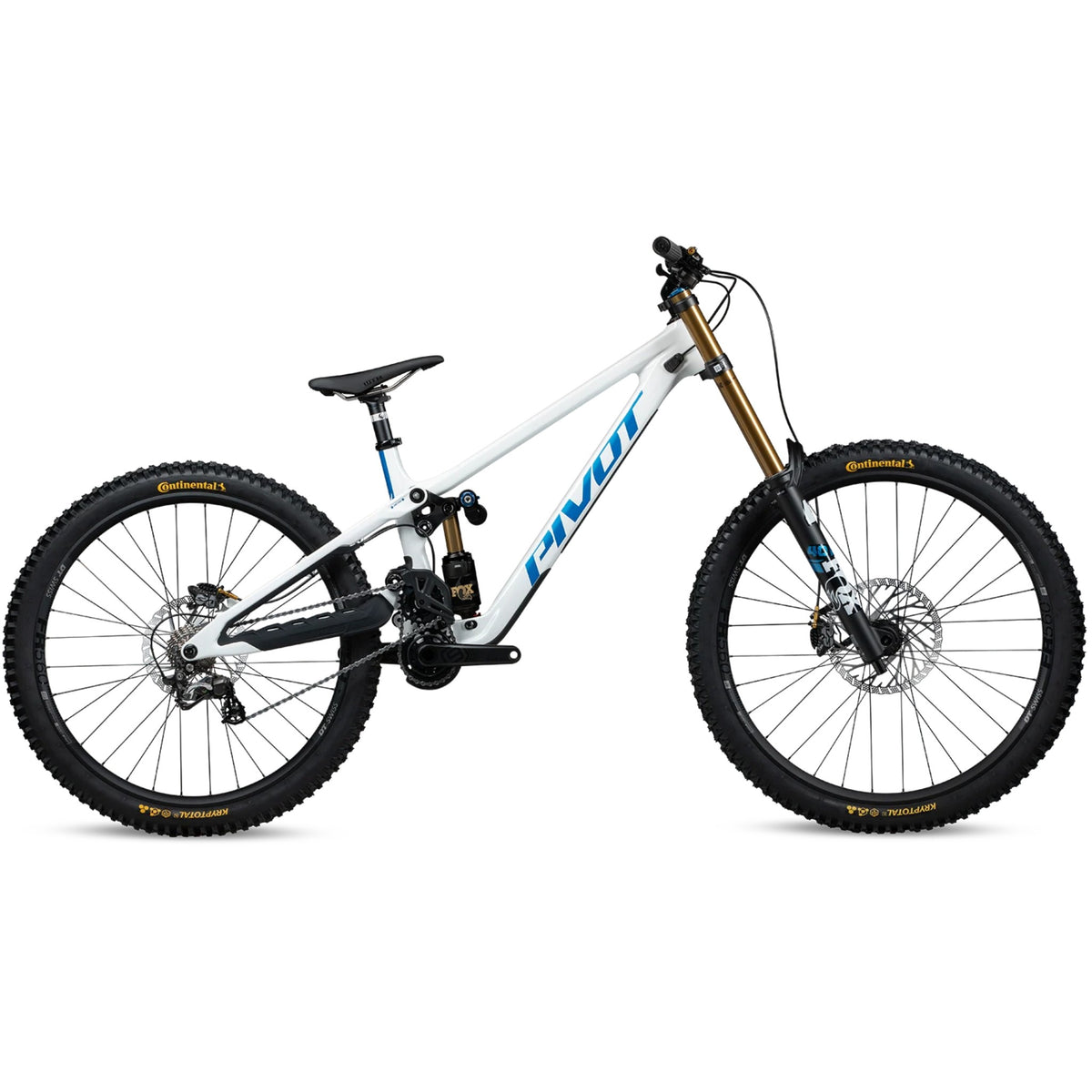

- 2 build kits - Pro Saint and Ride GX
- Looks WAY nicer than your mates bike.
SIZING -
- S (S1): 5'4 - 5'9
- M (S2): 5'7 - 5'11
- L (S3): 5'10 - 6'3
- XL (S4): 6'1+
Specifications
-
Discipline Downhill
-
Material Carbon
-
Front Travel 203mm
-
Rear Travel 210mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Rear Shock - FOX Factory Float X2

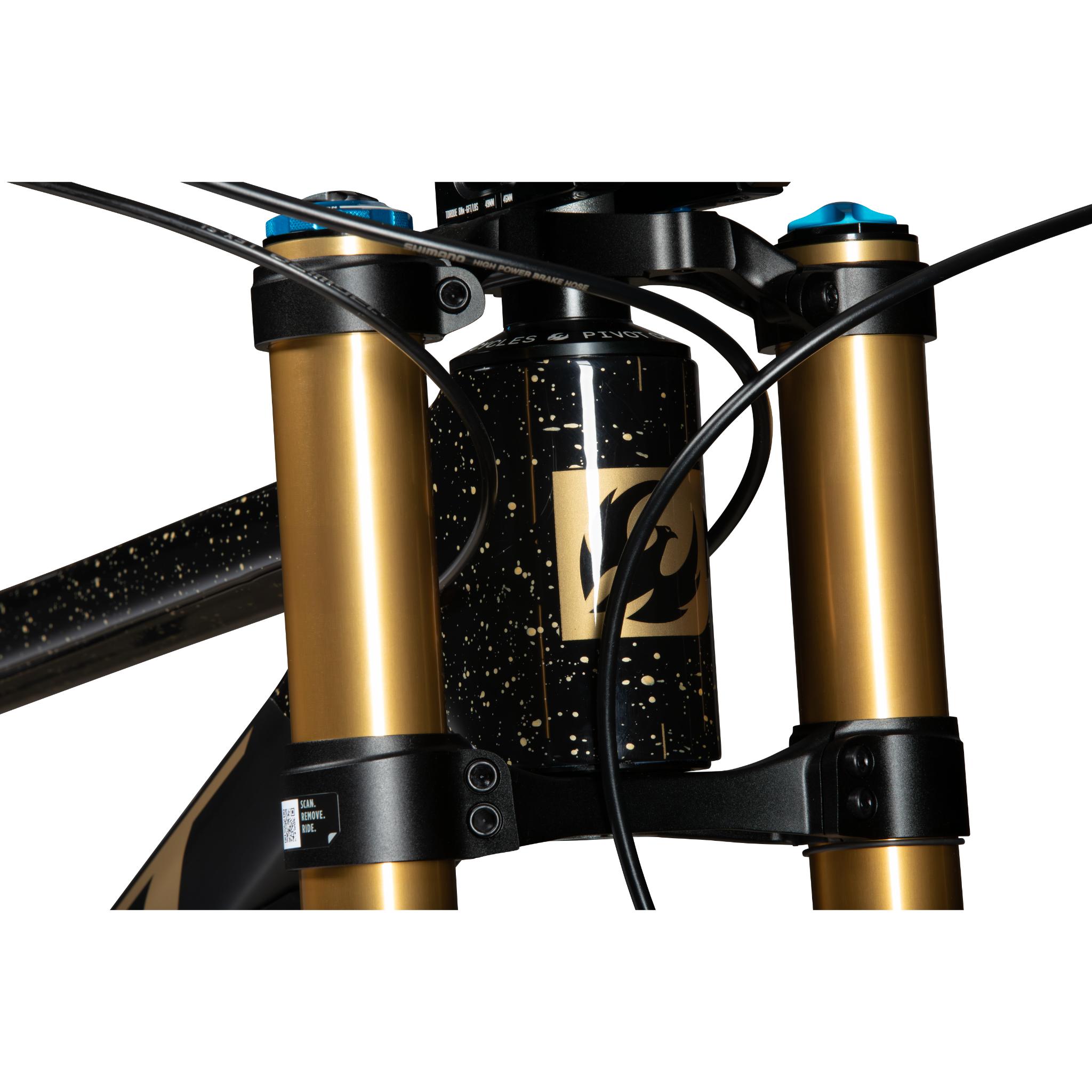

Fork - FOX Factory 40 29", 52mm Offset, GripX2 - 203mm

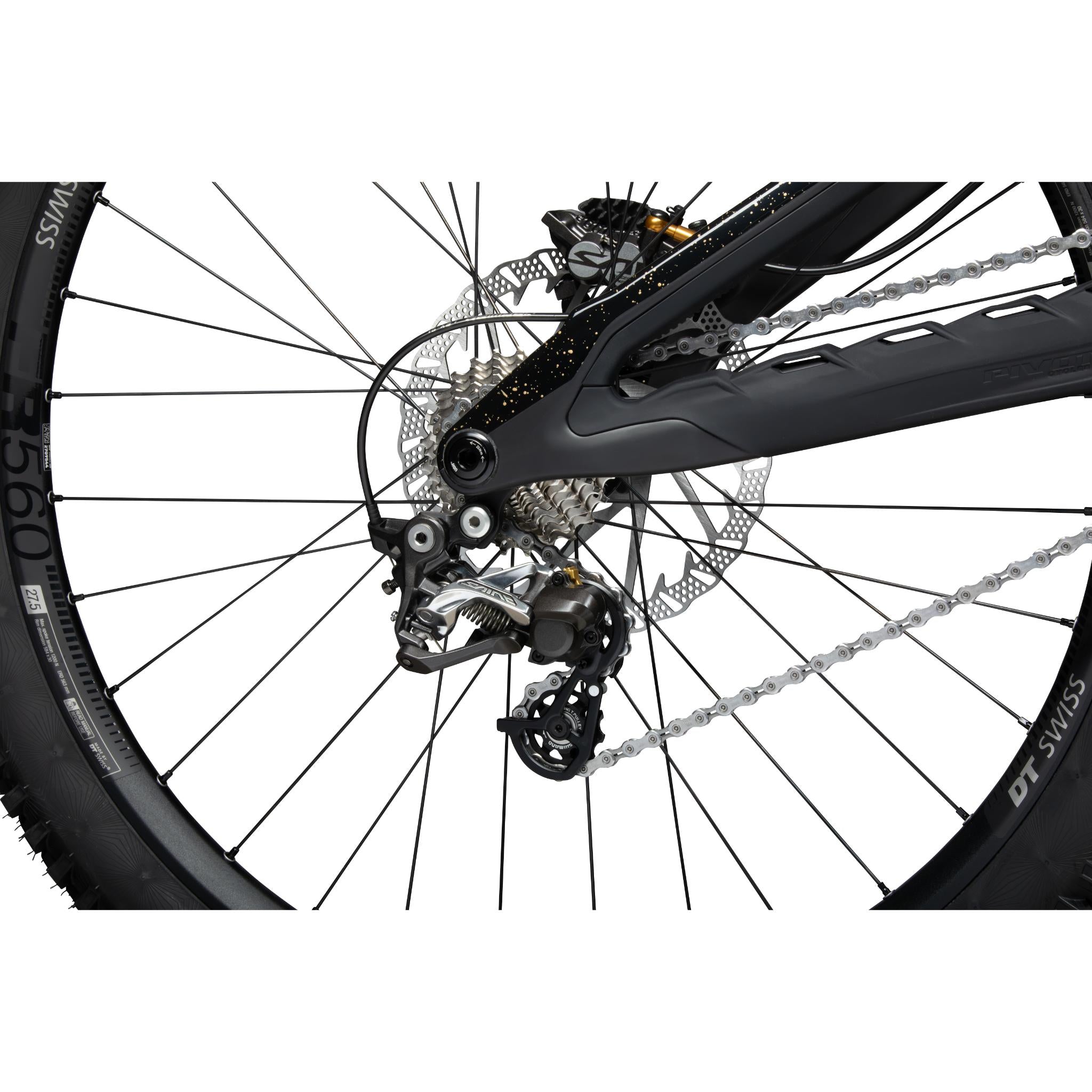

Derailleur - Shimano Saint M820 10-speed
Crankset - Praxis DH-9 27t - 165mm
Shifter - Shimano Saint M820 10-Speed
Cassette - Shimano Tiagra CS-HG500 11-25t
Chain - Shimano CN-6701

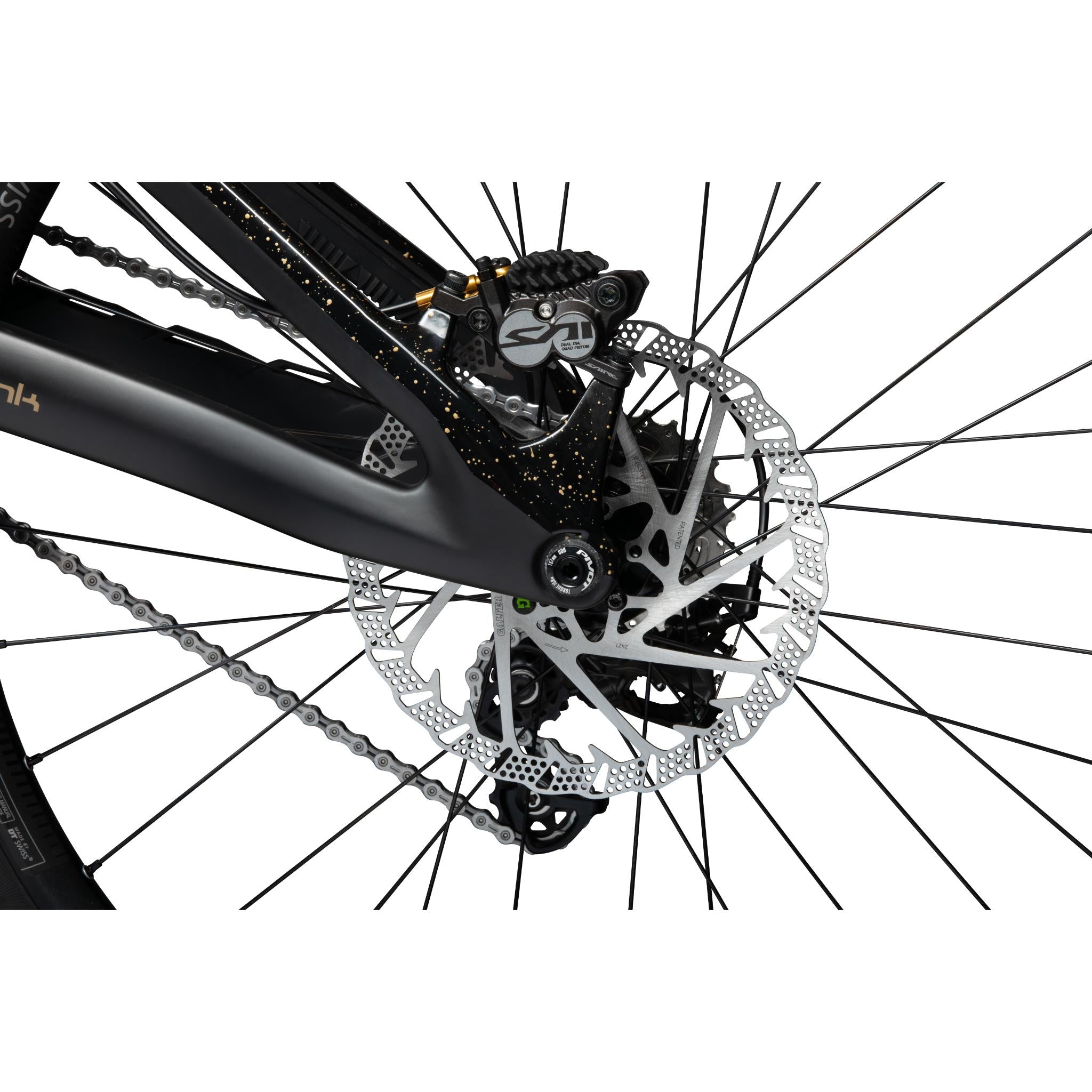

Brakes - Shimano Saint M820 4-Piston, Galfer Shark Rotors - F: 223mm, R: 203mm
Wheels - DT Swiss FR 560 w/DT Swiss 350 hub
Tyres - Front: Continental Kryptotal 29 x 2.4, Super Soft, DH Casing Rear: Continental Kryptotal 27.5 x 2.4, Super Soft, DH Casing
Handlebar - Phoenix Team Low Rise Carbon - 800mm
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team DH - 45mm
Saddle - Phoenix WTB Team Hightail Trail
Seatpost - Phoenix Race Aluminium
-
Discipline Downhill
-
Material Carbon
-
Front Travel 200mm
-
Rear Travel 210mm
-
Wheel Size MX
-
Warranty Lifetime (frame)

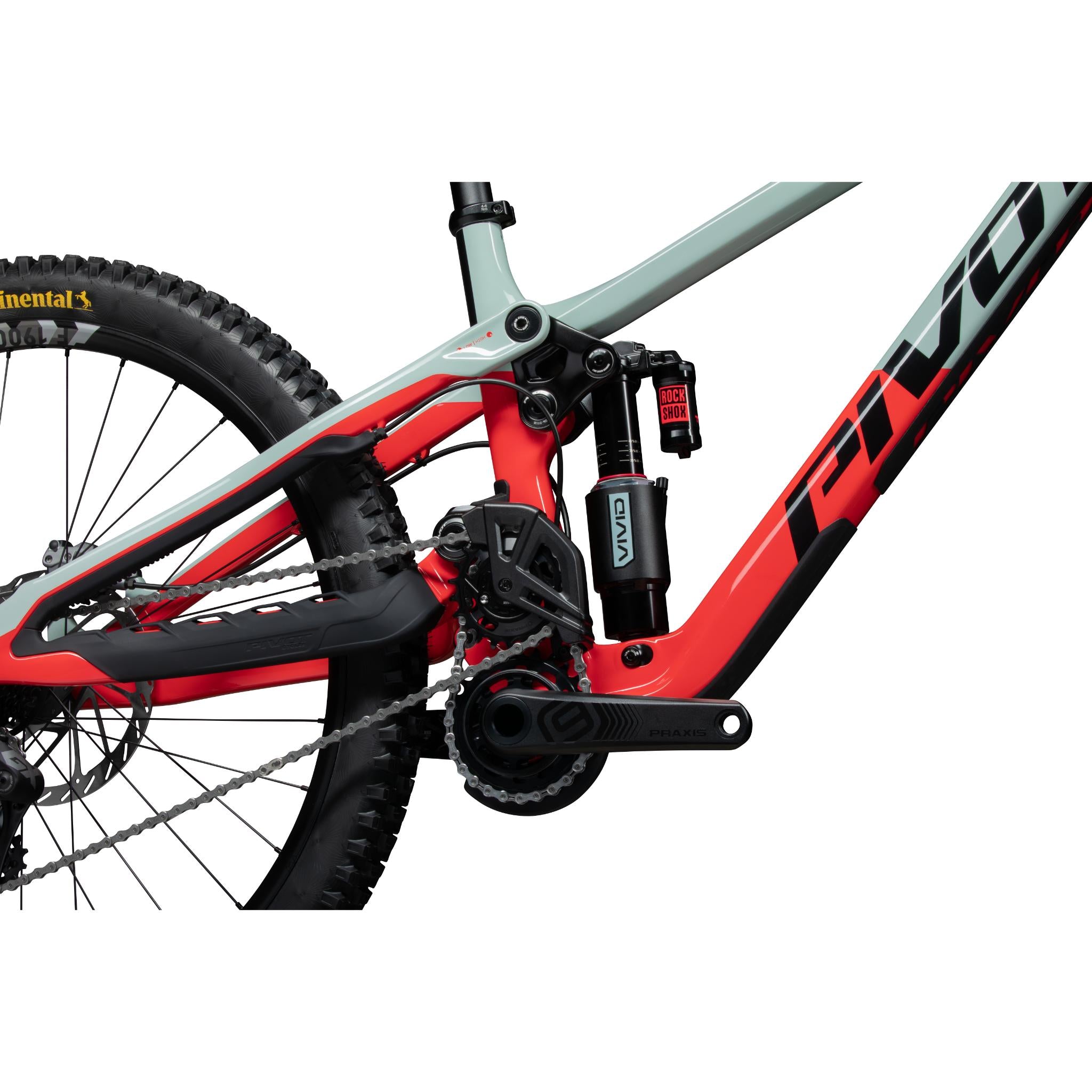

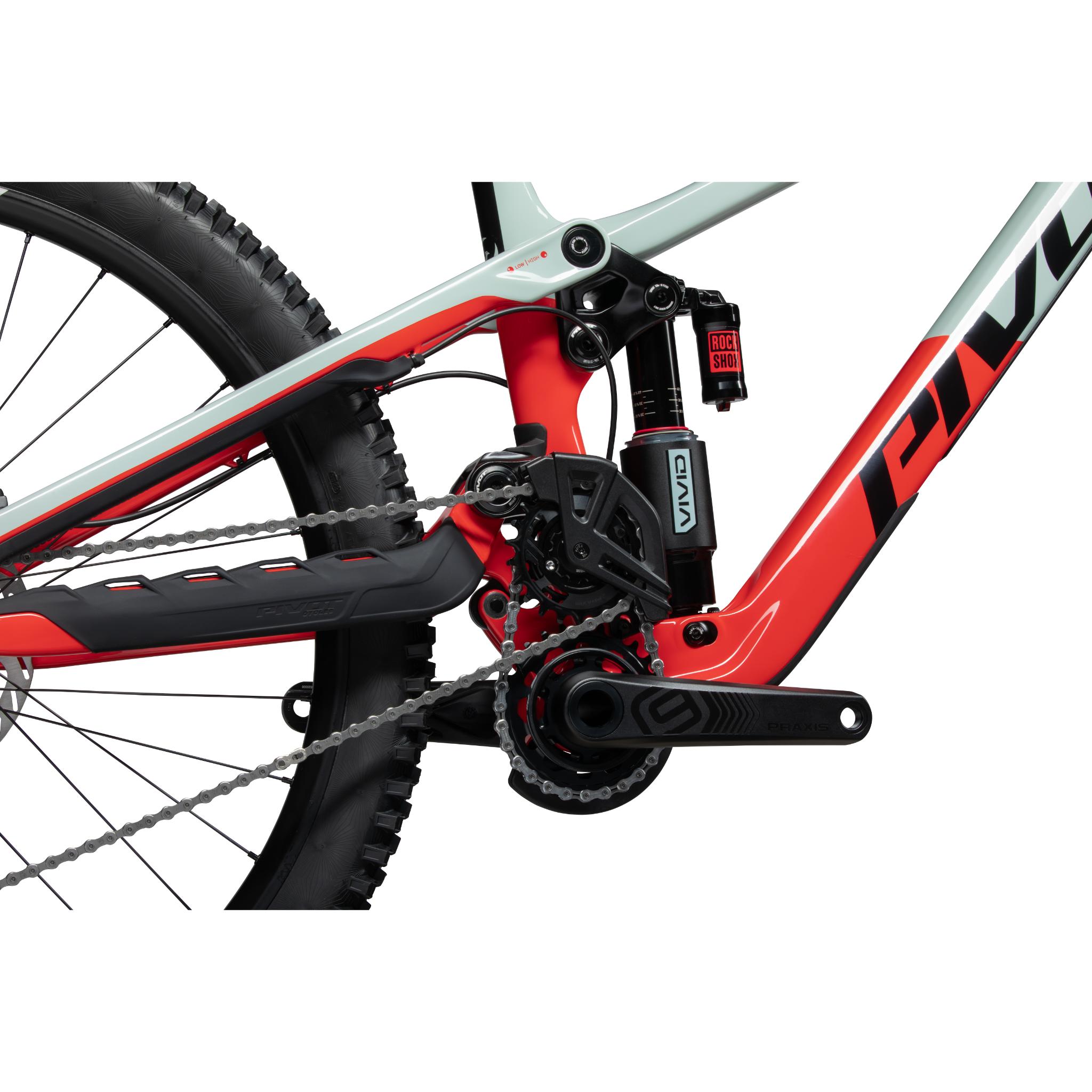

Rear Shock - Rockshox Vivid Base

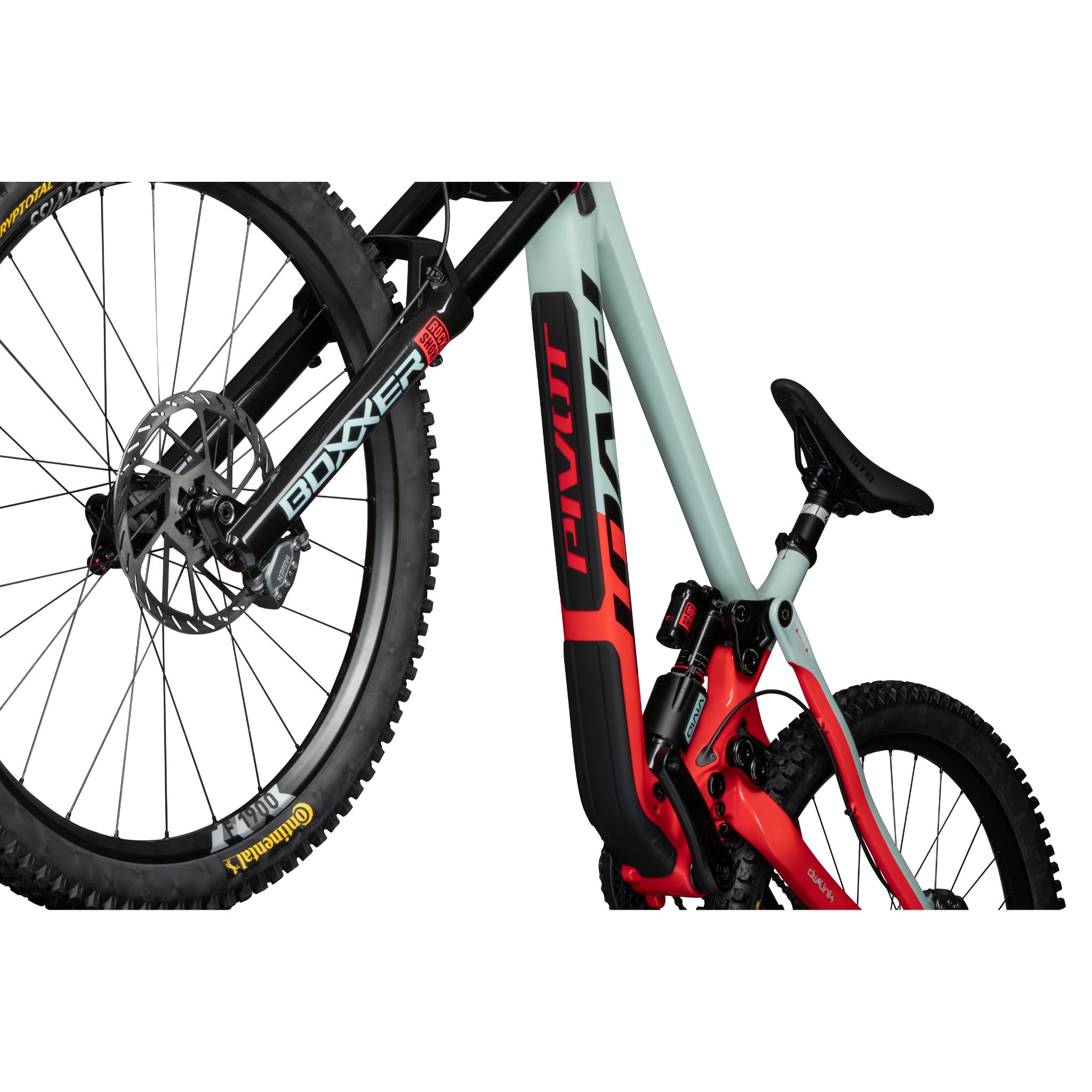

Fork - Rpckshox Boxxer Base 29", 52mm Offset, Charger 3 RC - 200mm
Derailleur - SRAM GX DH 7-Speed
Crankset - Praxis DH-9 27t - 165mm
Shifter - SRAM GX 7-Speed
Cassette - SRAM PG720 DH, 11-25t
Chain - SRAM PC1110
Brakes - SRAM Maven Bronze Stealth
Wheels - DT Swiss F1900 w/DT Swiss 370 hub
Tyres - Front: Continental Kryptotal 29 x 2.4, Super Soft, DH Casing Rear: Continental Kryptotal 27.5 x 2.4, Super Soft, DH Casing
Handlebar - Phoenix Team Low Rise Alloy - 800mm
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team DH - 45mm
Saddle - Phoenix WTB Team Hightail Trail
Seatpost - Phoenix Race Aluminium
Pivot Phoenix 2025
