Description
Downhill racing is where it all started for Mondraker and the latest Summum design is the result of many years experience at the top level. Fine tuned, tested and hammered by some of the best riders in the world over the gnarliest of courses our planet has to offer.
The Summum is available in a variety of build kits plus, carbon or aluminium frame as well as the options for 29" or MX (29" front / 27.5" rear) wheels

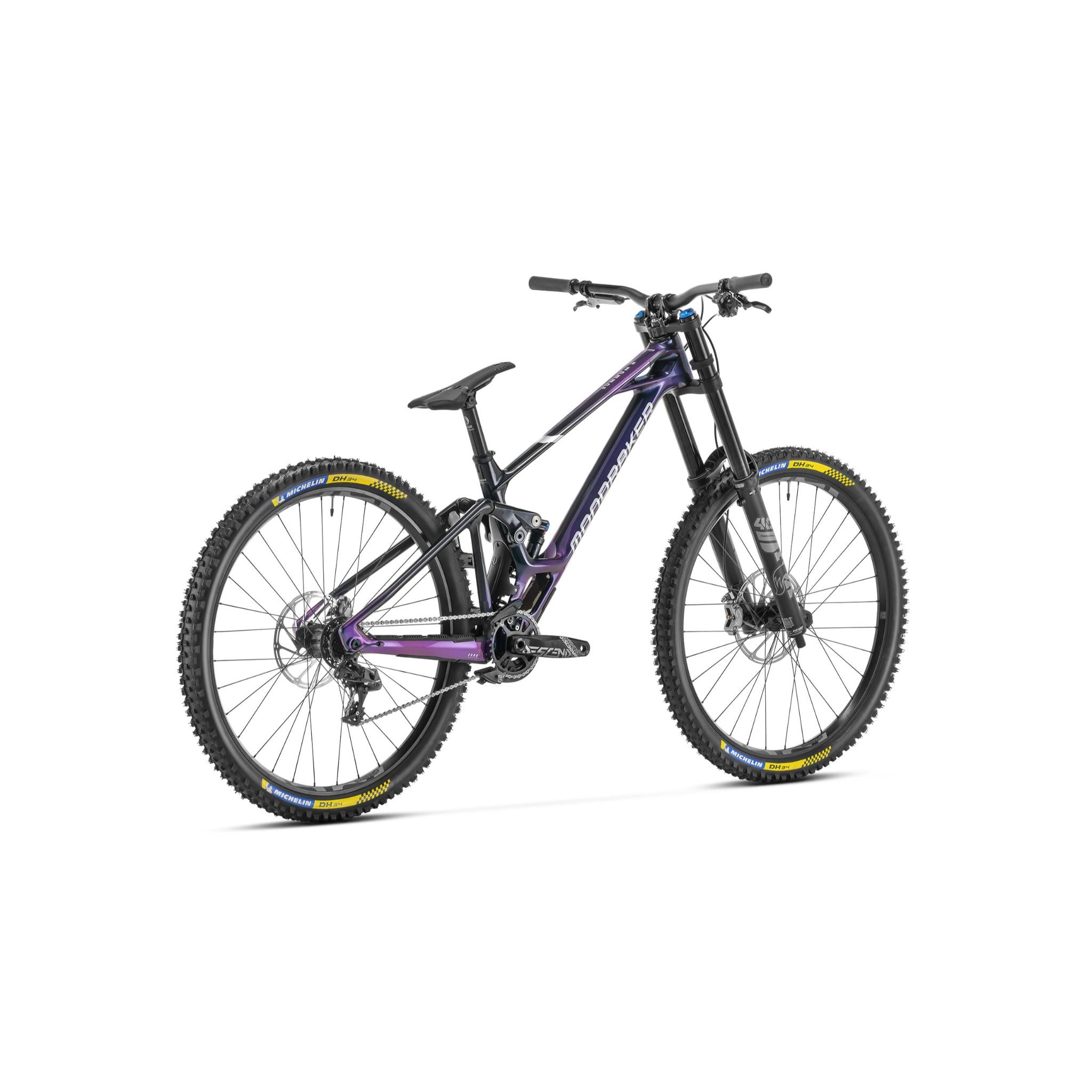

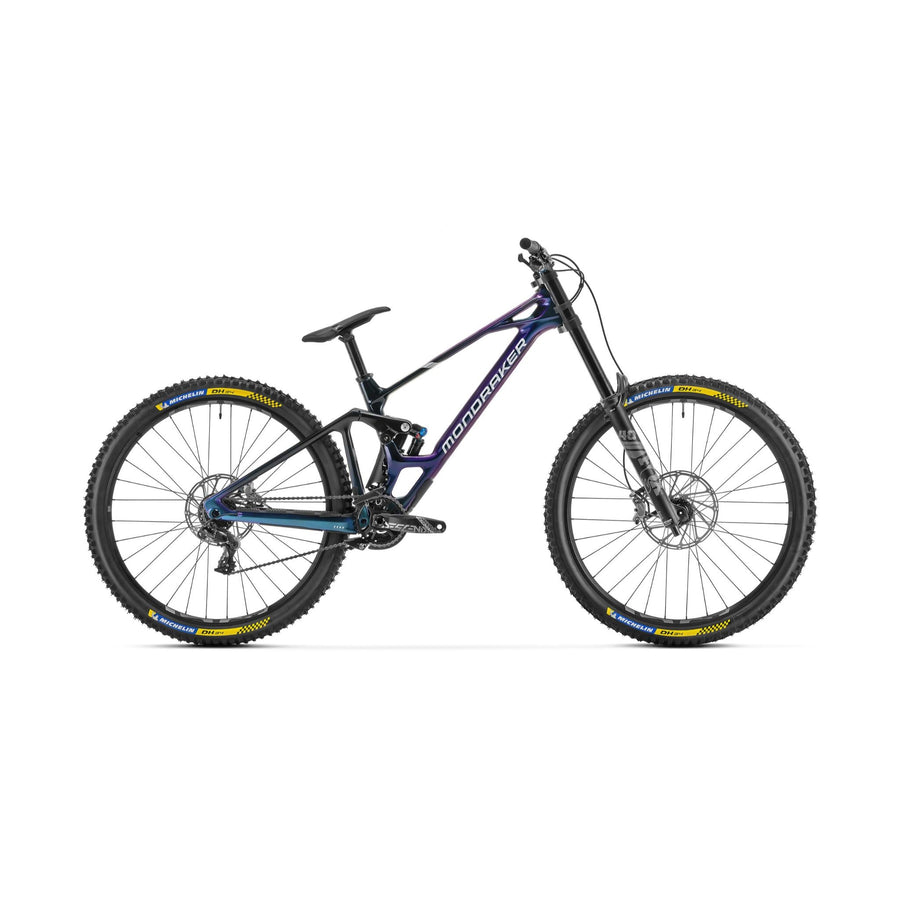

The Summum Carbon R 29 is the entry build kit for the carbon framed Summum range. The premium Stealth carbon frame is the same as seen used by the Mondraker factory team and is covered by the same limited lifetime warranty.
Build kit is the usual great list of components found on Mondraker's bikes with Fox 40 Performance fork, Fox DHX2 shock, Sram 7-speed drivetrain, SRAM DB8 brakes, E13 wheelset and tough Michelin DH34 tyres
Mondraker ZERO suspension -
ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike
STEALTH Carbon -
Stealth Carbon is the most advanced carbon fibre development and optimisation technology in the Mondraker range. The result is a frame with the best strength / structural rigidity / trail buzz absorption / lightness ratio, exceptional reliability and a very attractive and unique 100% Mondraker look.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Downhill
-
Material Carbon
-
Front Travel 203mm
-
Rear Travel 200mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
Rear shock - Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork - Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Headset - Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem - Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle - SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front brake - Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub - e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire - Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear tire - Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset - Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Rings - 34T, steel, X-SYNC
Bottom bracket - Sram DUB BSA, sealed bearings, 83mm
Chain - Sram PC1110 11s, Powerlock
Front derrailleur - E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derrailleur - Sram GX DH, 7s, medium cage, X-actuation 1:1
Shift levers - Sram trigger GX DH 7s, X-actuation 1:1
Cassette - Sram PG 720 11-25T, 7s
Derailleur hanger - Mondraker M075
Others - *Optional geometry kit: +-1º / +-2º headset cups
Weight - 16,9 kg
