Description
Spanish mountain bike manufacturer Mondraker are known as one of the forefathers of modern geometry and enduro style frame design.
The Foxy is the enduro/all-mountain legend, famous for that Mondraker ride feel and many race wins around the world. This iconic mountain bike has been updated to be more enduro than ever with the XR being the most extreme of the line up. The XR kit comes as stock with prestigious Öhlins suspension both front and rear (RFX 36 fork and TTX Air shock), an SRAM X01 Eagle AXS wireless drivetrain, e*thirteen’s Race Carbon wheels; SRAM’s G2 RSC 4-piston brakes and ONOFF’s components with Krypton Carbon 1.0 handlebars. What’s more, for greater customization of the ride characteristics it offers the possibility of varying the geometry, and it’s also fitted with Mondraker's MIND technology
Mondraker MIND -
MIND is a new tool that will help you get the perfect suspension setup based on your riding style or personal skills, analyze how the suspension is working at any time throughout the entire ride or simply record the activity wirelessly. All this is done via the myMondraker mobile app and the integrated telemetry system.
- Direct Bluetooth connection with the bike's MIND for adjustments, activity logging and data transfer.
- Guide to adjust SAG for front and rear suspension according to rider weight and riding style on Mondraker bike models featuring MIND
- Activity record for Mondraker bikes featuring MIND without the need to carry a cellphone on the ride.
- All data and graphs to monitor the rides: number of jumps, front and rear suspension travel, bottom outs, track, distance, time, altitude, average speed for models featuring MIND.
- Times, speeds, jumps, bottom out stats of the activities performed with Mondraker bikes featuring MIND.
- Connectivity with Strava and Facebook to share the activities.
- Anti-theft alarm system on Mondraker bikes featuring MIND.
- All Mondraker bike characteristics information.
- Direct management of bike-thefts.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System (EU only)
Rear shock - Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork - Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - ONOFF Desert, 1lock-on, 135mm
Seatpost - ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle - SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake - Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Code RSC, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - Mavic Deemax Pro Sam Hill 29 Boost, 28mm internal width, UST tubeless, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - Mavic Boost 15x110mm, IS 6 bolts
Rear hub - Mavic ratchet freewheel system, 80 points of engagement, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset - Sram X01 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram GX Eagle, 12s, Powerlock
Rear derailleur - Sram X01 Eagle AXS, roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Eagle AXS Rocker paddle, 12s
Cassette - Sram XG-1295, 10-52T, 12s
Derailleur hanger - Sram UDH
Approximate Weight - 13,9 kg

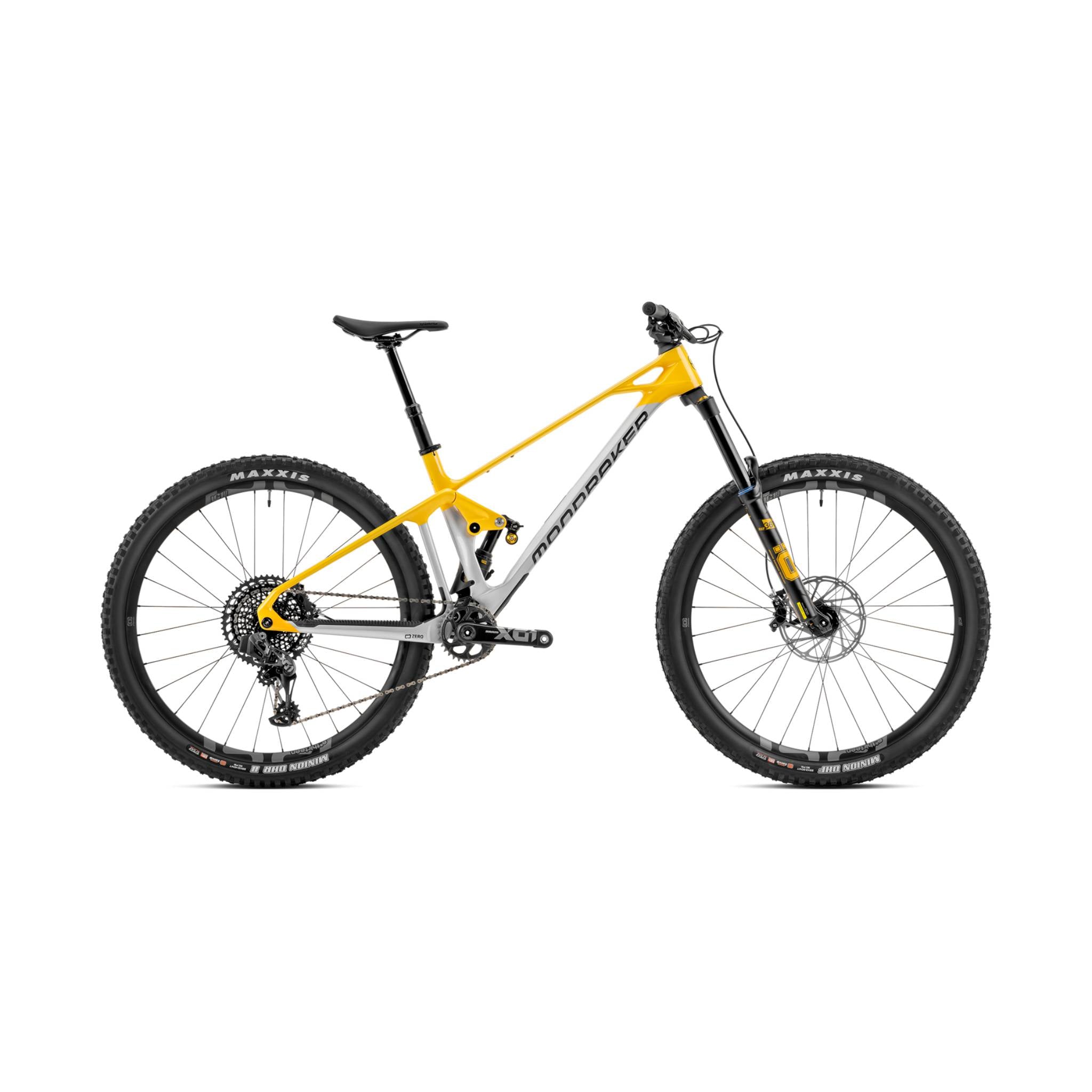

Mondraker Foxy Carbon XR 29 2023
