Description

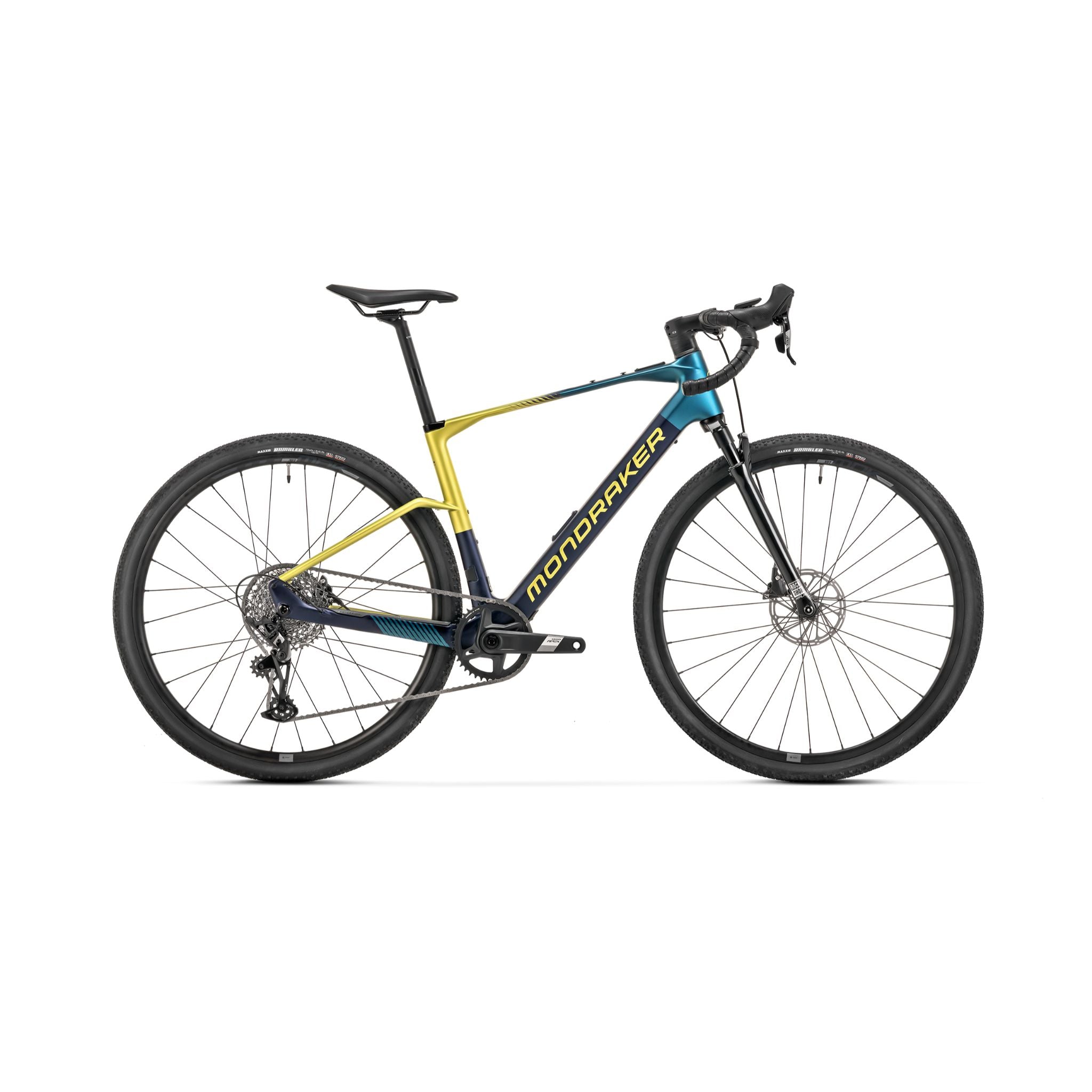

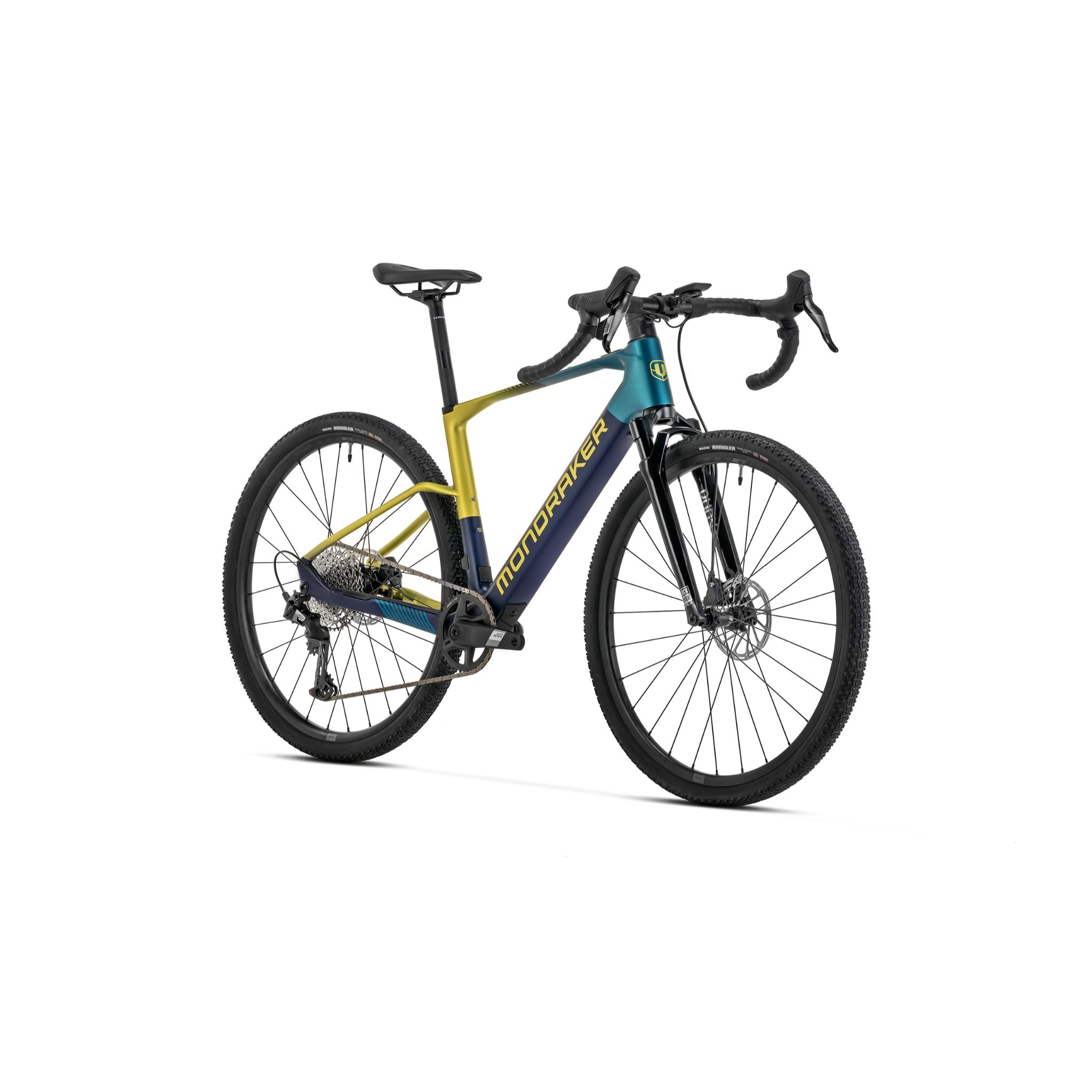

Mondraker's E-Gravel bike, designed for limitless adventure cycling, an electric bike more than happy on and off road.
At a glance it is hard to identify the Dusty as an electric bike, the engineers at Mondraker have cleverly hidden the Mahle X20 drive unit and battery within the sleek, modern frame. Crafted from stealth carbon the Dusty frame set provides a comfortable ride suitable for long miles though with a slightly more aggressive riding position suited to off road cycling. The Dusty is the perfect choice for riders wanting to take their cycling over a variety of terrains.
Mahles X20 drive unit and 350wh battery offer reliable, smooth pedal assist and have a surprisingly light weight, this keeps the Dusty nimble, agile and a ton of fun to ride.
SIZING -
- S: 160cm - 167cm
- M: 167cm - 175cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
-
Discipline Gravel/Adventure
-
Material Stealth Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
Frame - e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Fork - RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset
Headset - OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar - OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips - Barium gravel dark grey
Seatpost - OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
Saddle - FIZIK Terra Argo X7 150mm
Front brake - SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims - MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
Spokes - CN round stainless steel
Front hub - Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub - Mahle X20 Drive Unit, HG freehub
Front tire - Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire - Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset - SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
Rings - Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket - Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain - Sram Apex, 12s, Powerlock
Rear derailleur - Sram Apex XPLR 12s
Shift levers - Sram Apex D1 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1231 11-44, 12s
Derailleur hanger - Mondraker M076
Others - Optional external battery: Mahle e185Wh
Weight - 14,50 kg
Display - Pulsar One Wireless/ e-shifters
Motor - Mahle X20 Drive Unit
Battery - Mahle X20 IX350Wh
