Description
If you’re looking for in an e-bike with near limitless range then the DUSK R is right up your street. With Shimano’s new magnesium bodied STEPS EP801 motor you can choose between 3 modes (ECO, TRAIL and BOOST) to prioritize either assistance or range. For the riders who like to tweak their rides you can further customize the characteristics of each mode via Shimano’s E-Tube Project app thus tailoring them perfectly to your riding style. It comes with a 720Wh battery to open up longer rides in the mountains than ever before, and it comes with the option of extending this capacity even further thanks to an additional 360Wh external battery if required. All of that adds up 1,080Wh of day long exploring. The big travel numbers of 160mm at the front and 150mm at the rear, means the Dusk R will easily handle every terrain and feature you could want to aim for.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/All-Mountain
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery
Rear shock - Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - Medium compression, Medium rebound, 0.4 volume spacer
Fork - Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle - MDK ebike black
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool-free reach adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Shimano Steps EP801 ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 24,5 kg
Display - Shimano EN600
Motor - Shimano STEPS EP801
Battery - Simplo internal 720Wh

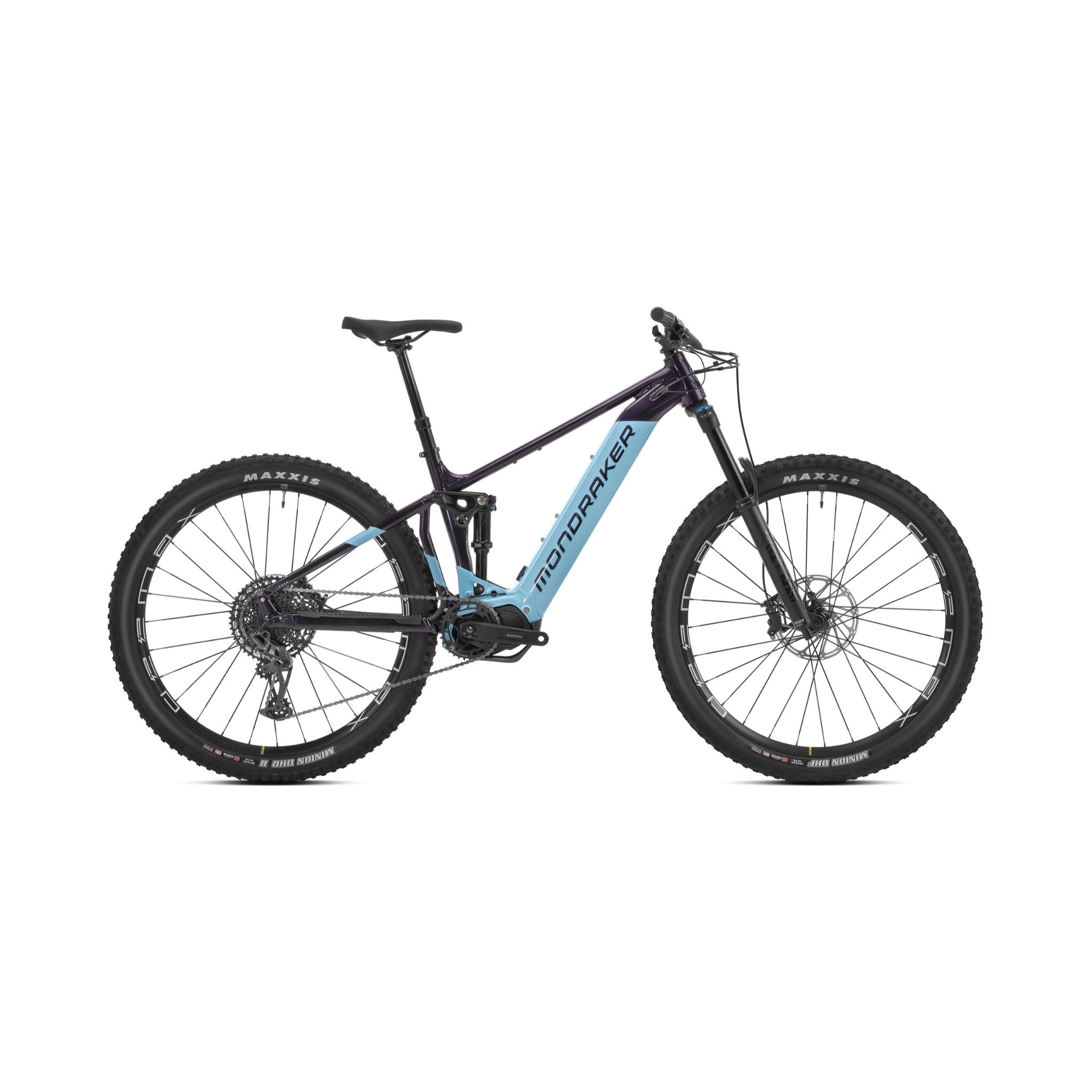

Mondraker Dusk R 2023
If you’re looking for in an e-bike with near limitless range then the DUSK R is right up your street. With Shimano’s new magnesium bodied STEPS EP801 motor you can...
Order within [time] for delivery by [date]
90 Day Returns -
Description
If you’re looking for in an e-bike with near limitless range then the DUSK R is right up your street. With Shimano’s new magnesium bodied STEPS EP801 motor you can choose between 3 modes (ECO, TRAIL and BOOST) to prioritize either assistance or range. For the riders who like to tweak their rides you can further customize the characteristics of each mode via Shimano’s E-Tube Project app thus tailoring them perfectly to your riding style. It comes with a 720Wh battery to open up longer rides in the mountains than ever before, and it comes with the option of extending this capacity even further thanks to an additional 360Wh external battery if required. All of that adds up 1,080Wh of day long exploring. The big travel numbers of 160mm at the front and 150mm at the rear, means the Dusk R will easily handle every terrain and feature you could want to aim for.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/All-Mountain
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery
Rear shock - Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - Medium compression, Medium rebound, 0.4 volume spacer
Fork - Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle - MDK ebike black
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool-free reach adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Shimano Steps EP801 ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 24,5 kg
Display - Shimano EN600
Motor - Shimano STEPS EP801
Battery - Simplo internal 720Wh
