Description

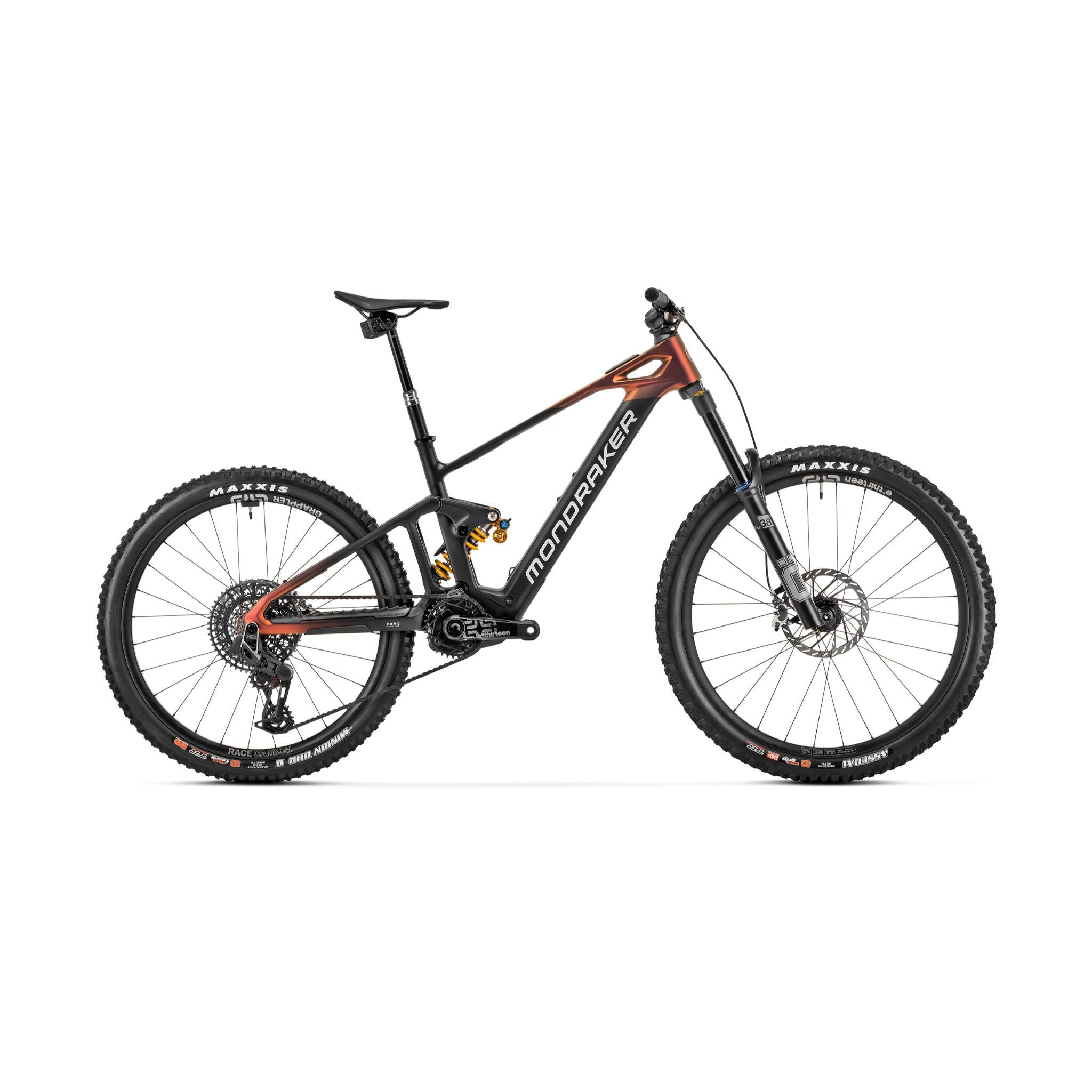

The Mondraker Dune XR 2025 is an advanced electric mountain bike designed for enduro riding. With a stealth carbon frame and a powerful Bosch SX motor, this bike offers 170mm of front travel and 165mm of rear travel. Its lightweight and high-quality build kit make it a top choice for riders seeking thrill and performance.
The Mondraker Dune XR 2025 boasts a meticulously designed frame intended to excel on difficult terrain, serving as a well-rounded bike that excels in both technical descents and fast, curving trails. With a riding position optimized for optimum performance on climbs and extended pedaling sections, it remains engaging and playful throughout.
It’s Mondraker's only build with a 180mm fork and coil shock. It’s got a 180mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX22M.2 205x65mm shock, SRAM X0 Eagle AXS transmission with T-Type rear mech, E.13 TRS Race carbon cranks, SRAM Code Ultimate Stealth brakes, RockShox Reverb Stealth AXS seatpost and e*thirteen Grappler Race Carbon wheels.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Carbon
-
Front Travel 180mm
-
Rear Travel 165mm
-
Wheel Size MX"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork - Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar - Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle - Fizik Terra Aidon Slim X5
Front Brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever - Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''5 rear
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - e*Thirteen TRS Race carbon ebike, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear Derailleur - Sram X0 Eagle AXS T-Type,12s
Shift Levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Display - Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Weight - 19,5 kg
