Description

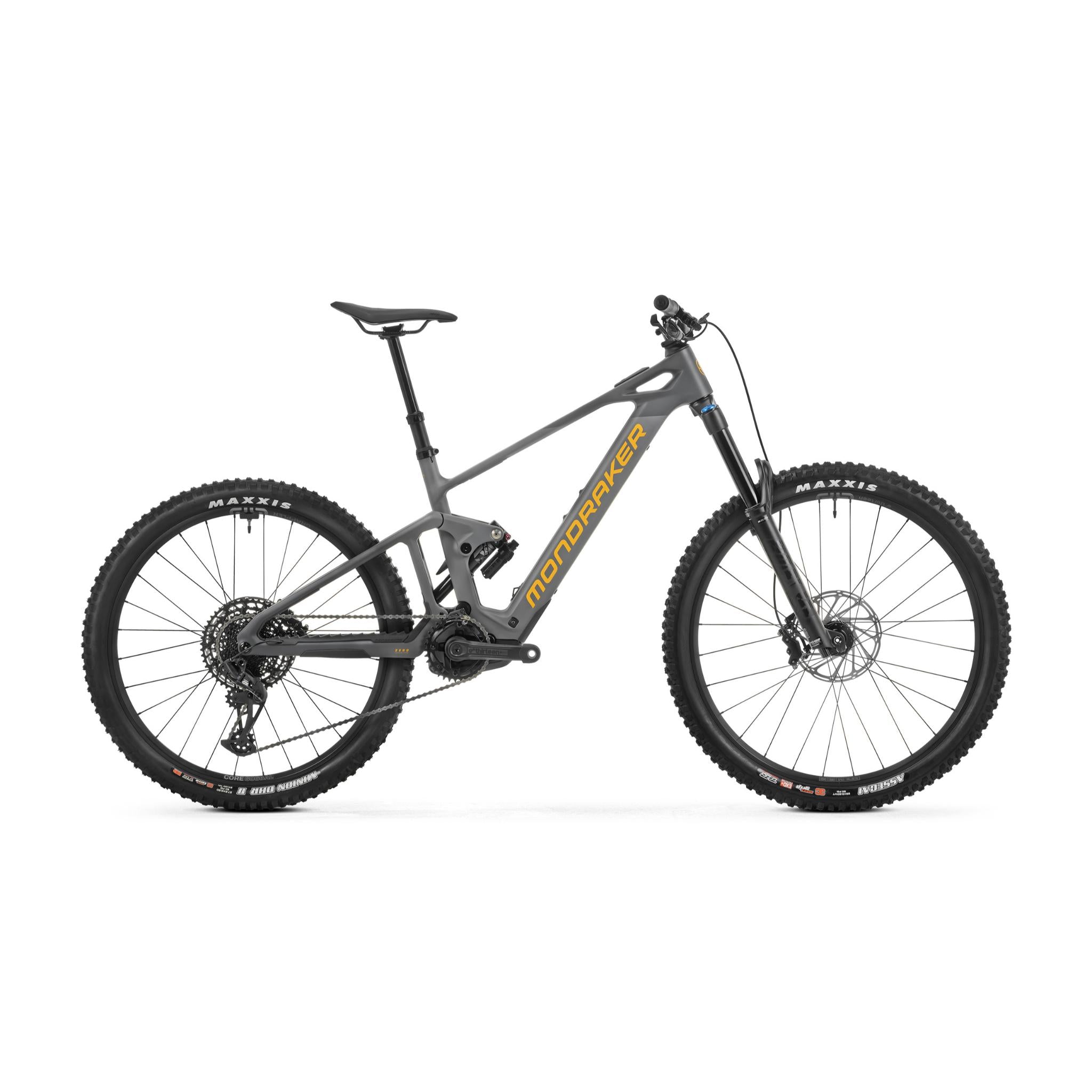

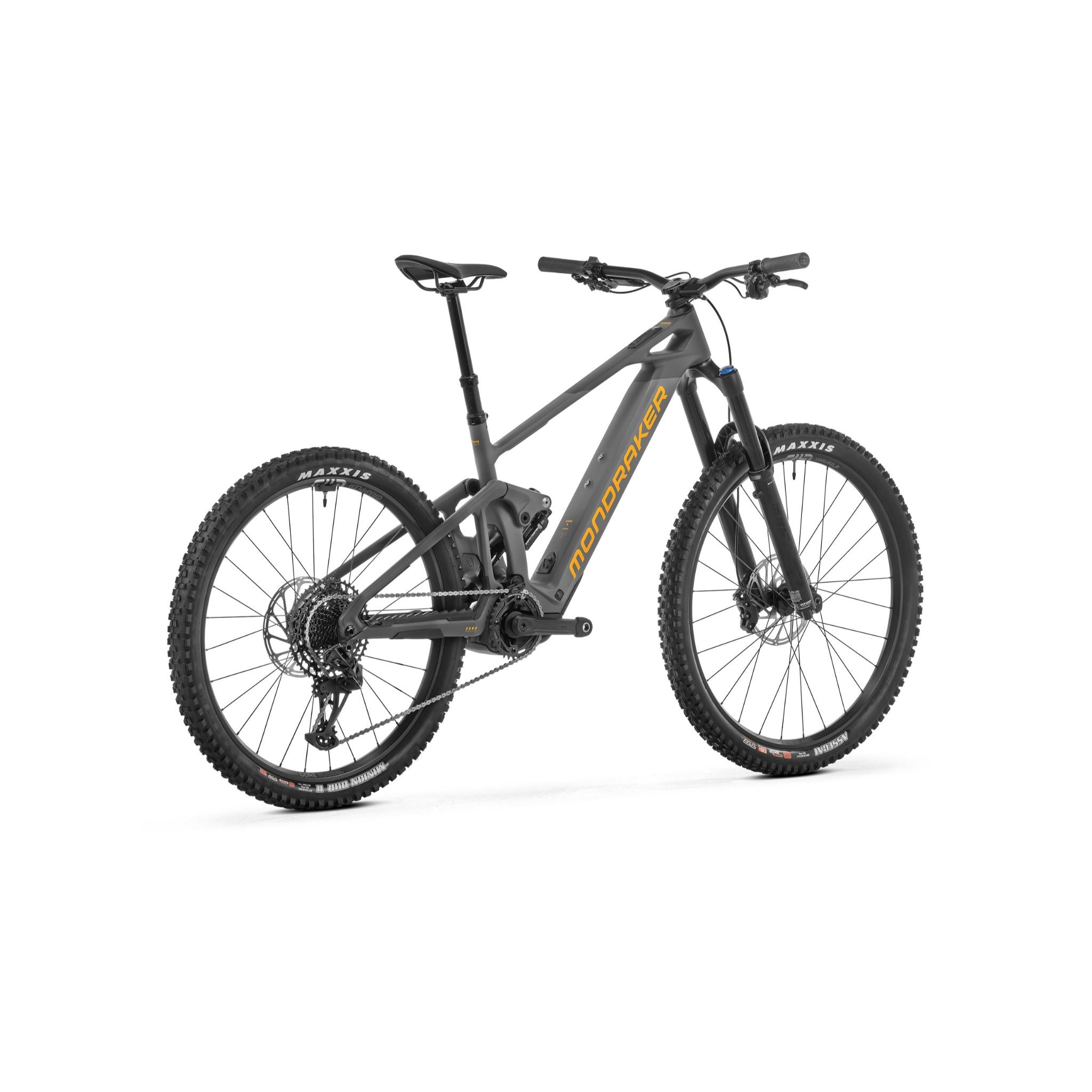

The Mondraker Dune R 2025 boasts a sophisticated design, featuring a lightweight MX wheel frame and a powerful 170mm front/165mm rear travel, all powered by the trusty Bosch SX motor. This impressive electric enduro mountain bike is a top choice for riders seeking a cutting-edge build.
The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Super Enduro
-
Material Stealth Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Fizik Terra Aidon Slim X5
Front Brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tyre - Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram NX Eagle, 12s, Powerlock
Rear Derailleur - Sram GX Eagle,12s
Shift Levers - Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Display - Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Weight (approx)- 19,9 kg
Mondraker Dune R 2025
The Mondraker Dune R 2025 boasts a sophisticated design, featuring a lightweight MX wheel frame and a powerful 170mm front/165mm rear travel, all powered by the trusty Bosch SX motor....
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Mondraker Dune R 2025 boasts a sophisticated design, featuring a lightweight MX wheel frame and a powerful 170mm front/165mm rear travel, all powered by the trusty Bosch SX motor. This impressive electric enduro mountain bike is a top choice for riders seeking a cutting-edge build.
The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Super Enduro
-
Material Stealth Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Fizik Terra Aidon Slim X5
Front Brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tyre - Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram NX Eagle, 12s, Powerlock
Rear Derailleur - Sram GX Eagle,12s
Shift Levers - Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Display - Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Weight (approx)- 19,9 kg
