Description
The names a bit of a giveaway - this all-mountain electric mountain bike is not for tame leisure rides. Mondraker's Crusher will make easy work of challenging trails and demanding Enduro stages.
Designed to sit in-between the Crafty and Neat models a Crusher is a great option if you are looking to take your e-mtb to a wide range of locations. Comfortable enough to clock up big miles at a trail centre though more than equipped to handle hitting feature-full bikepark lines.
The frame is engineered around Mondraker's forward geometry, using a longer reach and shorter stem you will find the front wheel remains weighted at all times, the resulting consistent traction and stability will make you confident to keep speeds high.
Power is handled by the formidable Shimano EP801 motor and large capacity 720wh battery, more than enough juice for long days shredding.
This top of range Crusher RR has an outstanding build kit - Öhlins RXF 38 M.2 29 fork, a Shimano Deore XT Di2 chainset, Shimano Deore XT M8120 brakes, an ONOFF Pija dropper seatpost (with between 125mm - 200mm of travel depending on frame size) and Maxxis Minion DHF/DHR II 2.6” EXO+ tyres
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline All-Mountain
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork - Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm + SHIMANO SL-MT800-IL lever
Saddle - FIZIK Terra Aidon X5 145mm
Front brake - Shimano Deore XT M8120, 4-piston caliper, MT-800 Ice-Tech 203mm Center Lock
Rear brake - Shimano Deore XT M8120, 4-piston caliper, MT-810 Ice-Tech 203mm Center Lock
Brake lever - Shimano Deore XT M8120
Rims - Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes - Mavic straight-pull double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, Center Lock
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, Center Lock, MS freehub
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Shimano Steps XT FC-8150 ebike, 165mm
Rings - Shimano EP801, 34T, 104 BCD
Chain - Shimano Deore XT M8100
Rear derailleur - Shimano Deore XT M8150-GS Di2 12s shadow plus, direct mount
Shift levers - Shimano XT Di2 SW-M8150
Cassette - Shimano Deore XT M8100, 10-51 12s
Derailleur hanger - Mondraker M068
Weight - 23,4 kg
Display - Shimano EN600
Motor - Shimano STEPS EP801
Battery - Simplo internal 720Wh G3

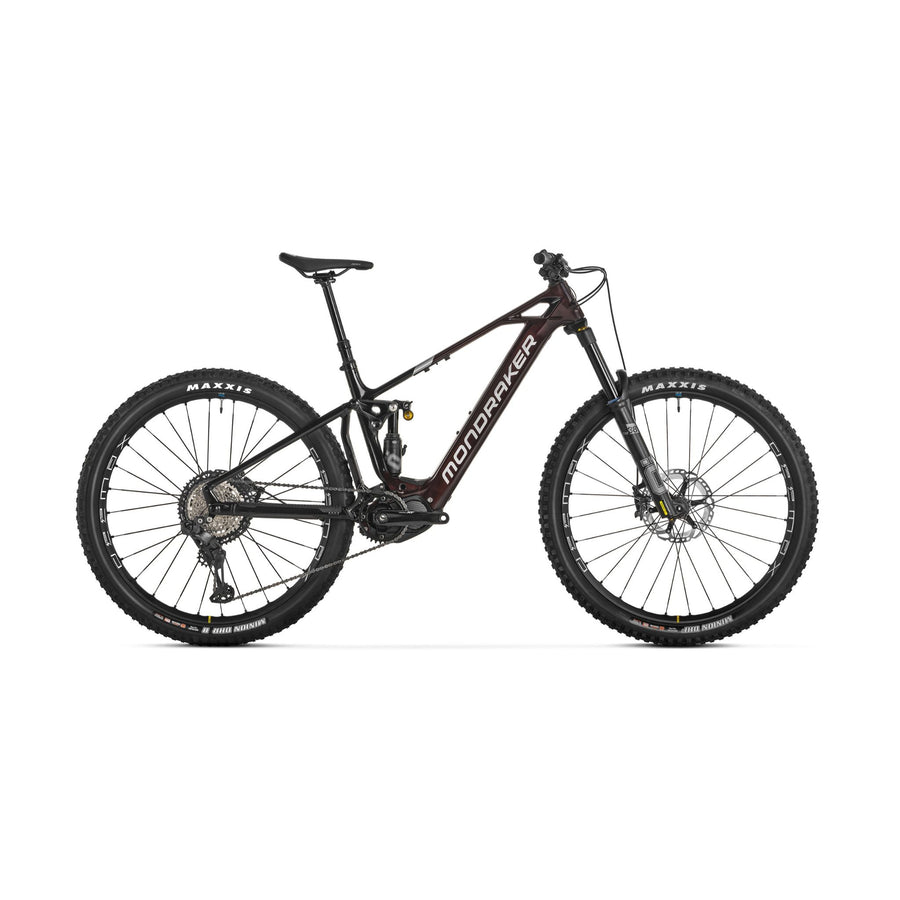

Mondraker Crusher RR 2024
