Description
For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything the Earth has to offer. The aluminium frame shares the exact same geometry as the carbon, though makes these amazing bikes available at a lower price point.
Taking full advantage of its optimized ZERO suspension system the Crafty RR soaks up the trail chatter like a dream. Then you add FORWARD GEOMETRY and a STEALTH ALLOY EVO frame to give you spectacular agility and the most fun ride you can imagine. The Fox 38 fork together with Fox’s Float X shock absorber, both from the Factory range, provide mind-blowing control whatever the situation and however gnarly things get
Bosch Smart System -
The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Alloy
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - medium compression, medium rebound, air volume spacer 0.2
Fork - Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
Saddle - FIZIK Terra Aidon X5 145mm
Front brake - Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Code R, tool-free reach adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Race Face Aeffect ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram NX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram XG-1230, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 25,5 kg
Display - Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) Smart System
Battery - Bosch Powertube 750Wh

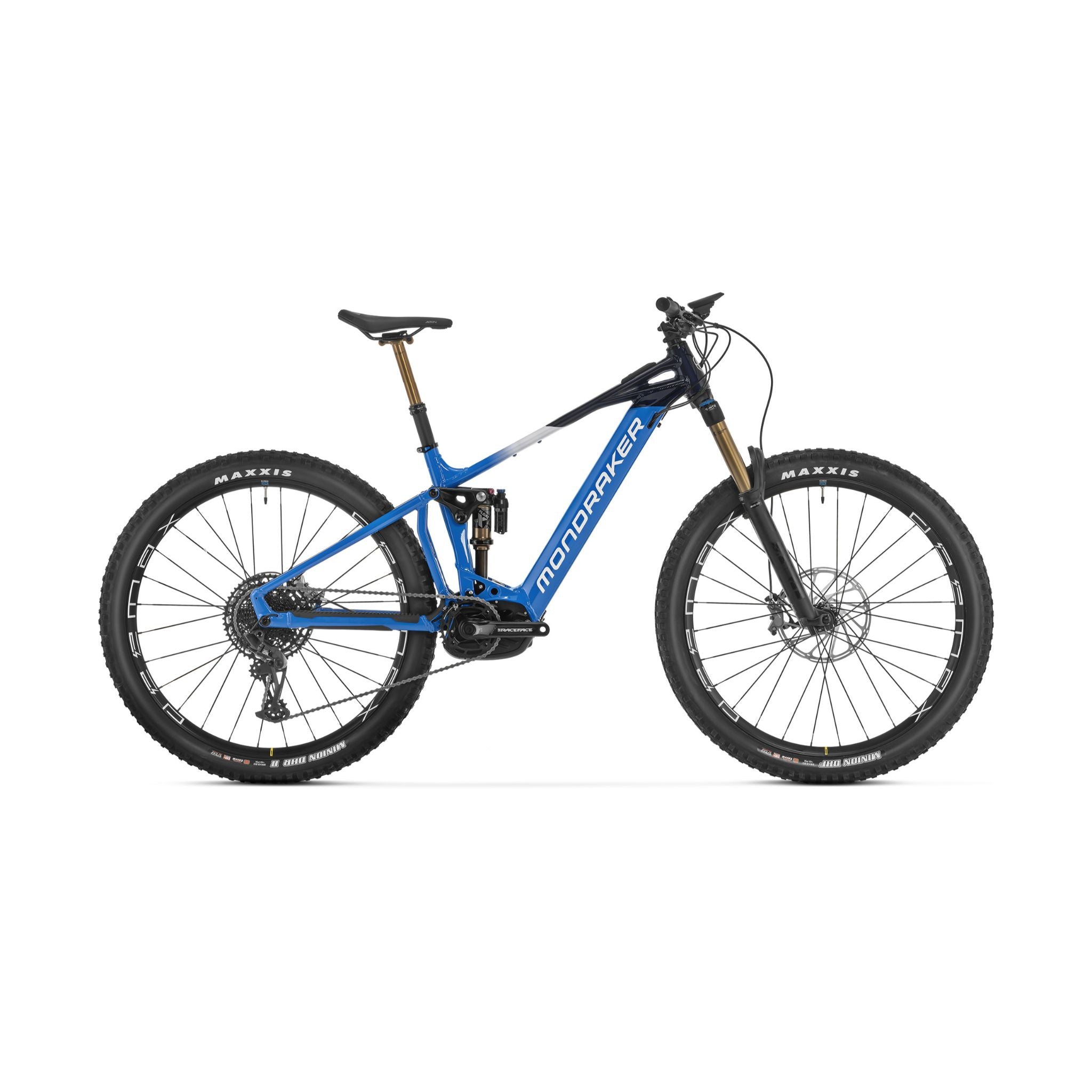

Mondraker Crafty RR 2024
