Description
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure on offer from Mother Earth.
The XR is a high spec model of the Crafty, that also bumps front travel up to 170mm over the 160mm found on other Crafty models. To complement the stunning paint job is a selection of components to die for. Rider favourite Ohlins fork and shock work in tandem with the Crafty frames Forward Geometry and Zero suspension linkage system to keep the bike glued to terra while maintaining and active, playful ride feel.
SRAM's wireless GX Eagle T-Type drivetrain gives riders a wide 12-speed gear range and Maven Silver disc brakes have ample strength to keep speeds under control. Finishing of this weapon of a bike is a Mavic Deemax wheelset, Maxxis tyres and OnOff Pija dropper seatpost
Bosch Smart System -
The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 600Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, lowspeed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R20 rebound. Spring rate: S size 411 lbs, size M 457 lbs, ML size 502 lbs, L size 548 lbs, XL size 605 lbs
Fork - Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff S9 30mm 0°, Full CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 1.5 rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-
185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon SM-10
Front brake - Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Deemax S 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic Straight-Pull double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire - Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, 60x2TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram X0 Eagle AXS, T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Display - Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh

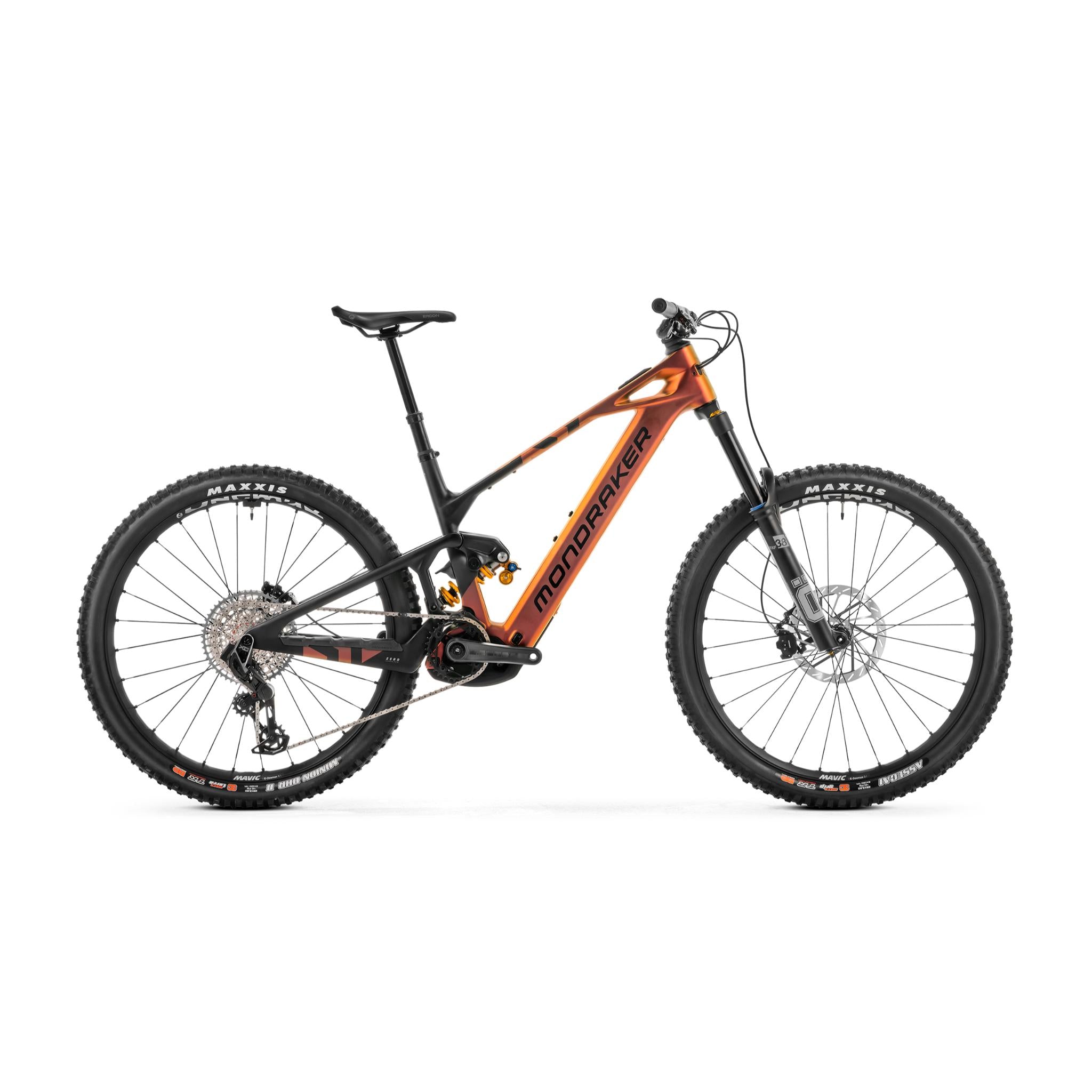

Mondraker Crafty Carbon XR 2025
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure on offer from Mother Earth.
The XR is a high spec model of the Crafty, that also bumps front travel up to 170mm over the 160mm found on other Crafty models. To complement the stunning paint job is a selection of components to die for. Rider favourite Ohlins fork and shock work in tandem with the Crafty frames Forward Geometry and Zero suspension linkage system to keep the bike glued to terra while maintaining and active, playful ride feel.
SRAM's wireless GX Eagle T-Type drivetrain gives riders a wide 12-speed gear range and Maven Silver disc brakes have ample strength to keep speeds under control. Finishing of this weapon of a bike is a Mavic Deemax wheelset, Maxxis tyres and OnOff Pija dropper seatpost
Bosch Smart System -
The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 600Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, lowspeed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R20 rebound. Spring rate: S size 411 lbs, size M 457 lbs, ML size 502 lbs, L size 548 lbs, XL size 605 lbs
Fork - Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff S9 30mm 0°, Full CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 1.5 rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-
185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon SM-10
Front brake - Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Deemax S 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic Straight-Pull double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire - Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, 60x2TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram X0 Eagle AXS, T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Display - Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh
