Description
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure on offer from Mother Earth.
The RR is the mid-range Crafty but has an outstanding spec, boasting Fox Factory suspension, SRAM wireless GX AXS T-type drivetrain, SRAM Maven brakes and Mavic Deemax wheelset.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL 205x65mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - CM compression, Medium rebound, 0.2 volume spacer
Fork - Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Forest, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-
185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon SM-10
Front brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Race Face Aeffect-R ebike, 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS, T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Display - Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh

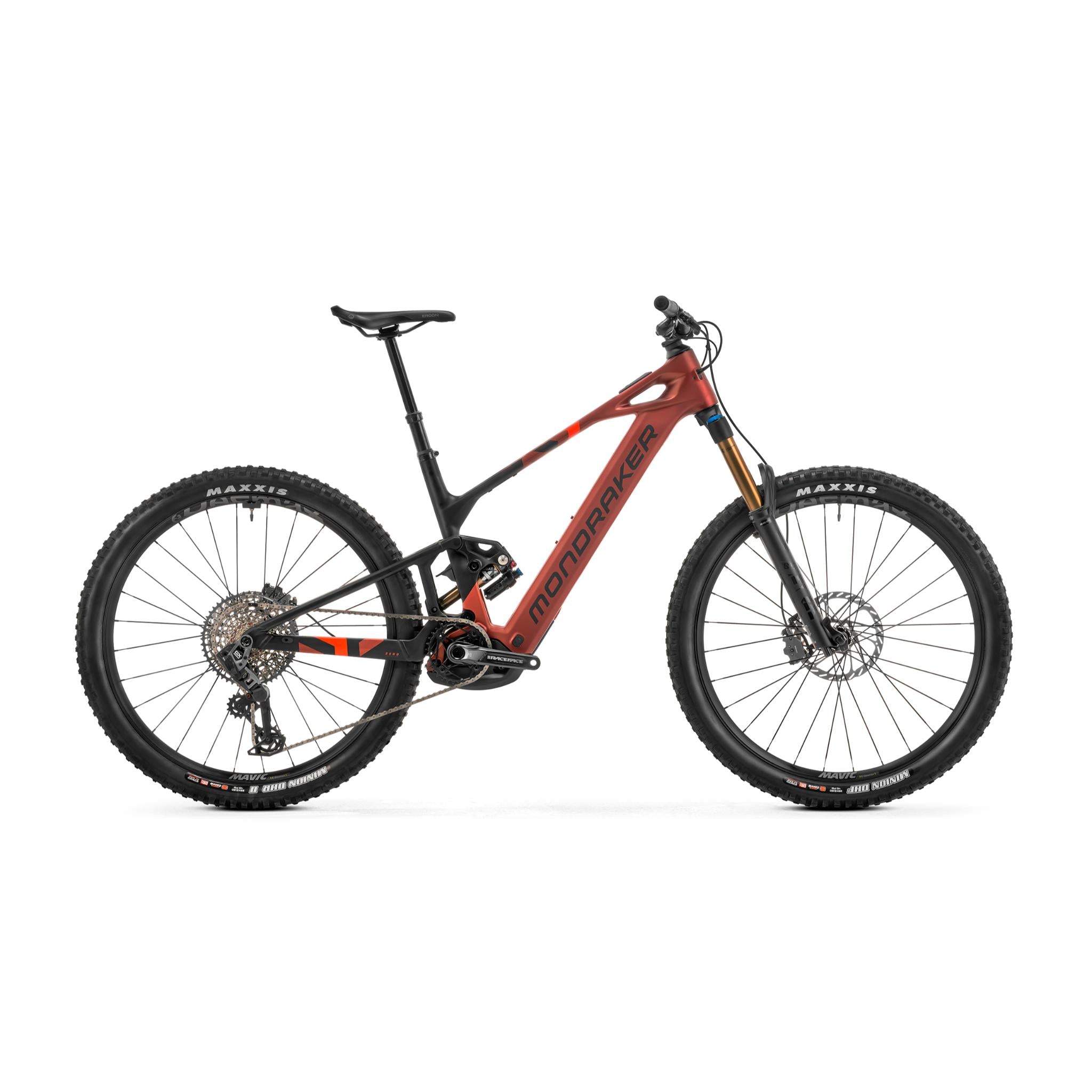

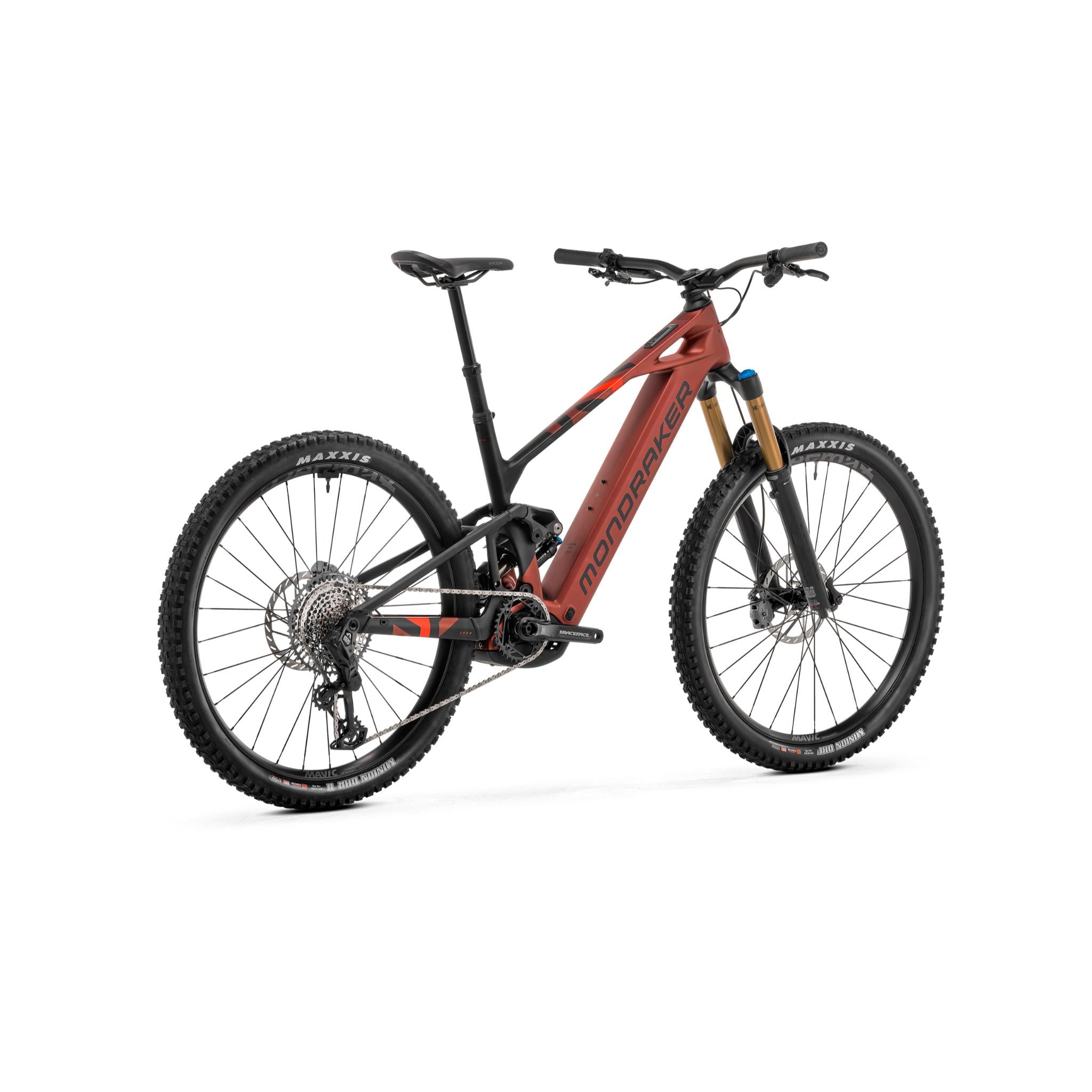

Mondraker Crafty Carbon RR 2025
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure on offer from Mother Earth.
The RR is the mid-range Crafty but has an outstanding spec, boasting Fox Factory suspension, SRAM wireless GX AXS T-type drivetrain, SRAM Maven brakes and Mavic Deemax wheelset.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL 205x65mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - CM compression, Medium rebound, 0.2 volume spacer
Fork - Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Forest, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-
185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon SM-10
Front brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Race Face Aeffect-R ebike, 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS, T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Display - Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh
