Description

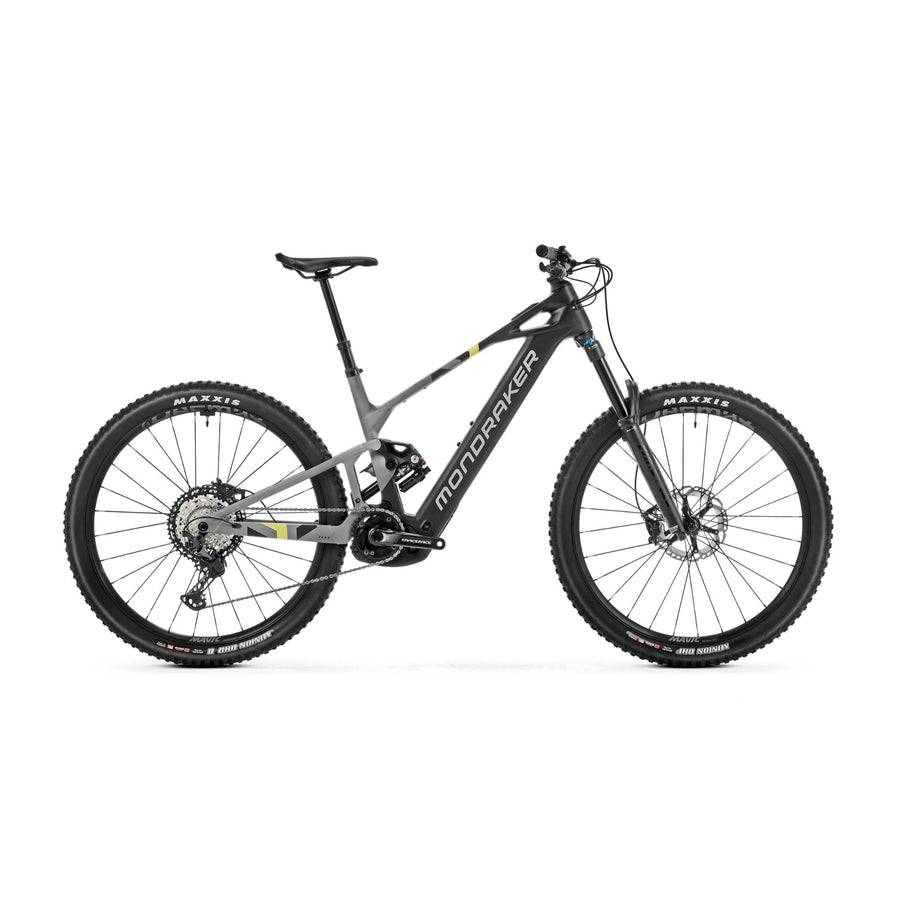

Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure on offer from Mother Earth.
The R is the entry point to the carbon Crafty range. The fantastic frame is fitted with a well thought out kit to offer the highest performance at the best possible price. Still reading like rival brands highest spec bikes, the Crafty R has Fox Performance fork and shock, Shimano XT 12 speed drivetrain, Shimano XT 4-piston brakes, Mavic Deemax wheelset and Onoff dropper seatpost.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork - Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 1.5 rise
Grips - Onoff Forest, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon SM-10
Front brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever - Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - Race Face Aeffect-R ebike, 160mm
Rings - Race Face, 34T, steel, direct mount
Chain - Shimano XT M8100, 12s
Rear derailleur - Shimano XT M8100, SGS, Shadow+
Shift levers - Shimano XT M8100, Rapid Fire Plus, 12s
Cassette - Shimano XT M8100 10-51T Hyperglide+, 12s
Display - Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh
Mondraker Crafty Carbon R 2025
