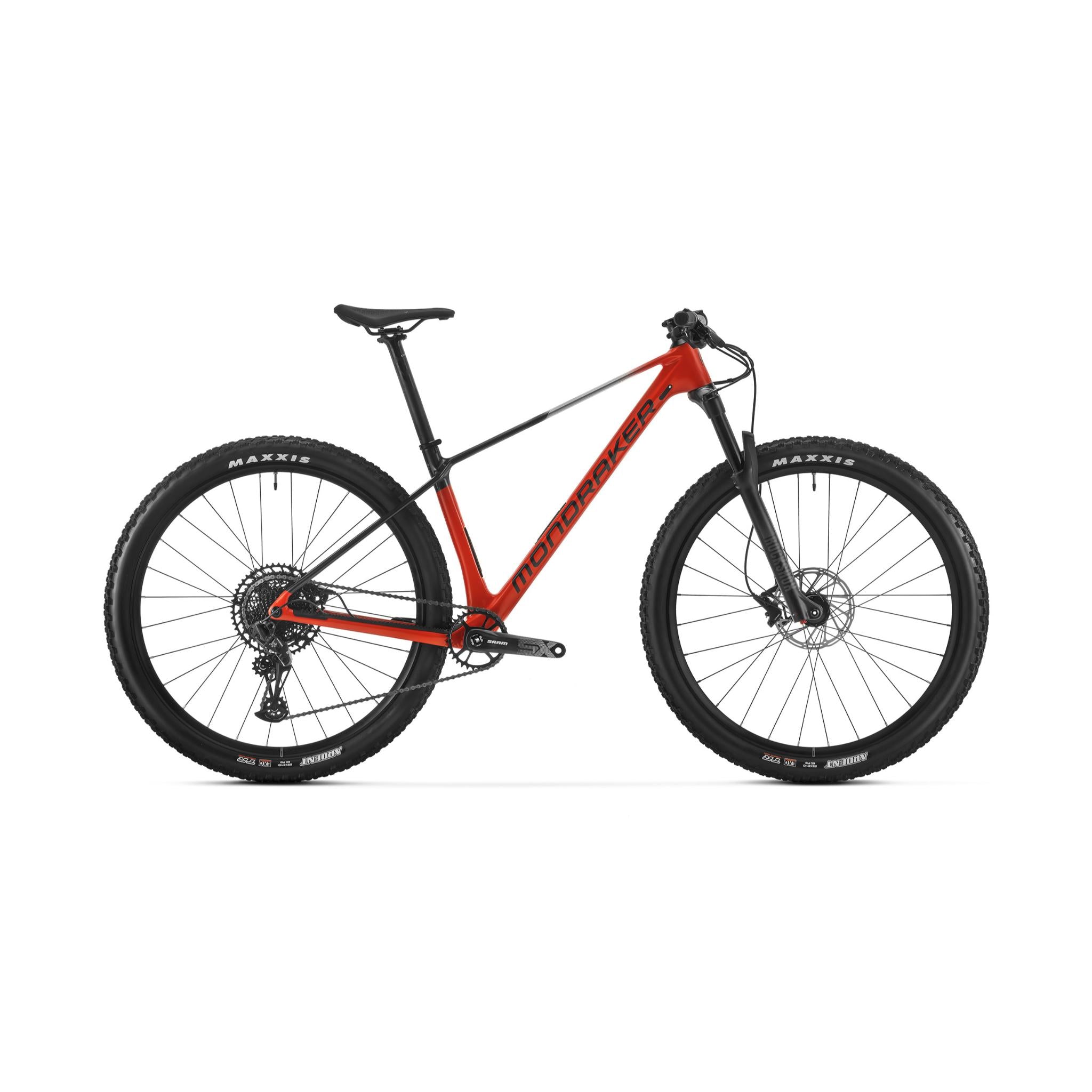

  • Mondraker Chrono Carbon DC 2024
  • Mondraker Chrono Carbon DC 2024

Description

Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the comfort level. Still very much a rapid XC bike the Chrono's less aggressive frame platform means the Chrono will be more fun on trail rides or long distances when compared to the full-speed Podium. The DC model bumps front travel up to 120mm from the standard Chrono's 100mm as well as fitting chunkier 2.4" tyres, these changes tailor the DC for rougher terrains.

The carbon fibre layup of the stealth carbon frame absorbs trail vibration and significantly reduces rider fatigue, while its feather weight keeps it super agile. Complementing that optimized frame are components such as a Rockshox Judy fork, Mondraker wheels, SRAM SX Eagle drivetrain and ONOFF components.

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+



Specifications

  • Chrono DC
  • Discipline Trail/XC

  • Material Stealth Carbon

  • Front Travel 120mm

  • Rear Travel Hardtail

  • Wheel Size 29"

  • Warranty Lifetime (frame)

Frame - Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Fork - RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Fork remote - RockShox OneLoc
Headset - Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem - MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar - Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes - Mavic J-bemd steel round spokes
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset - Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings - 34T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 12,2 kg

Mondraker Chrono Carbon DC 2024

1 Reviews1 total reviews

SKU: 010.24031 / Barcode: 8435392876575

Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the...

Sale price £1,695.00 Regular price RRP £2,299.00 SAVE 26%
Colour

Size

In stock

90 Day Returns -

Description

Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the comfort level. Still very much a rapid XC bike the Chrono's less aggressive frame platform means the Chrono will be more fun on trail rides or long distances when compared to the full-speed Podium. The DC model bumps front travel up to 120mm from the standard Chrono's 100mm as well as fitting chunkier 2.4" tyres, these changes tailor the DC for rougher terrains.

The carbon fibre layup of the stealth carbon frame absorbs trail vibration and significantly reduces rider fatigue, while its feather weight keeps it super agile. Complementing that optimized frame are components such as a Rockshox Judy fork, Mondraker wheels, SRAM SX Eagle drivetrain and ONOFF components.

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+



Specifications

  • Chrono DC
  • Discipline Trail/XC

  • Material Stealth Carbon

  • Front Travel 120mm

  • Rear Travel Hardtail

  • Wheel Size 29"

  • Warranty Lifetime (frame)

Frame - Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Fork - RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Fork remote - RockShox OneLoc
Headset - Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem - MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar - Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes - Mavic J-bemd steel round spokes
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset - Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings - 34T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 12,2 kg

Customer Reviews

5.0
Rated 5.0 out of 5 stars
Based on 1 review
Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Slide 1 selected
1 review
  • B
    Bruno
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    4 hours ago
    Great geometry

    Never had opportunity to ride Mondraker MTB until now. I own this bike for around 2-3 months and the best thing for me is geometry, bike suits me so well, no hand numbness no ride fatigue, so glad that I bought this one, bike Tart team also made this experience so good no problems at all, everything went so smooth. I upgraded bike with dropper post and Hunt wheels that I had before, bike climbs well very stable on decents, I am very impressed with entry level fork Reacon in future will definitely upgrade for something lighter, but for now this one works fine, very light bike, frame is beautiful that top tube is eye catcher
