Description
The Mondraker Arid Carbon gravel bike draws heavily upon its extensive mountain biking heritage to craft a versatile and robust machine.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
Available in four builds, the Arid caters to a range of preferences and budgets. The base model features a Sram RED eTap AXS groupset and ZIPP Carbon Disc wheels, with a weight around 7.9 kg.
SIZING -
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
FRAME - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
FORK - Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork
RIMS - Zipp 303 XPLR SW, 32mm internal width,54mm rim depth, hookless, infinity hubs, 24 spokes
HUBS REAR - ZR1 Disc Brake, 12x142mm, XDR 6 Pawls, Compression Springs, Centerlock. XD Freehub
HUBS FRONT - ZR1 Disc Brake, 12x100mm,Centerlock
SPOKES - CX-Ray - Black
TIRES - Goodyear XPLR Inter 700x45
DERAILLEUR REAR - Sram RED XPLR AXS, Magic wheel, cage lock, 1x13
SHIFT LEVER - Sram Force Etap AXS 13s,
CRANKSET - Sram RED XPLR carbon, Power meter, DUB axle, thread-mount chainring, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
CHAIN - Sram RED, 13s, Powerlock
CASSETTE - Sram XG-1391, 10-46T, 13s
BRAKE - Sram RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
BRAKE LEVERS - Sram RED, contact point adjustment, tooled reach adjust, carbon levers
HANDLEBAR - OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
STEM - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
GRIPS - OnOff HEX Bartape
HEADSET - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
SEATPOST - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
SADDLE - FIZIK Terra Argo X5 140mm

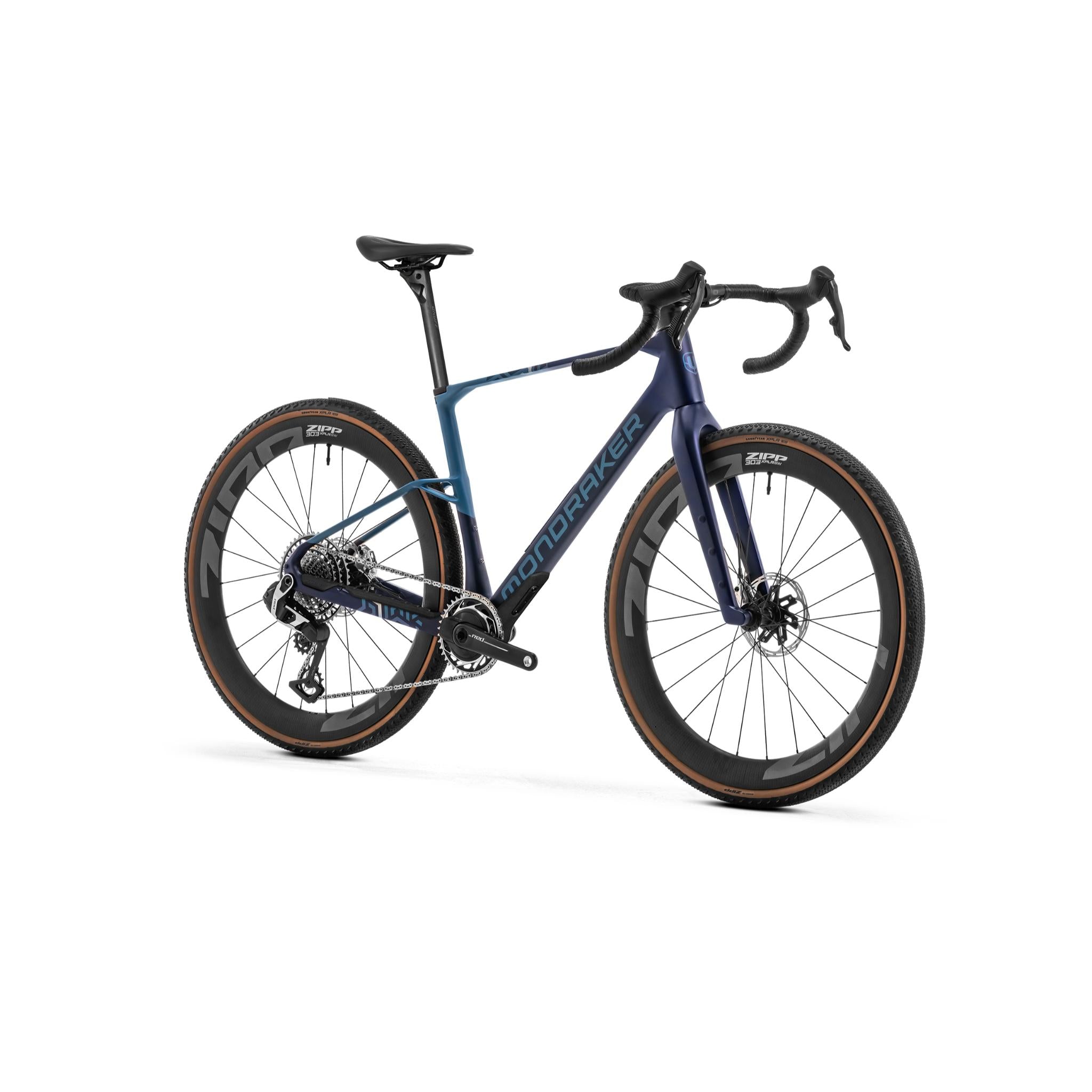

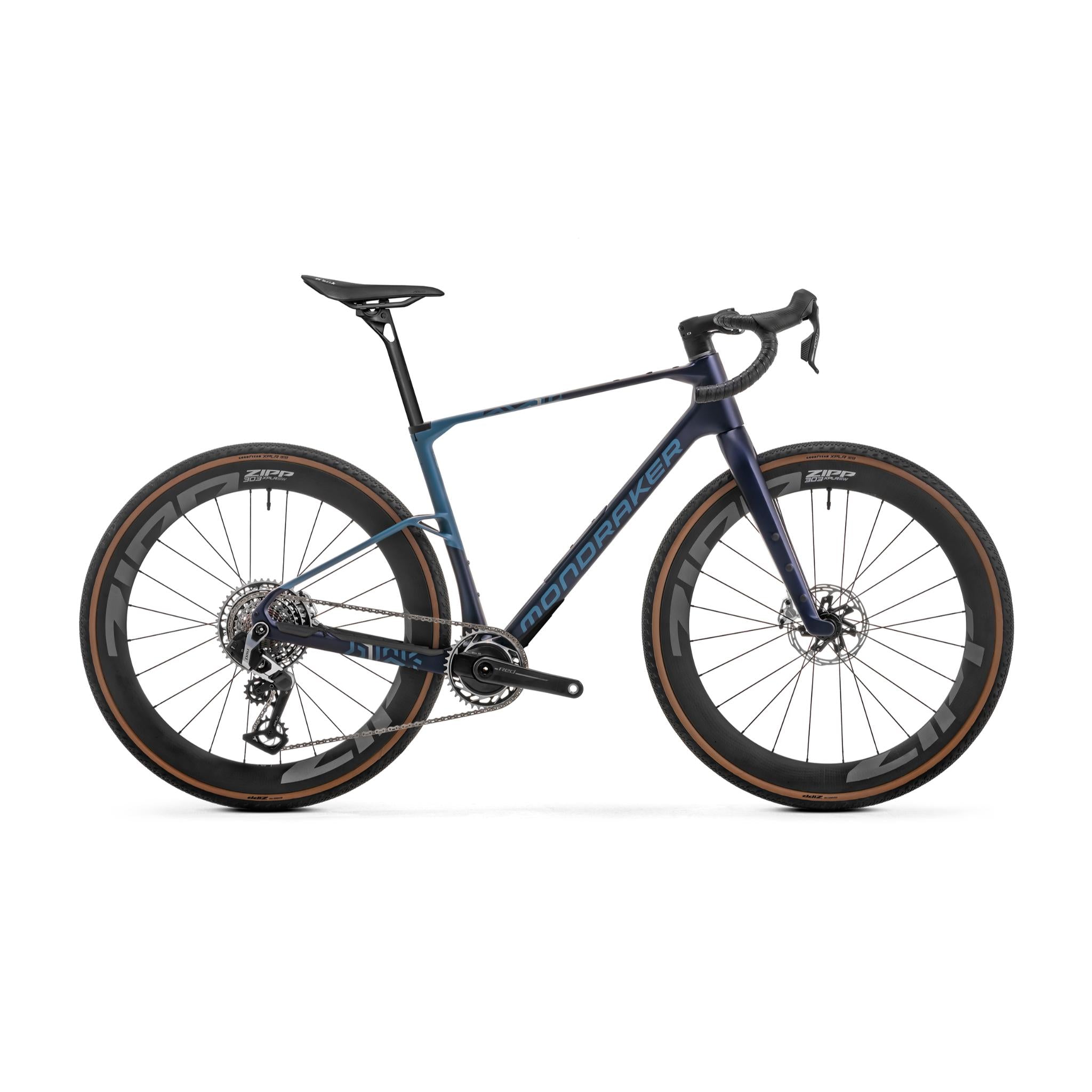

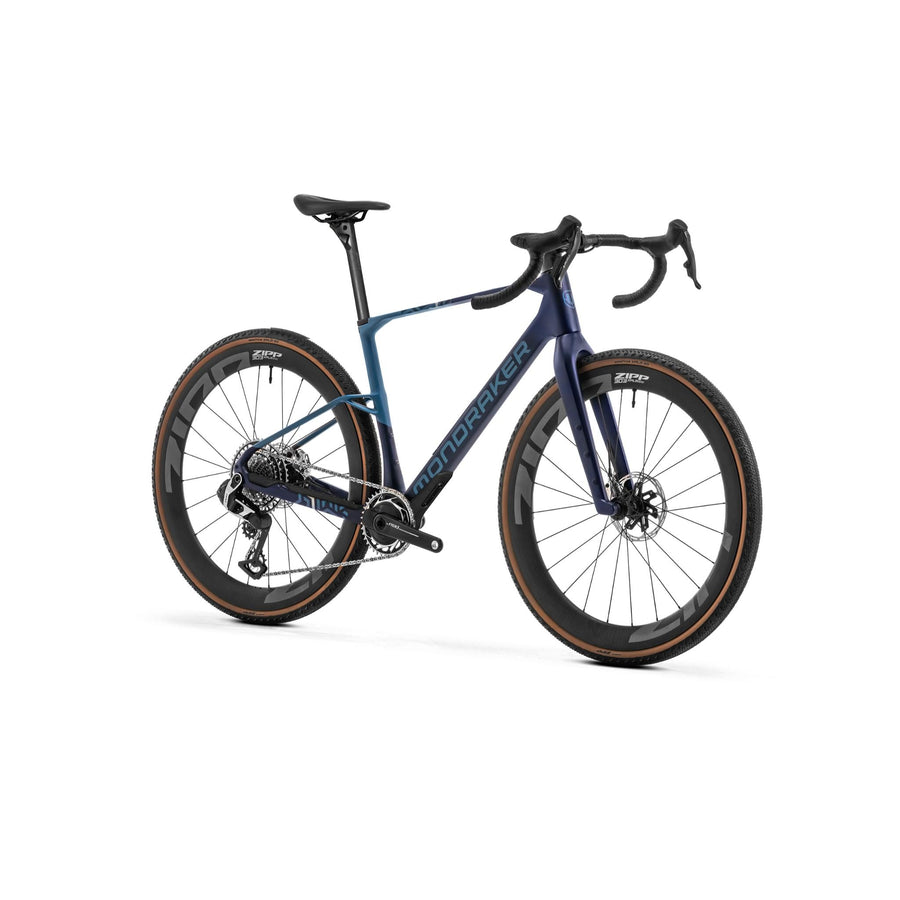

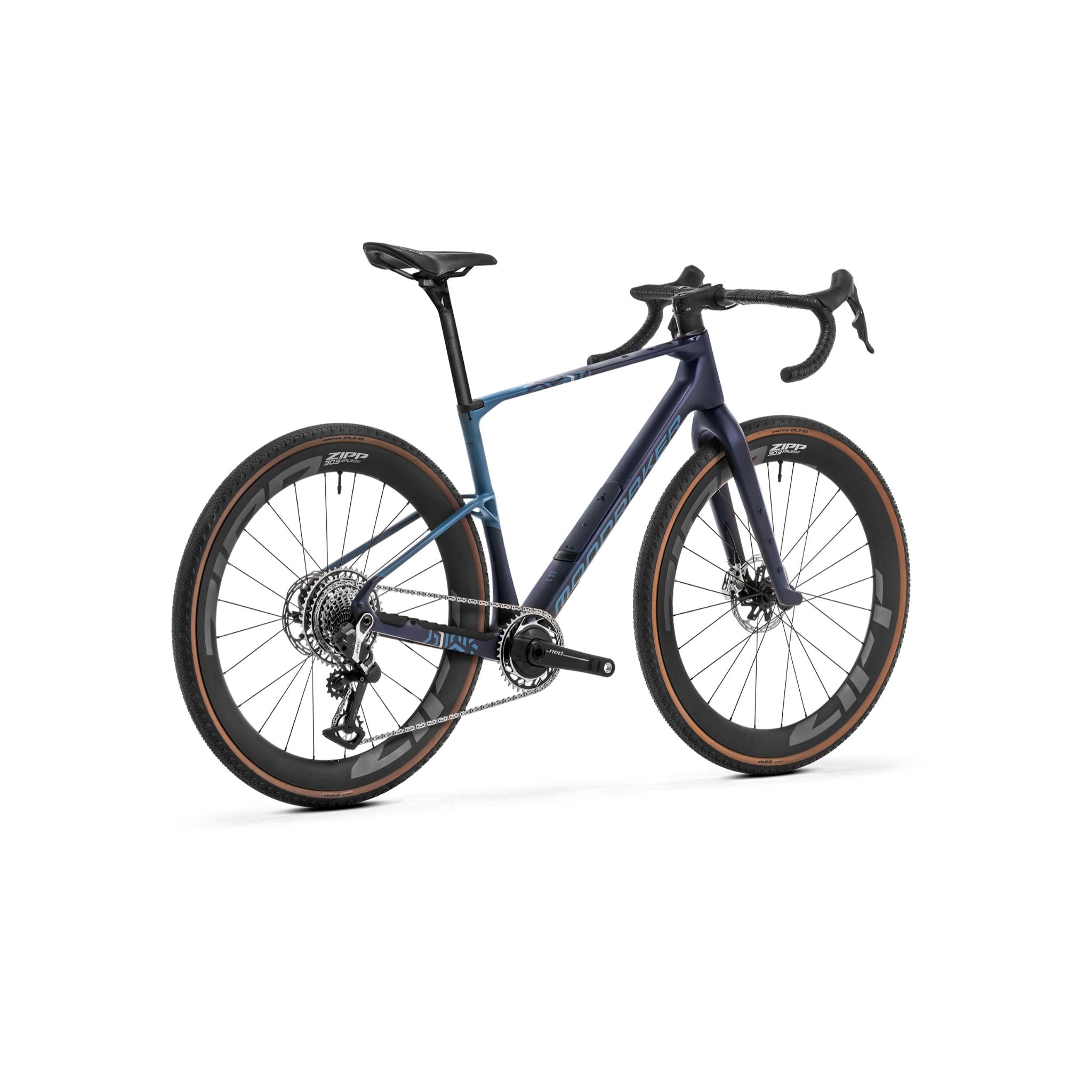

Mondraker Arid Carbon RR SL 2025
