Description

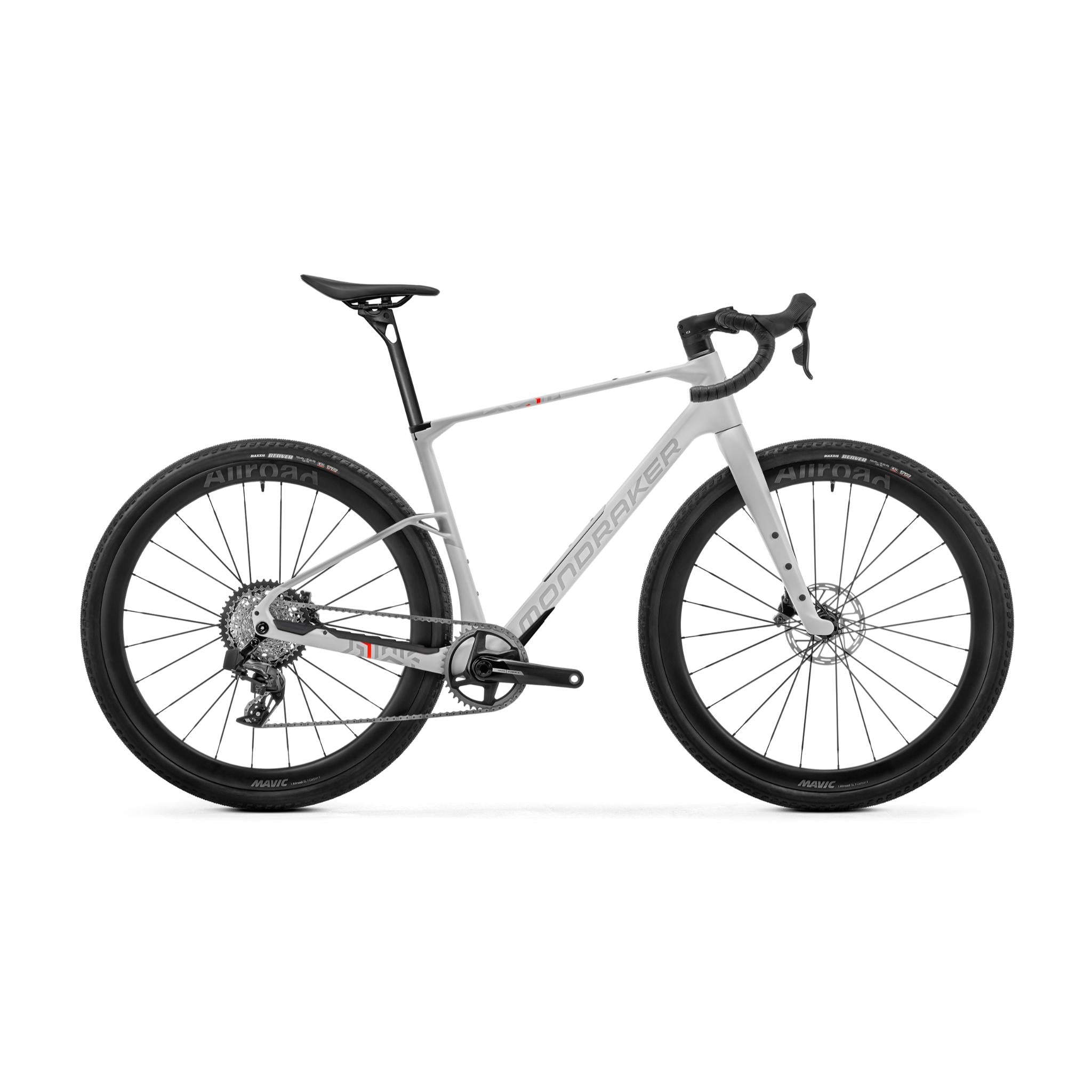

The Mondraker Arid Carbon gravel bike draws heavily upon its extensive mountain biking heritage to craft a versatile and robust machine.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
Available in four builds, the Arid caters to a range of preferences and budgets. The base model features a Sram Force AXS groupset and Mavic Allroad Disc wheels, with a weight around 8.8 kg.
SIZING -
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
FRAME - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
FORK - Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork
RIMS - Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, infinity hubs, 24 spokes
HUBS REAR - Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
HUBS FRONT - Mavic, 12x100mm, IS 6 bolts
SPOKES - Mavic Steel double butted flat spokes
TIRES - Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
DERAILLEUR REAR - Sram Force XPLR Etap AXS, 12s
SHIFT LEVER - Sram Force Etap AXS 12s,
CRANKSET - SRAM Force 1 Carbon, Power meter, DUB axle, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
CHAIN - Sram Force, 12s, Powerlock
CASSETTE - Sram XG-1271, 10-44T, 12s
BRAKE - SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
BRAKE LEVERS - Sram Force, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever
HANDLEBAR - OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
STEM - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
GRIPS - OnOff HEX Bartape
HEADSET - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
SEATPOST - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
SADDLE - FIZIK Terra Argo X5 140mm

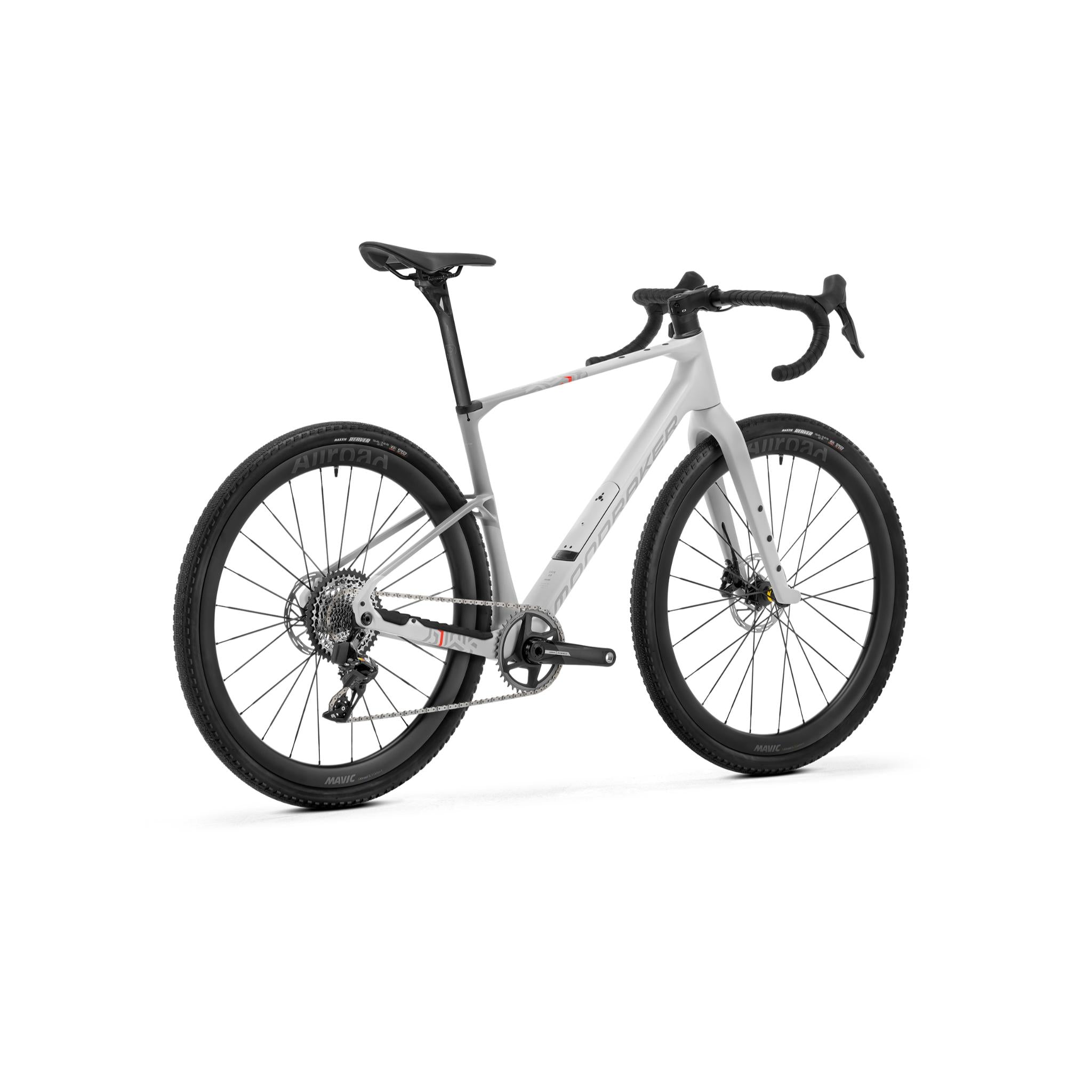

Mondraker Arid Carbon RR 2025
The Mondraker Arid Carbon gravel bike draws heavily upon its extensive mountain biking heritage to craft a versatile and robust machine.
The modern frame employs Mondraker's Stealth Air Carbon technology,...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Mondraker Arid Carbon gravel bike draws heavily upon its extensive mountain biking heritage to craft a versatile and robust machine.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
Available in four builds, the Arid caters to a range of preferences and budgets. The base model features a Sram Force AXS groupset and Mavic Allroad Disc wheels, with a weight around 8.8 kg.
SIZING -
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
FRAME - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
FORK - Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork
RIMS - Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, infinity hubs, 24 spokes
HUBS REAR - Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
HUBS FRONT - Mavic, 12x100mm, IS 6 bolts
SPOKES - Mavic Steel double butted flat spokes
TIRES - Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
DERAILLEUR REAR - Sram Force XPLR Etap AXS, 12s
SHIFT LEVER - Sram Force Etap AXS 12s,
CRANKSET - SRAM Force 1 Carbon, Power meter, DUB axle, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
CHAIN - Sram Force, 12s, Powerlock
CASSETTE - Sram XG-1271, 10-44T, 12s
BRAKE - SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
BRAKE LEVERS - Sram Force, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever
HANDLEBAR - OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
STEM - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
GRIPS - OnOff HEX Bartape
HEADSET - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
SEATPOST - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
SADDLE - FIZIK Terra Argo X5 140mm
