Description

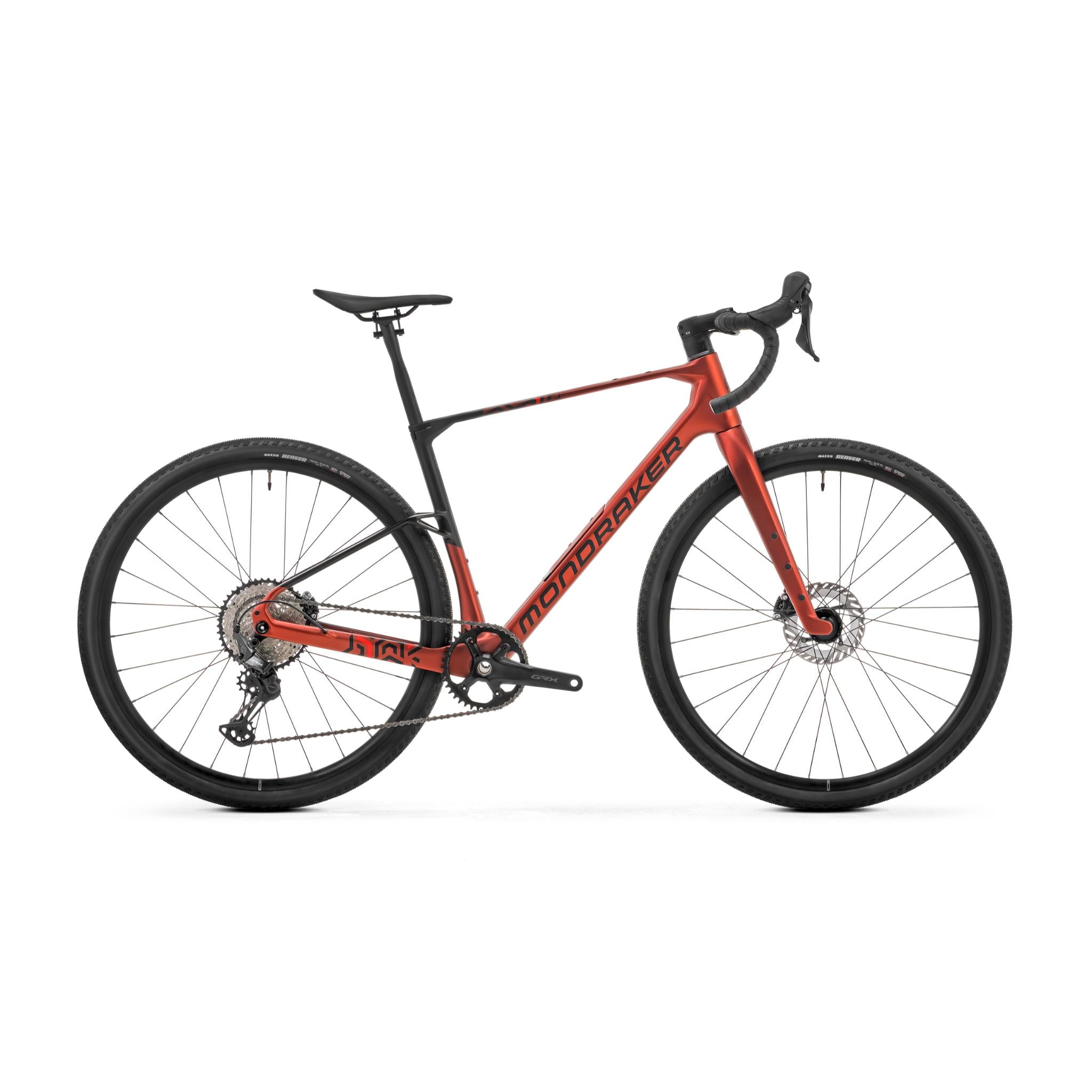

The Mondraker Arid Carbon gravel bike draws heavily upon its extensive mountain biking heritage to craft a versatile and robust machine.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
Available in four builds, the Arid caters to a range of preferences and budgets. The base model features a Shimano GRX RX-610 groupset and Mavic Allroad Disc wheels, with a weight around 9.7 kg.
SIZING -
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
FRAME - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
FORK - Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork
RIMS - Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear
HUBS REAR - Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
HUBS FRONT - Mavic, 12x100mm, IS 6 bolts
SPOKES - Mavic Steel double butted flat spokes
TIRES - Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
DERAILLEUR REAR - Shimano GRX RX-822-GS, 12s
SHIFT LEVER - Shimano GRX RX-610 dual control, alloy lever
CRANKSET - Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
CHAIN - Shimano SLX M7100, Quick link
CASSETTE - Shimano SLX M7100, hiperglide+,10-45, 12s
BRAKE - Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
BRAKE LEVERS - Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
HANDLEBAR - OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
STEM - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
GRIPS - OnOff HEX Bartape
HEADSET - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
SEATPOST - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
SADDLE - FIZIK Terra Argo X5 140mm
