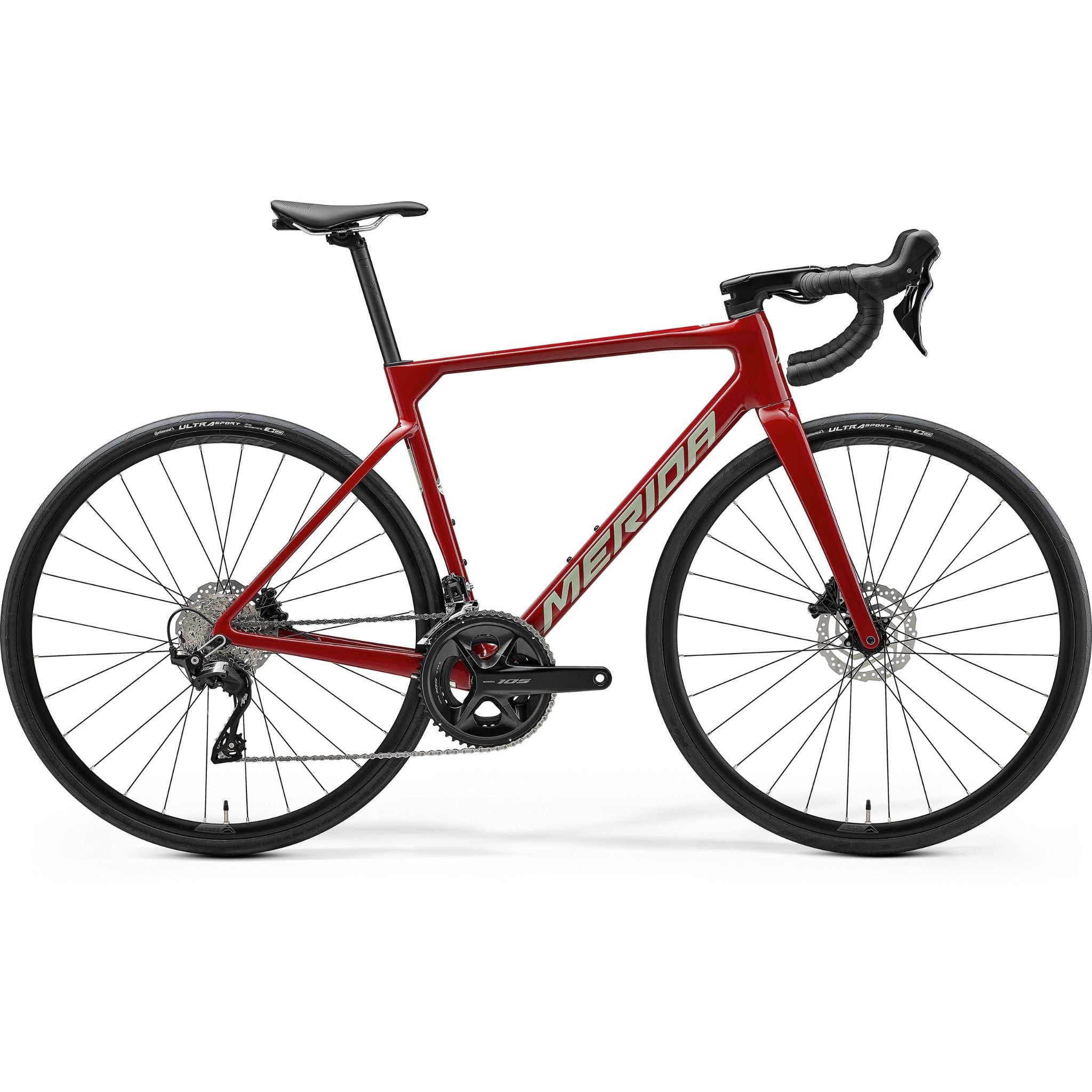

  • Merida Scultura 4000 2025

Description

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched.

Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.

The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.

The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent.

Features:

  • Lightweight CF3 Carbon frame with full carbon tapered fork
  • Shimano 105 drivetrain
  • Shimano 105 chainset
  • Shimano 105 hydraulic disc brakes with Disc Cooler Technology
  • Continental Ultra Sport III 28c tyres
  • Carbon seat post

Specifications

  • Scultura 4000 2025
  • Discipline Road

  • Frame Carbon

  • Front Travel Rigid

  • Fork Carbon

  • Wheel Size 700c

  • Warranty Lifetime (frame)

FRAME - CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c
FORK - Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
GEARS 24
SHIFTERS Shimano 105 disc
FRONT DERAILLEUR - Shimano 105
REAR DERAILLEUR - Shimano 105; GS
BOTTOM BRACKET - SM-BB71-41B, Pressfit 86.5
CHAIN - Shimano CN-M6100-12
CHAINSET - Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
CASSETTE - Shimano CS-R7101; 11-34 teeth; 12 speed
BRAKE LEVER - Shimano 105
FRONT BRAKE - Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE - Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
GRIP - Merida Expert
HANDLEBAR - Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL)
STEM - Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
HEADSET - Merida Team SL (OP-203 neck)
SADDLE- Merida Expert SL; V-mount; including Merida minitool
SEATPOST - Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
WHEEL SIZE - 700c
RIMS - Merida Expert SL; 17mm inner rim width; 22mm rim depth; aluminium
SPOKES Double Butted Black stainless
FRONT HUB - Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock
REAR HUB - Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
FRONT TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead
REAR TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead

Merida Scultura 4000 2025

SKU: Q366 / Barcode: 4711256493404

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was...

Regular price £2,300.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched.

Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.

The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.

The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent.

Features:

  • Lightweight CF3 Carbon frame with full carbon tapered fork
  • Shimano 105 drivetrain
  • Shimano 105 chainset
  • Shimano 105 hydraulic disc brakes with Disc Cooler Technology
  • Continental Ultra Sport III 28c tyres
  • Carbon seat post

Specifications

  • Scultura 4000 2025
  • Discipline Road

  • Frame Carbon

  • Front Travel Rigid

  • Fork Carbon

  • Wheel Size 700c

  • Warranty Lifetime (frame)

FRAME - CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c
FORK - Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
GEARS 24
SHIFTERS Shimano 105 disc
FRONT DERAILLEUR - Shimano 105
REAR DERAILLEUR - Shimano 105; GS
BOTTOM BRACKET - SM-BB71-41B, Pressfit 86.5
CHAIN - Shimano CN-M6100-12
CHAINSET - Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
CASSETTE - Shimano CS-R7101; 11-34 teeth; 12 speed
BRAKE LEVER - Shimano 105
FRONT BRAKE - Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE - Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
GRIP - Merida Expert
HANDLEBAR - Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL)
STEM - Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
HEADSET - Merida Team SL (OP-203 neck)
SADDLE- Merida Expert SL; V-mount; including Merida minitool
SEATPOST - Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
WHEEL SIZE - 700c
RIMS - Merida Expert SL; 17mm inner rim width; 22mm rim depth; aluminium
SPOKES Double Butted Black stainless
FRONT HUB - Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock
REAR HUB - Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
FRONT TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead
REAR TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead
