  • Merida Scultura 10K 2025

Description

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched.

Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.

The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.

The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent.

Features:

  • Superlight CF5 Carbon frame and fork
  • SRAM Red AXS groupset with Power meter
  • Zipp 353 NSW carbon wheelset with Continental GP5000S TR 28c tyres
  • Fully integrated carbon cockpit
  • Merida S-Flex carbon seatpost
  • Disc cooler technology



Specifications

  • Scultura 10K 2025
  • Discipline Road

  • Frame Carbon

  • Front Travel Rigid

  • Fork Carbon

  • Wheel Size 700c

  • Warranty Lifetime (frame)

FRAMECF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
FORK Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
GEARS - 24
SHIFTERS- SRAM RED AXS
FRONT DERAILLEUR - SRAM RED AXS
REAR DERAILLEUR - SRAM RED AXS
BOTTOM BRACKET - BB DUB PF ROAD; 86.5
CHAINSram Red E1
CHAINSET- SRAM RED AXS; 50-37 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
CASSETTE- SRAM CS XG 1290 E1; 10-36 teeth; 12 speed
BRAKE LEVER - SRAM RED AXS
FRONT BRAKE - SRAM RED AXS; Hydraulic disc brake caliper with SRAM DB Paceline X Centrelock; 160mm rotor
REAR BRAKE - SRAM RED AXS; Hydraulic disc brake caliper with SRAM DB Paceline X Centrelock; 160mm rotor
GRIP - Merida Expert
HANDLEBAR - Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
STEM Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
HEADSET  - Merida Team SL (OP-203 neck)
SADDLE - Scratch M5 with V-mount adapter; includes Merida minitool
SEATPOSTMerida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex
WHEEL SIZE - 700c
RIMS Part of wheelset -Zipp WH-353-NSW Tubeless; 25mm inner rim width; Carbon
SPOKES Part of wheelset
FRONT HUB - Part of wheelset -Zipp WH-353-NSW Tubeless; 100 x 12mm; Centerlock
REAR HUB - Part of wheelset -Zipp WH-353-NSW Tubeless; 142 x 12mm; Centerlock; Sram xdr
FRONT TYRE - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
REAR TYRE - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready

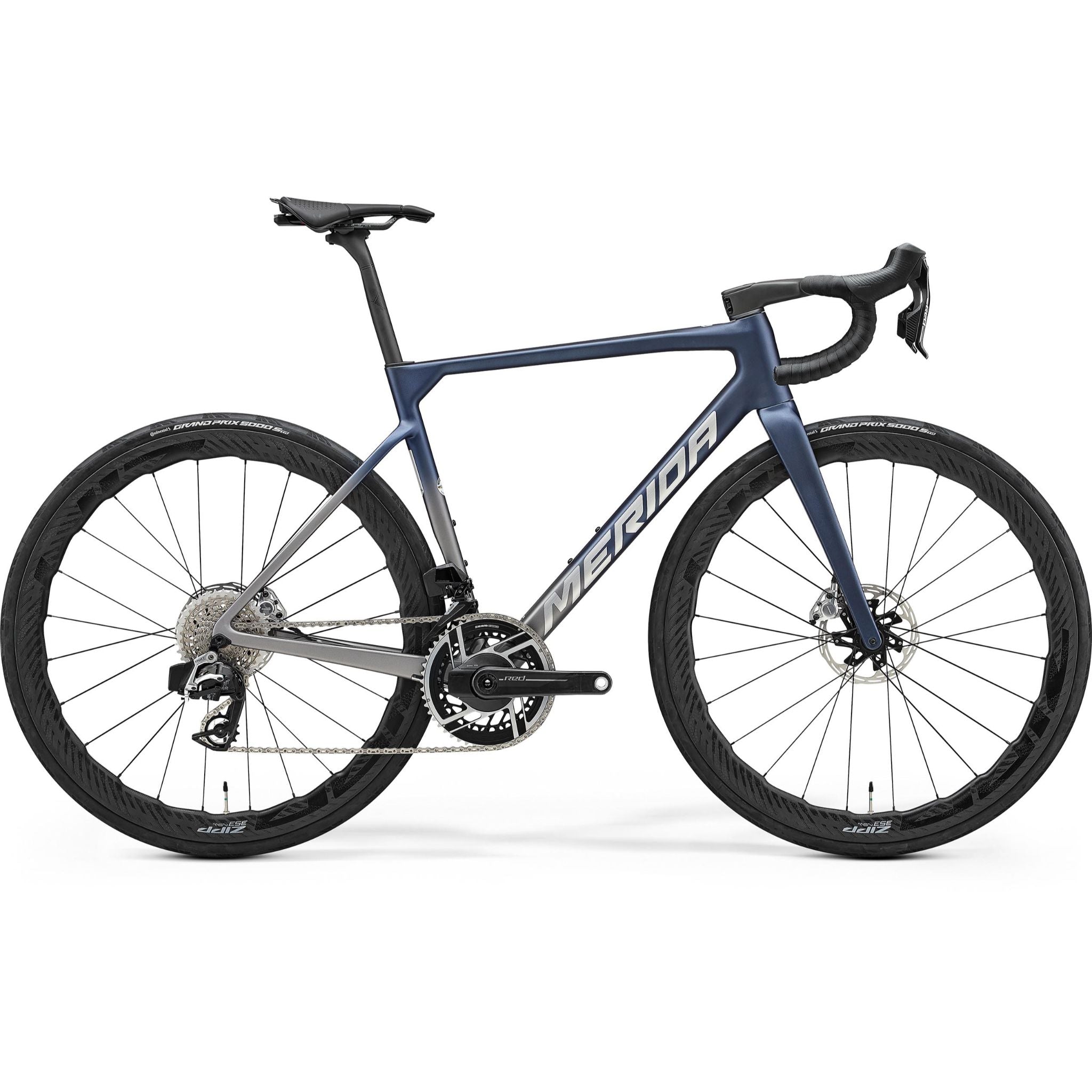

Merida Scultura 10K 2025

SKU: Q121 / Barcode: 4711256494050

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was...

Regular price £10,000.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched.

Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.

The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.

The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent.

Features:

  • Superlight CF5 Carbon frame and fork
  • SRAM Red AXS groupset with Power meter
  • Zipp 353 NSW carbon wheelset with Continental GP5000S TR 28c tyres
  • Fully integrated carbon cockpit
  • Merida S-Flex carbon seatpost
  • Disc cooler technology



Specifications

  • Scultura 10K 2025
  • Discipline Road

  • Frame Carbon

  • Front Travel Rigid

  • Fork Carbon

  • Wheel Size 700c

  • Warranty Lifetime (frame)

FRAMECF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
FORK Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
GEARS - 24
SHIFTERS- SRAM RED AXS
FRONT DERAILLEUR - SRAM RED AXS
REAR DERAILLEUR - SRAM RED AXS
BOTTOM BRACKET - BB DUB PF ROAD; 86.5
CHAINSram Red E1
CHAINSET- SRAM RED AXS; 50-37 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
CASSETTE- SRAM CS XG 1290 E1; 10-36 teeth; 12 speed
BRAKE LEVER - SRAM RED AXS
FRONT BRAKE - SRAM RED AXS; Hydraulic disc brake caliper with SRAM DB Paceline X Centrelock; 160mm rotor
REAR BRAKE - SRAM RED AXS; Hydraulic disc brake caliper with SRAM DB Paceline X Centrelock; 160mm rotor
GRIP - Merida Expert
HANDLEBAR - Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
STEM Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
HEADSET  - Merida Team SL (OP-203 neck)
SADDLE - Scratch M5 with V-mount adapter; includes Merida minitool
SEATPOSTMerida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex
WHEEL SIZE - 700c
RIMS Part of wheelset -Zipp WH-353-NSW Tubeless; 25mm inner rim width; Carbon
SPOKES Part of wheelset
FRONT HUB - Part of wheelset -Zipp WH-353-NSW Tubeless; 100 x 12mm; Centerlock
REAR HUB - Part of wheelset -Zipp WH-353-NSW Tubeless; 142 x 12mm; Centerlock; Sram xdr
FRONT TYRE - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
REAR TYRE - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
