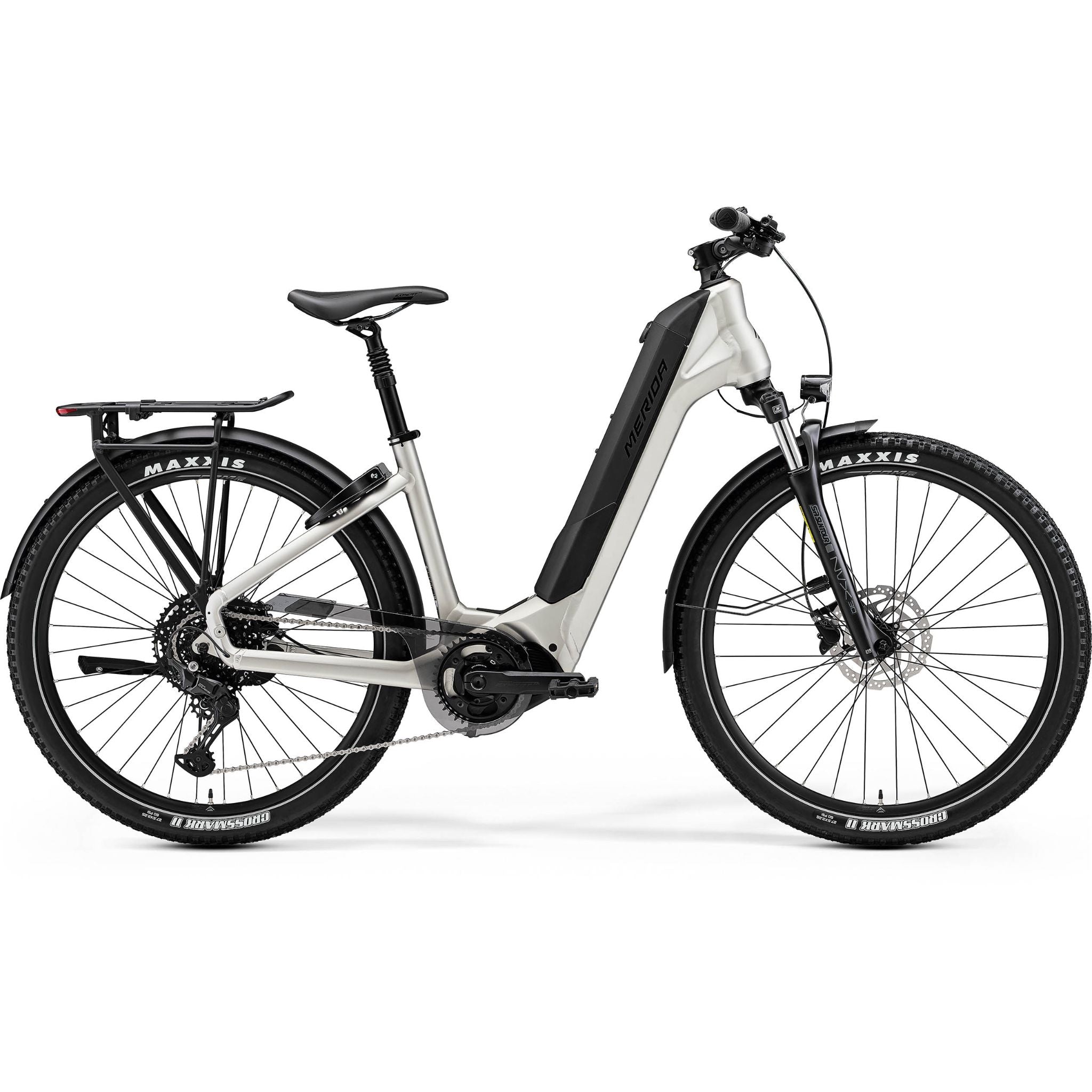

The eSpresso CC is the rugged sibling of the regular eSpresso, with wider and grippier high-volume tyres on 650b wheels.

Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun.

All eSpresso CC models are equipped with a refined, powerful Shimano STEPS pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking.

All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.

• New, powerful Shimano EP6 drive unit
• Super low step-through ENERGY CRADLE frame design with internally mounted, high-capacity 750 Wh battery
• Slick Shimano 10-speed drivetrain
• Suspension fork and seat post for comfort and control
• Agile 650b wheels with grippy high-volume tyres
• Fully equipped with guards, lights, lock, rack and kickstand

SPECIFICATION -

FRAME - CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25"
MOTOR - Shimano Steps EP6; 85Nm
BATTERY - Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
EBIKE DISPLAY - Shimano SC-EN500
CHARGER - Trend Power Simplo EU Charger; 4A
FORK - Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size 27.5" x 2.4"
GEARS - 10
SHIFTERS - Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
CASSETTE - Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Shimano MT200
FRONT BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
GRIP - Merida Expert TK
HANDLEBAR - Merida Expert; aluminium; 660mm wide; 15mm rise
STEM - Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET - Merida-8254
PEDAL - VP Components - VPE-891
SADDLE - Merida Expert TK II; V-mount
SEAT POST - JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
WHEEL SIZE - 27.5"
RIMS - Merida Comp TK; 20mm inner rim width; aluminium
SPOKES - Black stainless
FRONT HUB - Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
REAR HUB - Shimano QC300; 135 x 9mm; 36 spokes; Centerlock
FRONT TYRE - Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
REAR TYRE - Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
FRONT LIGHT - Hermans H-Black MR4 E, LED front light - 120 Lumens
REAR LIGHT - Spanninga Commuter Glow XE integrated rear light
OTHER - Complete with: Mudguards, kickstand, Abus frame lock and Merida MIK HD Carrier with Spring clip, elastic strap & Spanninga rear light
