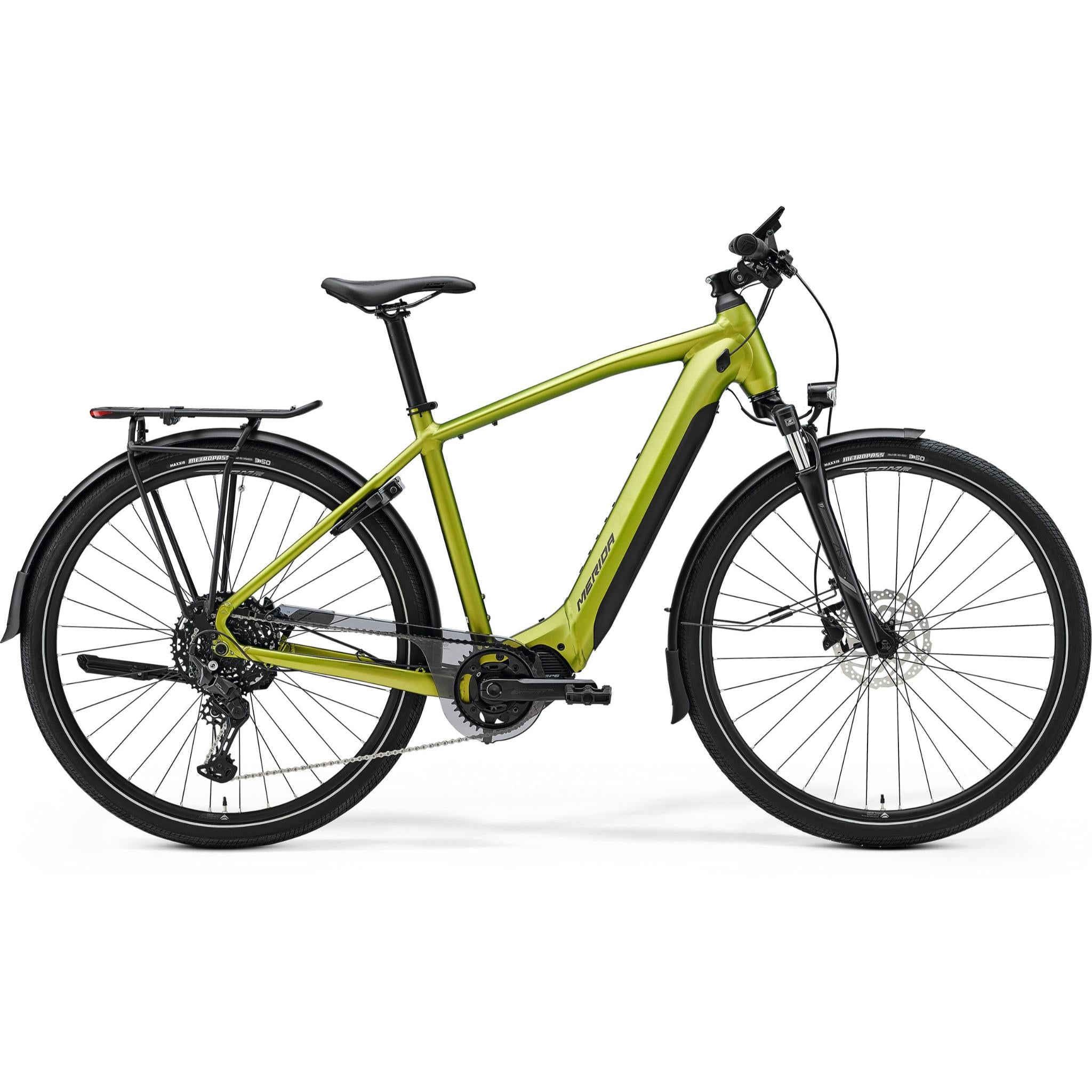

Stylish hybrid eBike with neatly integrated battery. Fully equipped with mudguards, rack, kickstand, lock and lights. Powered by a Shimano Steps EP6 85Nm motor and a Simplo 750Wh battery

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you're ready to go from the moment you leave the shop.

Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.

A powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. powerful Shimano EP6 drive unit with 85 Nm torque

• Lightweight frame with internally mounted 750 Wh battery
• Wide range Shimano 10-speed drivetrain
• Fully equipped with guards, lights, lock, rack and kickstand
• Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres
• Low step-through frame option available

SPECIFICATION -

FRAME - Lite IV - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards
MOTOR - Shimano Steps EP6; 85Nm
BATTERY - Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
EBIKE DISPLAY - Shimano SC-EN610
CHARGER - Trend Power Simplo EU Charger; 4A
MODE SWITCH - Shimano SW-EN600-L
FORK - Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C
GEARS - 10
SHIFTERS - Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
CASSETTE - Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Shimano MT200
FRONT BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
GRIP - Merida Expert TK
HANDLEBAR - Merida Expert; aluminium; 660mm wide; 15mm rise
STEM - Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm (XS,S,M), 110mm (L,XL)
HEAD SET - Merida-8156
PEDAL - VP Components - VPE-891
SADDLE - Merida Expert TK II; V-mount
SEAT POST - Merida Expert CC; aluminium; 34.9mm diameter; in-line
WHEEL SIZE - 700c
RIMS - Merida Comp TK; 20mm inner rim width; aluminium
SPOKES - Black stainless
FRONT HUB - Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
REAR HUB - Shimano TC500-HM; 142 x 12mm; 36 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
FRONT TYRE - Continental Ride Cruiser; 622-50; wire bead with reflective strip
REAR TYRE - Continental Ride Cruiser; 622-50; wire bead with reflective strip
FRONT LIGHT - Hermans H-Black MR4 E, LED front light - 120 Lumens
REAR LIGHT - Spanninga Commuter Glow XE integrated rear light
OTHER - Complete with: Mudguards, kickstand, Abus frame lock and Merida MIK HD Carrier with Spring clip, elastic strap & Spanninga rear light
