Description

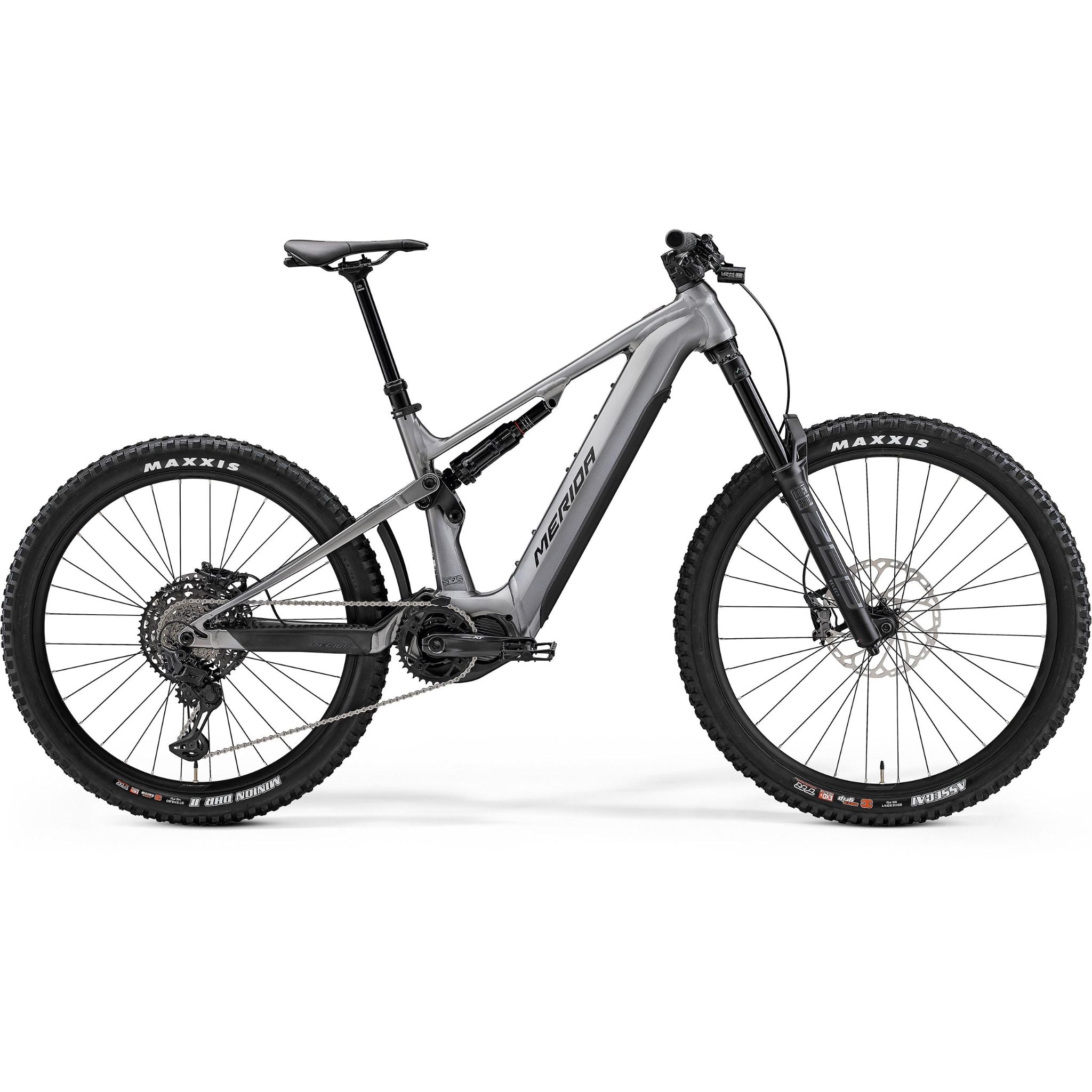

The new eOne-Sixty pairs an enduro-ready lightweight aluminium chassis with a full-support motor and a 750Wh battery.
The aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750Wh battery. A 360Wh range extender is available separately. The flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
- Fourth generation LITE aluminium frame with 174 mm rear wheel travel
- Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock
- Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset
- User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
- Mixed wheel size as standard with option to full 29"
- Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post
Awarded 'Best Buy' by E-Mountainbike Magazine -
Merida Warranty -
Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Enduro/Trail
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Trend Power Simplo EU Charger; 4A
POWER BUTTON - Shimano satellite system on/off; EWSW310
MODE SWITCH - Shimano SW-EM800-L
SHOCK - RockShox Super Deluxe Select
FORK - Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8"
GEARS - 11
SHIFTERS - Shimano XT M8130 and Shimano SL -MT500-IL dropper lever
REAR DERAILLEUR - Shimano XT RDM8130 LinkGlide 11 speed
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide
CASSETTE - Shimano LG700; 10-50 teeth; 11 speed
BRAKE LEVER - Shimano XT
FRONT BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Acros ICR Merida external neck w/ Blocklock
PEDAL - VP Components - VPE-527
SADDLE - Proxim W400 STN with V-mount adapter; including Merida minitool
SEAT POST - Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Black stainless
FRONT HUB - Shimano XT; 110 x 15mm; 32 spokes; Centerlock
REAR HUB - Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - Lezyne LED FEMTO USB REAR STVZO
OTHER - Trend Power On-bike charging cable
Merida eOne-Sixty 875 2024
