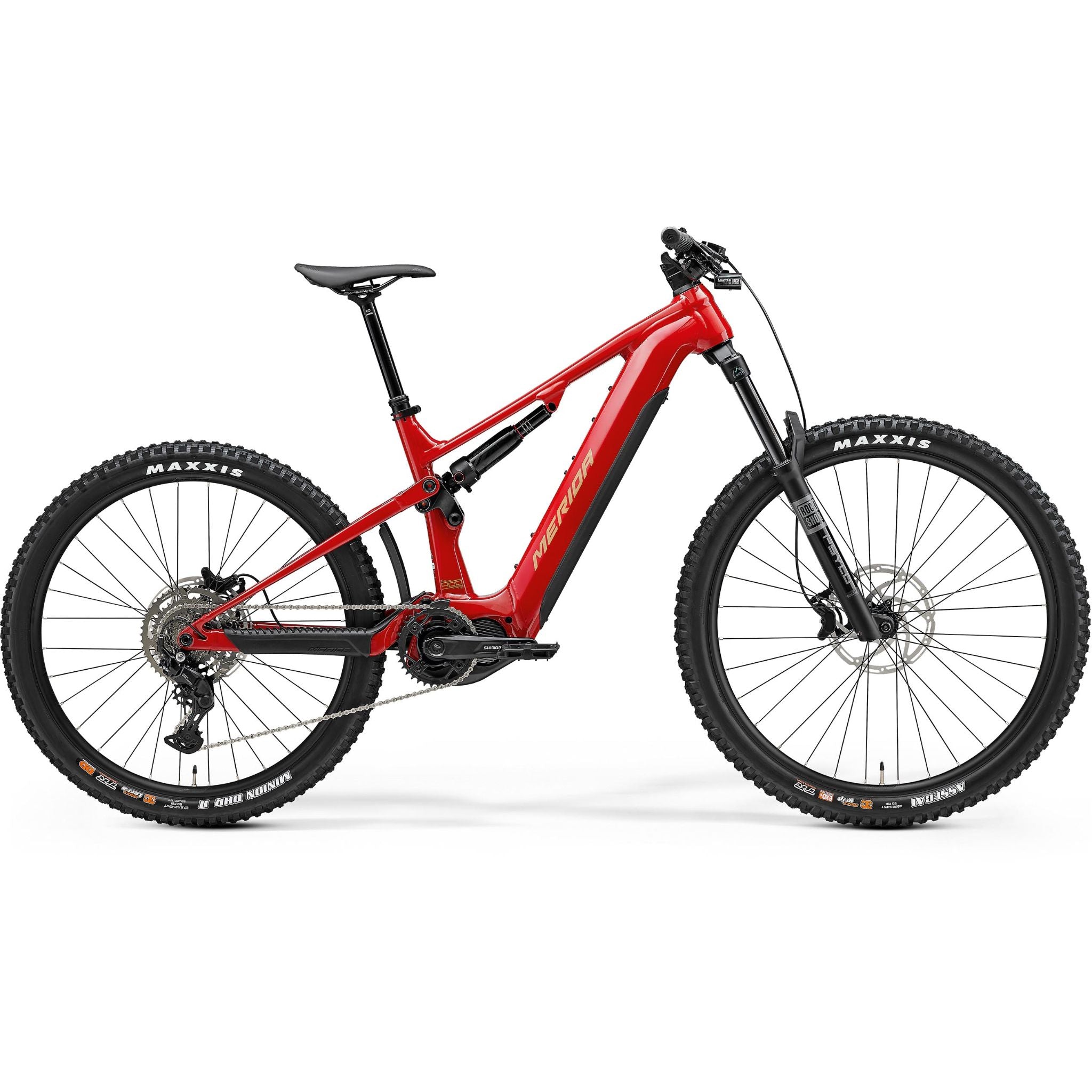

  • Merida eOne-Sixty 400 2025

Description

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery.

A 360 Wh range extender is available separately. The only reason to stop will be because you have to.

Merida's capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Merida's proven FAST kinematic suspension will take care of anything the trail throws at it.

The low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida'd flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Features:

  • Aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Rock Shox Psylo 160mm travel forks and Rock Shox Deluxe shock
  • Shimano CUES 9 speed drivetrain
  • Shimano Deore hydraulic disc brakes



Specifications

  • eOne-Sixty 400
  • Discipline Enduro/All Mountain

  • Material Aluminium

  • Front Travel 160mm

  • Rear Travel 174MM

  • Wheel Size MX

  • Warranty Lifetime (frame)

FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano EP801; 85Nm
BATTERY - Shimano EN806; 630Wh
BATTERY CAPACITY - 630Wh
DISPLAY - Shimano SC-EN500
CHARGER - Shimano EC-E6002; 2A charging current
SHOCK - Rock Shock Deluxe
FORK Rock Shock Psylo Silver R; 160mm travel; Tapered; 44mm fork offset; 29x2.6" max WHS
GEARS - 9 Speed
SHIFTERS Shimano SL-MT500-L dropper lever with Shimano Cues U4000-9 shifter
REAR DERAILLEUR - Shimano Cues U4000; GS
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSETFSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
CASSETTE Shimano LG400; 11-46 teeth; 9 Speed
BRAKE LEVERTektro Gemini M535
FRONT BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
REAR BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET - Acros ICR Merida external neck with Blocklock
PEDALS VP VPE-533
SADDLE Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
SEATPOST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L/XL: 200mm seat post travel - XL: 230mm seat post travel
RIMS Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Black stainless
FRONT HUB - Shimano TC500-B; 110x115mm; 32 spoke; Centerlock
REAR HUB - Shimano TC500; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis Minion DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra


FRONT LIGHT - Lezyne Hecto StVZO E350
REAR LIGHT - CG-404RG-BLK

Merida eOne-Sixty 400 2025

SKU: Q844 / Barcode: 4711256487229

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit...

Regular price £4,450.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery.

A 360 Wh range extender is available separately. The only reason to stop will be because you have to.

Merida's capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Merida's proven FAST kinematic suspension will take care of anything the trail throws at it.

The low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida'd flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Features:

  • Aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Rock Shox Psylo 160mm travel forks and Rock Shox Deluxe shock
  • Shimano CUES 9 speed drivetrain
  • Shimano Deore hydraulic disc brakes



Specifications

  • eOne-Sixty 400
  • Discipline Enduro/All Mountain

  • Material Aluminium

  • Front Travel 160mm

  • Rear Travel 174MM

  • Wheel Size MX

  • Warranty Lifetime (frame)

FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano EP801; 85Nm
BATTERY - Shimano EN806; 630Wh
BATTERY CAPACITY - 630Wh
DISPLAY - Shimano SC-EN500
CHARGER - Shimano EC-E6002; 2A charging current
SHOCK - Rock Shock Deluxe
FORK Rock Shock Psylo Silver R; 160mm travel; Tapered; 44mm fork offset; 29x2.6" max WHS
GEARS - 9 Speed
SHIFTERS Shimano SL-MT500-L dropper lever with Shimano Cues U4000-9 shifter
REAR DERAILLEUR - Shimano Cues U4000; GS
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSETFSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
CASSETTE Shimano LG400; 11-46 teeth; 9 Speed
BRAKE LEVERTektro Gemini M535
FRONT BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
REAR BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET - Acros ICR Merida external neck with Blocklock
PEDALS VP VPE-533
SADDLE Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
SEATPOST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L/XL: 200mm seat post travel - XL: 230mm seat post travel
RIMS Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Black stainless
FRONT HUB - Shimano TC500-B; 110x115mm; 32 spoke; Centerlock
REAR HUB - Shimano TC500; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis Minion DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra


FRONT LIGHT - Lezyne Hecto StVZO E350
REAR LIGHT - CG-404RG-BLK
