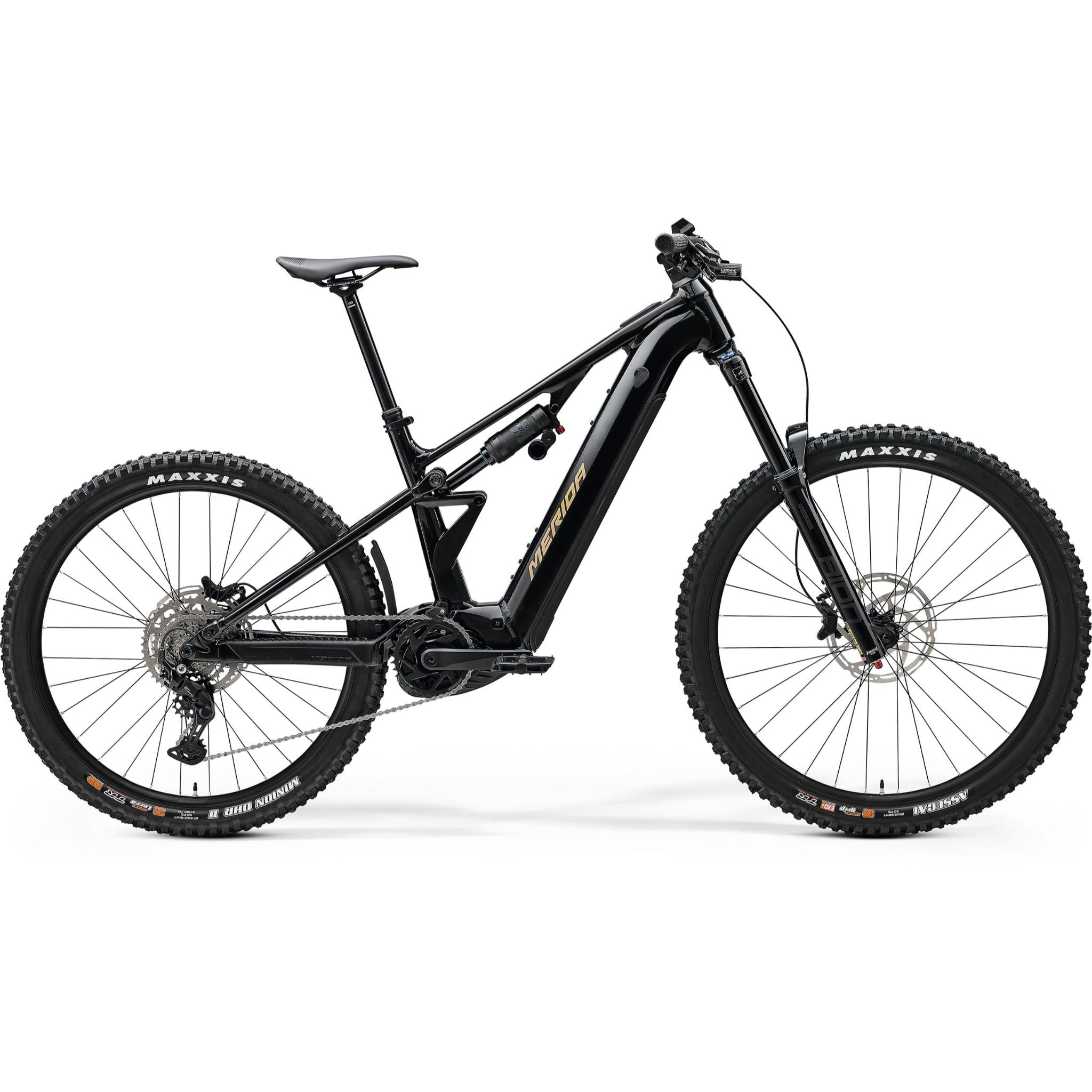

  • Merida eOne-Eighty 400 2025

Description

Merida's electric mountain bike of choice for the big hitters, the big travel eOne-Eighty made for big lines and feature packed bike parks.

'Merida’s new eOne-Eighty is the most capable long-travel e-bike I’ve ever tested' - MBR Magazine

'The eONE-EIGHTY is a perfect match for both freeriders and beginners alike!'  - ebike-mtb.com

At the heart of the eOne-Eighty is the Bosch Performance Line CX drive unit, offering 85nm of smoothly delivered torque. This rider favourite motor runs silent and is proudly one of the most reliable e-mtb units on the market.

Features:

  • Bosch Performance Line CX 85Nm motor
  • Bosch Power Tube 600Wh battery
  • Suntour Aion 38X 180mm air fork
  • Suntour TRIAIR shock
  • Shimano CUES 9 speed transmission
  • Tektro Gemini 4 piston hydraulic disc brakes





Merida Sizing:

  • X-Short: 145cm - 165cm
  • Short: 155cm - 175cm
  • Mid: 165cm - 185cm
  • Long: 175cm - 195cm
  • X-Long: 185cm+


Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.

For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.



Specifications

  • eOne-Eighty 400
  • Discipline Enduro/All Mountain

  • Material Alloy

  • Front Travel 180mm

  • Rear Travel 160mm

  • Wheel Size MX

  • Warranty Lifetime (frame)

FRAME - eONE-EIGHTY LITE I ; alloy; 160mm travel; 29” x 2,6” max. tyre size; 148x12mm bolt through axle; intube;
MOTOR - Bosch Performance Line CX
BATTERY - Bosch PowerTube 600; 600Wh
DISPLAY - Bosch Pruion 200
SHOCK - SR Suntour TRIAIR2
FORKSR Suntour Aion 38X; Air; 180mm travel; Tapered; 44mm fork off set; 29x2.4" max. tyre size
GEARS - 9
SHIFTERS Shimano Cues U4000-9
REAR DERAILLEUR - Shimano Cues U4000; GS
CHAIN - Shimano LG500
CHAINSET FSA Direct Mount Steel Chainring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
CASSETTE Shimano LG400-9; 11-46 teeth; 9 speed
BRAKE LEVER - Tektro Gemini
FRONT BRAKE - Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor
REAR BRAKE - Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor
GRIP Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise
STEM Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes
HEADSET - Acros ICR Merida external neck with Blocklock
PEDALS VP VPE-533
SADDLE - Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool
SEATPOST - Merida Expert TR II; 34.9mm diameter; 0 mm lay back; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT - XL: 230 SPT
RIMS Merida Expert TR II; 110x15 WHF; 148x12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Black stainless
FRONT HUB - Shimano TC500-B; 15x100mm; 32 spoke; Centerlock
REAR HUB - Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra


FRONT LIGHT - Lezyne Hecto StVZO E350+ Reverse
REAR LIGHT - CG-404RG-BLK
