Description
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminium frame with Marin's super-plush MultiTrac suspension platform for endless good times on the trails.
The Rift Zone XR gets an extra spicy build. Starting out front, the fork is RockShox's supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM's wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while SB8 4-piston brakes offer impeccable braking performance
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 3 6061 Aluminium, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
REAR SUSPENSION - RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
RIM - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
HUB REAR - Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
HUB FRONT - Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
SPOKES - 14g Black Stainless Steel
TIRES - Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
DERAILLEUR REAR - SRAM GX Eagle Lunar
SHIFT LEVER - SRAM GX Eagle Lunar MMX Mount
CRANKSET - SRAM GX Eagle, 32T, 55MM CL, 170MM Length
BOTTOM BRACKET - SRAM DUB MTB 73
CHAIN - SRAM NX Eagle
CASSETTE - SRAM XG 1275 Eagle Cassette 10-52T
BRAKES FRONT - SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor
BRAKES REAR - SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor
BRAKE LEVERS - SRAM DB8 Hydraulic
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzly Lock-On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
SADDLE - Marin Speed Concept
EXTRAS - Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

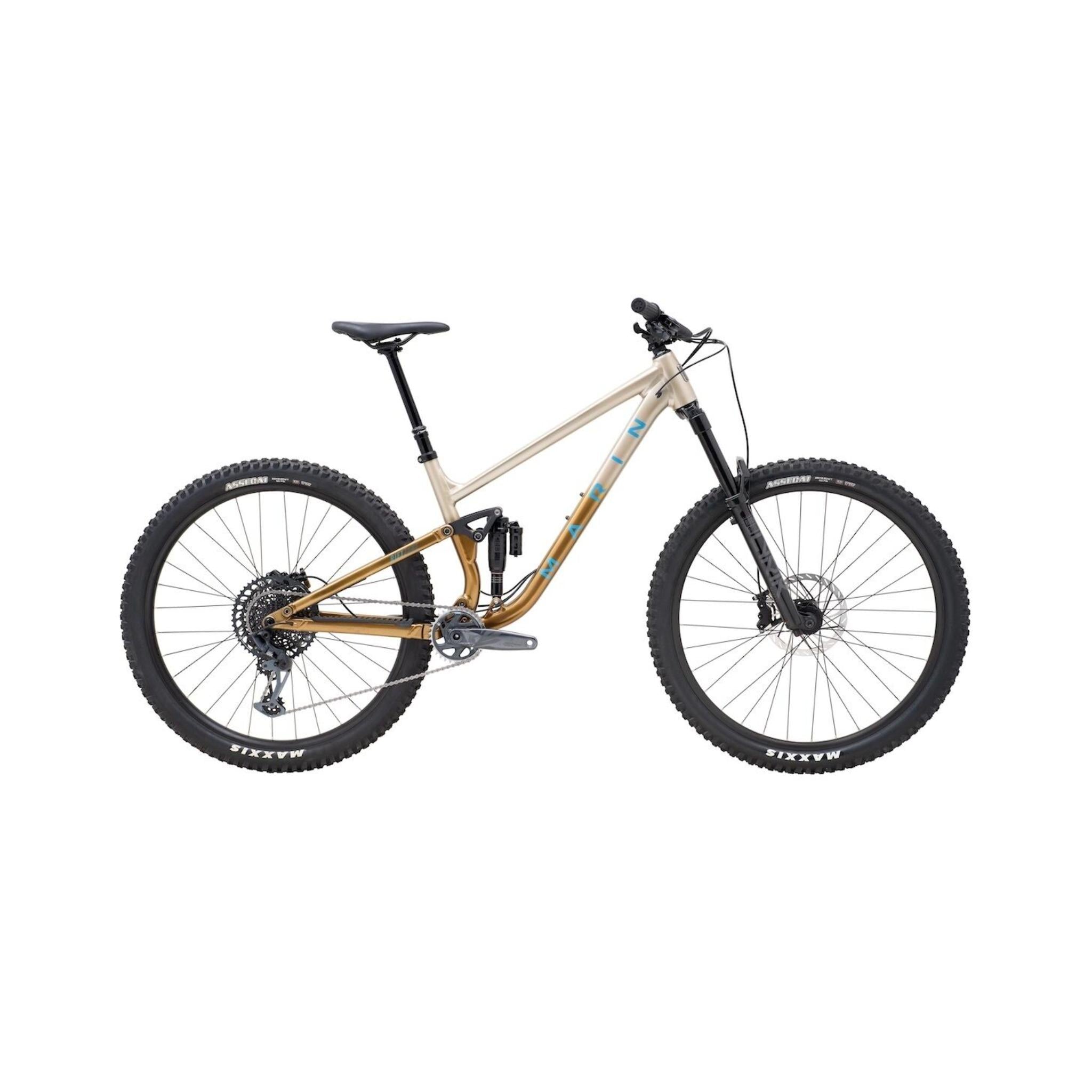

Marin Rift Zone XR 2024
