Description
High spec model of Marin's trail tearing electric mountain bike and the perfect companion for UK trail riding.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive geometry paired with mid travel numbers and rapid 29" wheels the Rift Zone is insanely fun to ride and more than capable of handling big terrain features. Whether at a local trail centre or bike park, the Rift Zone will perform.
The E2 high-end build kit is dripping in some of MTB's favourite components, such as; Fox Performance Elite suspension, powerful Shimano STEPS EP8 drive unit, 630WH battery for maximum range, Shimano’s XT 11-speed drivetrain and TRP DH-R Evo 4-Piston Hydraulic Disc Brakes. Also included are CushCore tire inserts and Marin tubeless sealant straight out of the box.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 140mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK - Fox 36 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fender
SHOCK - Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
RIMS - Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR - Shimano HB-MT510B, 148x12mm, Centerlock Disc, Micro Spline Freehub Body
HUB FRONT - Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
SPOKES - 14g Black Stainless Steel
TYRES - Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
DERAILLEUR - Shimano, Deore XT RD-M8130, 11-Speed, SGS, LinkGlide
SHIFT LEVER - Shimano Deore XT SL-M8130-R, LinkGlide
CRANKSET - Shimano XT M8150, 160mm Length, 38t Chainring
MOTOR - Shimano Steps EP801 Drive Unit, 250W, 85Nm
CHAIN - KMC E-11S
CASSETTE - Shimano XT LinkGlide LG-600, 11-Speed, 11-50T
BRAKE FRONT - TRP DH-R EVO, 4-Piston Hydraulic Disc, Brake 203mm Rotor
BRAKE REAR - TRP DH-R EVO, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor
BRAKE LEVERS - TRP DH-R Evo
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE - Marin eMTB Saddle
PEDALS - Marin MTB Plastic
BATTERY - Shimano BT-EN806, Internal 630Wh
DISPLAY - Shimano SC-E600
SWITCH - Shimano SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS - Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap

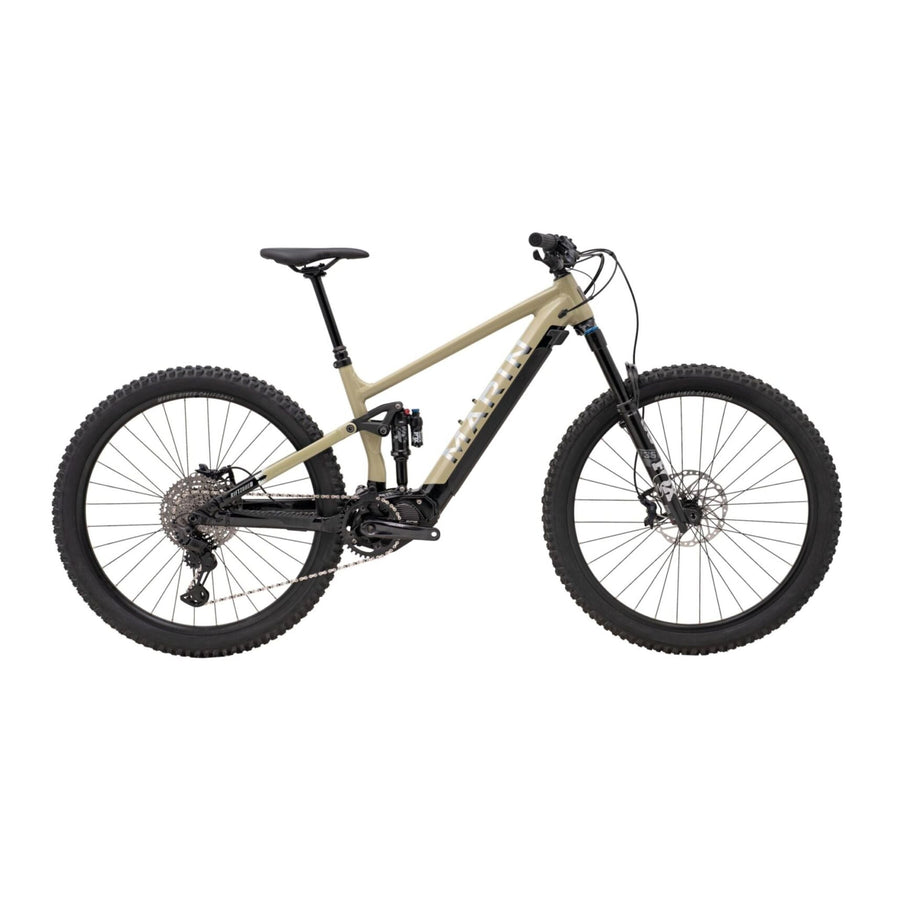

Marin Rift Zone E2 2025
High spec model of Marin's trail tearing electric mountain bike and the perfect companion for UK trail riding.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive...
Order within [time] for delivery by [date]
90 Day Returns -
Description
High spec model of Marin's trail tearing electric mountain bike and the perfect companion for UK trail riding.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive geometry paired with mid travel numbers and rapid 29" wheels the Rift Zone is insanely fun to ride and more than capable of handling big terrain features. Whether at a local trail centre or bike park, the Rift Zone will perform.
The E2 high-end build kit is dripping in some of MTB's favourite components, such as; Fox Performance Elite suspension, powerful Shimano STEPS EP8 drive unit, 630WH battery for maximum range, Shimano’s XT 11-speed drivetrain and TRP DH-R Evo 4-Piston Hydraulic Disc Brakes. Also included are CushCore tire inserts and Marin tubeless sealant straight out of the box.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 140mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK - Fox 36 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fender
SHOCK - Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
RIMS - Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR - Shimano HB-MT510B, 148x12mm, Centerlock Disc, Micro Spline Freehub Body
HUB FRONT - Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
SPOKES - 14g Black Stainless Steel
TYRES - Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
DERAILLEUR - Shimano, Deore XT RD-M8130, 11-Speed, SGS, LinkGlide
SHIFT LEVER - Shimano Deore XT SL-M8130-R, LinkGlide
CRANKSET - Shimano XT M8150, 160mm Length, 38t Chainring
MOTOR - Shimano Steps EP801 Drive Unit, 250W, 85Nm
CHAIN - KMC E-11S
CASSETTE - Shimano XT LinkGlide LG-600, 11-Speed, 11-50T
BRAKE FRONT - TRP DH-R EVO, 4-Piston Hydraulic Disc, Brake 203mm Rotor
BRAKE REAR - TRP DH-R EVO, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor
BRAKE LEVERS - TRP DH-R Evo
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE - Marin eMTB Saddle
PEDALS - Marin MTB Plastic
BATTERY - Shimano BT-EN806, Internal 630Wh
DISPLAY - Shimano SC-E600
SWITCH - Shimano SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS - Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
