Description
The speed focussed Rift Zone 29 takes the agile, super-playful Rift Zone platform and adds large 29" wheels. The result is long, low, slack, aggressive trail bike.
The Marin Rift Zone is one of our best selling mountain bikes and is guaranteed to put a smile on the face of mountain bikers of all disciplines. Short travel keep the bike planted and poppy making every ride engaging and keeping a huge grin on your face. Modern geometry design puts you in a comfortable and stable position. This complete package makes for a trail bike that can go faster and hit harder than you would expect. You'd really have to take this bike somewhere truly terrifying to find it's limits.
The Rift Zone Carbon features the same high-end build kit seen on the Rift Zone 29 3. Fitted to a super stiff unidirectional carbon front triangle (the bike retains a Series 4 alloy rear end)
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/Bikepark
-
Material Carbon
-
Front Travel 130mm
-
Rear Travel 125mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION - Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
RIMS - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR - Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
HUB, FRONT - Forged Alloy, 110x15mm, Disc, 32H
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
DERAILLEUR, REAR - Shimano SLX, 12-Speed, SGS
SHIFT LEVER - Shimano SLX, 12-Speed, SL-7100R
CRANKSET - New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET - Mego EXO 73mm BSA
CHAIN - KMC X-12 Silver and Black
CASSETTE - Shimano, Deore M6100, 12-Speed, 10-51T
BRAKE, FRONT - Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor
BRAKE, REAR - Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads 180mm Rotor
BRAKE LEVERS - Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Single Clamp Locking
HEADSET - FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE - Marin Speed Concept
EXTRAS - Bolt-On Thru-Axle

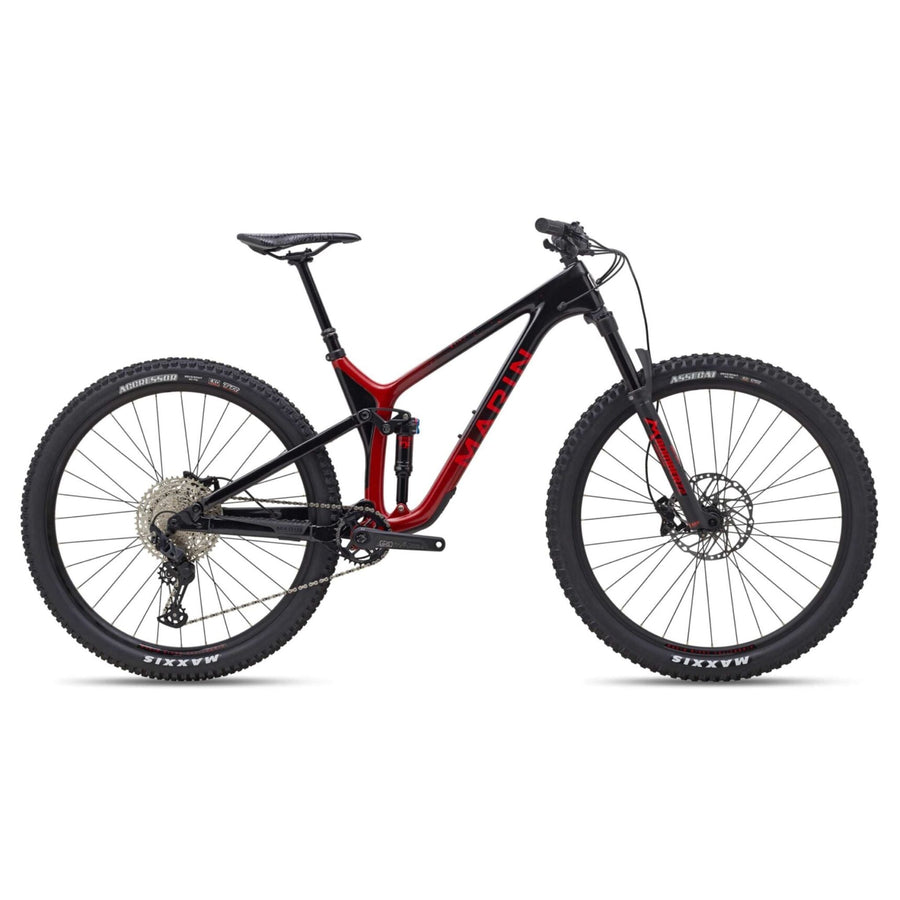

Marin Rift Zone Carbon 1 2023
The speed focussed Rift Zone 29 takes the agile, super-playful Rift Zone platform and adds large 29" wheels. The result is long, low, slack, aggressive trail...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The speed focussed Rift Zone 29 takes the agile, super-playful Rift Zone platform and adds large 29" wheels. The result is long, low, slack, aggressive trail bike.
The Marin Rift Zone is one of our best selling mountain bikes and is guaranteed to put a smile on the face of mountain bikers of all disciplines. Short travel keep the bike planted and poppy making every ride engaging and keeping a huge grin on your face. Modern geometry design puts you in a comfortable and stable position. This complete package makes for a trail bike that can go faster and hit harder than you would expect. You'd really have to take this bike somewhere truly terrifying to find it's limits.
The Rift Zone Carbon features the same high-end build kit seen on the Rift Zone 29 3. Fitted to a super stiff unidirectional carbon front triangle (the bike retains a Series 4 alloy rear end)
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/Bikepark
-
Material Carbon
-
Front Travel 130mm
-
Rear Travel 125mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION - Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
RIMS - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR - Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
HUB, FRONT - Forged Alloy, 110x15mm, Disc, 32H
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
DERAILLEUR, REAR - Shimano SLX, 12-Speed, SGS
SHIFT LEVER - Shimano SLX, 12-Speed, SL-7100R
CRANKSET - New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET - Mego EXO 73mm BSA
CHAIN - KMC X-12 Silver and Black
CASSETTE - Shimano, Deore M6100, 12-Speed, 10-51T
BRAKE, FRONT - Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor
BRAKE, REAR - Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads 180mm Rotor
BRAKE LEVERS - Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Single Clamp Locking
HEADSET - FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE - Marin Speed Concept
EXTRAS - Bolt-On Thru-Axle
