Description
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is a perfect choice for a mixture of commuting and adventure riding, both on and off-road.
Zippy aluminium frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
The top offering in the DSX rigid fork lineup, the new addition to the line is built around the same Series 3 frames and carbon fork as the DSX 2, but with SRAM's wide-range Apex 1 x 12 speed drivetrain and DB-300 hydraulic disc brakes and Vee Tire's Rocketman tires, which offer a bit more bite.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
HUB REAR - Shimano Forged Aluminium, 142x12mm, XDR, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES/NIPPLES - 14g Black Stainless Steel
TYRES - Vee Tire Co. Rocket Man, 700Cx44mm
DERAILLEUR REAR - SRAM Apex 1, 12-Speed
SHIFT LEVER - SRAM NX 12-Speed
CRANKSET - SRAM Apex 1, 40T
BOTTOM BRACKET - SRAM DUB BSA
CHAIN - SRAM NX Eagle
CASSETTE - SRAM CS-XG-1275, 10-52T
BRAKES FRONT - SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR - SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - SRAM Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OE Flat
EXTRAS - Bolt-On Thru-Axles F and R

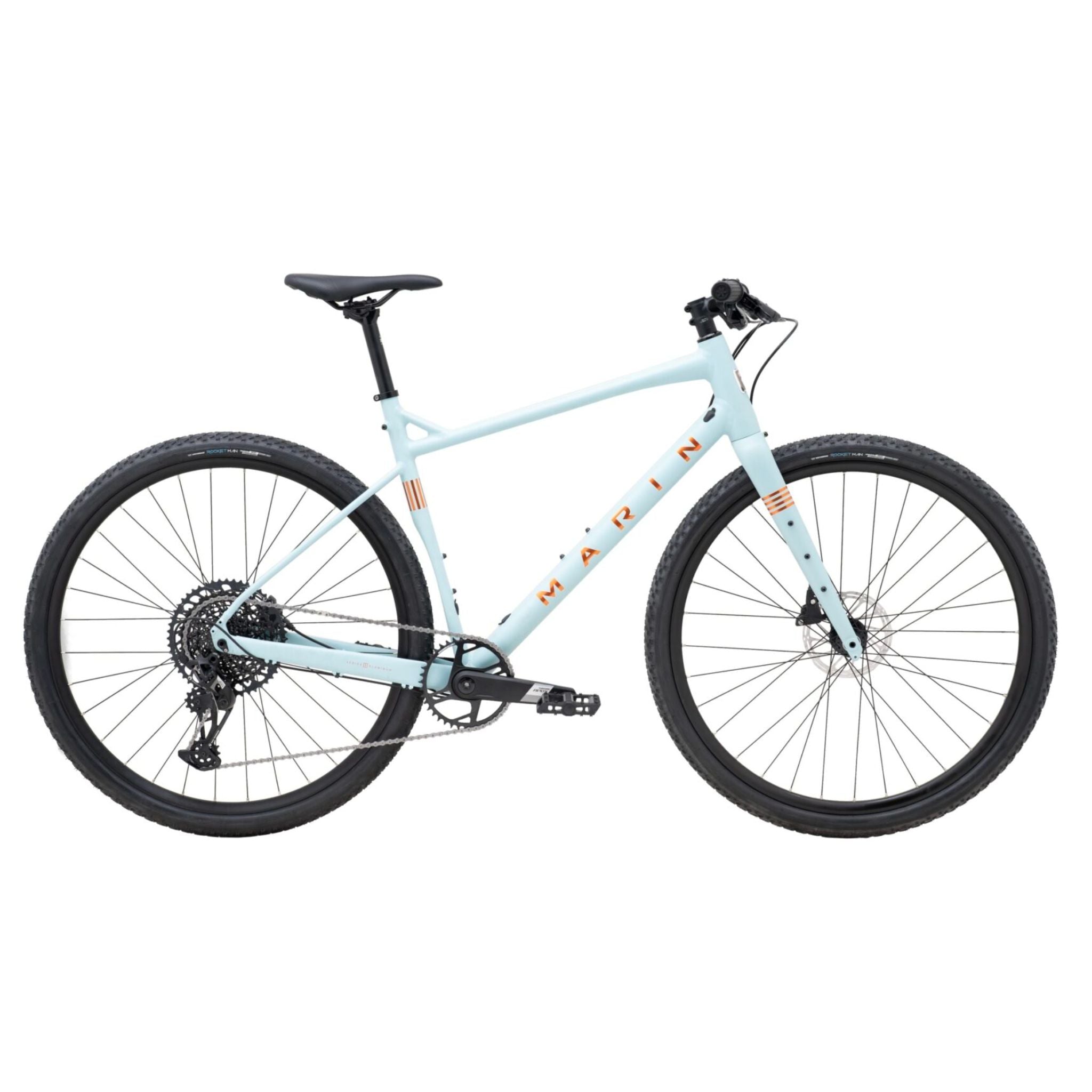

Marin DSX 3 2025
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is a perfect choice for a mixture of commuting and adventure riding, both on and off-road.
Zippy aluminium frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
The top offering in the DSX rigid fork lineup, the new addition to the line is built around the same Series 3 frames and carbon fork as the DSX 2, but with SRAM's wide-range Apex 1 x 12 speed drivetrain and DB-300 hydraulic disc brakes and Vee Tire's Rocketman tires, which offer a bit more bite.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
HUB REAR - Shimano Forged Aluminium, 142x12mm, XDR, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES/NIPPLES - 14g Black Stainless Steel
TYRES - Vee Tire Co. Rocket Man, 700Cx44mm
DERAILLEUR REAR - SRAM Apex 1, 12-Speed
SHIFT LEVER - SRAM NX 12-Speed
CRANKSET - SRAM Apex 1, 40T
BOTTOM BRACKET - SRAM DUB BSA
CHAIN - SRAM NX Eagle
CASSETTE - SRAM CS-XG-1275, 10-52T
BRAKES FRONT - SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR - SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - SRAM Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OE Flat
EXTRAS - Bolt-On Thru-Axles F and R
