Description
Consistently a Biketart staff favourite enduro mountain bike, Marin's Alpine Trail is seen here in the new top XR spec.
A light yet sturdy frame is built with hard hitting riding in mind. 150mm of coil shock rear travel with 160mm of front fork travel are the perfect combo for rowdy days in the woods. Shimano 12 speed drivetrain to build up the speed and 4-pot Shimano brakes bring everything back under control. The wide range cassette of Shimano's new 12 speed system also make the Alpine trail a surprisingly strong climber. Great design and geometry match with an outstanding spec list make the Alpine Trail all the Enduro bike you could need.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'4"
Specifications
-
Discipline Enduro
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 6061 Aluminium, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate
REAR SUSPENSION - Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring
RIMS - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR - Shimano HB-MT510B, 148x12mm, Disc, Micro spline Freehub Body
HUB, FRONT - Shimano HF-MT410B, 110x15mm, Centerlock
SPOKE, NIPPLE - 14g Black Stainless Steel
TIRES - Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible
DERAILLEUR, REAR - Shimano XT 12-Speed, SGS
SHIFT LEVER - Shimano SLX 12-Speed, I-Spec EV
CRANKSET - FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mega Eco Spindle, Boost Spacing
BOTTOM BRACKET - MegaEvo BB, 73mm BSA Threaded
CHAIN - KMC X-12 Silver and Black
CASSETTE - Shimano SLX M7100 Cassette, 12-Speed, 10-51T
BRAKE, FRONT - Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor
BRAKE, REAR - Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
BRAKE LEVERS - Shimano BL-M4100, I-Spec EV Compatible
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzy Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE - Marin Speed Concept
EXTRAS - Bolt-On Thru-Axle
EXTRAS - Downtube Protector

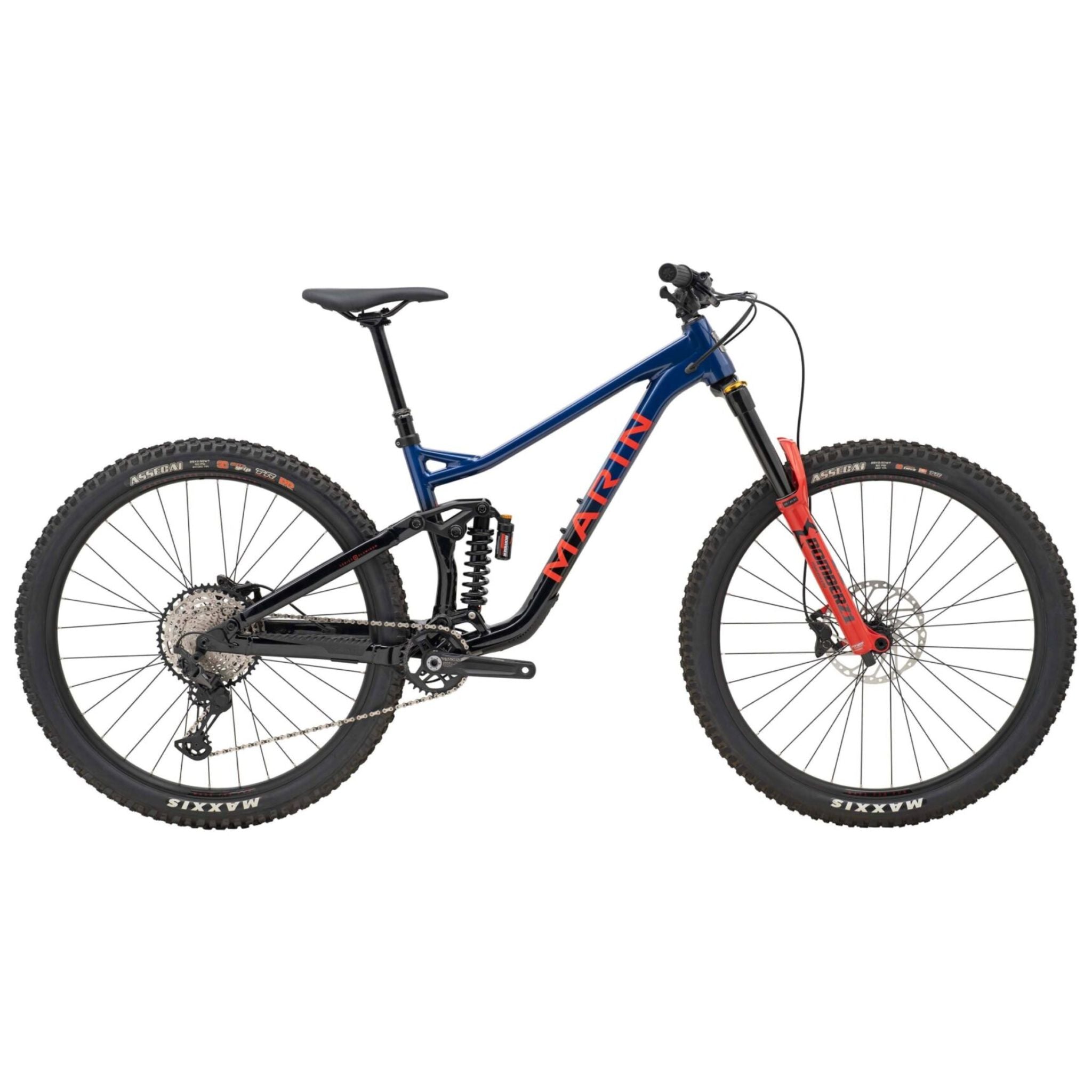

Marin Alpine Trail XR 2023
Consistently a Biketart staff favourite enduro mountain bike, Marin's Alpine Trail is seen here in the new top XR spec.
A light yet sturdy frame is built with hard hitting...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Consistently a Biketart staff favourite enduro mountain bike, Marin's Alpine Trail is seen here in the new top XR spec.
A light yet sturdy frame is built with hard hitting riding in mind. 150mm of coil shock rear travel with 160mm of front fork travel are the perfect combo for rowdy days in the woods. Shimano 12 speed drivetrain to build up the speed and 4-pot Shimano brakes bring everything back under control. The wide range cassette of Shimano's new 12 speed system also make the Alpine trail a surprisingly strong climber. Great design and geometry match with an outstanding spec list make the Alpine Trail all the Enduro bike you could need.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'4"
Specifications
-
Discipline Enduro
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 6061 Aluminium, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate
REAR SUSPENSION - Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring
RIMS - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR - Shimano HB-MT510B, 148x12mm, Disc, Micro spline Freehub Body
HUB, FRONT - Shimano HF-MT410B, 110x15mm, Centerlock
SPOKE, NIPPLE - 14g Black Stainless Steel
TIRES - Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible
DERAILLEUR, REAR - Shimano XT 12-Speed, SGS
SHIFT LEVER - Shimano SLX 12-Speed, I-Spec EV
CRANKSET - FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mega Eco Spindle, Boost Spacing
BOTTOM BRACKET - MegaEvo BB, 73mm BSA Threaded
CHAIN - KMC X-12 Silver and Black
CASSETTE - Shimano SLX M7100 Cassette, 12-Speed, 10-51T
BRAKE, FRONT - Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor
BRAKE, REAR - Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
BRAKE LEVERS - Shimano BL-M4100, I-Spec EV Compatible
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzy Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE - Marin Speed Concept
EXTRAS - Bolt-On Thru-Axle
EXTRAS - Downtube Protector
