Description

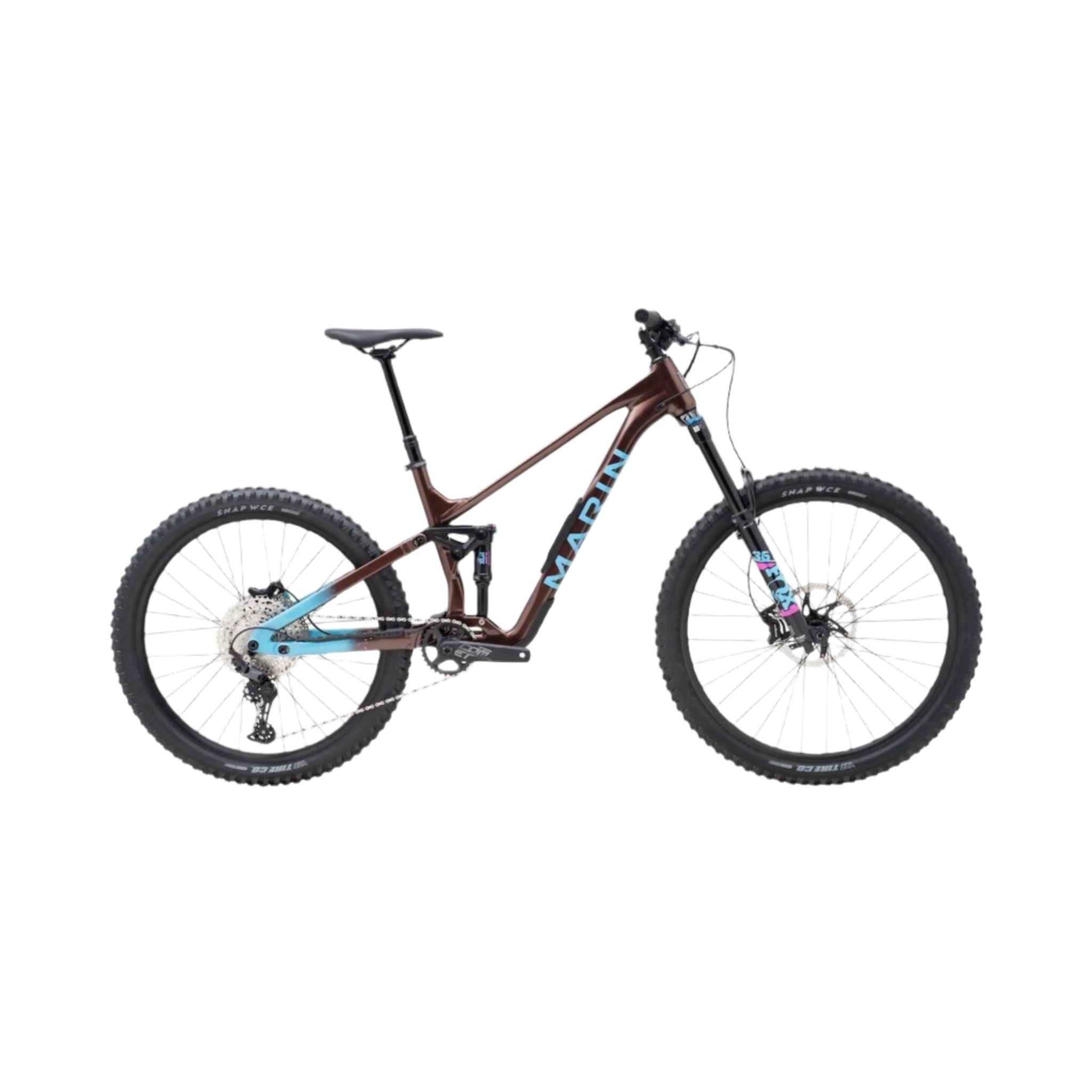

The Marin Alpine Trail is Marin's big-hitting, big-wheeling, hard charging enduro mountain bike. It's built for the roughest and rowdiest around. Whether you're a park rat, enduro racer snake or just love to send it with the big dogs, the Alpine Trail is the perfect beast for the job.
170mm/160mm travel and fast / nimble MX wheel combo nails the set-up for enduro runs and furious bikepark laps. A crazy good bike at a bargain price.
The Alpine Trail 1 spec is the entry level and gets the bike in your hands at the lowest price point. Marin have carefully selected the build kit and even at the great price you'll see nothing but reliable brand components. Suspension duty handled by Fox, Shimano 12 speed drivetrain, TRP 4-piston disc brakes, Shimano/Marin wheelset and a TransX dropper seatpost.
'The bike I had most fun riding this year is the Marin Alpine Trail. I was so enamored with it that I've held onto it for as long as possible' - Pinkbike 8 Things I Loved in 2024
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'4"
Specifications
-
Discipline Enduro
-
Material Aluminium
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty 5 Years (frame)
FRAME - All New Series 4 6061 Aluminium, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION - Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset
REAR SUSPENSION - Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune
RIM - Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
HUB REAR - Shimano HB-TC500, 148x12mm, Micro Spline Freehub Body
HUB FRONT - Shimano FH-TC500, 110x15mm
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co. Snap WCE, 29x2.6" Front 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible
DERAILLEUR REAR - Shimano Deore, 12-Speed, SGS
SHIFT LEVER - Shimano Deore, 12-Speed, SL-6100-IR
CRANKSET - FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET - FSA MegaExo 73mm BSA
CHAIN - KMC X-12 Silver and Black
CASSETTE - Shimano, Deore M6100 12-Speed, 10-51T
BRAKES FRONT - TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
BRAKES REAR - TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
BRAKE LEVERS - TRP Slate EVO Hydraulic, I-Spec EV Compatible
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Lock-On
HEADSET - FSA Custom, Adjustable HTA Design
SEATPOST - TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
SADDLE - Marin Speed Concept
PEDALS - Not Included
EXTRAS - Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
EXTRAS - Downtube Storage Bag
