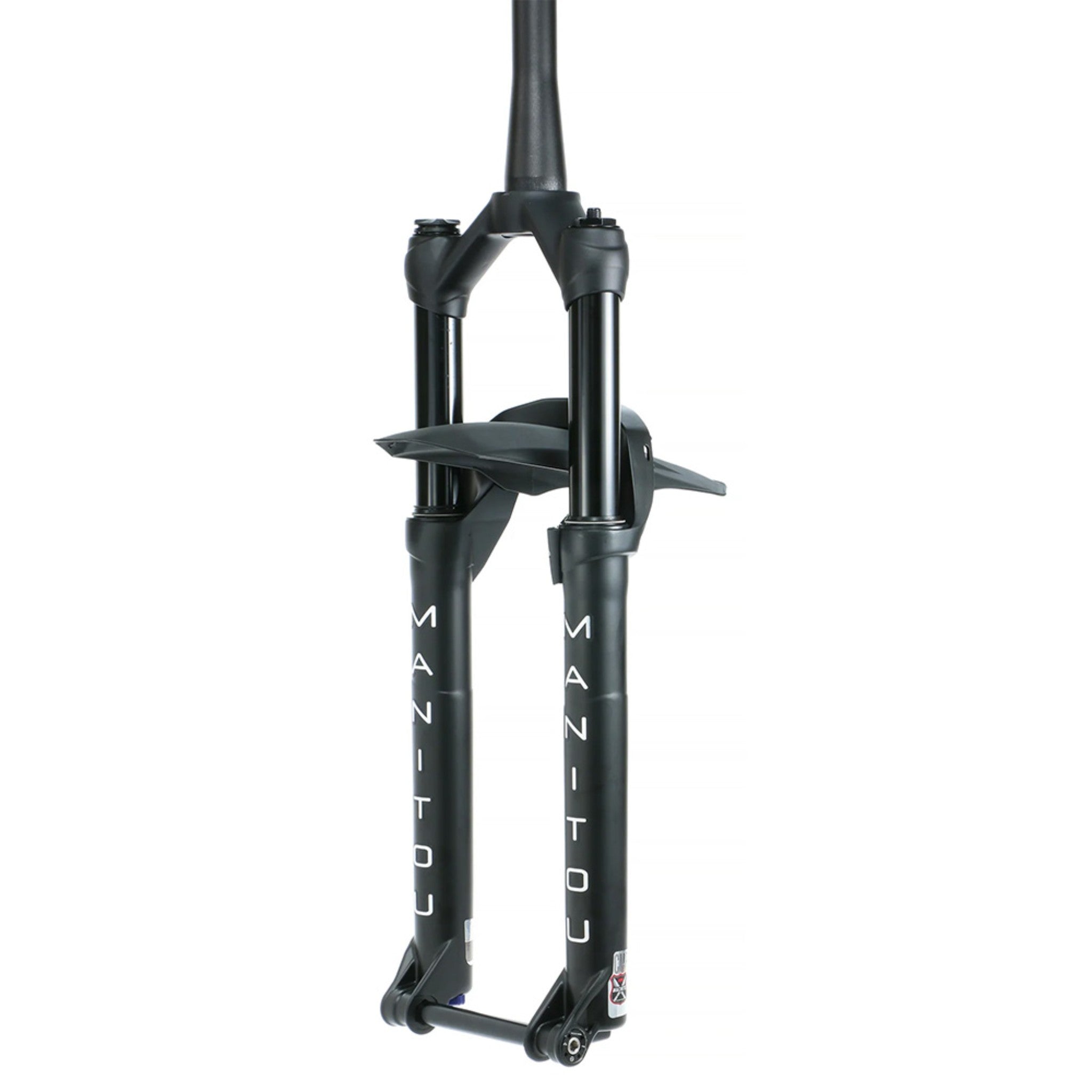

  • Manitou Machete Fork
  • Manitou Machete Fork

Description

The Machete is purpose-built for slicing trails, with Kwik Toggle compression damping inspired by Manitou's renowned Absolute+ technology. Kwik Toggle achieves on/off lockout simplicity in a lightweight, practical package.

Features:

  • 100mm and 120mm models available
  • TS Air Spring
  • Kwik Toggle Compression Damping
  • TPC Rebound Damping

Specifications 27.5":

  • Wheel Size: 27.5"
  • Weight: 1862g
  • Offset: 37/44OS
  • Ride Height: 471-511mm
  • Travel: 80-120mm Internally adjustable in 10mm increments
  • Spring: TS Air
  • Compression Damping: Kwik Toggle
  • Rebound Damping: in-leg adjustable TPC
  • Adjustments: Air, Rebound, Lockout
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore Matte Black
  • Leg Diameter: 32mm
  • Leg Material: 6000- Series Straight Wall Aluminum
  • Brake: Post Mount 160mm (203mm Max)
  • Axle: 15mm x110mm Hexlock
  • Max Tire Size: 68mm
  • Options: QR15, Fender Kit, Remote Lockout
  • E-Pac: No

Specifications 29":

  • Wheel Size: 27.5+/29"
  • Weight: 1885g
  • Offset: 44/51OS
  • Ride Height:485-525mm
  • Travel: 80-120mm Internally adjustable in 10mm increments
  • Spring: TS Air
  • Compression Damping: Kwik Toggle
  • Rebound Damping: in-leg adjustable TPC
  • Adjustments: Air, Rebound, Lockout
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore Matte Black
  • Leg Diameter: 32mm
  • Leg Material: 6000- Series Straight Wall Aluminum
  • Brake: Post Mount 160mm (203mm Max)
  • Axle: 15mm x110mm Hexlock
  • Max Tire Size: 77mm (27.5+), 68mm (29)
  • Options: QR15, Fender Kit, Remote Lockout
  • E-Pac: No

Manitou Machete Fork

SKU: FKMTME7103 / Barcode: 847863025999

The Machete is purpose-built for slicing trails, with Kwik Toggle compression damping inspired by Manitou's renowned Absolute+ technology. Kwik Toggle achieves on/off lockout simplicity in a lightweight, practical package.

Features:

...
Regular price £469.99
Colour

Option

Axle

Out of stock

90 Day Returns -

Description

The Machete is purpose-built for slicing trails, with Kwik Toggle compression damping inspired by Manitou's renowned Absolute+ technology. Kwik Toggle achieves on/off lockout simplicity in a lightweight, practical package.

Features:

  • 100mm and 120mm models available
  • TS Air Spring
  • Kwik Toggle Compression Damping
  • TPC Rebound Damping

Specifications 27.5":

  • Wheel Size: 27.5"
  • Weight: 1862g
  • Offset: 37/44OS
  • Ride Height: 471-511mm
  • Travel: 80-120mm Internally adjustable in 10mm increments
  • Spring: TS Air
  • Compression Damping: Kwik Toggle
  • Rebound Damping: in-leg adjustable TPC
  • Adjustments: Air, Rebound, Lockout
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore Matte Black
  • Leg Diameter: 32mm
  • Leg Material: 6000- Series Straight Wall Aluminum
  • Brake: Post Mount 160mm (203mm Max)
  • Axle: 15mm x110mm Hexlock
  • Max Tire Size: 68mm
  • Options: QR15, Fender Kit, Remote Lockout
  • E-Pac: No

Specifications 29":

  • Wheel Size: 27.5+/29"
  • Weight: 1885g
  • Offset: 44/51OS
  • Ride Height:485-525mm
  • Travel: 80-120mm Internally adjustable in 10mm increments
  • Spring: TS Air
  • Compression Damping: Kwik Toggle
  • Rebound Damping: in-leg adjustable TPC
  • Adjustments: Air, Rebound, Lockout
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore Matte Black
  • Leg Diameter: 32mm
  • Leg Material: 6000- Series Straight Wall Aluminum
  • Brake: Post Mount 160mm (203mm Max)
  • Axle: 15mm x110mm Hexlock
  • Max Tire Size: 77mm (27.5+), 68mm (29)
  • Options: QR15, Fender Kit, Remote Lockout
  • E-Pac: No
