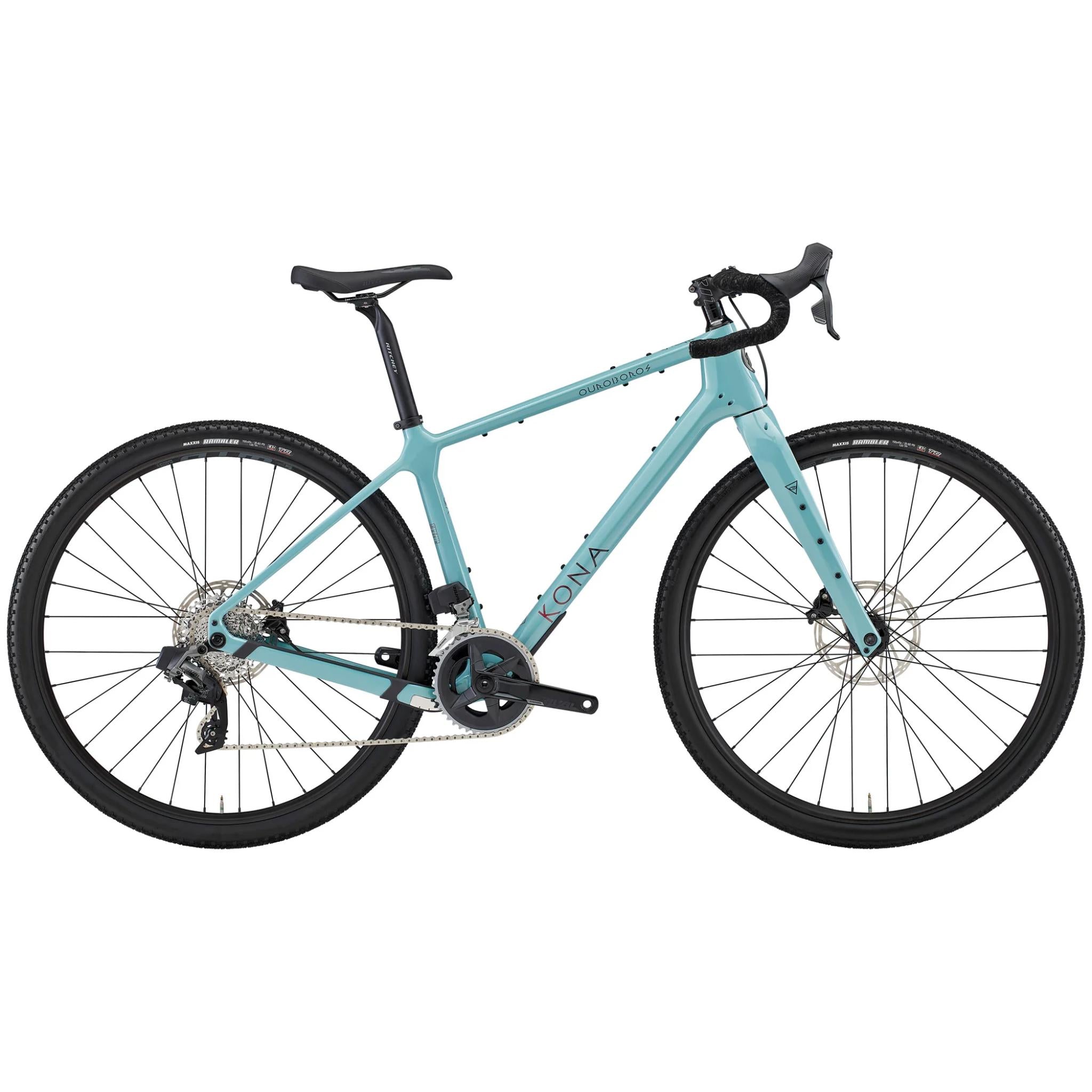

The Kona Ouroboros CR/DL 2024 gravel bike is a blend of tradition and modernity, offering a lightweight design and classic drop bar characteristics. With strategically optimized gear steps, finding and maintaining your ideal cadence is effortless, ensuring a smooth ride no matter the load or speed. Experience the perfect harmony between form and function.

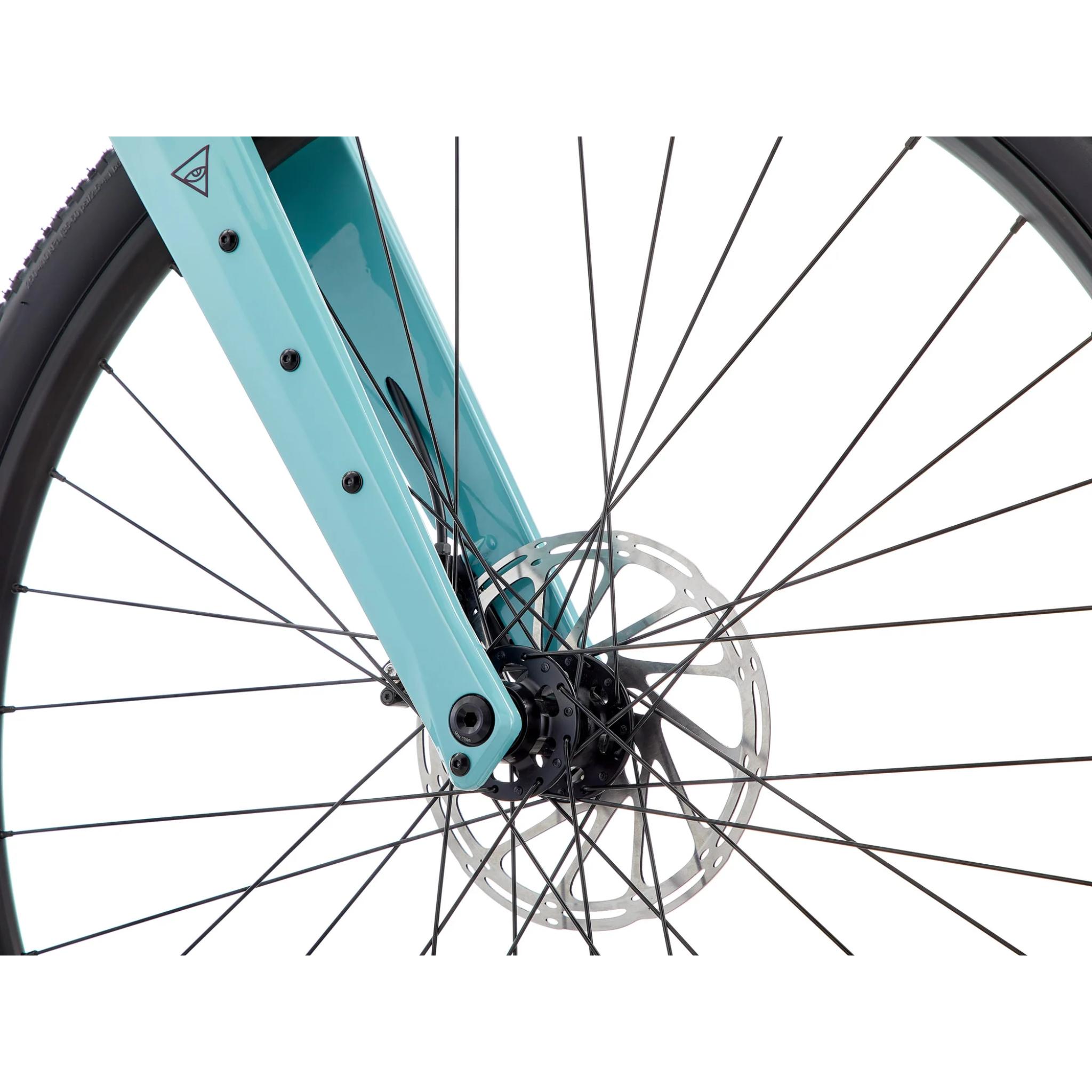

The Ouroboros CR/DL boasts a carbon fork with 3-pack WB bosses, dynamo routing, and a native 160 flat mount, as well as rack/fender mounts. The carbon frame features numerous WB boss mounts for frame bags and bento boxes, making it an ideal choice for bikepacking. Equipped with a Rival 2x Wide AXS groupset, a carbon carry-everything fork, and serviceable hubs, this bike is optimized for long-distance adventures. The SRAM Rival AXS Wide groupset includes a Rival 43/30t DUB Wide crankset and a 10-36t 12s cassette, while Rival hydraulic brakes ensure reliable stopping power. The KT hubs utilize STAR ratchet technology, inspired by DT Swiss, and feature interchangeable ratchets and loop springs. The 6 bolt rotors can be easily tightened with a multi-tool, making them convenient for extended trips.

• 48cm : 4'10"-5'1"
• 50cm: 5'0"-5'3"
• 52cm: 5'2"-5'7"
• 54cm: 5'6"-5'10"
• 56cm: 5'9"-6'0"
• 58cm: 6'1"-6'5"

SPECIFCATIONS -

Frame Material - Kona Carbon

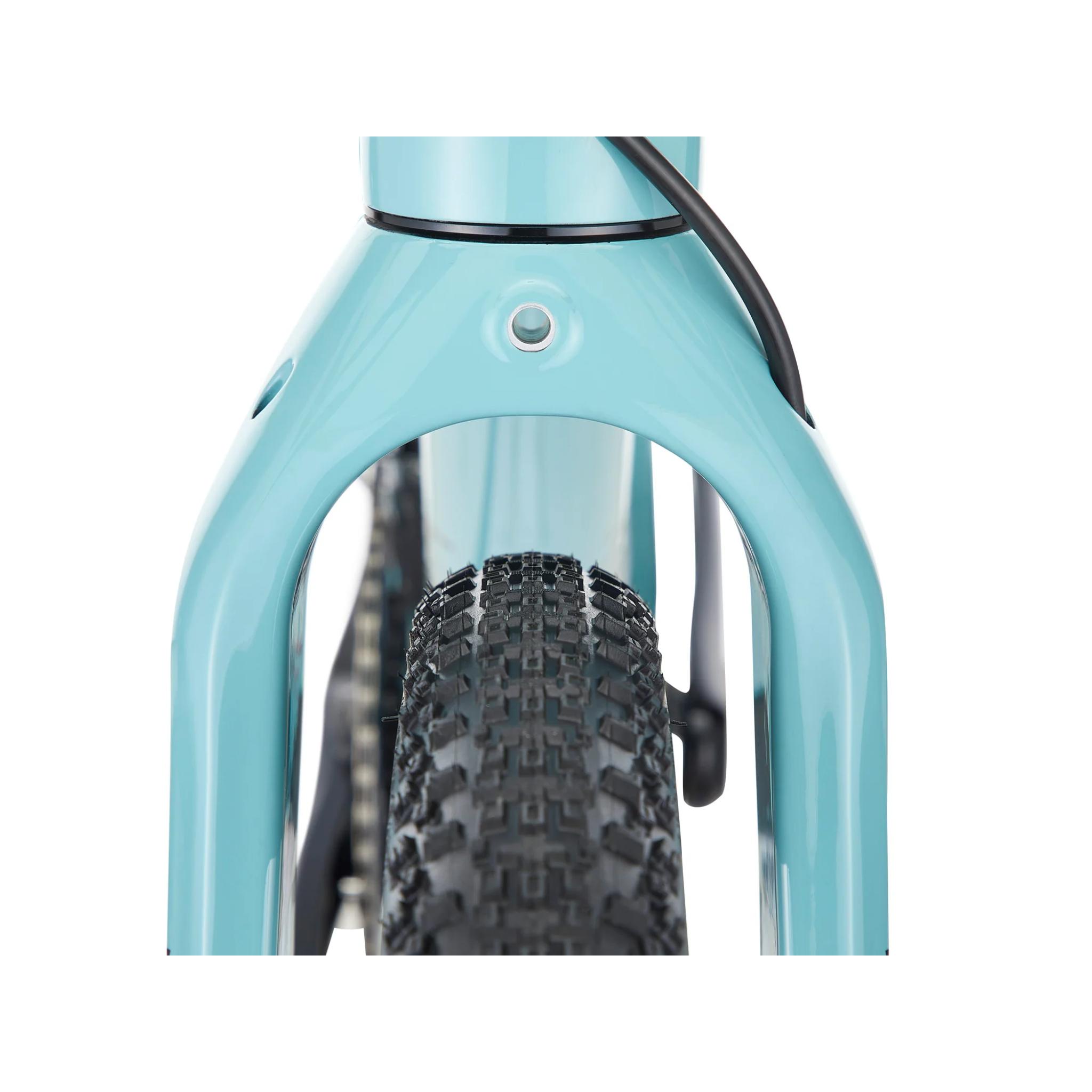

Fork - Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 - 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
Crankarms - SRAM Rival DUB Wide
Chainrings - SRAM Rival 43/30 Wide
B/B - SRAM Press-Fit 86.5 DUB Wide
Chain - SRAM Rival 12 speed

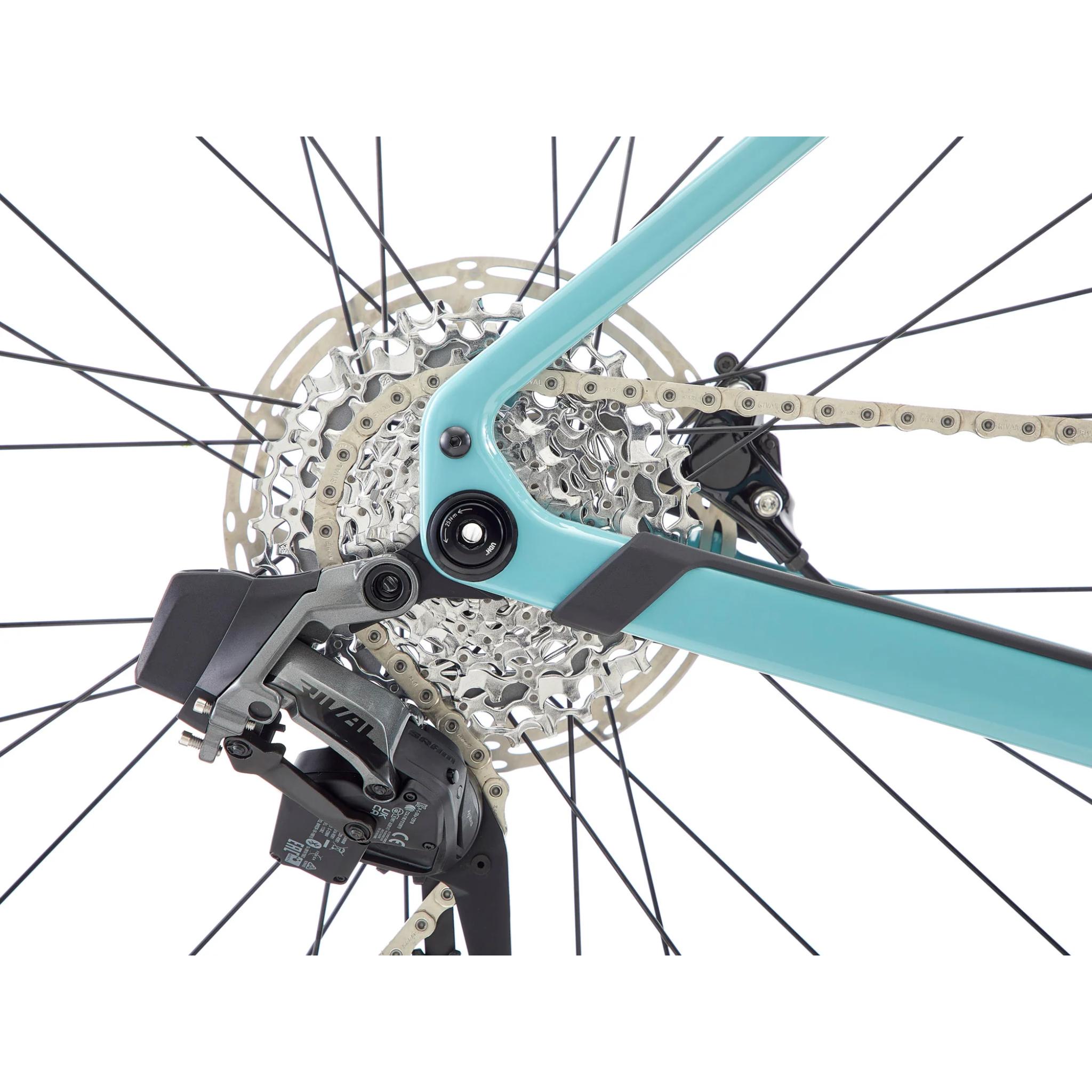

Cassette - SRAM Rival XG-1250 10-36t 12 speed XDR cassette
F/D - SRAM Rival ETAP AXS Wide
R/D - SRAM Rival ETAP AXS
Shifters - SRAM Rival ETAP AXS
Brake Calipers - SRAM Rival Flat Mount Hydraulic
Front Brake Rotor - SRAM Centerline 6-bolt 180mm

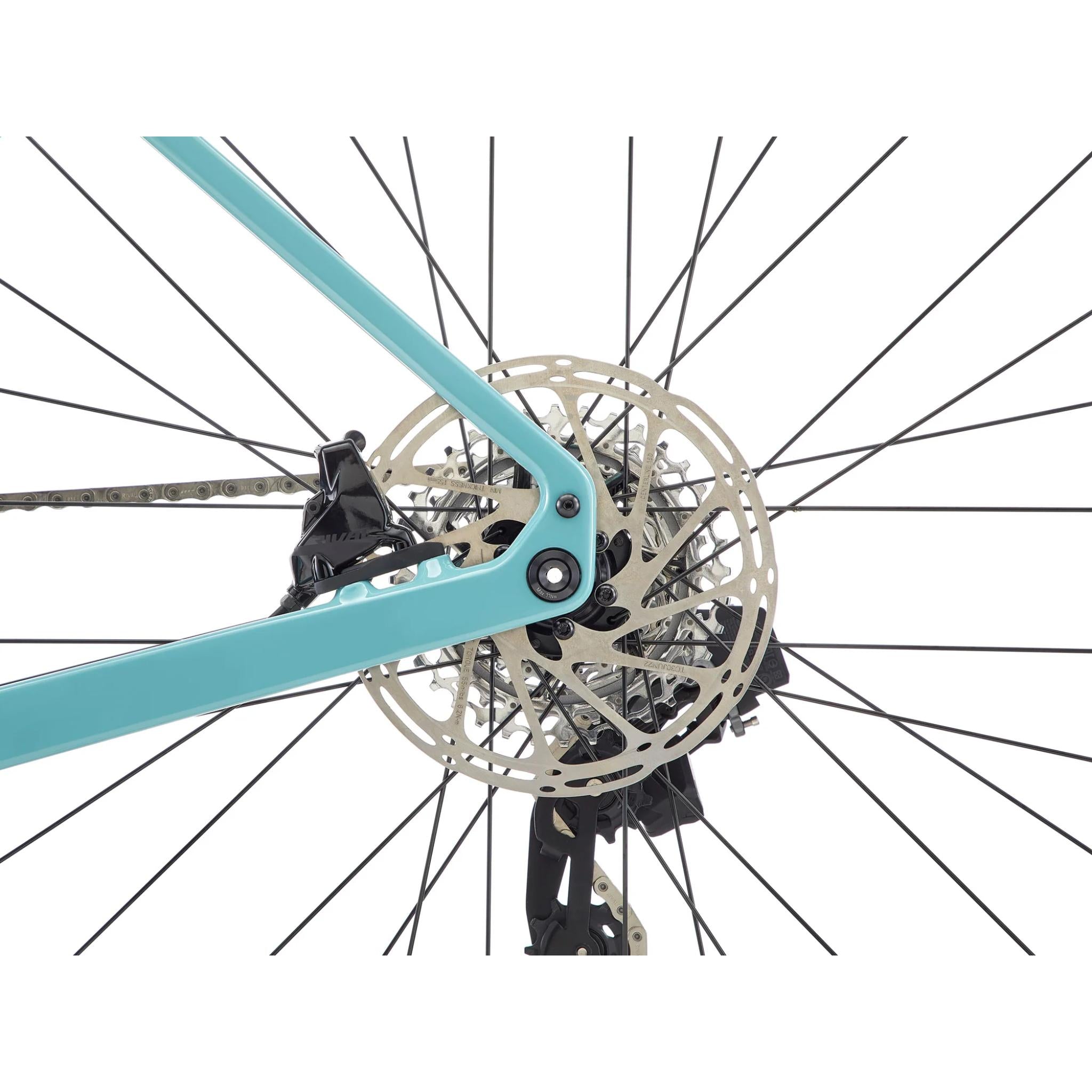

Rear Brake Rotor - SRAM Centerline 6-bolt 180mm
Brake Levers - SRAM Rival ETAP AXS
Headset - FSA Orbit No. 57, ZS 44/56

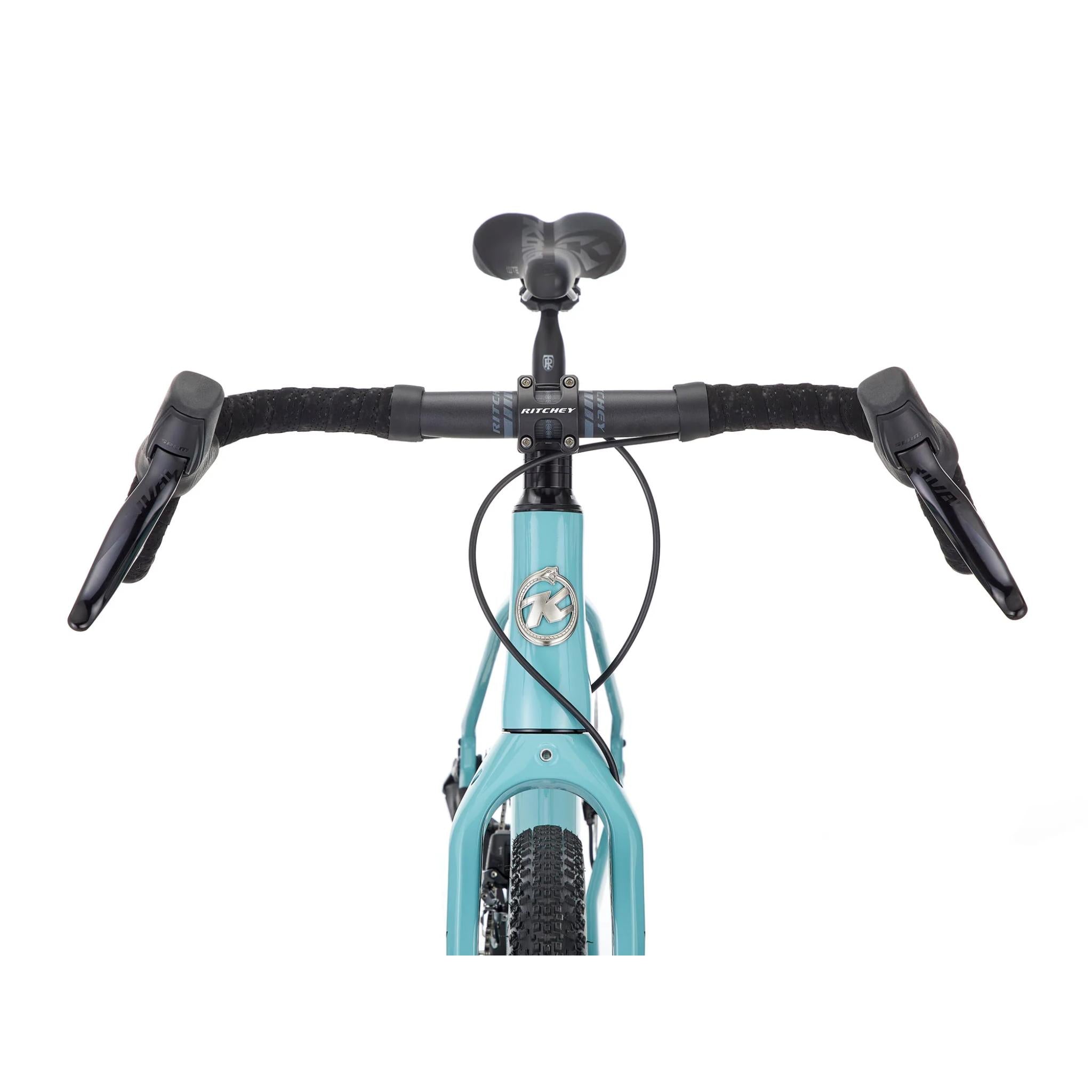

Handlebar - Ritchey Venturemax Comp/Venturemax XL Comp, 24-degree flare, 4.6 degree backsweep; 48-50: 460mm, 52-54: 480mm, 56: 500mm, 58: 520mm
Stem - Ritchey Trail Comp, 0-degree, 48-52: 45mm; 54-58: 60mm
Seatpost - Ritchey Link 20 WCS, 31.6mm, 20mm setback, 48-52: 350mm; 54-58: 400mm
Seat Clamp - Kona 34.9mm
Grips - Velo bar tape
Saddle - WTB Volt Medium Steel SL
Front Hub - KT-Taiwan QL-S3GR, 100 x 12, 32h, 6-bolt
Rear Hub - KT-Taiwan QL-DD4DR, 142 x 12, 32h, 6-bolt, XDR freehub, STAR ratchet
Spokes - Double butted stainless
Rims - WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape
Front Tire - Maxxis Rambler 700 x 45 TR EXO
Rear Tire - Maxxis Rambler 700 x 45 TR EXO
Paint Colour - Gloss Harbor Grey w/ Plum & Bloodstone Decals
Extras - batteries, charger
