Description

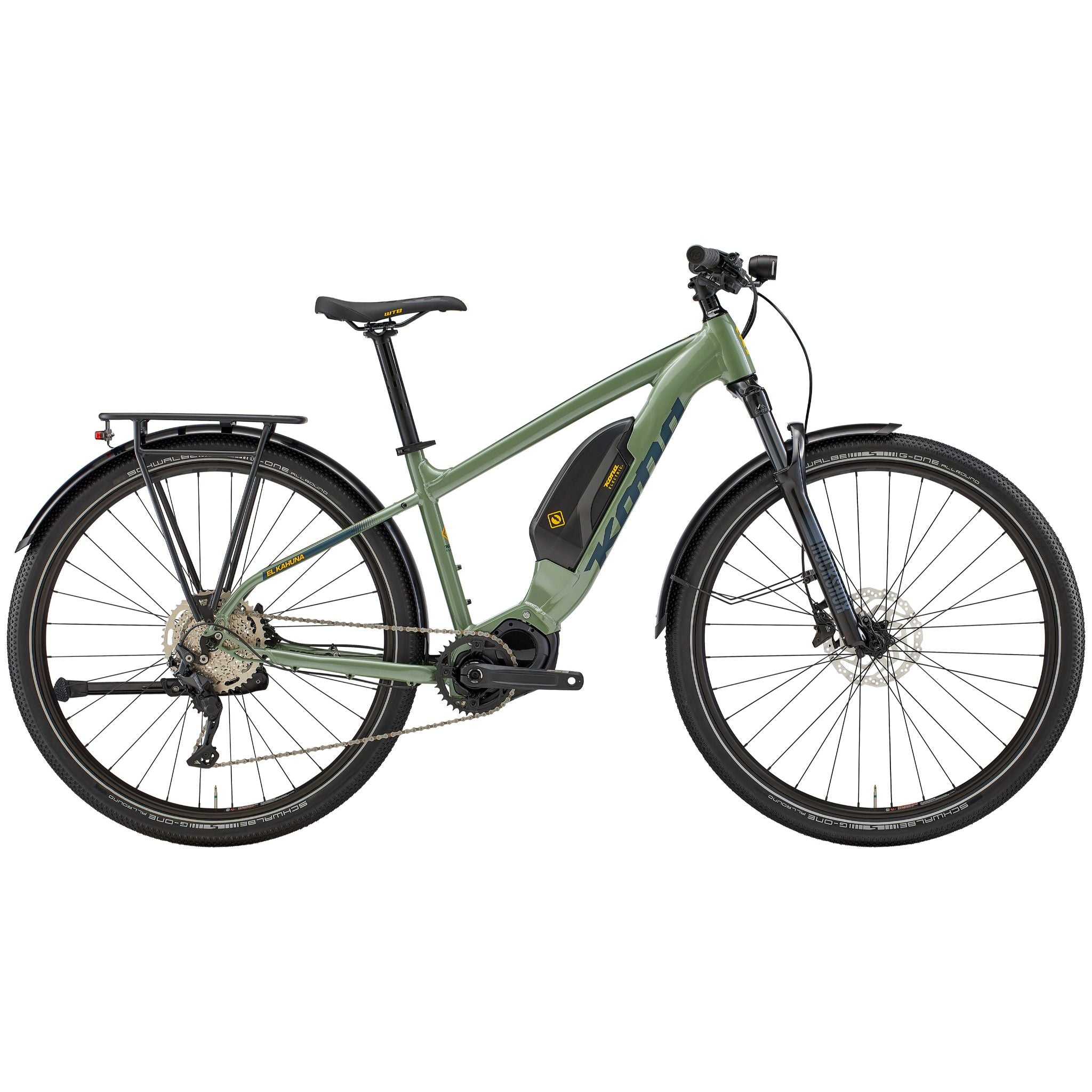

An electric mountain bike built for bike packers and adventure riders. The EL Kahuna SUV has all your equipment carrying needs sorted.

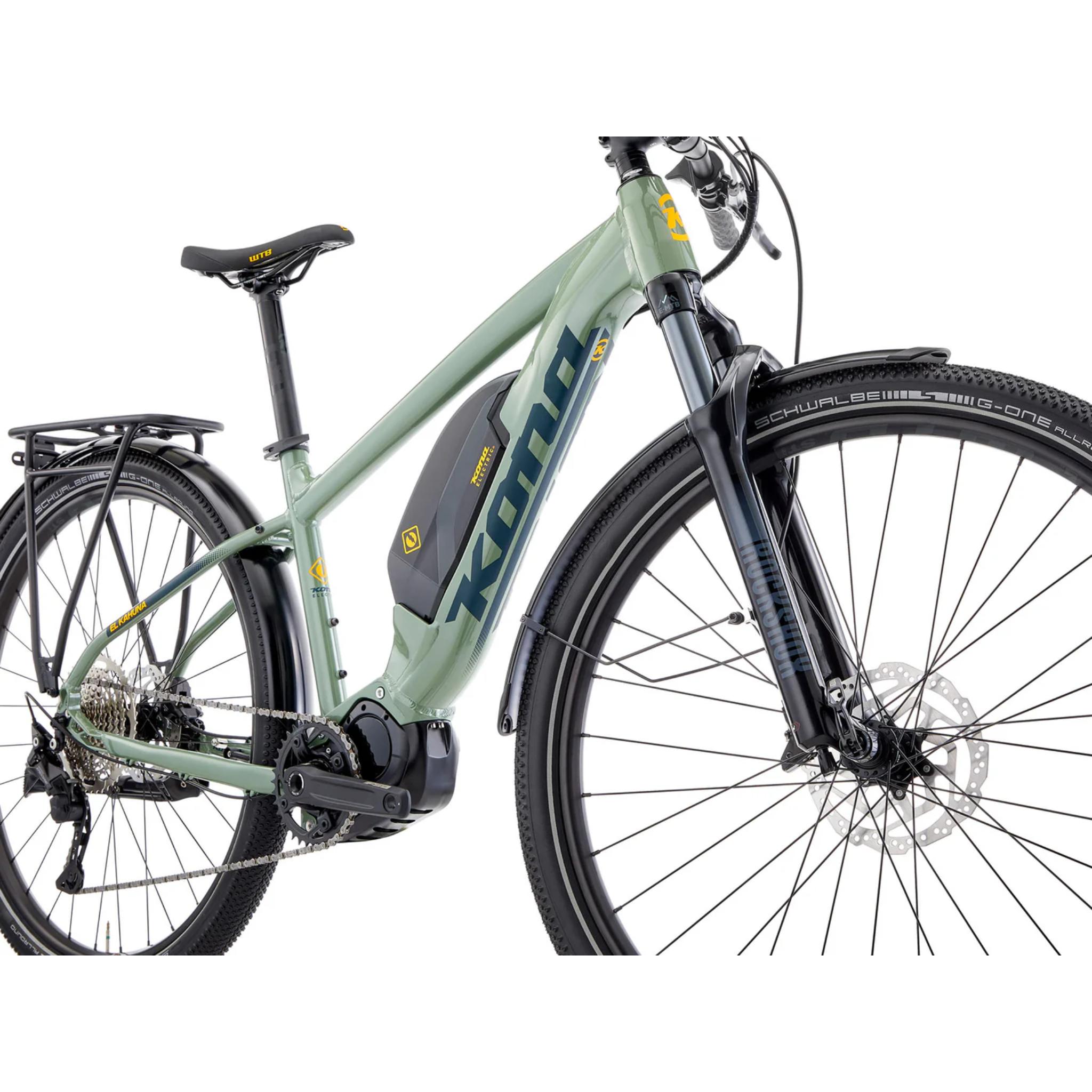

Like its sibling, the El Kahuna, the SUV features a sturdy aluminium frame and 29” wheels. The big differences are the addition of front and rear lights, and a rear rack which is integrated with a fender keeping you cleaner while you carry that camping gear up that big gravel road. A 100mm fork smooths out the bumps, and powerful disc brakes keep you in control while you rally around the campground’s gravel trails and singletrack.
SIZING -
S - 5'3 - 5'7
M - 5'7 - 5'10
L - 5'10 - 6'1
XL - 6'1 - 6'5
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel 100mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)

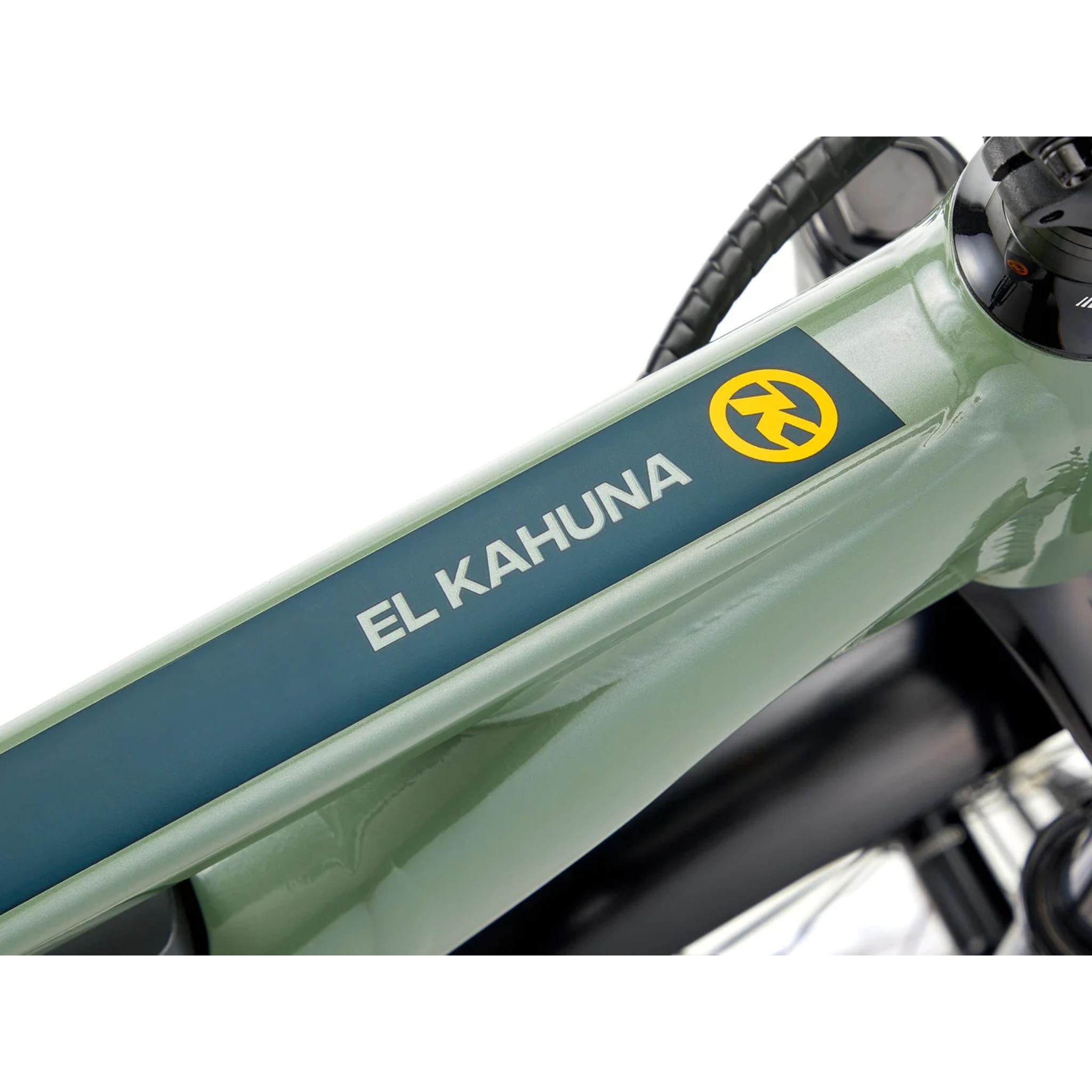

FRAME MATERIAL - Kona 6061 Aluminium Butted
FORK - RockShox 35 Silver R Coil 100mm Tapered 110 Spacing

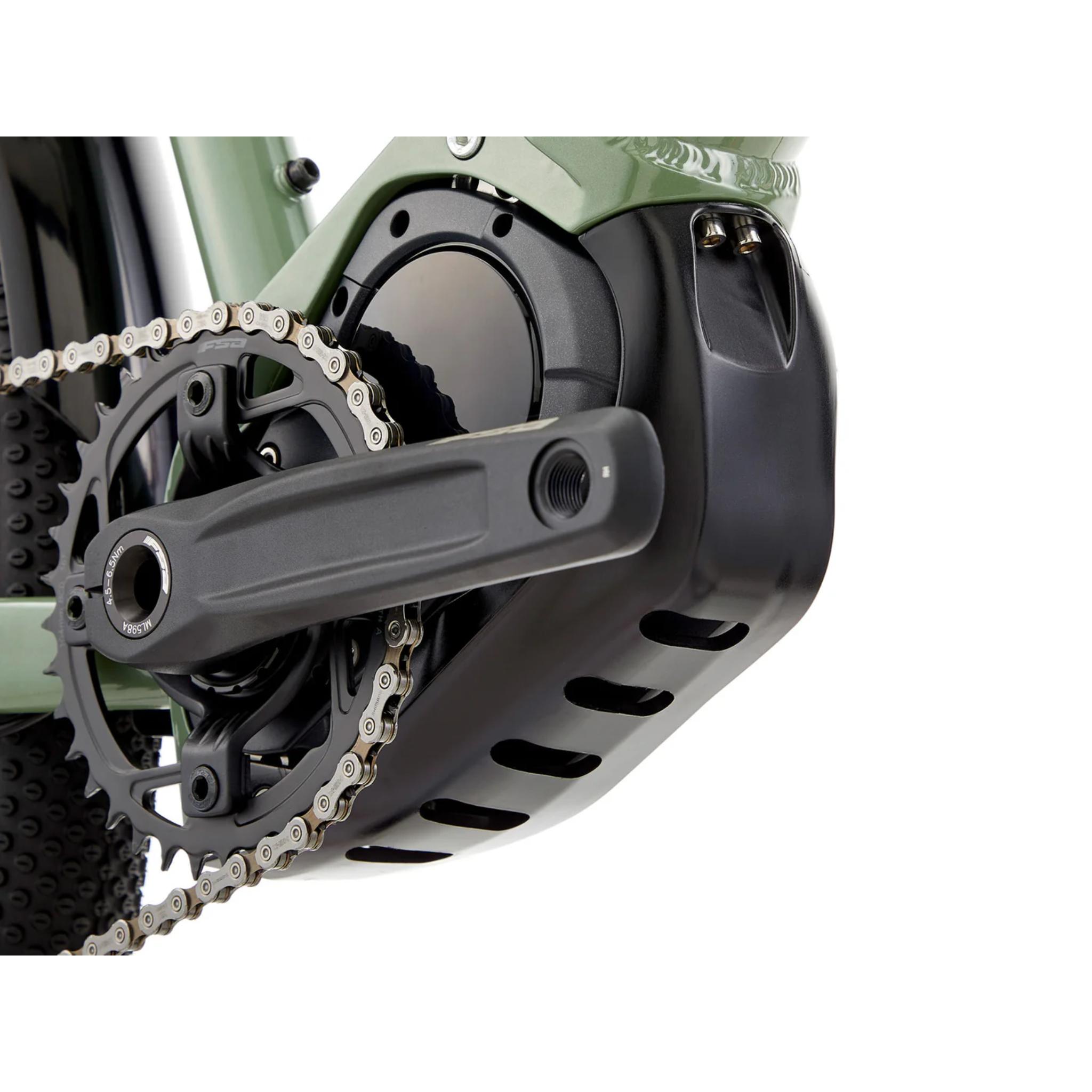

CRANKARMS - FSA E-Bike
CHAINRINGS - 36t
CHAIN - Shimano HG54
CASSETTE - Shimano Deore 11-46t 10spd
DERAILLEUR - Shimano Deore
SHIFTERS - Shimano Deore

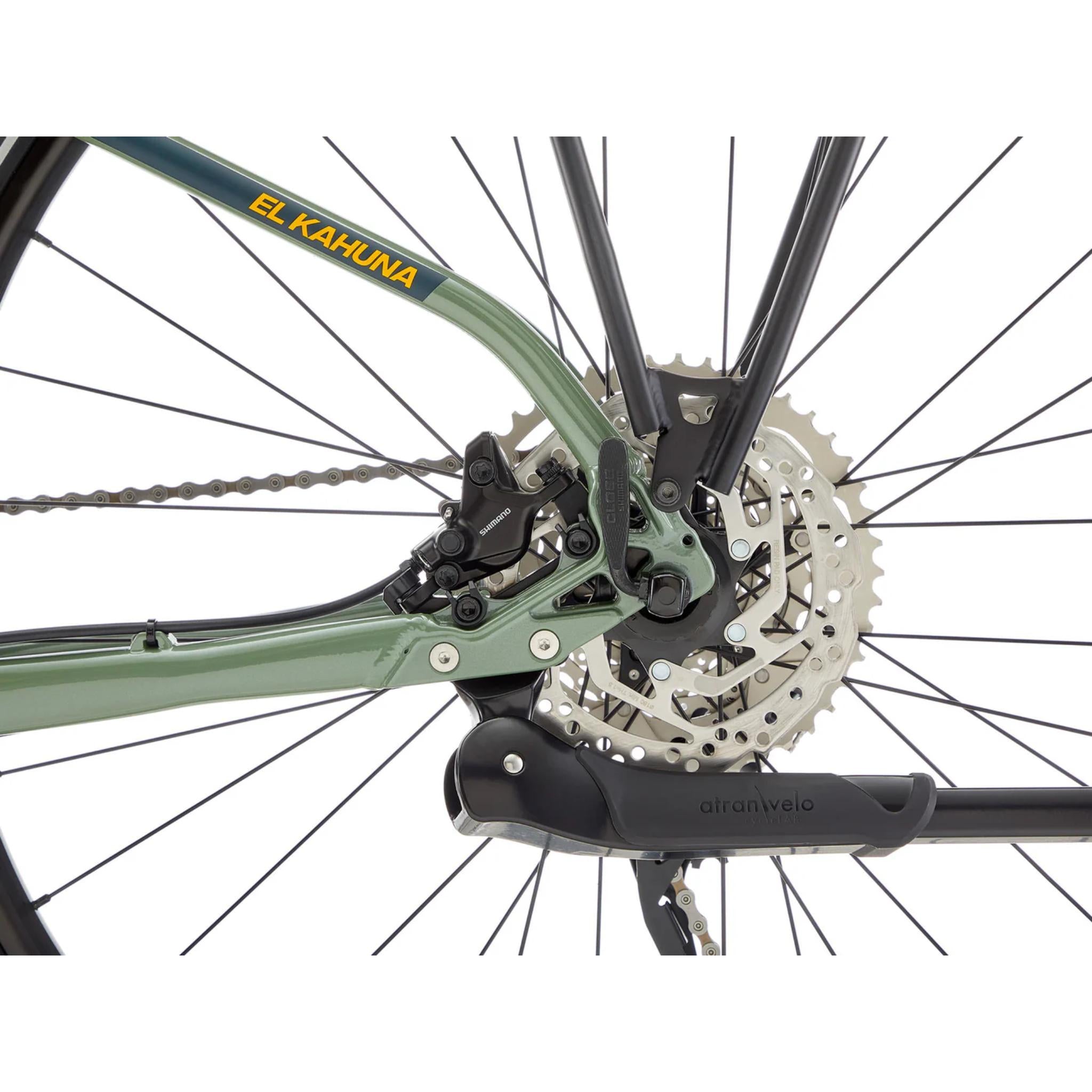

BRAKE CALIPERS - Shimano MT410
FRONT BRAKE ROTOR - Shimano RT10 180mm (centerlock)
REAR BRAKE ROTOR - Shimano RT10 160mm (centerlock)
BRAKE LEVERS - Shimano MT4100
HEADSET - FSA No.57BP
HANDLEBAR - Kona XC/BC Riser
STEM - Kona XC
SEATPOST - Kona Thumb w/Offset 31.6mm
SEAT CLAMP - Kona Clamp
GRIPS - Kona Key Grip
SADDLE - WTB Volt
FRONT HUB - Shimano 110x15mm
REAR HUB - Shimano 135x10mm
SPOKES - Stainless 14g
RIMS - WTB ST i27 TCS 2.0
FRONT TIRE - Schwalbe G-One 29x2.25"
REAR TIRE - Schwalbe G-One 29x2.25"

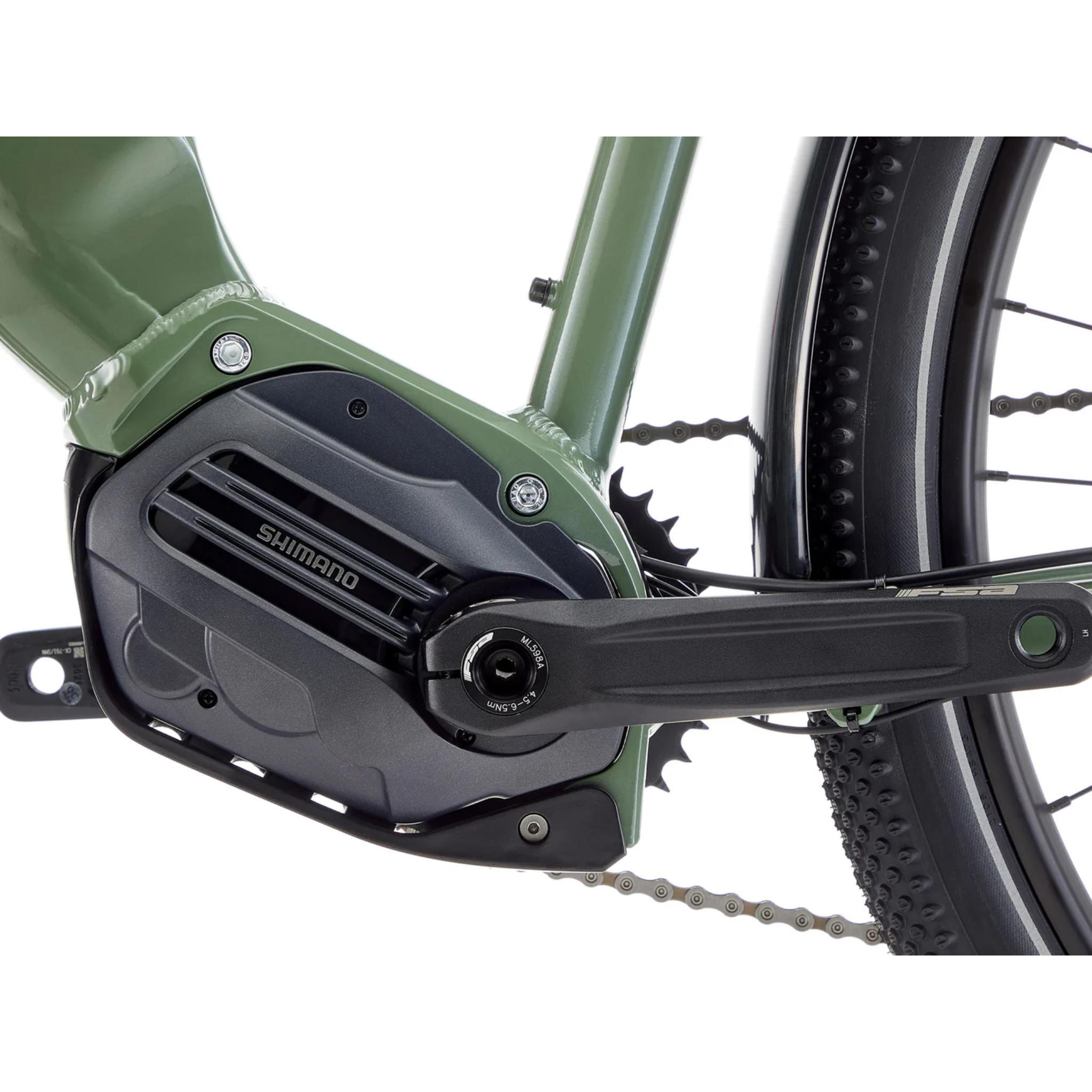

DRIVE UNIT - Shimano E6100 25KPH

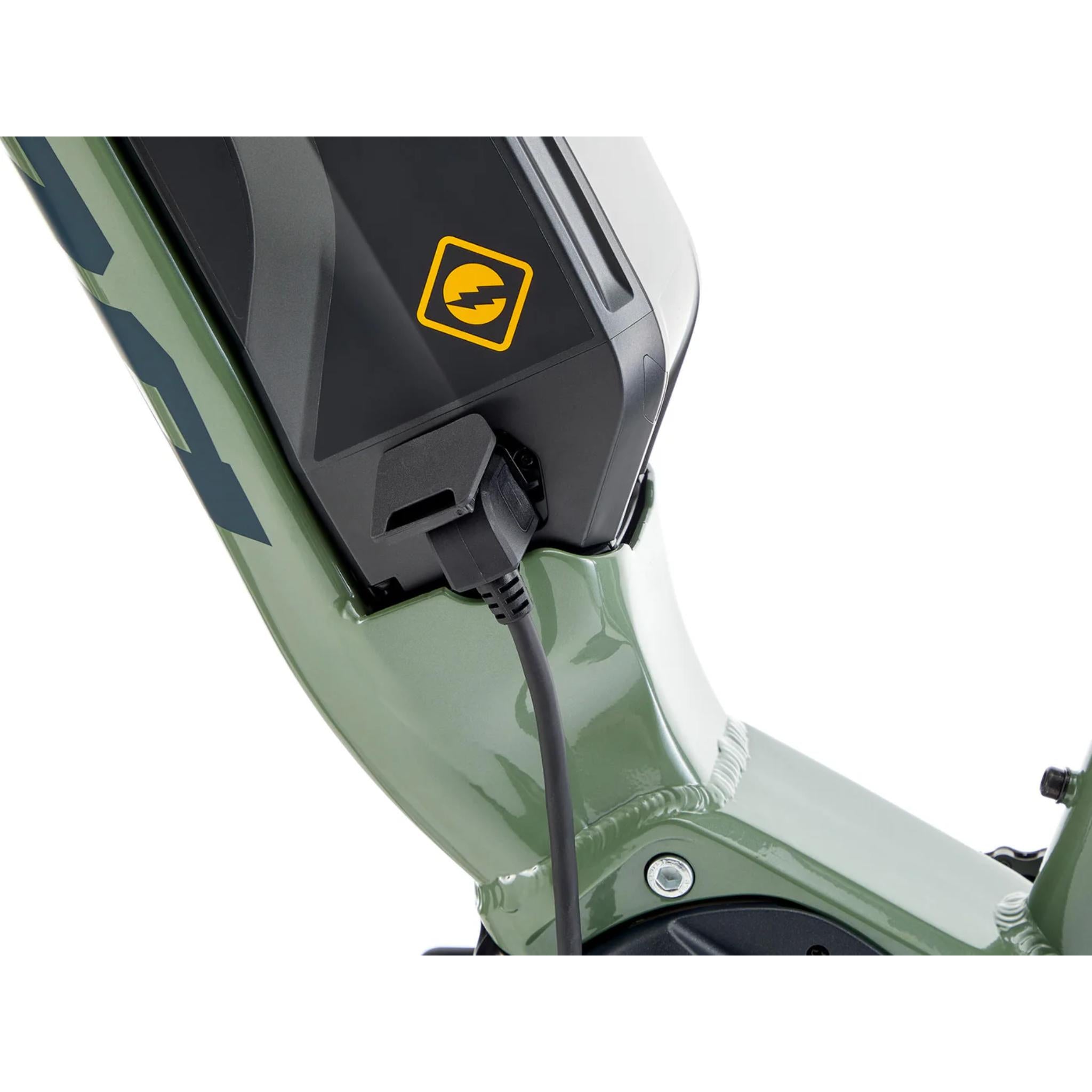

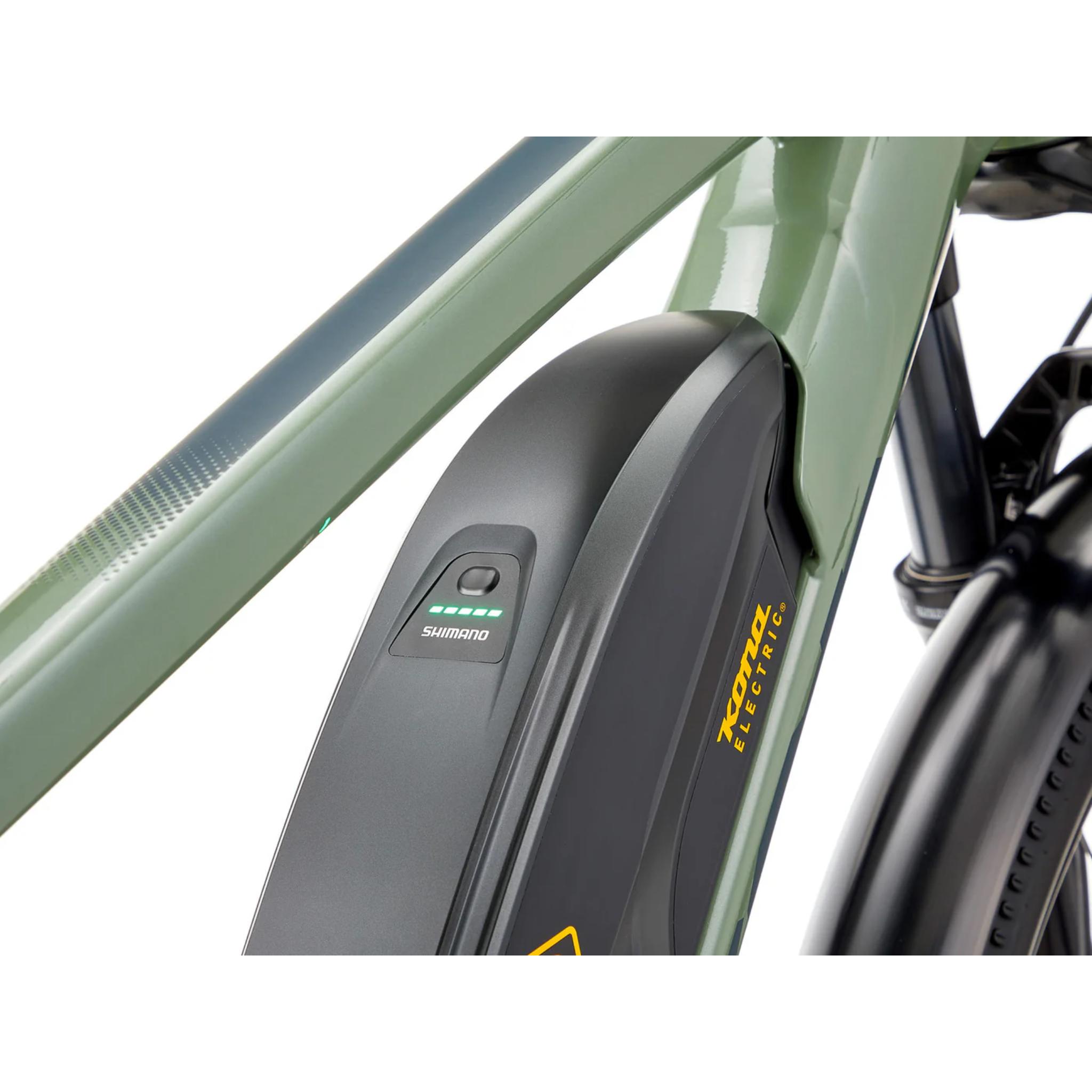

BATTERY - Shimano 630Wh
DISPLAY - Shimano SC-E7000 Display
CHARGER - Shimano STEPS 2A

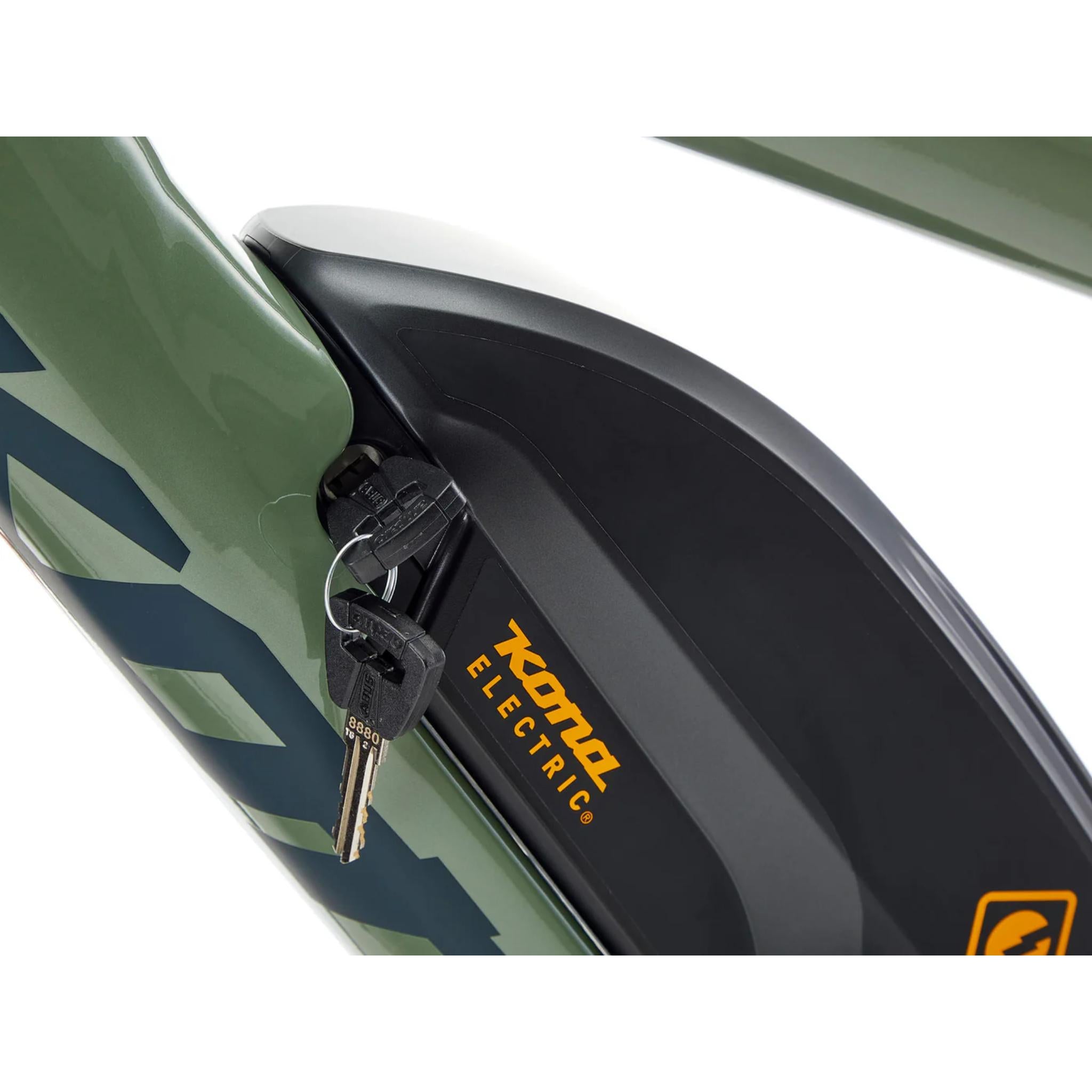

BATTERY LOCK - Abus

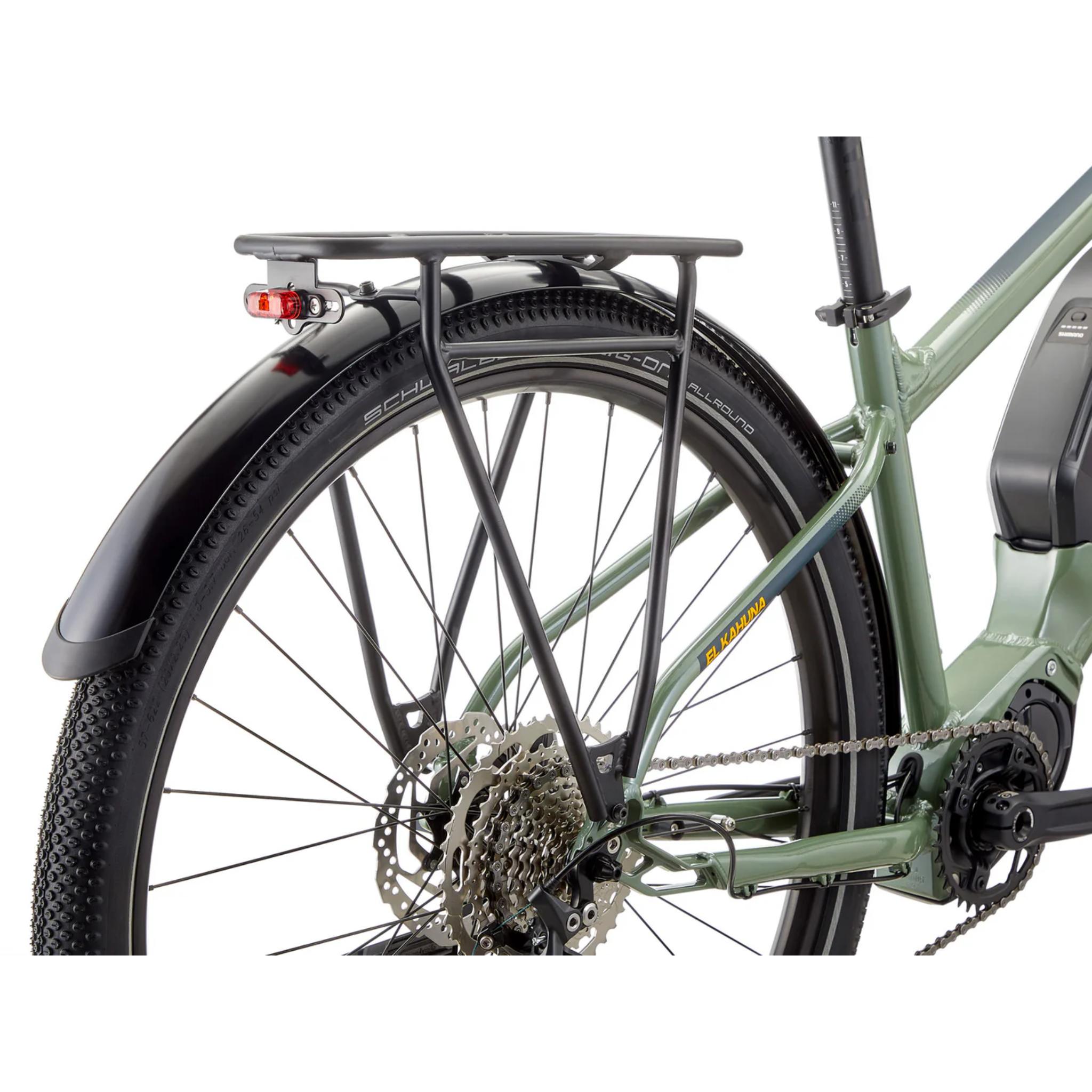

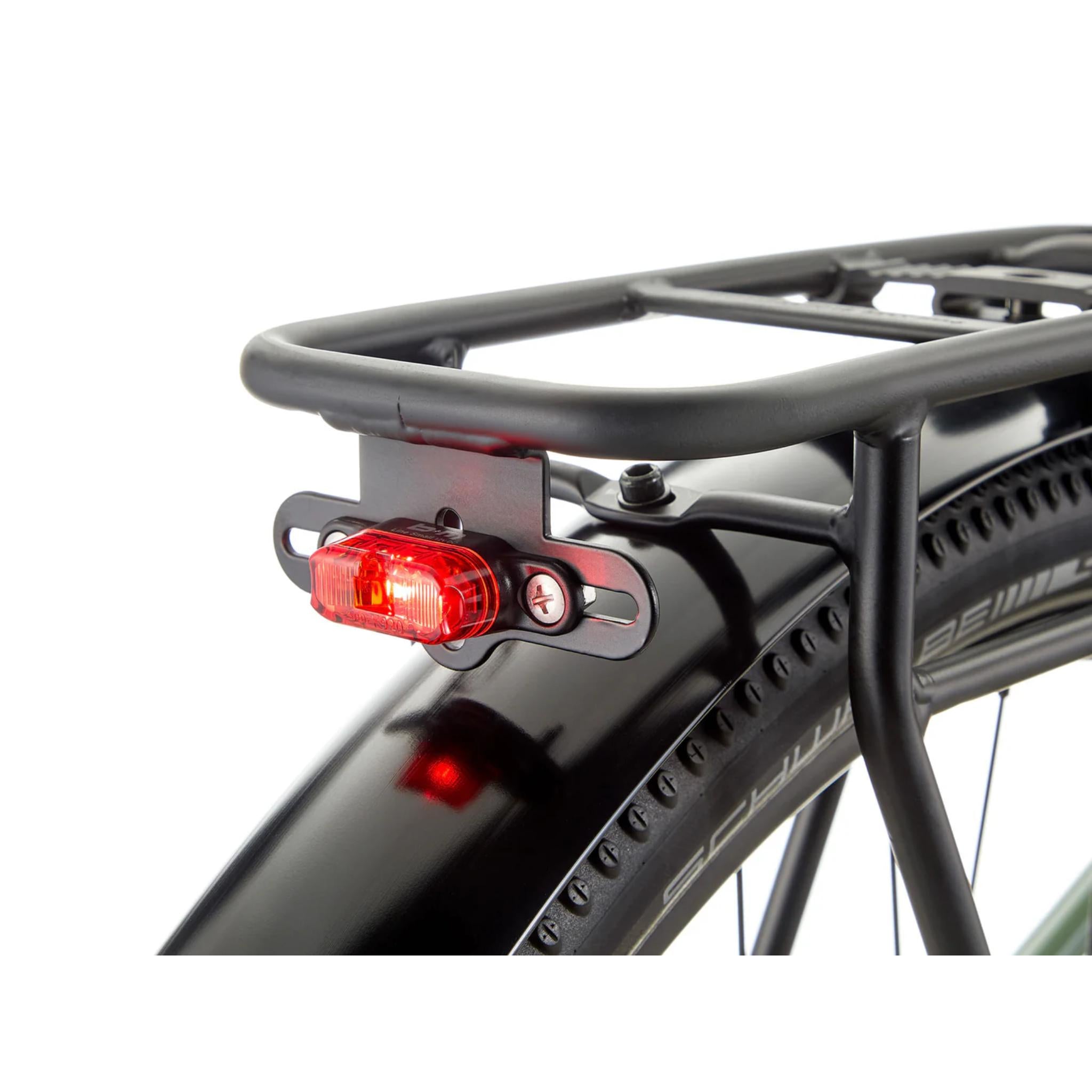

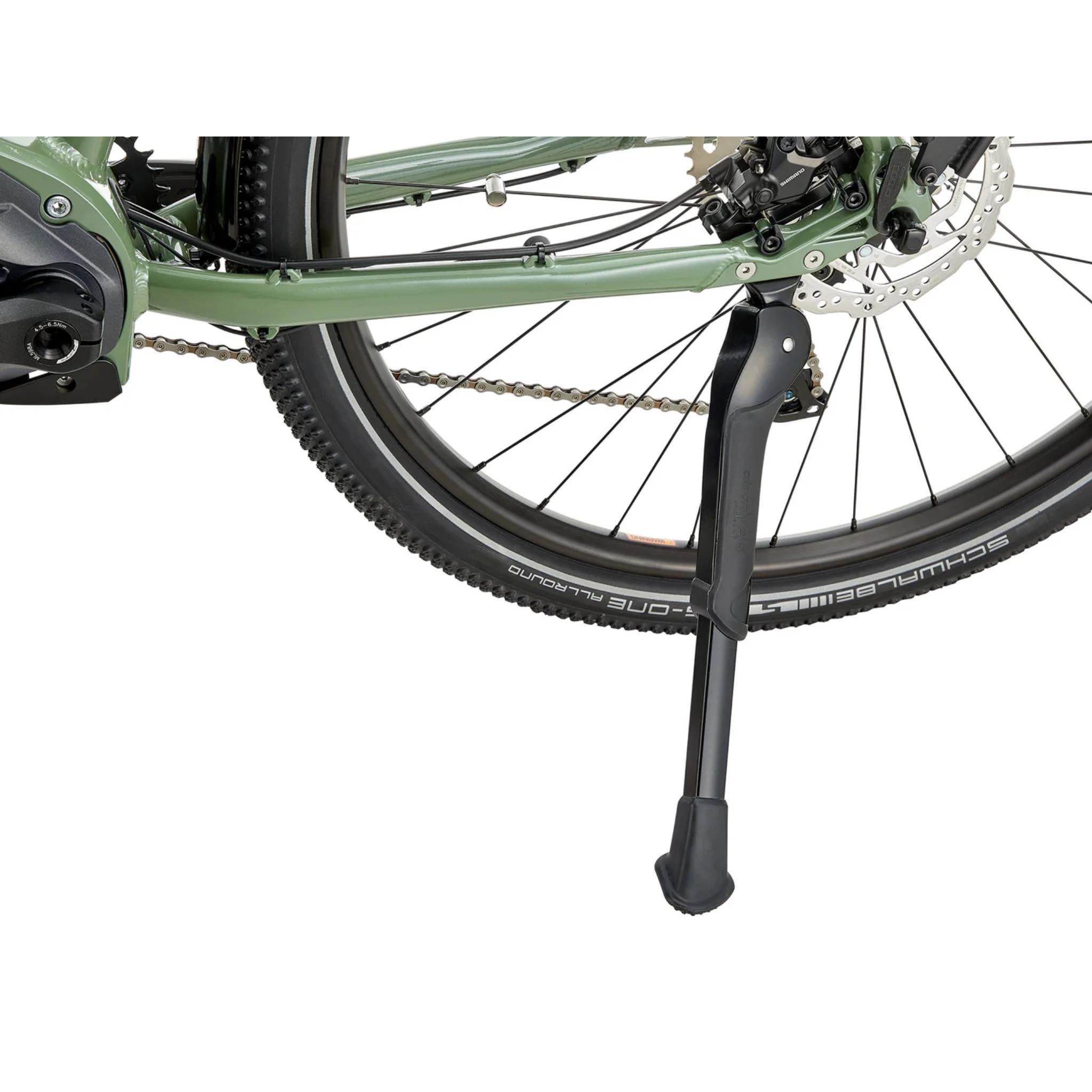

EXTRAS - Rear Rack, Fenders, Busch & Müller Front & Rear Light, Kickstand
