Description

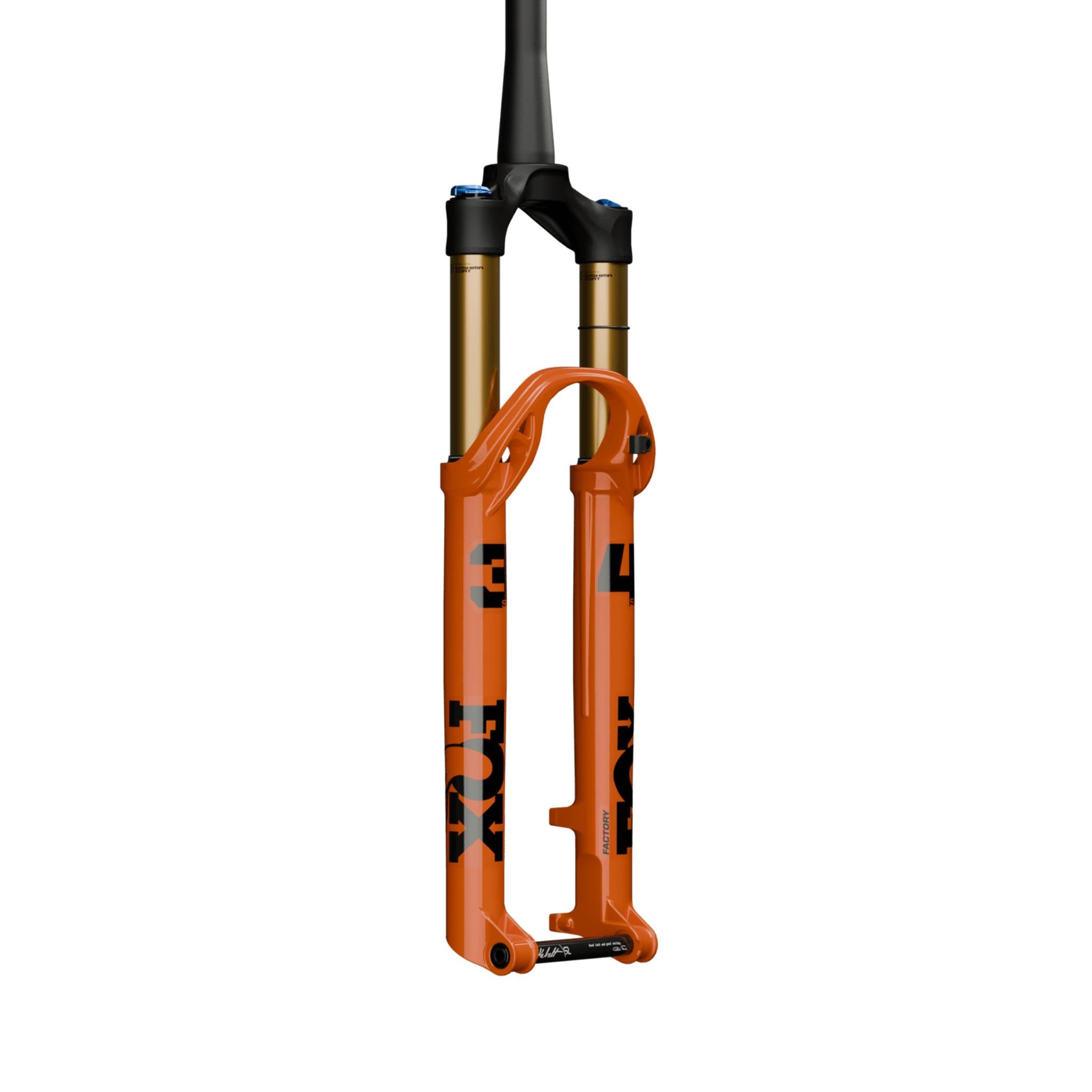

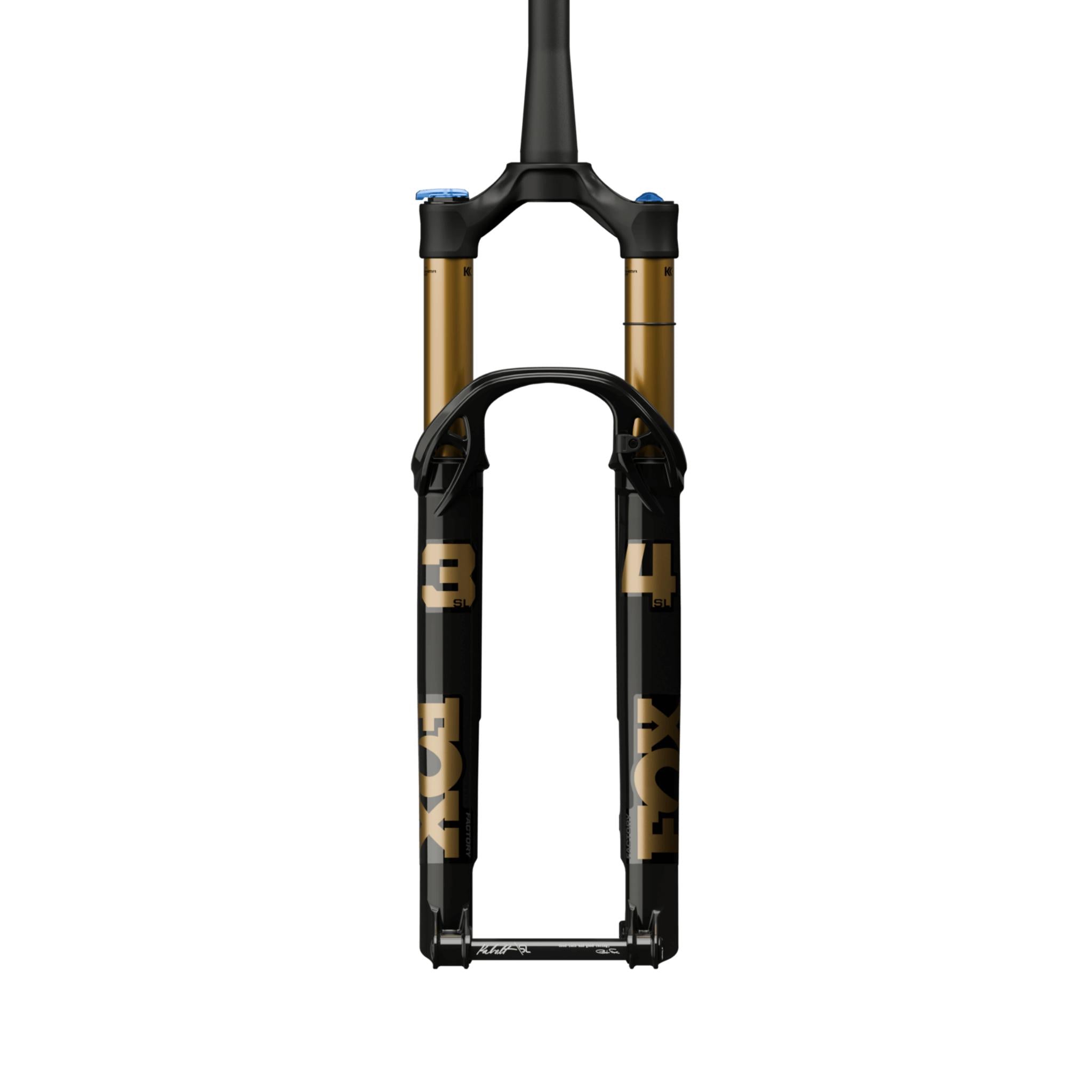

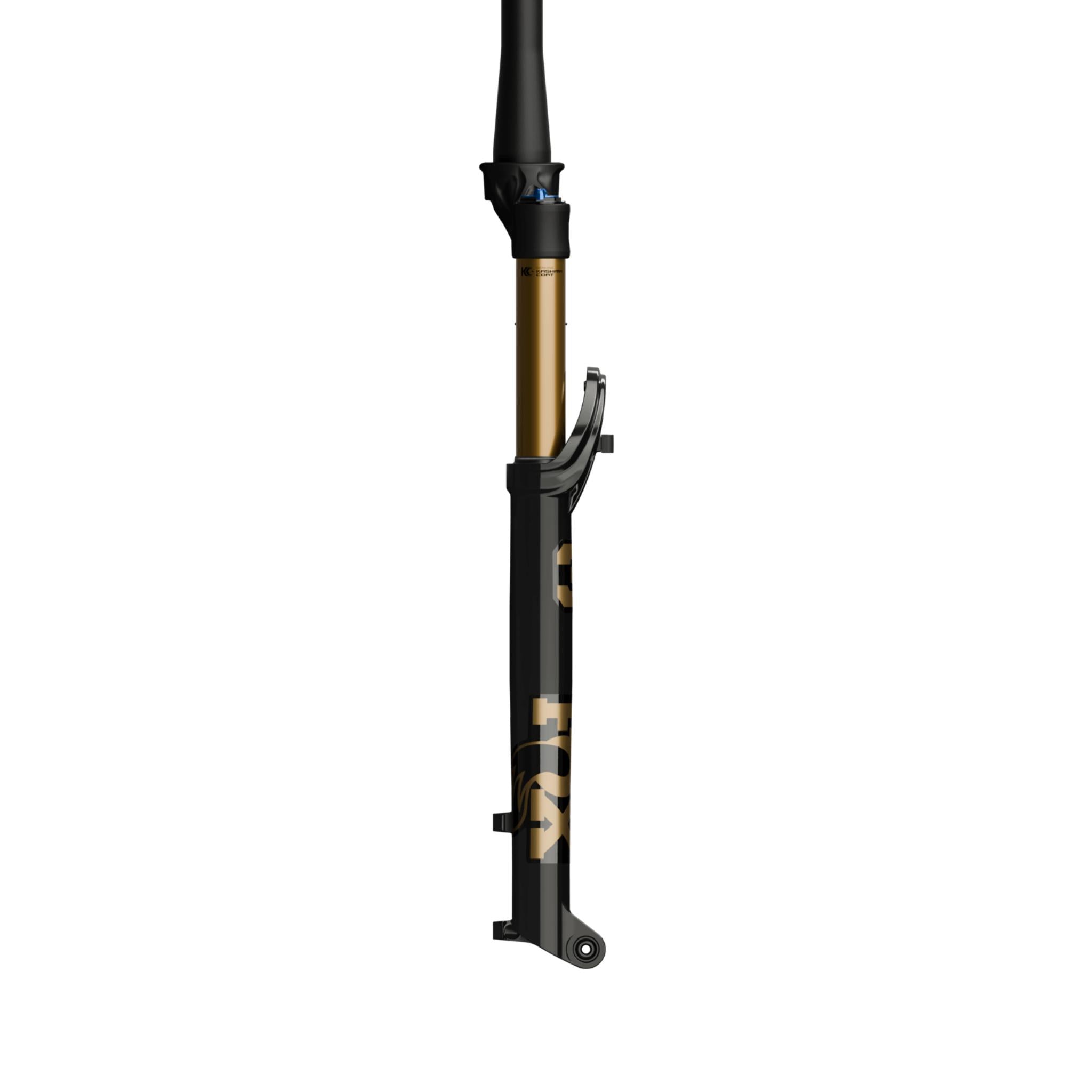

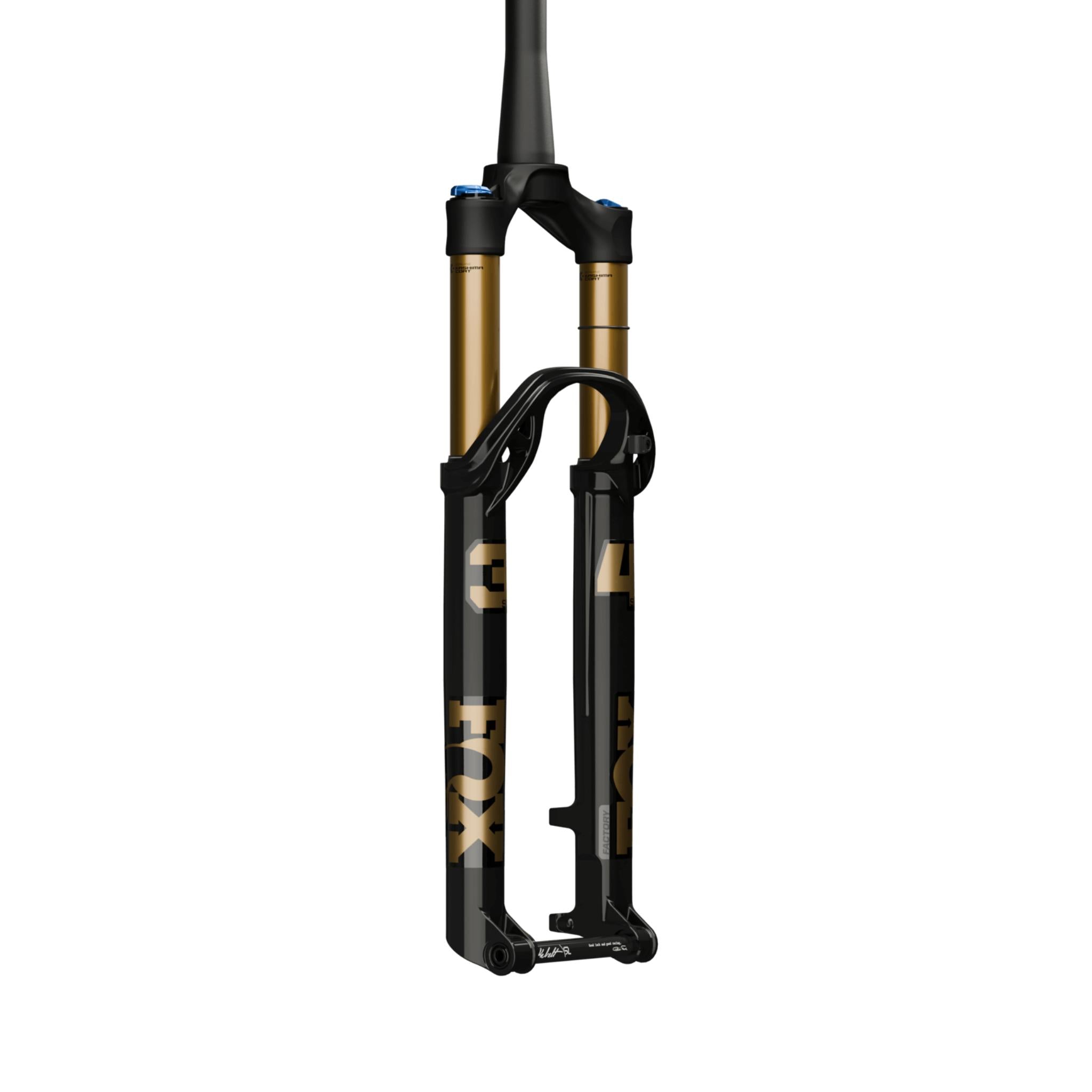

Newly developed to dominate on short-travel trail and XC bikes, the Fox 34 SL mountain bike fork brings unprecedented capability to racing weight front suspension.
The 34 SL builds on the foundation laid down by the prestigious 34 Step-Cast XC range, adding extra stiffness, refining the supple ride and adding more travel options. In addition to the 120mm, the 34 SL is available as a 130mm travel option in answer to the increasing demands of XC race tracks and short travel trail bike riders.
The Factory level 34 SL boasts all of Fox's most advanced technology and features as well as that much loved gold Kashima stanchion look.
Grip SL and Grip X Damper -
The 120mm travel option comes fitted with the Grip SL damper which has been specially made for short travel bike and optimising pedal/bump efficiency. The Grip X Damper found on the 130mm travel option is a trail focussed damper ready to handle rougher terrain features.
Remote -
The 120mm Grip SL damper forks can be purchased with either handlebar mounted remote or a 3-position fork mounted adjust lever. 130mm Grip X forks only come with a fork mounted adjust lever.
Key Features -

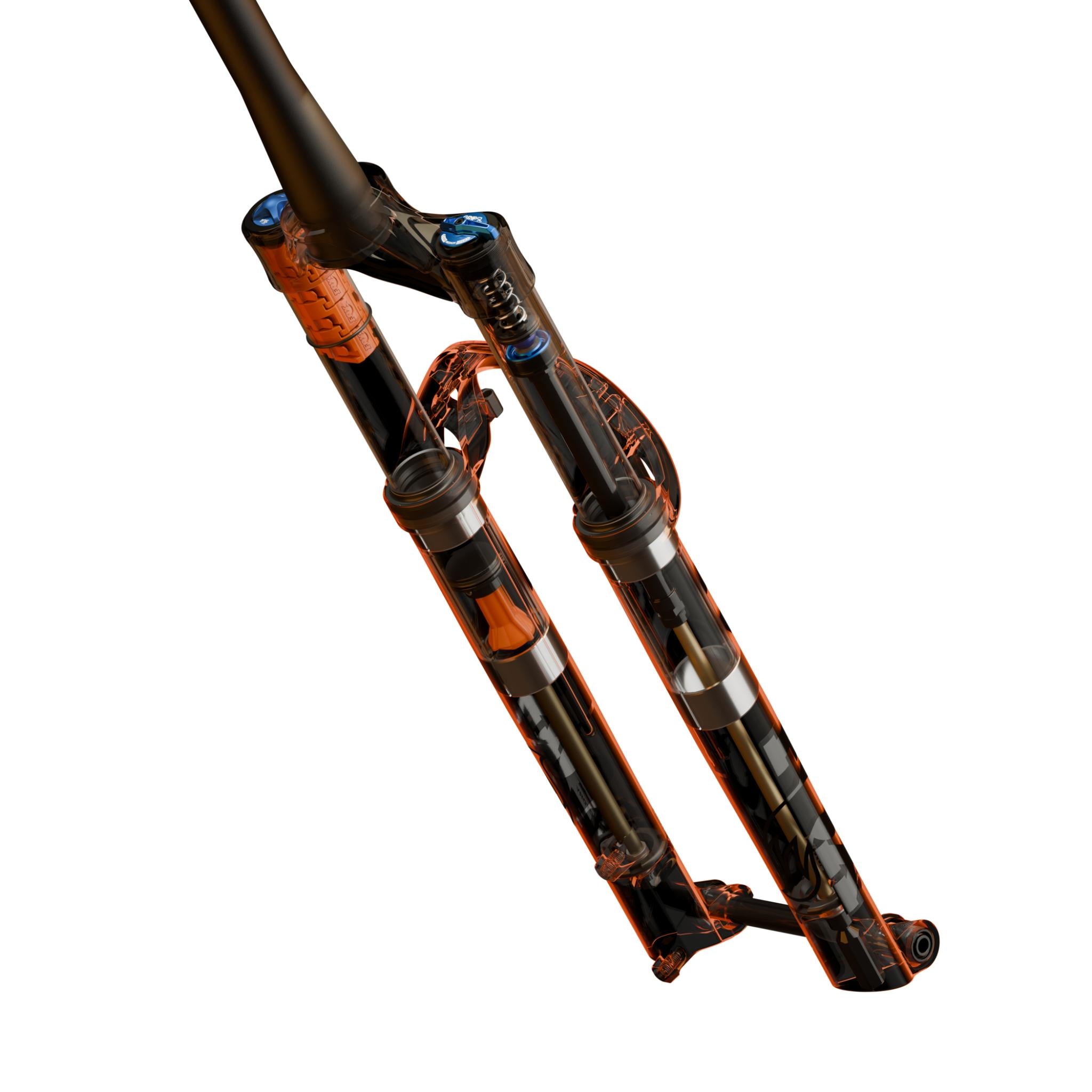

- Full Fox 34 chassis allows for large volume air spring that was not possible on the step-cast design
- Grip SL damper (120mm) or Grip X damper (130mm)
- 120mm and 130mm travel options
- Redesigned Arch and Crown further increase torsional stiffness and keeps weight low
- Increased bushing overlap boosts the smooth ride feel and will result in better tracking over rough terrains when at high speed
- Inboard bypass channels that improve small bump sensitivity and reduce
dynamic friction for a more responsive ride. - Full weight optimisation - Featuring the ultra-light Kabolt SL axle (12g), double-butted stanchion tubes (9g) and refined full-width lowers, the 34 SL weighs in at just 1475g
SPECIFICATION -
Wheel size: 29"
Travel: 120MM & 130MM
Rake: 44MM OFFSET
Axle: Kabolt SL
Rotor size: 180-230MM
Air spring Float EVOL compliant
Steerer: 1.5 TAPER
Starting Weight: 1475G (FS 130MM GRIP SL)
Fox 34 SL Float Factory Fork 2026
Newly developed to dominate on short-travel trail and XC bikes, the Fox 34 SL mountain bike fork brings unprecedented capability to racing weight front suspension.
The 34 SL builds on... Read more
