Description

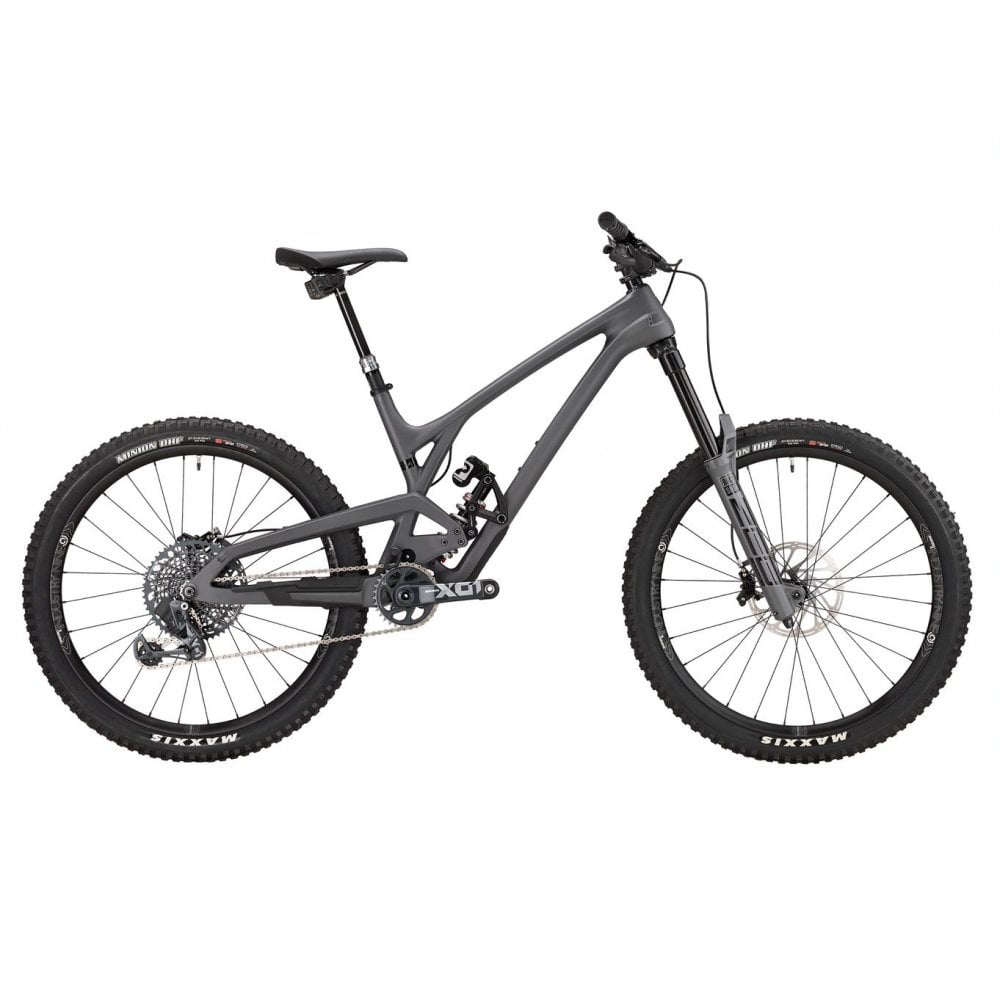

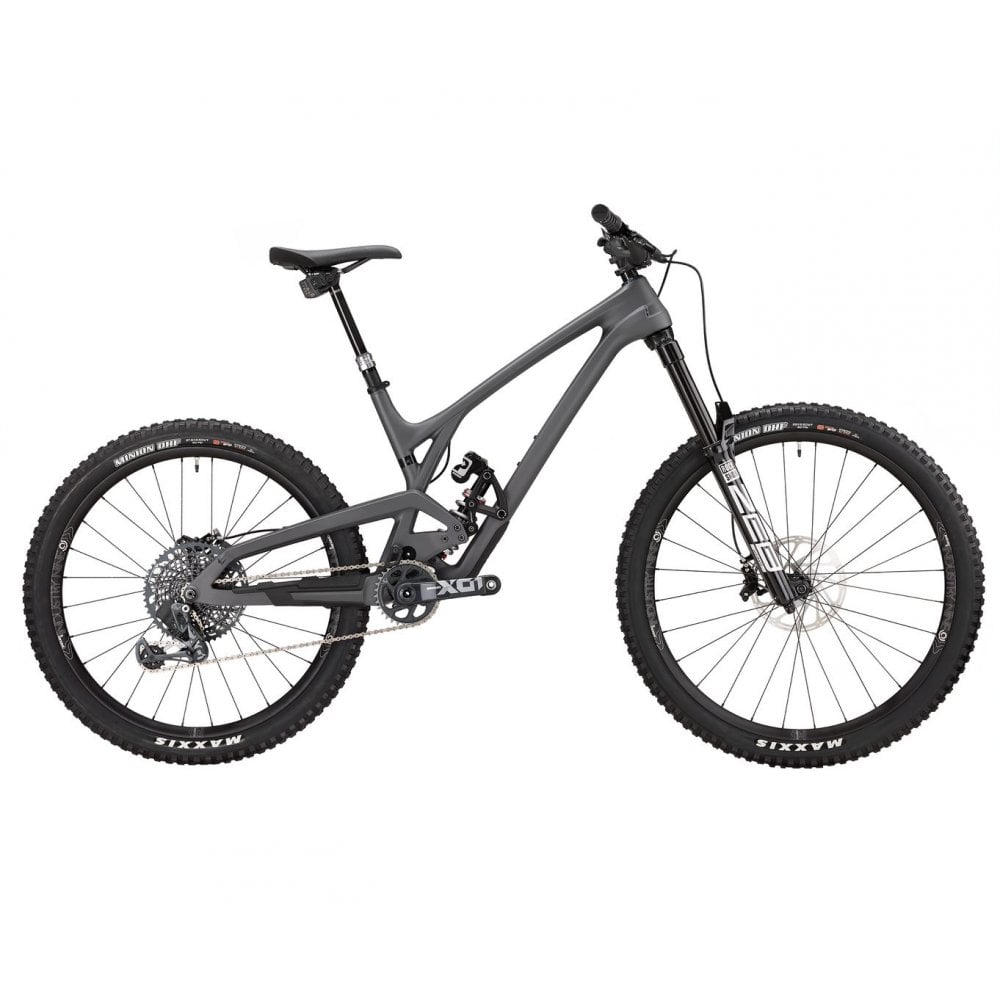

Evil Bikes Insurgent

Born in the Evil Bikes lab to tackle Earths biggest trails all while retaining the playful character expected from an Evil mountain bike, the Insurgent V2 takes the core idea of the V1 and adds new tweaks and options to bring the MTB world one of it's biggest hitters.

Evil have now given Insurgent riders the option to choose from a 27.5" wheel bike or a mixed wheel size option. The 27.5" bike makes for the most agile, bikepark friendly guise whereas the MX option is the choice of riders who want the combination of 29" wheel traction and speed matched with the playful 27.5" back-end.

The Insurgents geometry is all about speed and putting a riders weight in the correct position when at high speeds and on steep descents though Evil have made sure to keep the Insurgent as pedal friendly as possible by keeping the seat tube upright, the reach long and a 44mm offset front fork on both 27.5" and MX options. Geometry can be adjusted via a flip-chip to dial in your ride - Low - 65.3 °, X-Low - 64.7 ° on 27.5" and Low - 64.2 °, X-Low - 63.5 ° on MX

The Evil Insurgent V2 is waiting - choose your build kit, choose your shock and get ready for mile after mile of speed and insanity

Evil Sizing -

  • S - 5'3" - 5'8"
  • M - 5'7" - 6'0"
  • L - 5'10" - 6'4"
  • XL - 6'4"+



3 Shock options -

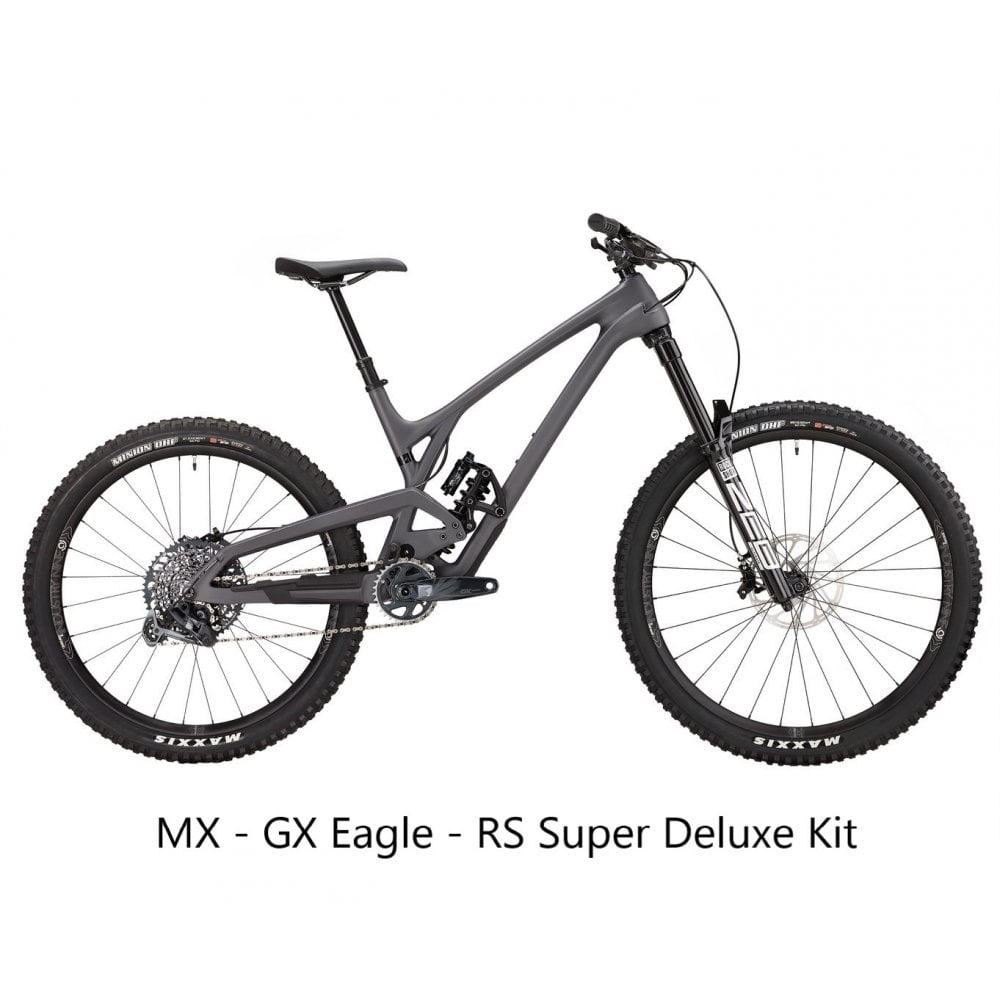

Rockshox Super Deluxe Coil Ultimate - As standard the Insurgent V2 comes with the fantastic Rockshox Super Deluxe Coil shock. You can expect consistent and reliable suspension feel through the bikes 168mm of travel as well as that smooth small-bump traction that coil shocks are renown for.

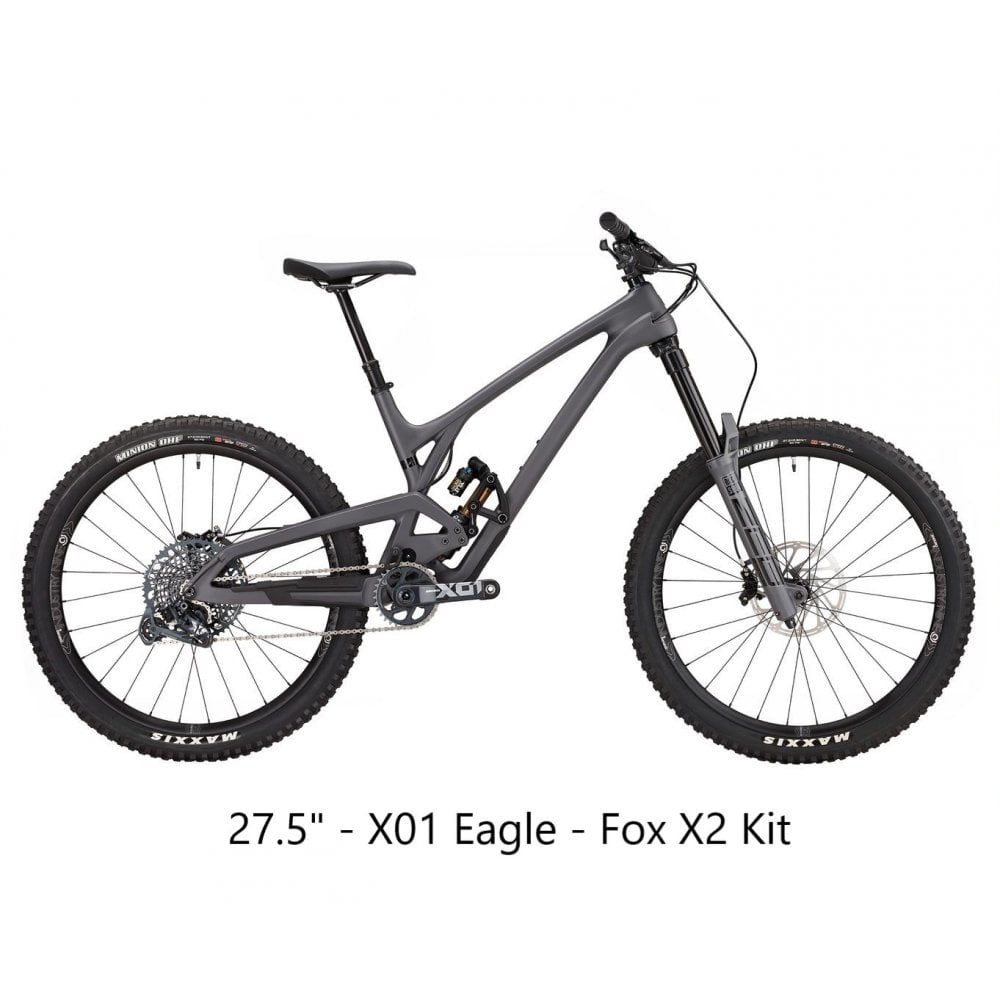

Fox X2 - If you require a more tuning options, improved pedalling yet need to retain consistent response and traction on descents the Fox X2 could be a wise upgrade. One of the most popular enduro focussed air shocks on the market and a fantastic match for the Insurgents design.

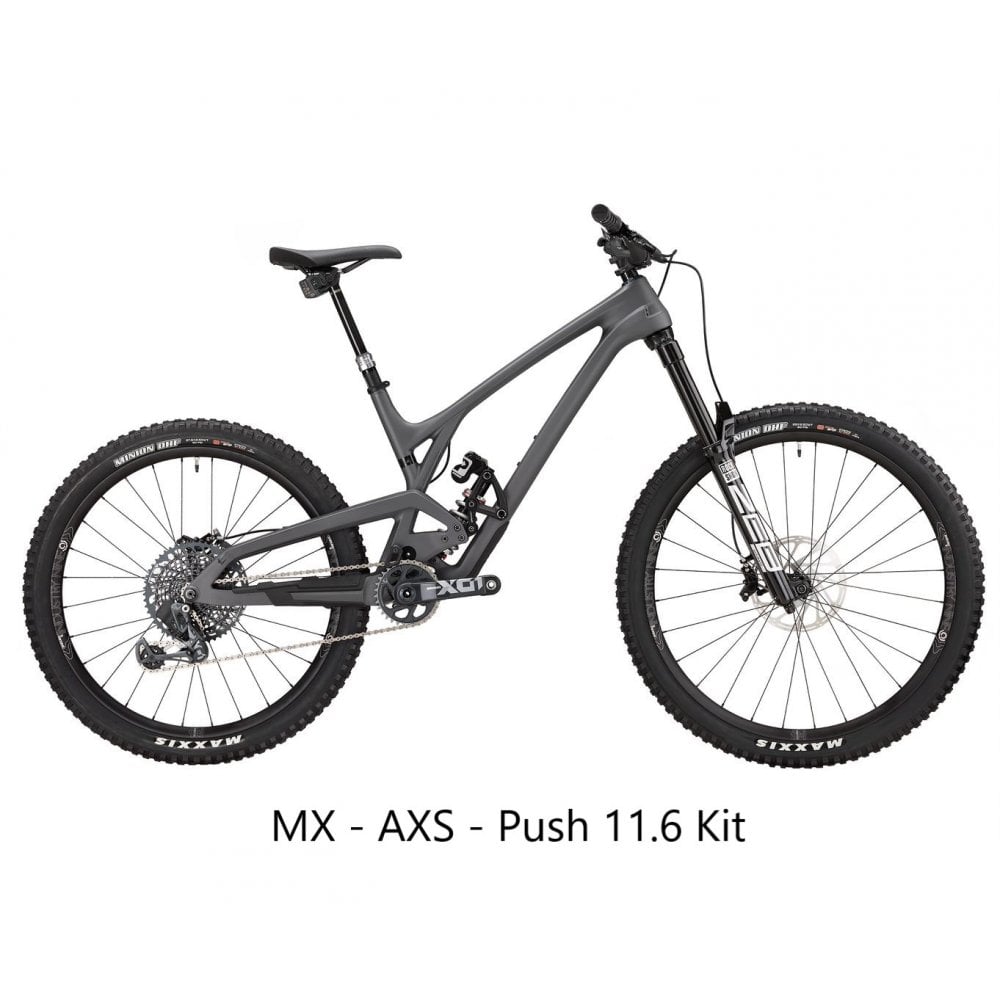

Push 11.6 - If you want to take your Insurgent build to the highest of heights then this is the shock for you. Truly a masterpiece of engineering a Push 11.6 is hard to describe without simply stating that all who ride on one cannot praise them enough. An exhaustive list of tuning options and possibly the smoothest actuation currently available for a full-suspension mountain bike. If you want to ride the ultimate weapon, this is the shock you need.

Specifications

  • GX Kit
  • X01 Kit
  • AXS Kit

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm Travel (170mm on MX option), 44mm Offset
HANDLEBAR - Evil Boomstick 7075 Alloy, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKES - SRAM Code RSC
ROTORS - FRONT - SRAM Center Line, 200mm, REAR - SRAM Center Line, 180mm
SHIFTER - SRAM GX Eagle, 12sp
REAR DERAILLEUR - SRAM GX Eagle, 12sp
CASSETTE - SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM GX Eagle w/Powerlock
CRANKSET - SRAM GX Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRES - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - Bike Yoke Revive, 30.9, S:125mm, M: 160mm,L/XL: 185mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm Travel (170mm on MX option), 44mm Offset
HANDLEBAR - Evil Boomstick Carbon Bar, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKE - SRAM CODE RSC
ROTORS - FRONT - SRAM Center Line, 200mm, REAR - SRAM Center Line, 180mm
SHIFTER - SRAM X01 Eagle, 12sp
REAR DERAILLEUR - SRAM X01 Eagle, 12sp
CASSETTE - SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM X01 Eagle w/Powerlock
CRANKSET - SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRE - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - Bike Yoke Revive, 30.9, S:125mm, M: 160mm,L/XL: 185mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm (170mm on MX option) Travel, 44mm Offset
HANDLEBAR - Evil Boomstick Carbon Bar, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKE - FRONT - TRP DH-R Evo
ROTORS - FRONT - TRP 2.3mm, 203mm, REAR - TRP 2.3mm, 180mm
SHIFTER - SRAM X01 Eagle AXS, 12sp
REAR DERAILLEUR - SRAM X01 Eagle AXS, 12sp
CASSETTE - SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM X01 Eagle w/Powerlock
CRANKSET - SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRE - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - SRAM AXS Reverb, 30.9, S: 125mm, M: 150mm, L/XL: 170mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle

Evil Bikes Insurgent

SKU: INS-CS-S-GX-RSSD-27.5 / Barcode: 8436611424249

Evil Bikes Insurgent

Born in the Evil Bikes lab to tackle Earths biggest trails all while retaining the playful character expected from an Evil mountain bike, the Insurgent V2 takes...

Regular price £6,099.00
Colour Clean Slate
Size S
Option 27.5 - GX Eagle Kit - RS Super Deluxe
Out of stock

90 Day Returns -

Description

Evil Bikes Insurgent

Born in the Evil Bikes lab to tackle Earths biggest trails all while retaining the playful character expected from an Evil mountain bike, the Insurgent V2 takes the core idea of the V1 and adds new tweaks and options to bring the MTB world one of it's biggest hitters.

Evil have now given Insurgent riders the option to choose from a 27.5" wheel bike or a mixed wheel size option. The 27.5" bike makes for the most agile, bikepark friendly guise whereas the MX option is the choice of riders who want the combination of 29" wheel traction and speed matched with the playful 27.5" back-end.

The Insurgents geometry is all about speed and putting a riders weight in the correct position when at high speeds and on steep descents though Evil have made sure to keep the Insurgent as pedal friendly as possible by keeping the seat tube upright, the reach long and a 44mm offset front fork on both 27.5" and MX options. Geometry can be adjusted via a flip-chip to dial in your ride - Low - 65.3 °, X-Low - 64.7 ° on 27.5" and Low - 64.2 °, X-Low - 63.5 ° on MX

The Evil Insurgent V2 is waiting - choose your build kit, choose your shock and get ready for mile after mile of speed and insanity

Evil Sizing -

  • S - 5'3" - 5'8"
  • M - 5'7" - 6'0"
  • L - 5'10" - 6'4"
  • XL - 6'4"+



3 Shock options -

Rockshox Super Deluxe Coil Ultimate - As standard the Insurgent V2 comes with the fantastic Rockshox Super Deluxe Coil shock. You can expect consistent and reliable suspension feel through the bikes 168mm of travel as well as that smooth small-bump traction that coil shocks are renown for.

Fox X2 - If you require a more tuning options, improved pedalling yet need to retain consistent response and traction on descents the Fox X2 could be a wise upgrade. One of the most popular enduro focussed air shocks on the market and a fantastic match for the Insurgents design.

Push 11.6 - If you want to take your Insurgent build to the highest of heights then this is the shock for you. Truly a masterpiece of engineering a Push 11.6 is hard to describe without simply stating that all who ride on one cannot praise them enough. An exhaustive list of tuning options and possibly the smoothest actuation currently available for a full-suspension mountain bike. If you want to ride the ultimate weapon, this is the shock you need.

Specifications

  • GX Kit
  • X01 Kit
  • AXS Kit

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm Travel (170mm on MX option), 44mm Offset
HANDLEBAR - Evil Boomstick 7075 Alloy, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKES - SRAM Code RSC
ROTORS - FRONT - SRAM Center Line, 200mm, REAR - SRAM Center Line, 180mm
SHIFTER - SRAM GX Eagle, 12sp
REAR DERAILLEUR - SRAM GX Eagle, 12sp
CASSETTE - SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM GX Eagle w/Powerlock
CRANKSET - SRAM GX Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRES - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - Bike Yoke Revive, 30.9, S:125mm, M: 160mm,L/XL: 185mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm Travel (170mm on MX option), 44mm Offset
HANDLEBAR - Evil Boomstick Carbon Bar, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKE - SRAM CODE RSC
ROTORS - FRONT - SRAM Center Line, 200mm, REAR - SRAM Center Line, 180mm
SHIFTER - SRAM X01 Eagle, 12sp
REAR DERAILLEUR - SRAM X01 Eagle, 12sp
CASSETTE - SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM X01 Eagle w/Powerlock
CRANKSET - SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRE - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - Bike Yoke Revive, 30.9, S:125mm, M: 160mm,L/XL: 185mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle

  • Discipline Bikepark/Freeride

  • Material Carbon

  • Front Travel 180mm 27.5" / 170mm MX

  • Rear Travel 168mm

  • Wheel Size 27.5" or MX

  • Warranty Lifetime (frame)

FRAME - Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
SHOCK - RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
HEADSET - Works Components 1 ° ZS44/ZS62 Integrated Angle Headset
HEADSET SPACERS - Poly Spacers 5mm black
FORK - RockShox ZEB Ultimate, Charger 2.1 RC2, 180mm (170mm on MX option) Travel, 44mm Offset
HANDLEBAR - Evil Boomstick Carbon Bar, Backsweep: 8 °, Upsweep: 5 ° Clamp:35mm, Rise: 35mm, Width: 810mm
STEM - Evil 12 Gauge, Clamp: 35mm, Length: 35mm
GRIPS - Evil Pamela Handerson Lock-On
BRAKE - FRONT - TRP DH-R Evo
ROTORS - FRONT - TRP 2.3mm, 203mm, REAR - TRP 2.3mm, 180mm
SHIFTER - SRAM X01 Eagle AXS, 12sp
REAR DERAILLEUR - SRAM X01 Eagle AXS, 12sp
CASSETTE - SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
CHAIN - SRAM X01 Eagle w/Powerlock
CRANKSET - SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
BOTTOM BRACKET - SRAM DUB 73mm BSA
WHEELSET - FRONT - Industry Nine Enduro S Hydra Diameter: 27.5” (29" on MX option), Internal Width: 30.5mm, Hub: 110x15mm
WHEELSET - REAR - Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
TYRE - FRONT - Maxxis Minion DHF EXO TR, 27.5x2.5 (29x2.5 on MX option), REAR - Maxxis Minion DHF EXO TR, 27.5x2.3
TUBES - Stan’s No Tubes Tubeless Sealant
SEATPOST - SRAM AXS Reverb, 30.9, S: 125mm, M: 150mm, L/XL: 170mm
SADDLE - WTB Volt Medium (142mm) Width Chromoly Saddle
