Description

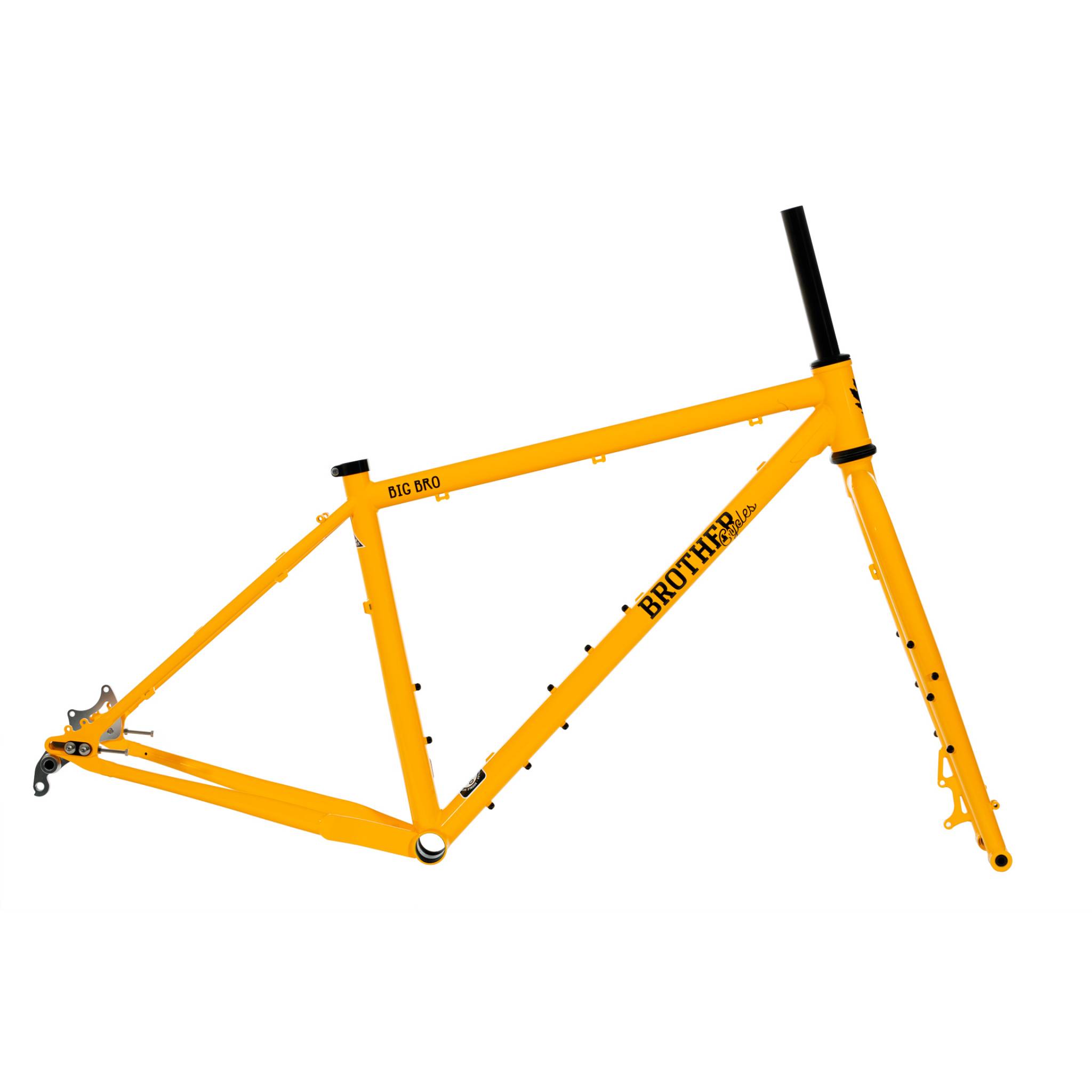

Brother Cycles' dedicated adventure frame, the Big Bro, is supremely tough and hungry for challenging trails. Whether you’re running a lightweight bikepacking setup, front and rear panniers for a fully loaded ’round-the-world’ tour or just stripped back to thrash some forest trails the Big Bro can handle it
The frame is made out of tough 4130 double butted cro-mo tubing and comes with a 100mm suspension corrected fork, both with corrosion resistant ED coating applied. The Big Bro features Boost spacing which means there’s clearance for big 27.5 x 3″ tyres or 29 x 2.6″ tyres if you’d prefer to go with a 29er setup. It features stealth dropper routing, rack mounts, bottle mounts on the seat tube, down tube and under the down tube for an extra bottle or storage. The forks also feature triple bottle mounts to fit further bottle cages or Anything Cages. S-bend chainstays with replaceable alloy thru axle sliding dropouts allow for geared or singlespeed setups
Contact us at support@biketart.com to discuss components, availability or to arrange your own custom built Brother Big Bro.
SPECIFICATION -
- Tubing: - 4130 Chromoly steel - double-butted main triangle, ED coated
- Brake compatibility; 51mm IS disc brake mount, 180mm max rotor size
- Dropouts: Boost 12x148mm thru axle (included)
- Seat post diameter: 30.9mm
- Seat clamp diameter: 33.1mm (included)
- Headset: 44mm, SHIS ZS44/28.6 upper, EC44/40 lower (not included)
- Front derailleur clamp diameter: 34.9 mm high direct-mount (adapter available separately)
- Bottom bracket shell: 73mm bottom bracket, ISO threaded
- Maximum tyre clearance: 29" x 2.6", 27.5" x 3.0" (note: not all drivetrains allow for these maximum tyre clearances)
- Fork : 4130 Chromoly tapered unicrown fork, ED coated. 15x110mm Boost thru axle (included)
- Full-length cable housing guides for derailleurs and brakes
- 3 sets bottle cage mounts on all sizes
- Chainring clearance: 44-30t double, 38t single
- Weight: medium (18") frame 2.60kg, fork (300mm steerer) 1.37kg
- Tested to ISO 4210 MTB standard
Brother Cycles Big Bro Frameset
Brother Cycles' dedicated adventure frame, the Big Bro, is supremely tough and hungry for challenging trails. Whether you’re running a lightweight bikepacking setup, front and rear panniers for a fully loaded...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Brother Cycles' dedicated adventure frame, the Big Bro, is supremely tough and hungry for challenging trails. Whether you’re running a lightweight bikepacking setup, front and rear panniers for a fully loaded ’round-the-world’ tour or just stripped back to thrash some forest trails the Big Bro can handle it
The frame is made out of tough 4130 double butted cro-mo tubing and comes with a 100mm suspension corrected fork, both with corrosion resistant ED coating applied. The Big Bro features Boost spacing which means there’s clearance for big 27.5 x 3″ tyres or 29 x 2.6″ tyres if you’d prefer to go with a 29er setup. It features stealth dropper routing, rack mounts, bottle mounts on the seat tube, down tube and under the down tube for an extra bottle or storage. The forks also feature triple bottle mounts to fit further bottle cages or Anything Cages. S-bend chainstays with replaceable alloy thru axle sliding dropouts allow for geared or singlespeed setups
Contact us at support@biketart.com to discuss components, availability or to arrange your own custom built Brother Big Bro.
SPECIFICATION -
- Tubing: - 4130 Chromoly steel - double-butted main triangle, ED coated
- Brake compatibility; 51mm IS disc brake mount, 180mm max rotor size
- Dropouts: Boost 12x148mm thru axle (included)
- Seat post diameter: 30.9mm
- Seat clamp diameter: 33.1mm (included)
- Headset: 44mm, SHIS ZS44/28.6 upper, EC44/40 lower (not included)
- Front derailleur clamp diameter: 34.9 mm high direct-mount (adapter available separately)
- Bottom bracket shell: 73mm bottom bracket, ISO threaded
- Maximum tyre clearance: 29" x 2.6", 27.5" x 3.0" (note: not all drivetrains allow for these maximum tyre clearances)
- Fork : 4130 Chromoly tapered unicrown fork, ED coated. 15x110mm Boost thru axle (included)
- Full-length cable housing guides for derailleurs and brakes
- 3 sets bottle cage mounts on all sizes
- Chainring clearance: 44-30t double, 38t single
- Weight: medium (18") frame 2.60kg, fork (300mm steerer) 1.37kg
- Tested to ISO 4210 MTB standard
