Description

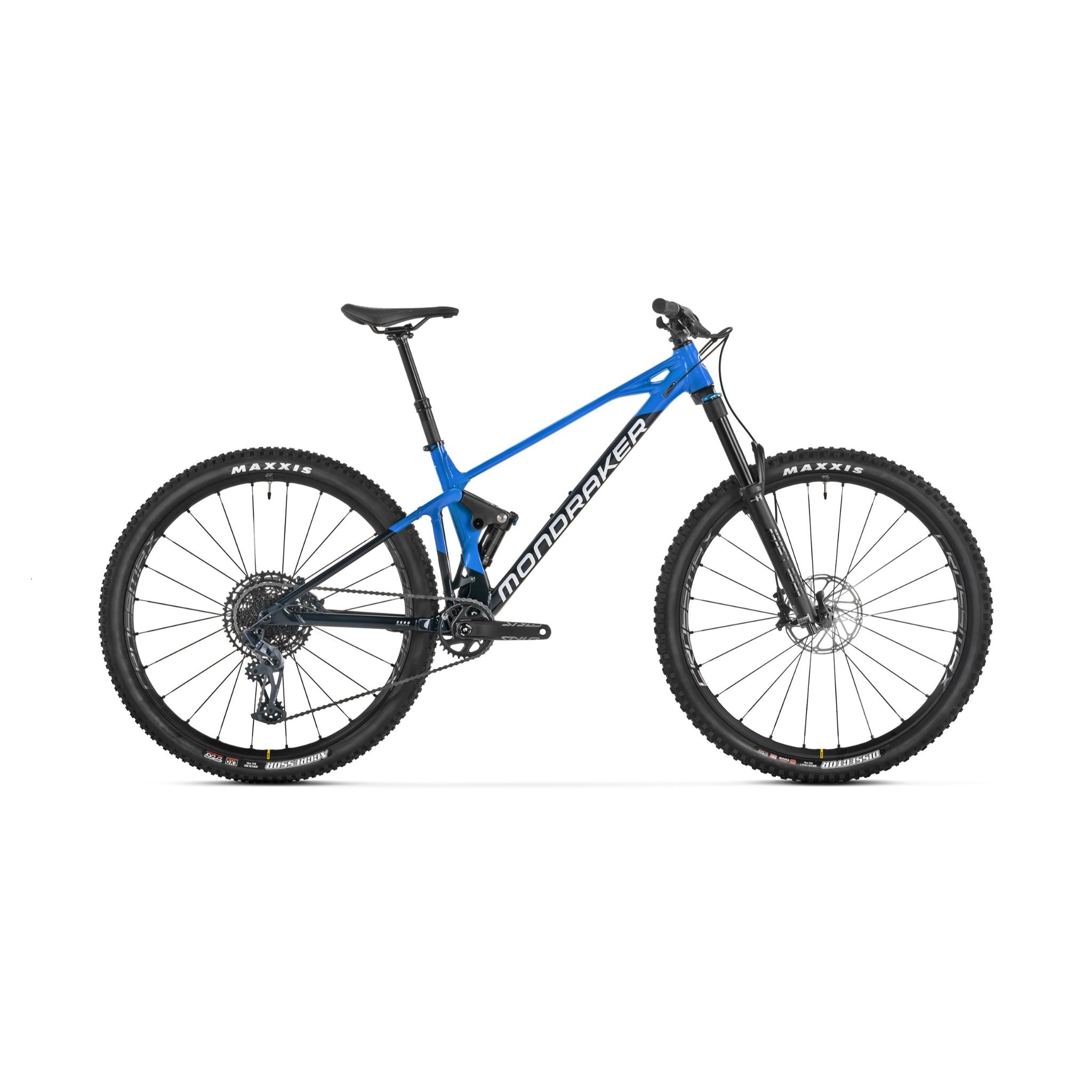

The Raze is Mondraker's finely tuned, purpose designed Trail bike. Nailing the desired combination of climbing efficiency and descending control. Though labelled as Mondraker's trail bike, the modern frame design and latest features make the Raze more than equipped for bikeparks and enduro stages, you really would have to go to the worlds scariest runs and features to come close to the Raze's limits.
From the moment the Raze debuted last season it immediately became a benchmark within its category. With forward geometry adapted to the discipline as well as Mondraker’s zero suspension system, the Raze R is built around the superb aluminium Raze frame offering the same geometry and design as the premium carbon at a lower price point.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Rear shock - Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings - Light compression, light rebound, air volume spacer 0.6
Fork - Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims - Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes - Mavic 24 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire - Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset - Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Rings - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram NX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 15,4 kg
