Description
The Raze is Mondraker's finely tuned, purpose designed Trail bike. Nailing the desired combination of climbing efficiency and descending control.
From the moment the Raze debuted last season it immediately became a benchmark within its category. With forward geometry adapted to the discipline as well as Mondraker’s zero suspension system, the Raze boasts a spectacular carbon frame with an incredibly low weight.
The top of range RR SL is dressed in the best components currently available and will provide the ultimate trail riding experience. Don't be mistaken by the trail bike status, this bike will be a weapon at a bikepark, you'd have to be hitting the toughest lines on the planet to come anywhere near this bikes limit.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail
-
Material Carbon
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Rear shock - Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Light compression,light rebound, air volume spacer 0.6
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle - Fizik Vento Argo X5
Front brake - Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Rims - Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes - Mavic 24 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire - Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset - Sram XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Weight - 13,3 kg

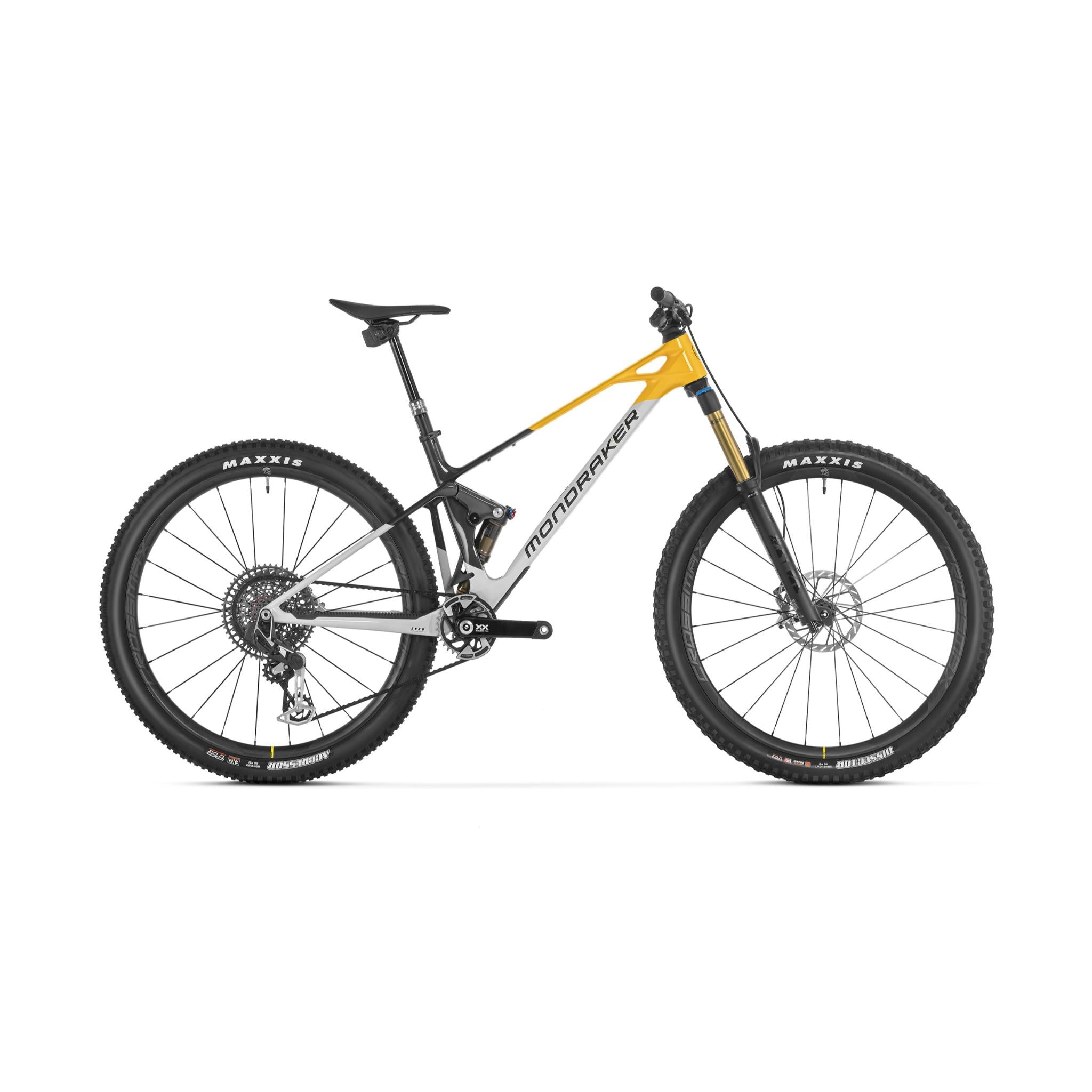

Mondraker Raze Carbon RR SL 2024
The Raze is Mondraker's finely tuned, purpose designed Trail bike. Nailing the desired combination of climbing efficiency and descending control.
From the moment the Raze debuted last...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Raze is Mondraker's finely tuned, purpose designed Trail bike. Nailing the desired combination of climbing efficiency and descending control.
From the moment the Raze debuted last season it immediately became a benchmark within its category. With forward geometry adapted to the discipline as well as Mondraker’s zero suspension system, the Raze boasts a spectacular carbon frame with an incredibly low weight.
The top of range RR SL is dressed in the best components currently available and will provide the ultimate trail riding experience. Don't be mistaken by the trail bike status, this bike will be a weapon at a bikepark, you'd have to be hitting the toughest lines on the planet to come anywhere near this bikes limit.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail
-
Material Carbon
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Rear shock - Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Light compression,light rebound, air volume spacer 0.6
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle - Fizik Vento Argo X5
Front brake - Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Rims - Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes - Mavic 24 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire - Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset - Sram XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Weight - 13,3 kg
