Description

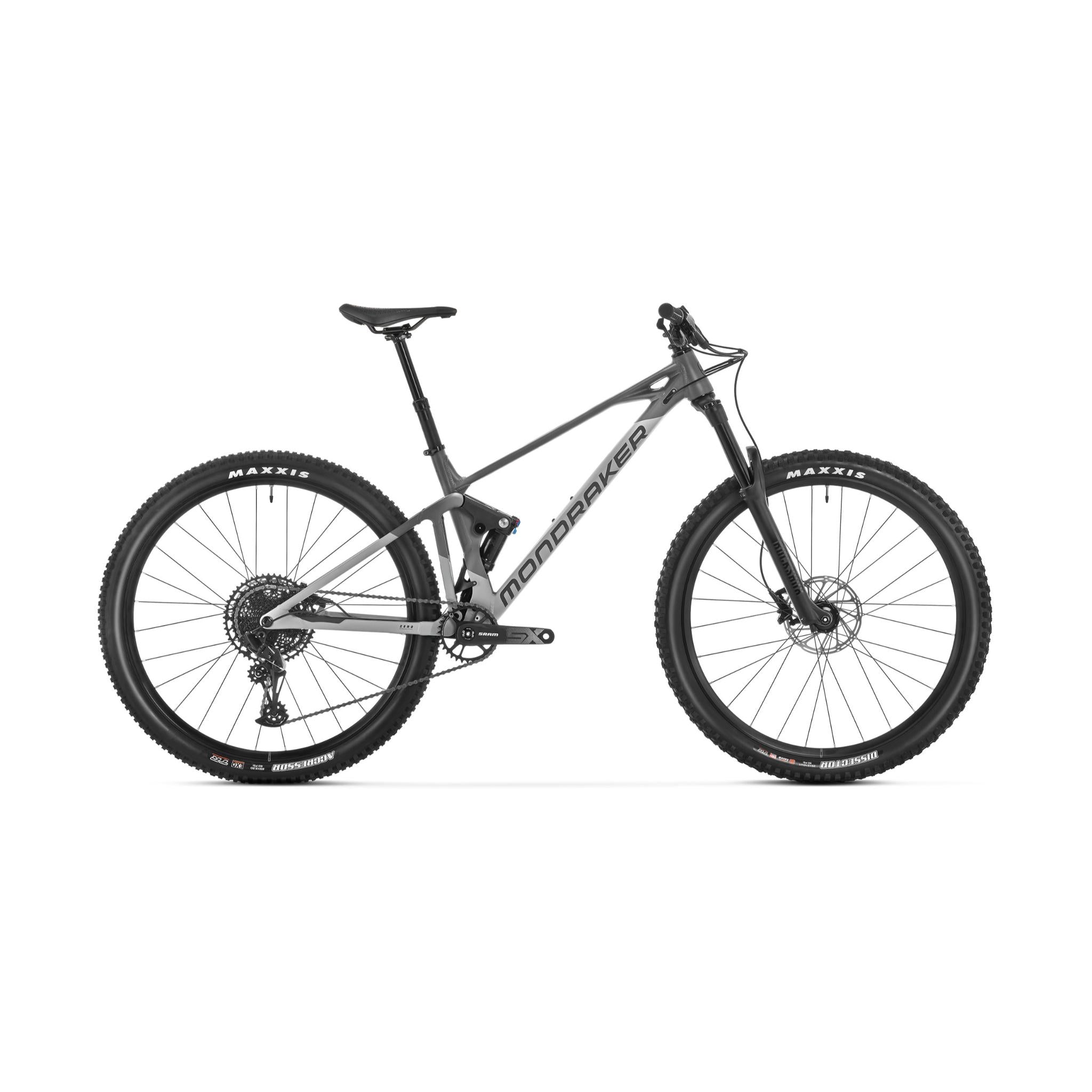

The Raze is Mondraker's finely tuned, purpose designed Trail bike. Nailing the desired combination of climbing efficiency and descending control. Though labelled as Mondraker's trail bike, the modern frame design and latest features make the Raze more than equipped for bikeparks and enduro stages, you really would have to go to the worlds scariest runs and features to come close to the Raze's limits.
From the moment the Raze debuted last season it immediately became a benchmark within its category. With forward geometry adapted to the discipline as well as Mondraker’s zero suspension system, the Raze R is built around the superb aluminium Raze frame offering the same geometry and design as the premium carbon at a lower price point.
The entry level Raze offers the same geometry and frame design as the premium models, with an outstanding value build kit and at a great price point.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Rear shock - Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings - Light compression, light rebound, air volume spacer 0.6
Fork - RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28 spokes
Spokes - Mavic 28 round j-bend stainless steel
Front hub - Mavic Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub - Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire - Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset - Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Rings - 32T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 15,9 kg
