Description

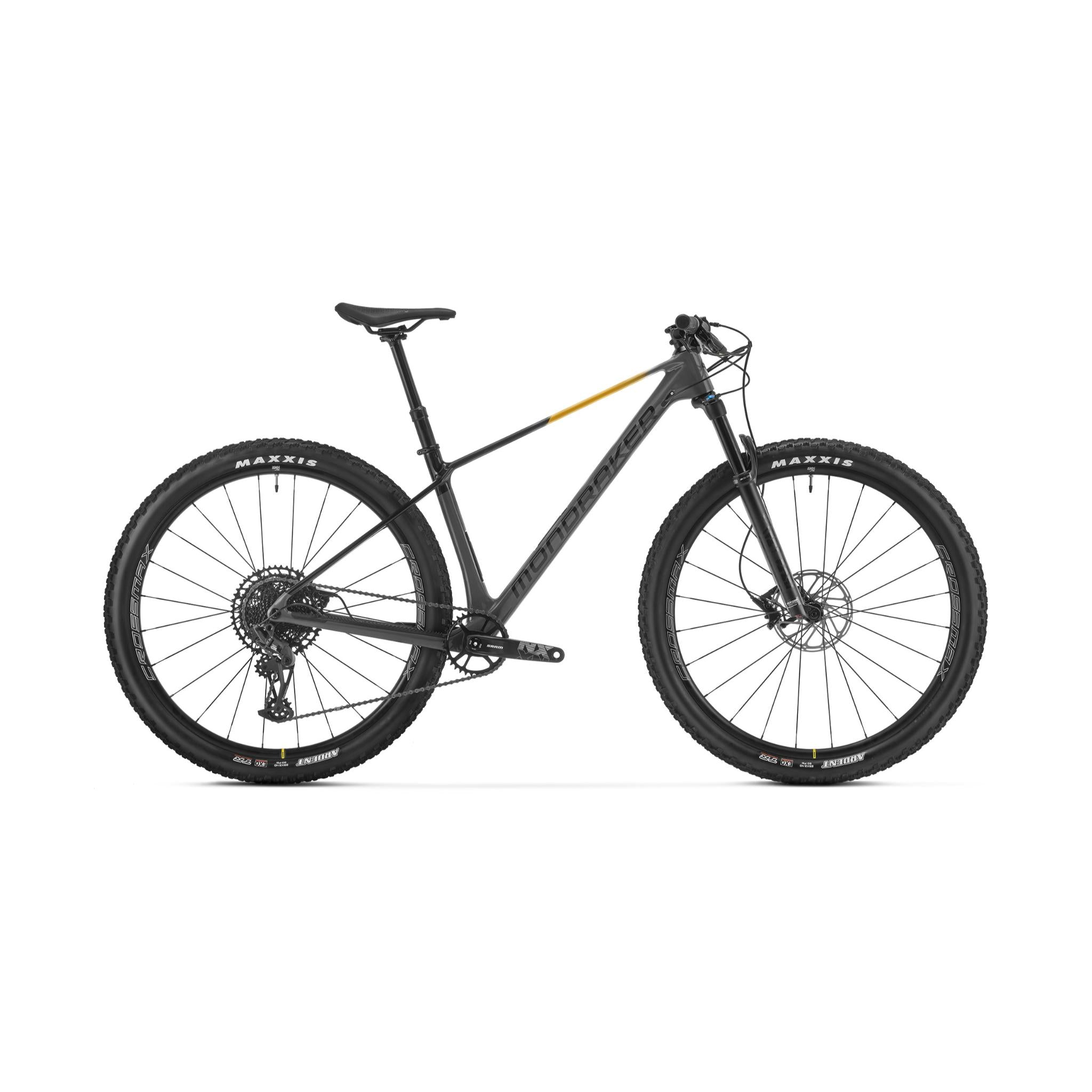

Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the comfort level. Still very much a rapid XC bike the Chrono's less aggressive frame platform means the Chrono will be more fun on trail rides or long distances when compared to the full-speed Podium. The DC model bumps front travel up to 120mm from the standard Chrono's 100mm as well as fitting chunkier 2.4" tyres, these changes tailor the DC for rougher terrains.
The carbon fibre layup of the stealth carbon frame absorbs trail vibration and significantly reduces rider fatigue, while its feather weight keeps it super agile. Complementing that optimized frame are components such as a Fox 32 fork, Mavic Crossmax wheels, SRAM SX/NX/GX mix Eagle drivetrain and ONOFF components.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/XC
-
Material Stealth Carbon
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Fork - Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload
Fork remote - Fox single pull
Headset - Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem - MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar - Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes - Mavic straight-pull double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset - Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings - 34T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 12,1 kg
Mondraker Chrono Carbon DC R 2024
