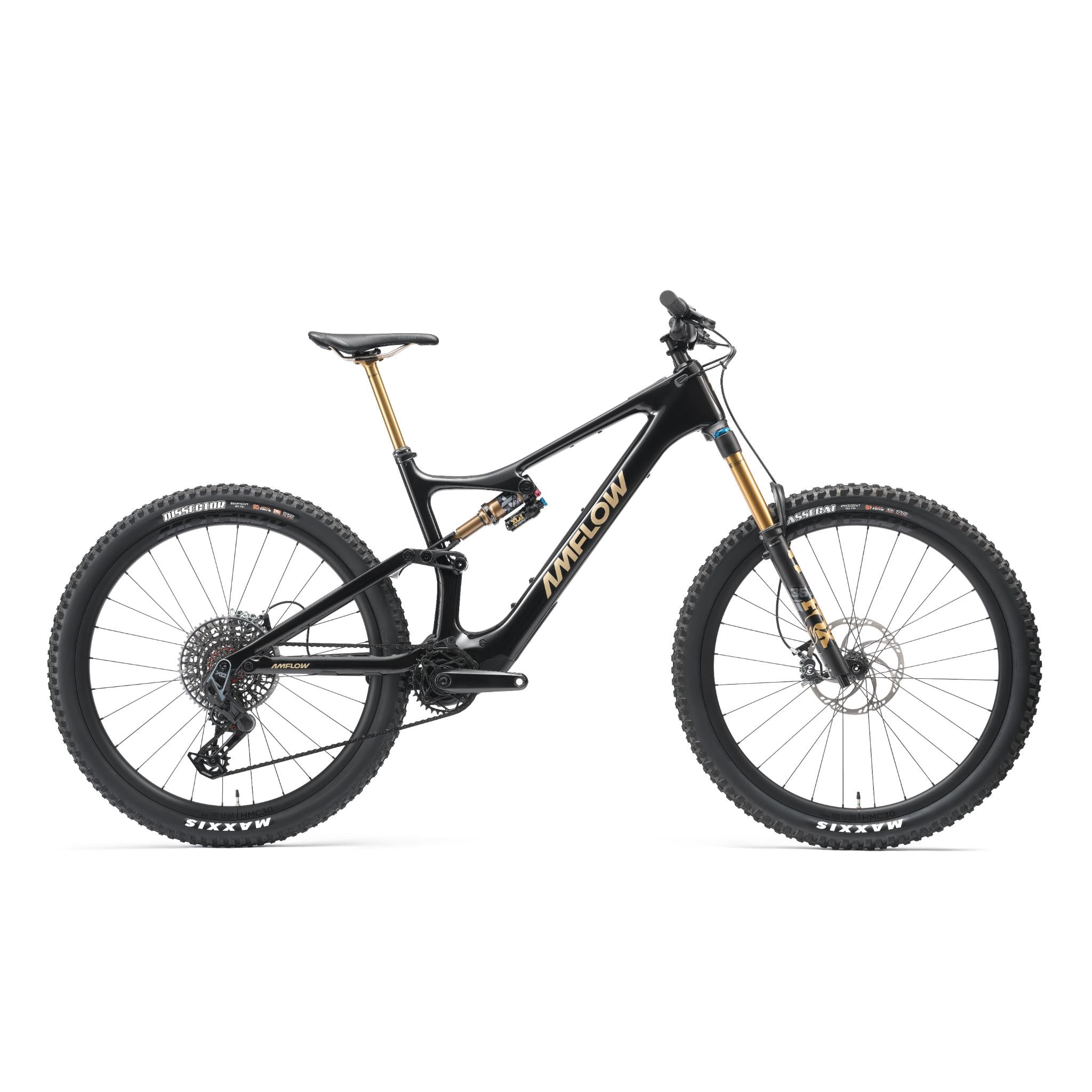

The Amflow PL Carbon Pro is the top-of-the-range PL, a lightweight, powerful carbon e-MTB packed with high-end components and the latest e-bike tech. It combines a big battery with a modern, well-sorted frame design, and the numbers stack up impressively against anything else in its class.
At its heart is the DJI Avinox drive system. This neatly integrated motor has a remarkable power-to-weight ratio, producing 850W peak and 105Nm of torque while weighing just 2.52kg. It's paired with an 800Wh battery (3.74kg) hidden in the downtube, good for up to 157km of range. Alongside Eco, Trail and Turbo modes there's an Auto mode that adapts assistance in real time to the terrain and your riding position, so you can tackle changing gradients without switching modes. There's also a walk assist mode, plus a Boost mode giving 120Nm and 1000W for 30 seconds when you need to clear a particularly tricky climb.
The ultra-light carbon frame (approx 2.27kg) is designed to feel balanced and agile, integrating the electric tech while keeping the ride feel of a regular bike. Its 150mm four-bar rear end significantly reduces pedal kickback and improves pedalling efficiency. The Pro build steps up to Fox Factory suspension with a Grip X2 damper, SRAM X0 Eagle AXS wireless shifting, Magura MT7 Pro brakes, Amflow carbon wheels and a Fox Transfer Factory dropper.
The official Amflow custom-fit frame bag is also available to order HERE.
Features
- Lightweight carbon frame, approx 2.27kg
- DJI Avinox M1 motor, 105Nm and 850W peak, weighing just 2.52kg
- 800Wh battery hidden in the downtube, up to 157km range
- Five modes including Auto, walk assist and a 120Nm/1000W Boost
- Fox 36 Factory Grip X2 160mm fork and Float X Factory shock
- SRAM X0 Eagle 12-speed with AXS Pod Controller
- Magura MT7 Pro four-piston brakes with 203mm rotors
- Amflow HMC-30 carbon wheels, 29" (rear can be swapped to 27.5")
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
Warranty5 Years
Drive unit - DJI Avinox M1, 105Nm, 2-inch OLED control display
Battery - 800Wh
Rear shock - Fox Float X Factory, Trunnion (185x55mm), custom tune, EVOL air sleeve, 2-position lever w/ LSC adjustment
Fork - Fox 36 Factory, 160mm travel, Grip X2 damper, 15x110mm, 44mm rake
Rear derailleur - SRAM X0 Eagle 12-speed
Crankset - DJI Avinox SL Crank (M/L: 155mm, XL/XXL: 160mm)
Shifter - SRAM AXS Pod Controller
Cassette - SRAM XG-1230, 11-52T
Chain - SRAM X0 Eagle
Brakes - Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC rotors (front and rear)
Wheels - Amflow HMC-30, Carbon, 29", 30mm internal width, 28H, tubeless ready
Tyres - Front: Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR. Rear: Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Handlebar - Amflow Enduro Carbon
Grips - Amflow Enduro Grips
Stem - Amflow Enduro Stem, one-piece CNC
Saddle - Ergon SM Pro M/L
Seatpost - Fox Transfer Factory
Accessories - Quick start guide, torque wrench, shock pump, front and rear lights
PL Carbon Pro
- Electric · Trail / Enduro
- 160 / 150mm travel
- 29″ wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Amflow PL Carbon Pro is the top-of-the-range PL, a lightweight, powerful carbon e-MTB packed with high-end components and the latest e-bike tech. It combines a big battery with a modern, well-sorted frame design, and the numbers stack up impressively against anything else in its class.
At its heart is the DJI Avinox drive system. This neatly integrated motor has a remarkable power-to-weight ratio, producing 850W peak and 105Nm of torque while weighing just 2.52kg. It's paired with an 800Wh battery (3.74kg) hidden in the downtube, good for up to 157km of range. Alongside Eco, Trail and Turbo modes there's an Auto mode that adapts assistance in real time to the terrain and your riding position, so you can tackle changing gradients without switching modes. There's also a walk assist mode, plus a Boost mode giving 120Nm and 1000W for 30 seconds when you need to clear a particularly tricky climb.
The ultra-light carbon frame (approx 2.27kg) is designed to feel balanced and agile, integrating the electric tech while keeping the ride feel of a regular bike. Its 150mm four-bar rear end significantly reduces pedal kickback and improves pedalling efficiency. The Pro build steps up to Fox Factory suspension with a Grip X2 damper, SRAM X0 Eagle AXS wireless shifting, Magura MT7 Pro brakes, Amflow carbon wheels and a Fox Transfer Factory dropper.
The official Amflow custom-fit frame bag is also available to order HERE.
Features
- Lightweight carbon frame, approx 2.27kg
- DJI Avinox M1 motor, 105Nm and 850W peak, weighing just 2.52kg
- 800Wh battery hidden in the downtube, up to 157km range
- Five modes including Auto, walk assist and a 120Nm/1000W Boost
- Fox 36 Factory Grip X2 160mm fork and Float X Factory shock
- SRAM X0 Eagle 12-speed with AXS Pod Controller
- Magura MT7 Pro four-piston brakes with 203mm rotors
- Amflow HMC-30 carbon wheels, 29" (rear can be swapped to 27.5")
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
Warranty5 Years
Drive unit - DJI Avinox M1, 105Nm, 2-inch OLED control display
Battery - 800Wh
Rear shock - Fox Float X Factory, Trunnion (185x55mm), custom tune, EVOL air sleeve, 2-position lever w/ LSC adjustment
Fork - Fox 36 Factory, 160mm travel, Grip X2 damper, 15x110mm, 44mm rake
Rear derailleur - SRAM X0 Eagle 12-speed
Crankset - DJI Avinox SL Crank (M/L: 155mm, XL/XXL: 160mm)
Shifter - SRAM AXS Pod Controller
Cassette - SRAM XG-1230, 11-52T
Chain - SRAM X0 Eagle
Brakes - Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC rotors (front and rear)
Wheels - Amflow HMC-30, Carbon, 29", 30mm internal width, 28H, tubeless ready
Tyres - Front: Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR. Rear: Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Handlebar - Amflow Enduro Carbon
Grips - Amflow Enduro Grips
Stem - Amflow Enduro Stem, one-piece CNC
Saddle - Ergon SM Pro M/L
Seatpost - Fox Transfer Factory
Accessories - Quick start guide, torque wrench, shock pump, front and rear lights
