Description

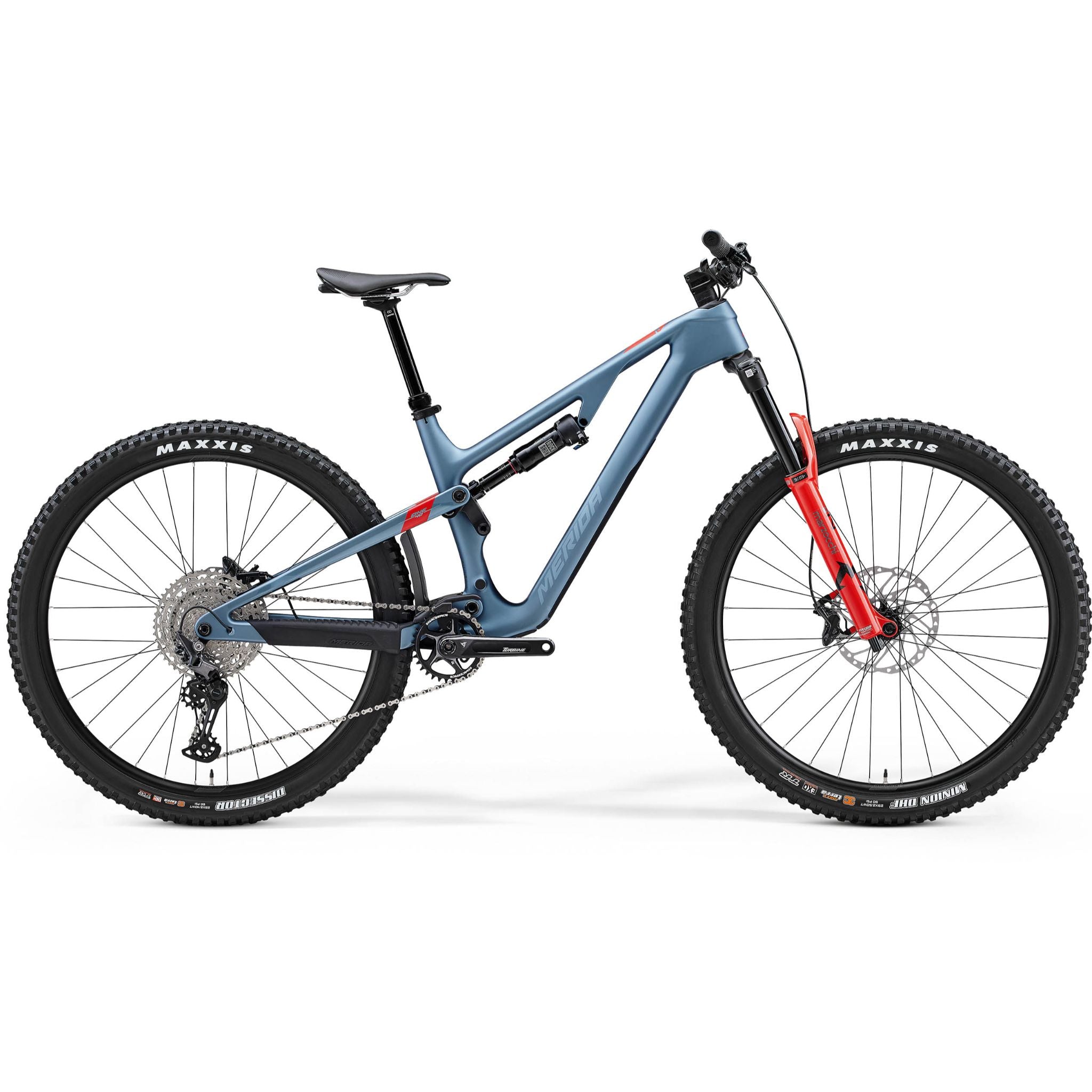

With a stunning all-carbon chassis the One-Forty 6000 represents a leap forwards in what you should expect your trail bike to be capable of. Radical new geometry delivers the goods on the most technical climbs or the toughest descents, with sizing perfectly tuned to what the rider wants. The 29er wheels work in perfect harmony with FAST kinematic suspension with Fox shock and 150mm Marzocchi fork.
The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It's the pinnacle of modern trail riding, with a super-steep 80 ° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65 ° head angle mean it's still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's engineers have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
- Full carbon frame with FAST kinematic suspension and AGILOMETER sizing
- Radical trail geometry with full 29er wheels
- 230 mm travel-adjustable dropper post
- Marzocchi and RockShox suspension, 150 mm front, 143 mm rear
- Wide-range Shimano 12-speed drivetrain
- On-board tool storage and FidLock bottle cagex000B
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Trail/All-Mountain
-
Material Carbon
-
Front Travel 150mm
-
Rear Travel 143mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
FRAME - CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - RockShox Deluxe Select+; lockout
FORK - Marzocchi Z1; Air; 150mm travel; Tapered; 44mm fork offset; Max tyre size: 29 x 2.6"
GEARS - 12
SHIFTERS - Shimano XT; Multi Release and Shimano SL-MT500-IL dropper post lever
REAR DERAILLEUR - Shimano SLX M7100 Shadow+; SGS
BOTTOM BRACKET - BB, BSA 73mm– Ø30mm, Ext. Seal
CHAIN - KMC X12
CHAINSET - Race Face Turbine; 32 tooth chainset. Merida Expert TR ISCG05 chainguide. Crank length: 170mm-S, 175mm-M up
CASSETTE - Shimano SLX; 10-51 teeth; 12 speed
BRAKE LEVER - Shimano SLX M7120
FRONT BRAKE - Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor
REAR BRAKE - Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida 8151 1-1/8"-1.5" cartridge bearing
PEDAL - Not included
SADDLE - Merida Expert SL with V-mount; including Merida minitool
SEAT POST - Merida Team TR; 34.9mm diameter; 10mm lay back; all sizes 30-230mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
SPOKES - Double Butted Black stainless
FRONT HUB - Shimano SLX; 110x15mm; 32 spokes; Center lock
REAR HUB - Shimano SLX; 148x12mm, 32 spokes; Center lock. With Merida Expert TR axle including removable lever, 6/4mm allen key
FRONT TYRE - Maxxis Minion DHF; 29" x 2.5"; Kevlar bead, folding; TR EXO 3C MaxxTera
REAR TYRE - Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO+ MaxxTerra
OTHER - Fidlock Integrated Base & TWIST Bottle 600ml
